Giantex 5-Drawer Dresser Instruction Manual

1. Introduzione

This manual provides instructions for the assembly, operation, and maintenance of your Giantex 5-Drawer Dresser, Model HW61421BK. This versatile storage unit features five spacious fabric drawers and a sturdy metal frame, designed to help organize clothing and other household essentials. It can also serve as a TV stand, accommodating flat-screen televisions up to 50 inches. Its modern design allows for seamless integration into various room settings, including bedrooms, living rooms, and entryways.

Image 1.1: The Giantex 5-Drawer Dresser in a typical room setting.

2. Informazioni sulla sicurezza

Si prega di leggere attentamente tutte le istruzioni di sicurezza prima del montaggio e dell'uso. Il mancato rispetto di queste istruzioni può causare lesioni o danni al prodotto.

• Capacità di peso: Do not exceed the maximum weight capacity for the tabletop (66 lbs) and each drawer (6 lbs). Overloading can cause instability and damage.
• Pericolo di ribaltamento: To prevent tip-over, especially with children, always place heavier items in the bottom drawers. Consider securing the unit to a wall using appropriate anti-tip hardware (not included, but recommended for safety).
• Montaggio: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all parts are correctly installed and fasteners are tightened before use.
• Posizionamento: Place the dresser on a level surface. Uneven surfaces can affect stability.
• Bambini: Tenere le parti di piccole dimensioni e il materiale di imballaggio lontano dalla portata dei bambini durante il montaggio. Non permettere ai bambini di arrampicarsi sulla cassettiera o di giocarci.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti prima di iniziare il montaggio. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

• Componenti del telaio in metallo
• MDF Tabletop
• 3 x Medium-sized Fabric Drawers
• 2 x Large Fabric Drawers
• Drawer Handles and Screws
• Ferramenta di montaggio (viti, chiave a brugola, ecc.)
• Manuale di istruzioni (questo documento)

Image 3.1: Main components of the dresser.

4. Installazione e assemblaggio

Assembly is designed to be straightforward. Follow these general steps. Refer to the included assembly diagram for specific part identification and fastening details.

1. Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio e disporli su una superficie morbida e pulita per evitare danni.
2. Montare il telaio metallico: Connect the metal frame components according to the assembly diagram. Ensure all screws are finger-tightened initially.
3. Fissare il piano del tavolo: Secure the MDF tabletop to the top of the assembled metal frame using the provided hardware.
4. Stringere tutti i dispositivi di fissaggio: Once the frame and tabletop are in place, fully tighten all screws and fasteners. Do not overtighten.
5. Preparare i cassetti in tessuto: Unfold each fabric drawer. Insert the bottom support panel into the base of each drawer to give it shape.
6. Fissare le maniglie dei cassetti: Secure the metal handles to the front of each fabric drawer using the provided screws.
7. Inserisci cassetti: Slide the assembled fabric drawers into their designated slots within the metal frame.

Image 4.1: Preparing a foldable fabric drawer.

Image 4.2: Detail of the waterproof tabletop and drawer design.

5. Istruzioni per l'uso

The Giantex 5-Drawer Dresser is designed for efficient storage and versatile use.

• Utilizzo del cassetto: Gently pull and push the fabric drawers using the handles. Avoid forcing drawers, especially if they feel stuck or overloaded.
• Capacità di archiviazione: The three medium-sized drawers can accommodate approximately 45-50 socks or 10-12 T-shirts each. The two larger drawers can hold about 16-20 T-shirts or 10-12 pants each. Distribute weight evenly within drawers.
• TV Stand Functionality: The broad and level tabletop surface is suitable for displaying flat-screen TVs up to 50 inches. Ensure the TV's base fits securely on the tabletop and does not exceed the tabletop's weight capacity of 66 lbs.
• Organizzazione: Utilize the different drawer sizes to categorize and organize various items, from clothing to accessories and linens.

Immagine 5.1: Es.ample of organized storage with the dresser.

6. Manutenzione

Una cura adeguata garantirà la longevità e l'aspetto della tua cassettiera.

• Pulizia: Wipe the tabletop and metal frame with a dry cloth. For the fabric drawers, spot clean with a damp cloth and mild detergent if necessary, then air dry completely. Avoid harsh chemicals or abrasive cleaners.
• Fuoriuscite: The tabletop is waterproof. In case of spills, wipe immediately with a dry cloth to prevent potential damage to the MDF.
• Ispezione: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario.
• Cura dei cassetti: Avoid overfilling drawers, as this can strain the fabric and affect their shape.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua cassettiera, fai riferimento alle seguenti soluzioni comuni:

• Dresser is Unstable/Wobbly:
  • Ensure the dresser is placed on a flat, level surface.
  • Controllare tutte le viti di montaggio e serrarle saldamente.
  • Verify that the protective foot pads are properly installed and adjusted if applicable.
• I cassetti non scorrono fluidamente:
  • Assicurarsi che i cassetti non siano sovraccarichi.
  • Check that the drawer support panels are correctly inserted and fully extended.
  • Verify that the metal frame is assembled squarely and not twisted.
• Parti mancanti:
  • Carefully re-check all packaging materials. If parts are still missing, contact Giantex customer support.

8. Specifiche

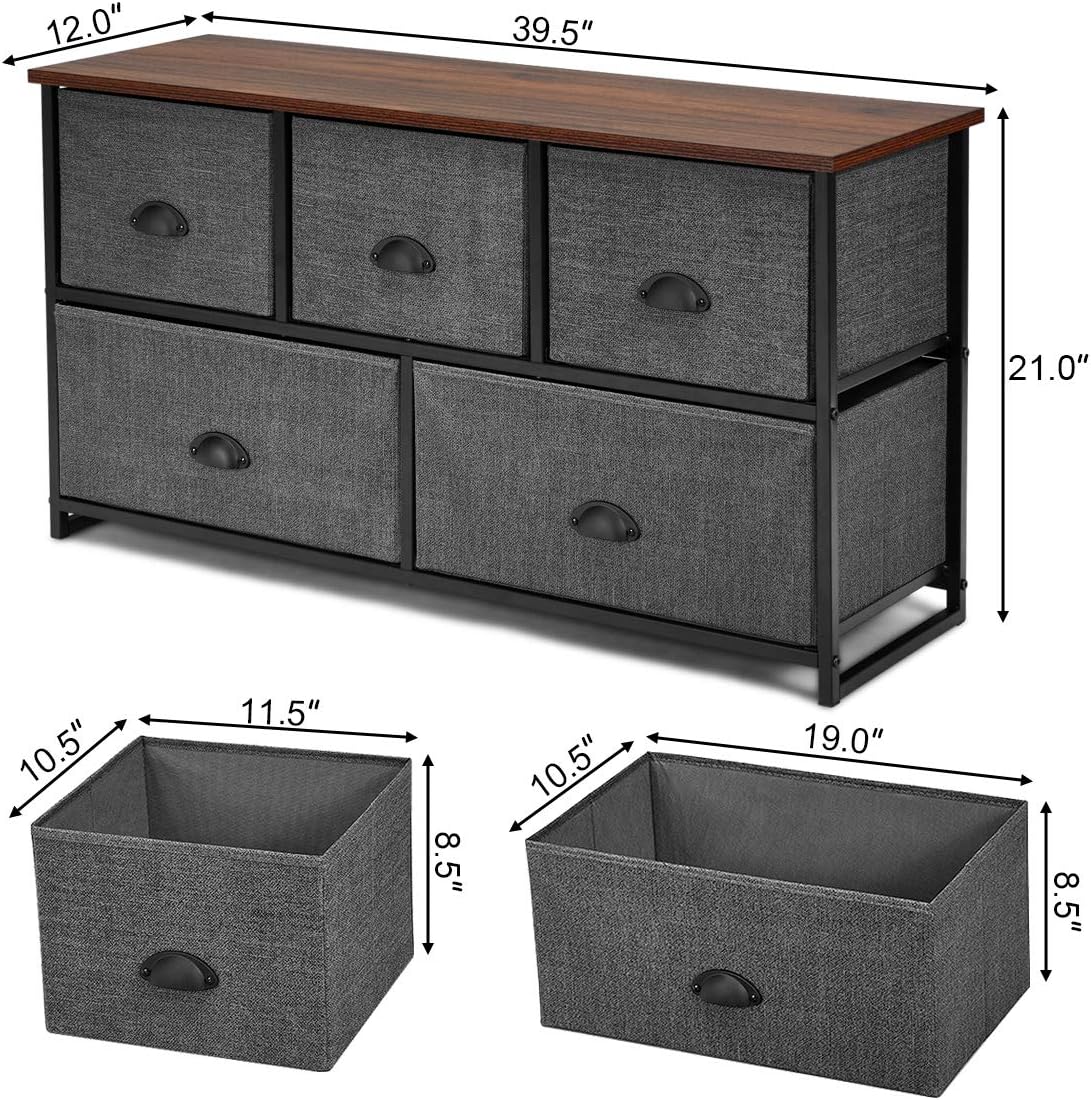

Image 8.1: Detailed dimensions of the dresser and drawers.

9. Garanzia e supporto

For any questions, concerns, or assistance with your Giantex 5-Drawer Dresser, please contact Giantex customer support. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

Produttore: Gigantesco

For support, please refer to the contact information provided at the point of purchase or on the official Giantex websito.
