1. Prodotto finitoview
The Bushnell TRKR 400 Lumen LED Tactical Flashlight is a durable and versatile lighting tool designed for various outdoor and emergency situations. It features multiple light modes, including a specialized blood tracking mode, and is built with an aircraft-grade aluminum body for resilience.
Figure 1: Bushnell TRKR 400 Lumen LED Tactical Flashlight. This image displays the flashlight from an angled top-down view, highlighting its black aluminum body and textured grip.
2. Impostazione
2.1 Installazione della batteria
The Bushnell TRKR 400L flashlight requires two (2) AA batteries for operation. These batteries are typically included with the product.
- Svitare il tappo posteriore della torcia ruotandolo in senso antiorario.
- Insert two AA batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the flashlight.
- Riavvitare il tappo posteriore in senso orario fino a quando non è ben stretto.
Figure 2: Battery compartment with two AA batteries. The image shows the flashlight with its tail cap removed, revealing the battery compartment and two AA batteries ready for insertion.
2.2 Charging (if applicable for rechargeable models)
Some Bushnell TRKR models feature a rechargeable battery. If your model is rechargeable, locate the charging port by rotating the collar near the tail cap. Connect the provided USB charging cable to the port and a power source.
Video 1: Bushnell 400 Lumen TRKR Flashlight Features. This video demonstrates the flashlight's features, including how to access the charging port by rotating the collar and connecting the USB cable.
3. Istruzioni per l'uso
3.1 Accensione/spegnimento e selezione della modalità
The flashlight features a power button located on the tail cap. It offers multiple lighting modes:
- momentaneo acceso: Half-press and hold the power button for temporary illumination. Release to turn off.
- Accensione/spegnimento costanti: Fully press the power button until it clicks to turn the flashlight on. Press again to cycle through modes (White, Red, Blood Tracking). Press and hold to turn off.

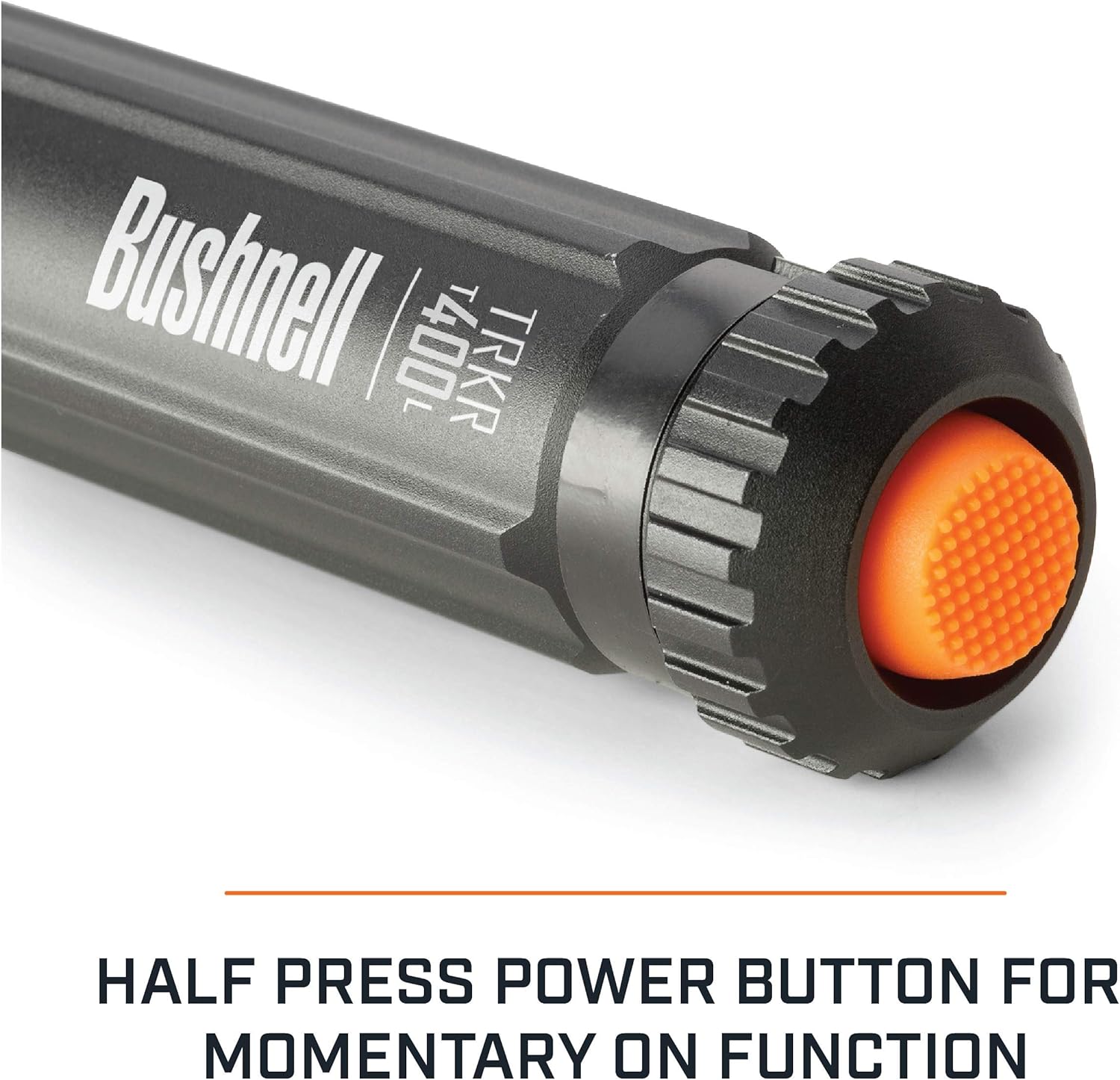

Figure 3: Close-up of the flashlight's tail cap, showing the orange power button and the text "HALF PRESS POWER BUTTON FOR MOMENTARY ON FUNCTION".
3.2 modalità di illuminazione
The TRKR 400L offers three distinct light modes:
- Luce bianca: Provides 400 lumens for general illumination.
- Luce rossa: Offers 13 lumens, ideal for preserving night vision.
- Blood Tracking Mode (Blue Light): Provides 6 lumens, specifically designed to enhance the visibility of blood trails.
Figure 4: Three panels illustrating the different light modes: Blood Tracking (blue), Red, and White. Each panel shows the flashlight head emitting the respective color.
3.3 Carrying and Portability
The flashlight includes a sturdy clip for secure attachment to clothing, belts, or gear, preventing loss during activities.
Figure 5: The flashlight is shown attached to a tactical pouch, demonstrating its portability and secure clip feature.
4. Manutenzione
4.1 Cura della batteria
To ensure optimal performance and longevity of your flashlight, regularly check batteries for signs of corrosion. Replace old or corroded batteries promptly. Use high-quality, non-leaking batteries to prevent damage to the device.
4.2 Pulizia
Pulisci il corpo della torcia con un panno morbido eamp cloth to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that could damage the finish or internal components. Ensure the lens is clean for maximum light output.
5. Risoluzione Dei Problemi
- La luce non si accende: Check battery installation and ensure batteries are fresh or fully charged. Verify the tail cap is securely tightened.
- Bassa potenza luminosa: Replace batteries with fresh ones or recharge if applicable. Ensure the lens is clean.
- Problemi di ricarica: Ensure the USB cable is properly connected to both the flashlight and the power source. Check the power source for functionality.
6. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Luminosità (bianco) | 400 lumen |
| Brightness (Red) | 13 lumen |
| Brightness (Blood Tracking) | 6 lumen |
| Fonte di alimentazione | 2 batterie AA (incluse) |
| Tipo di sorgente luminosa | GUIDATO |
| Materiale | Alluminio di grado aeronautico |
| Livello di resistenza all'acqua | IPX4 (resistente alle intemperie) |
| Resistenza all'impatto | 1 metri |
| Peso dell'articolo | 3.64 once |
| Numero di modello | 50011 |
| Codice UPC | 810007480800 |
7. Informazioni sulla garanzia
For detailed warranty information regarding your Bushnell TRKR 400 Lumen LED Tactical Flashlight, please refer to the warranty card included with your purchase or visit the official Bushnell websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.
8. Supporto
If you require further assistance or have questions not covered in this manual, please contact Bushnell customer support. Contact details can typically be found on the product packaging or the official Bushnell websito.
