VIAGDO Bamboo Storage Cabinet with Doors and Side Shelves

Introduzione

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your VIAGDO Bamboo Storage Cabinet. Please read this guide thoroughly before beginning assembly and retain it for future reference.

Informazioni importanti sulla sicurezza

• Always assemble and secure the cabinet on a stable, level surface.
• Keep the cabinet away from heat sources and do not place heavy objects on the top shelf to prevent tipping.
• Be cautious when handling bamboo as it may cause allergic reactions or splinters.
• Per garantire un utilizzo sicuro, seguire sempre attentamente le istruzioni di montaggio.
• To prevent tipping, it is recommended to secure the cabinet to a wall using appropriate anti-tip hardware (not included, but generally recommended for tall furniture).

Contenuto della confezione

Prima del montaggio, verificare che tutti i componenti elencati di seguito siano presenti e integri. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

• Pannello superiore (1)
• Pannello inferiore (1)
• Pannelli laterali (2)
• Middle Vertical Divider (1)
• Slatted Shelves (5)
• Cabinet Door (1)
• Pannello posteriore (1)
• Hardware Pack (Screws, Dowels, Hinges, Magnetic Catch, Hex Key)
• Manuale di istruzioni (1)

Istruzioni di montaggio

Follow these steps carefully for proper assembly. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches.

Passaggio 1: preparare i componenti

Unpack all parts and lay them out. Identify each component using the parts list. Ensure you have the necessary tools, including the provided hex key.

Image: All components of the VIAGDO Bamboo Storage Cabinet laid out before assembly.

Step 2: Assemble Side Frames

Attach the horizontal slatted shelves to the left side panel. Ensure the slats are facing upwards. Use the provided screws and hex key to secure them firmly but do not overtighten initially.

Image: A hand tightening a screw with a hex key during assembly.

Step 3: Attach Middle Divider and Right Side Panel

Connect the middle vertical divider to the assembled shelves. Then, attach the right side panel, securing all shelves and the divider. Ensure all connections are aligned before tightening screws.

Fase 4: installare l'anta dell'armadio

Attach the hinges to the cabinet door and then to the right side of the cabinet frame. Install the magnetic catch on the inside of the cabinet and the corresponding plate on the door. Ensure the door opens and closes smoothly.

Step 5: Secure Top and Bottom Panels

Place the bottom panel onto the assembled frame and secure it. Then, position the top panel and fasten it. Ensure all panels are flush and stable.

Step 6: Attach Back Panel and Final Tightening

Attach the back panel to the rear of the cabinet using the small nails or screws provided. Once the entire structure is assembled, go back and gently tighten all screws to ensure stability. Avoid overtightening to prevent damage to the bamboo.

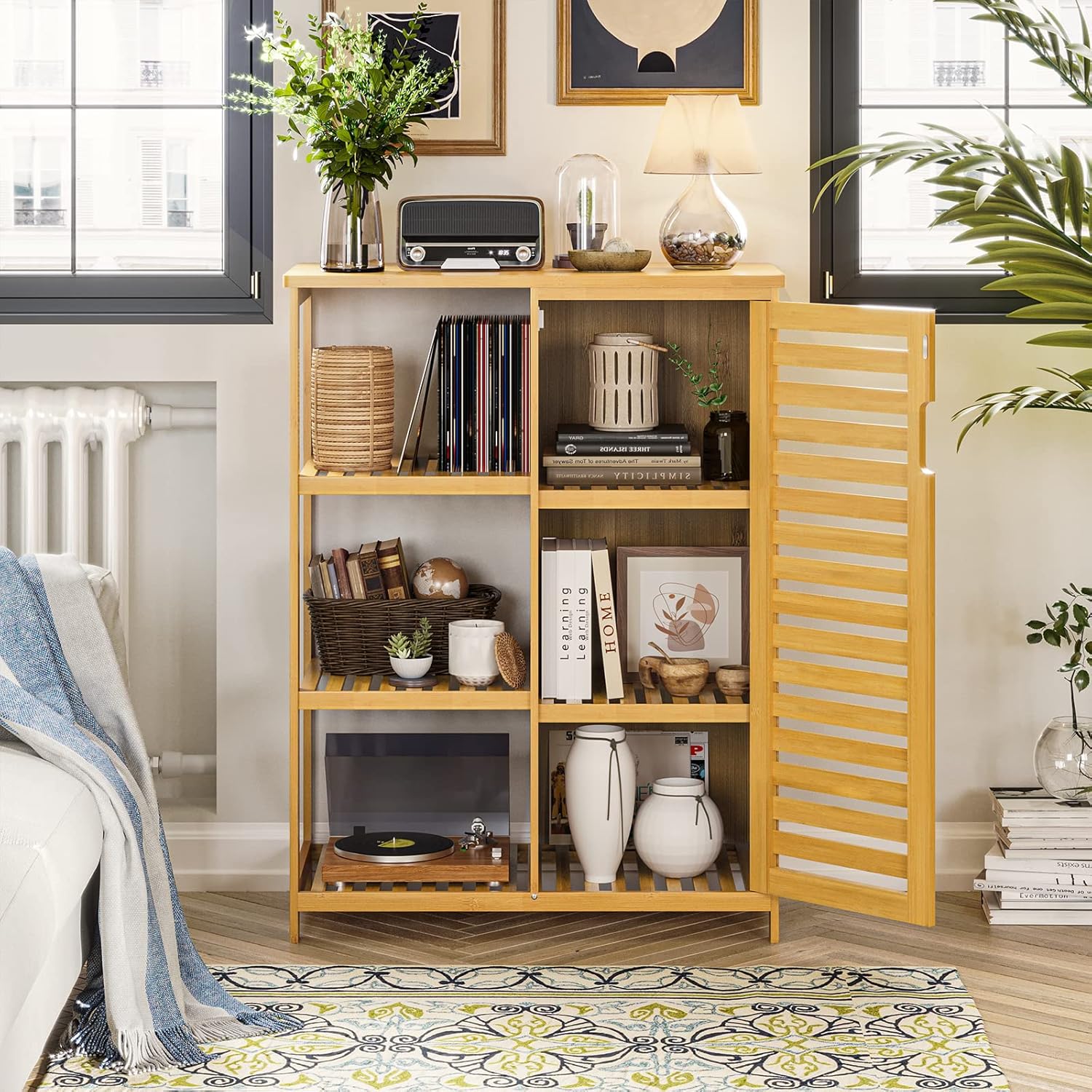

Image: The fully assembled VIAGDO Bamboo Storage Cabinet with its door open, revealing the internal and external shelving.

Istruzioni per l'uso

Your VIAGDO Bamboo Storage Cabinet is designed for versatile storage in various rooms.

• Operazione della porta: The cabinet features a shutter door that opens and closes to conceal items. Gently pull the handle to open and push to close. The magnetic catch will hold the door securely.
• Utilizzo dello scaffale: Utilize the three open side shelves and the two internal shelves behind the door for organizing various items such as toiletries, books, decorative objects, or small appliances. Each shelf has a weight capacity of 30 lbs.
• Posizionamento: This freestanding unit can be placed in bathrooms, living rooms, kitchens, entryways, or bedrooms. Ensure it is placed on a flat, stable surface.

Image: The cabinet used in a bathroom, demonstrating its storage capacity for various items.

Manutenzione e cura

To ensure the longevity and appearance of your bamboo cabinet, follow these maintenance guidelines:

• Pulizia: The bamboo surface is smooth, waterproof, and easy to clean due to its polishing and varnish treatments. For routine maintenance, simply use a wet towel to wipe away dirt or grease. Avoid abrasive cleaners or harsh chemicals.
• Umidità: The cabinet is designed to withstand humidity, making it suitable for bathrooms. However, avoid prolonged exposure to excessive moisture.
• Ispezione: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario, ma senza esagerare.

Image: Demonstrating the waterproof and easy-to-clean surface of the bamboo cabinet.

Risoluzione dei problemi

Se riscontri problemi con il tuo mobile, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

• Il mobile è traballante:
  • Assicurarsi che tutte le viti siano serrate saldamente.
  • Verify the cabinet is placed on a level surface. Adjust if necessary.
• La porta non si chiude correttamente:
  • Check if the hinges are correctly installed and tightened.
  • Ensure the magnetic catch and its plate are aligned. Adjust their position if needed.
• Difficoltà nel serraggio delle viti:
  • Do not force screws. If a screw is difficult to turn, ensure it is aligned correctly with the pre-drilled hole.
  • Bamboo can be delicate; avoid overtightening to prevent splitting.

Specifiche del prodotto

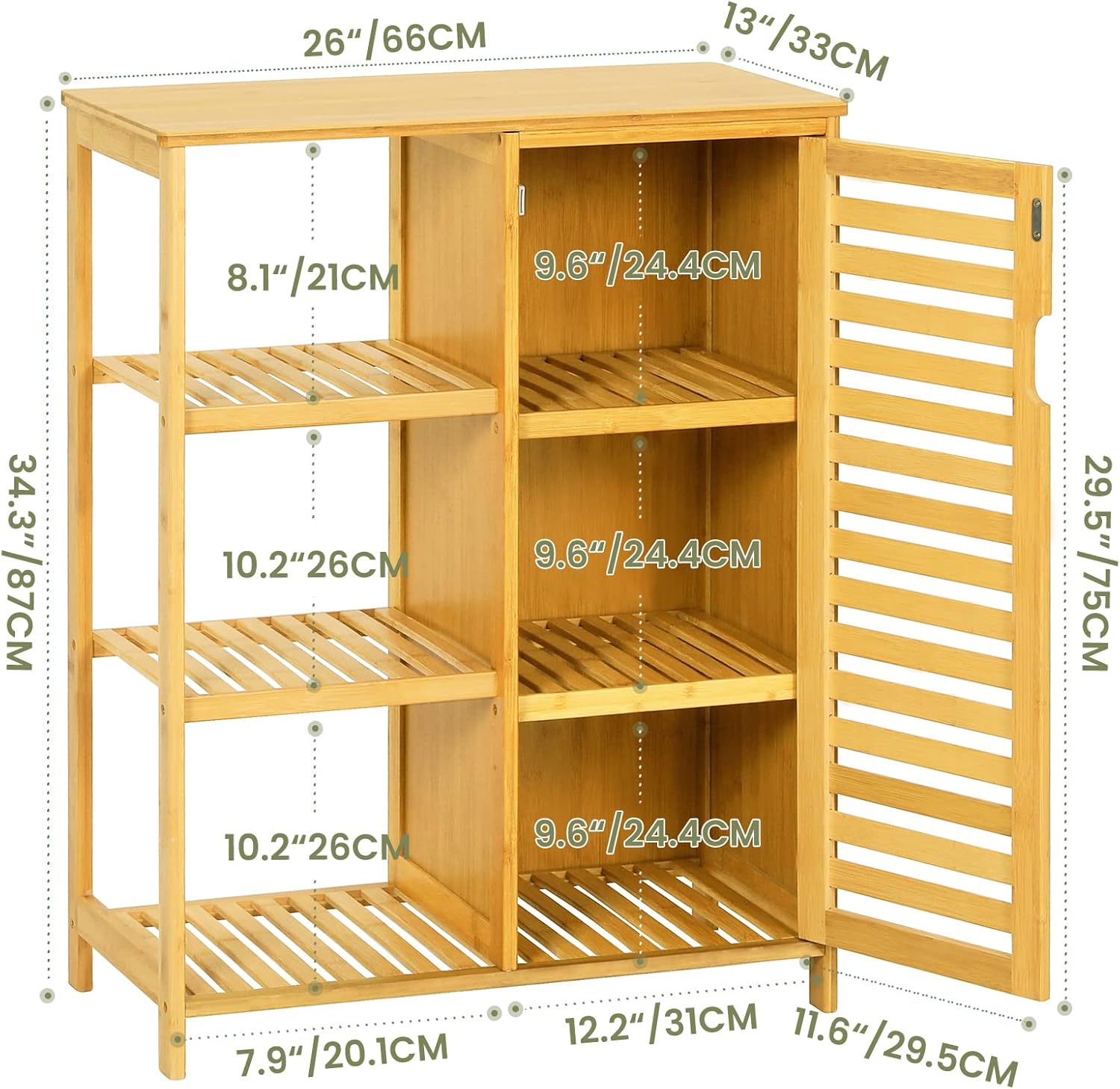

Image: Detailed dimensions of the VIAGDO Bamboo Storage Cabinet.

Garanzia e assistenza clienti

VIAGDO is committed to providing high-quality products. For any questions, concerns, or assistance with your product, please refer to the contact information provided at the point of purchase or visit the official VIAGDO website. Please have your model number (Badschrank Bambus) and purchase details ready when contacting support.
