Monoprice Blackbird 4K HDMI Matrix 4x4 HDBaseT User Manual

Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your Monoprice Blackbird 4K 4x4 HDBaseT Matrix. This device allows you to route any of four HDMI input sources to any of four outputs (one local HDMI, three HDBaseT outputs with included receivers). It supports 4K@60Hz video with YCbCr 4:4:4, HDCP 2.2, and extends signals over Cat5e/6 Ethernet cable.

Caratteristiche

• Supports HDMI resolutions up to 4K@60Hz with YCbCr 4:4:4, including 1080p 3D video.
• Fully compliant with HDMI 2.0 and HDCP 2.2 specifications.
• Transmits 4K signals up to 131 feet (40 meters) and 1080p signals up to 229 feet (70 meters) over a single Cat5e/6 Ethernet cable.
• Features 3 HDBaseT outputs and includes 3 receivers.
• Supports 24V Power over Cable (PoC), allowing receivers to draw power from the matrix.
• Includes a local HDMI output with audio extracted to digital optical S/PDIF and balanced stereo analog audio outputs.
• Smart EDID control via a 4-pin DIP switch.
• Control options: front panel, IR remote, RS-232, and Ethernet (Web GUI).

Contenuto della confezione

Image: Monoprice Blackbird 4K HDMI Matrix, three HDBaseT receivers, IR remote control, power adapter, and mounting brackets.

Please ensure all items listed below are present in your package. If any items are missing or damaged, contact Monoprice Customer Service.

• 1x Monoprice Blackbird 4K 4x4 HDBaseT Matrix
• 3 ricevitori HDBaseT
• Telecomando IR 1x
• 1 adattatore di alimentazione (24 V CC, 2.7 A)
• 1 cavo RS-232
• Staffe di montaggio e viti
• Manuale dell'utente (questo documento)

Prodotto finitoview

Matrix Rear Panel

Image: Rear panel of the Monoprice Blackbird 4K HDMI Matrix. From left to right: HDMI Inputs (1-4), IR In/Out, HDBaseT Outputs (1-3), HDMI Output, SPDIF, RCA, Control ports (TCP/IP, RS-232, EDID DIP switch), and Power input.

• HDMI 1-4 Inputs: Collegare dispositivi sorgente HDMI (ad esempio, lettore Blu-ray, console di gioco).
• IR IN/OUT: Ports for IR extension.
• HDBT 1-3 Outputs: Connect to HDBaseT receivers via Cat5e/6 cable.
• Uscita HDMI: Local HDMI output for a display.
• SPDIF: Uscita audio ottica digitale.
• RCA: Uscita audio stereo analogica.
• TCP/IP: Ethernet port for network control.
• RS-232: Porta seriale per il controllo.
• EDID: 4-pin DIP switch for EDID management.
• ENERGIA: Ingresso alimentazione 24 V CC.

Ricevitore HDBaseT

Image: Front/side view of an HDBaseT Receiver, showing the HDMI output port and IR ports.

Image: Rear/side view of an HDBaseT Receiver, showing the HDBaseT input (RJ45) and a power indicator LED.

• Uscita HDMI: Connect to a display device.
• HDBaseT Input (RJ45): Connect to the matrix HDBaseT output via Cat5e/6 cable.
• IR IN/OUT: Ports for IR extension.
• LED di potenza: Indicates power status (receivers are powered via PoC from the matrix).

Telecomando IR

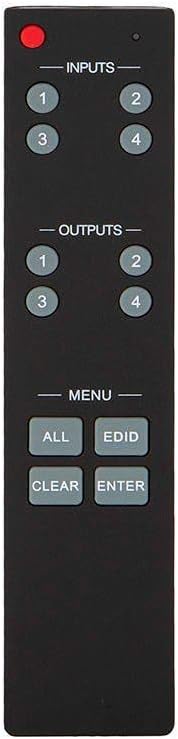

Image: IR Remote Control with buttons for input selection, output selection, and menu functions (ALL, EDID, CLEAR, ENTER).

• INPUTS (1-4): Select the desired HDMI input source.
• OUTPUTS (1-4): Select the desired output (1-3 for HDBaseT, 4 for local HDMI).
• TUTTO: Assign the selected input to all outputs.
• EDID: Access EDID settings.
• CHIARO: Clear current selection.
• ACCEDERE: Conferma la selezione.

Configurazione e installazione

1. Spegnere tutti i dispositivi: Before making any connections, ensure all source devices, displays, and the matrix are powered off and unplugged.
2. Collegamento di sorgenti HDMI: Connect your HDMI source devices (e.g., Blu-ray player, media streamer) to the HDMI Input ports (HDMI 1-4) on the matrix using high-quality HDMI cables.
3. Connect HDBaseT Receivers:
   • Connect each HDBaseT Receiver to an HDBT Output port (HDBT 1-3) on the matrix using a single Cat5e/6 Ethernet cable. Ensure the cable is properly terminated (T568B recommended).
   • Connect a display device (e.g., TV, projector) to the HDMI Output port on each HDBaseT Receiver using an HDMI cable.
4. Connect Local HDMI Output (Optional): If using, connect a display device to the HDMI Output port on the matrix using an HDMI cable.
5. Connect Audio Outputs (Optional): If using, connect your audio receiver or amplifier to the SPDIF or RCA audio output ports on the matrix.
6. Collegare i cavi di controllo (facoltativo): If using RS-232 or TCP/IP control, connect the appropriate cables to the matrix.
7. Accensione:
   • Plug the 24VDC power adapter into the POWER port on the matrix, then plug the adapter into a power outlet.
   • Power on all connected display devices.
   • Power on all connected HDMI source devices.
8. Verifica connessioni: Check that all cables are securely connected and that power indicators are lit on the matrix and receivers.

Istruzioni per l'uso

The Monoprice Blackbird 4K HDMI Matrix can be controlled via the front panel buttons, the included IR remote control, RS-232, or a Web GUI over TCP/IP.

Controllo del pannello frontale

The front panel features buttons for selecting inputs and outputs. Press an "INPUT" button (1-4) to select the source, then press an "OUTPUT" button (1-4) to route that source to the desired output. Output 4 corresponds to the local HDMI output, while Outputs 1-3 correspond to the HDBaseT outputs.

Telecomando IR

Point the IR remote control towards the IR receiver window on the front panel of the matrix. Use the "INPUTS" buttons (1-4) to select the source and the "OUTPUTS" buttons (1-4) to select the destination. The "ALL" button can assign a single input to all outputs simultaneously. Refer to the "IR Remote Control" section in Product Overview for button functions.

Controllo RS-232

Connect a computer to the RS-232 port on the matrix using the provided cable. Use a serial terminal program (e.g., PuTTY, Tera Term) with the following settings: Baud Rate 9600, Data Bits 8, Stop Bits 1, Parity None, Flow Control None. Refer to the detailed RS-232 command set in the full product manual (available on the Monoprice website) for specific commands.

TCP/IP (Web GUI) Control

Connect the matrix to your network via the TCP/IP port. The default IP address is typically 192.168.1.100. Open a web browser and enter the IP address to access the Web GUI. Il Web GUI provides a graphical interface for switching inputs/outputs, managing EDID, and configuring network settings. Consult the full product manual for detailed Web GUI instructions and default login credentials.

Gestione EDID

The matrix features a 4-pin DIP switch on the rear panel for EDID (Extended Display Identification Data) management. EDID ensures compatibility between source devices and displays by communicating supported video and audio formats. Adjust the DIP switch settings according to your system's requirements. Refer to the full product manual for a detailed table of EDID DIP switch configurations.

Common EDID Modes:

• Copia EDID: Copies the EDID from a connected display to the source.
• Fixed EDID: Uses a pre-programmed EDID (e.g., 1080p 2ch, 4K 2ch, etc.).
• EDID misto: Combines EDID information from multiple displays.

Incorrect EDID settings can lead to no video, incorrect resolution, or audio issues. Experiment with different settings if you encounter display problems.

Manutenzione

• Pulizia: Utilizzare un panno morbido e asciutto per pulire l'esterno dell'unità. Non utilizzare detergenti liquidi o spray.
• Ventilazione: Ensure adequate ventilation around the matrix to prevent overheating. Do not block ventilation openings.
• Ambiente: Keep the device away from excessive heat, humidity, dust, and direct sunlight.
• Energia: Scollegare l'alimentazione durante i temporali o quando non si utilizza l'apparecchio per lunghi periodi.

Risoluzione dei problemi

Specifiche

Note: Product dimensions provided may refer to packaging. Actual unit dimensions may vary.

Informazioni sulla garanzia

Monoprice provides a limited warranty for this product. For detailed warranty terms and conditions, including duration and coverage, please refer to the official Monoprice websito o contattare l'assistenza clienti. Conservare la prova d'acquisto per eventuali reclami in garanzia.

Assistenza clienti

If you have any questions, require technical assistance, or need to report an issue with your Monoprice Blackbird 4K HDMI Matrix, please contact Monoprice Customer Support.

• Websito: www.monoprice.com/support
• Telefono: Fare riferimento al Monoprice websito per i numeri di contatto attuali.
• Quando contatti l'assistenza, tieni a portata di mano il numero di modello del tuo prodotto (139669) e le informazioni sull'acquisto.
