MASTERPRO Ultimate All-in-One Multi Cooker and Airfryer

Introduzione

The MASTERPRO Ultimate All-in-One Multi Cooker and Airfryer is a versatile kitchen appliance designed to simplify your cooking experience. Combining the functionalities of a multi-cooker (pressure cooker, slow cooker, steamer, sauté) and an air fryer, this appliance allows you to prepare a wide variety of meals with ease and efficiency. Its intuitive controls and robust design make it an essential tool for modern kitchens.

Importanti istruzioni di sicurezza

LEGGERE TUTTE LE ISTRUZIONI PRIMA DELL'USO.

• Always ensure the appliance is placed on a stable, level, heat-resistant surface away from water sources.
• Non immergere l'unità principale, il cavo o la spina in acqua o altri liquidi.
• È necessaria un'attenta supervisione quando l'apparecchio viene utilizzato da bambini o in loro presenza.
• Scollegare dalla presa quando non in uso e prima di pulire. Lasciare raffreddare prima di mettere o togliere parti.
• Non utilizzare alcun apparecchio con un cavo o una spina danneggiati oppure dopo che l'apparecchio stesso non funziona correttamente o è stato danneggiato in qualsiasi modo.
• Non utilizzare all'aperto.
• Non posizionare sopra o vicino a un fornello a gas o elettrico caldo, oppure in un forno caldo.
• Prestare la massima attenzione quando si sposta un apparecchio contenente olio bollente o altri liquidi bollenti.
• Collegare sempre prima la spina all'apparecchio, quindi collegare il cavo alla presa a muro. Per scollegarlo, posizionare un qualsiasi interruttore su "off", quindi rimuovere la spina dalla presa a muro.
• Non utilizzare l'apparecchio per scopi diversi da quelli previsti.
• This appliance cooks under pressure. Improper use may result in scalding injury. Ensure unit is properly closed before operating.
• Never force open the pressure cooker lid. Ensure internal pressure is completely released before opening.
• Prima dell'uso, controllare sempre che la valvola di rilascio della pressione e la valvola a galleggiante non siano intasate.

Componenti e caratteristiche

Figura 1: The MASTERPRO Ultimate All-in-One Multi Cooker and Airfryer with its main unit and the pressure cooker lid attached. The air fryer lid is visible on top of the main unit.

Figura 2: A visual representation of the various pre-set programs available for the multi-cooker function, including Meat/Stew, Risotto, Yoghurt, Steam, Soup, and more. This image highlights the versatility of the appliance.

Figura 3: An illustration of the pre-set programs available for the air fryer function, such as Homemade Chips, Ribs, Pizza, Chicken, and Dehydrate. This demonstrates the range of air frying capabilities.

Figura 4: Un dettagliato view of the multi-cooker control panel, showing the digital display, program selection buttons, and the central dial for adjusting settings like pressure level and cooking time. Key features like Delay Start and Keep Warm are also highlighted.

Figura 5: This image displays the touch screen control panel for the air fryer function, indicating temperature and time settings. It also shows icons for various pre-set air frying programs and controls for adjusting temperature and timer.

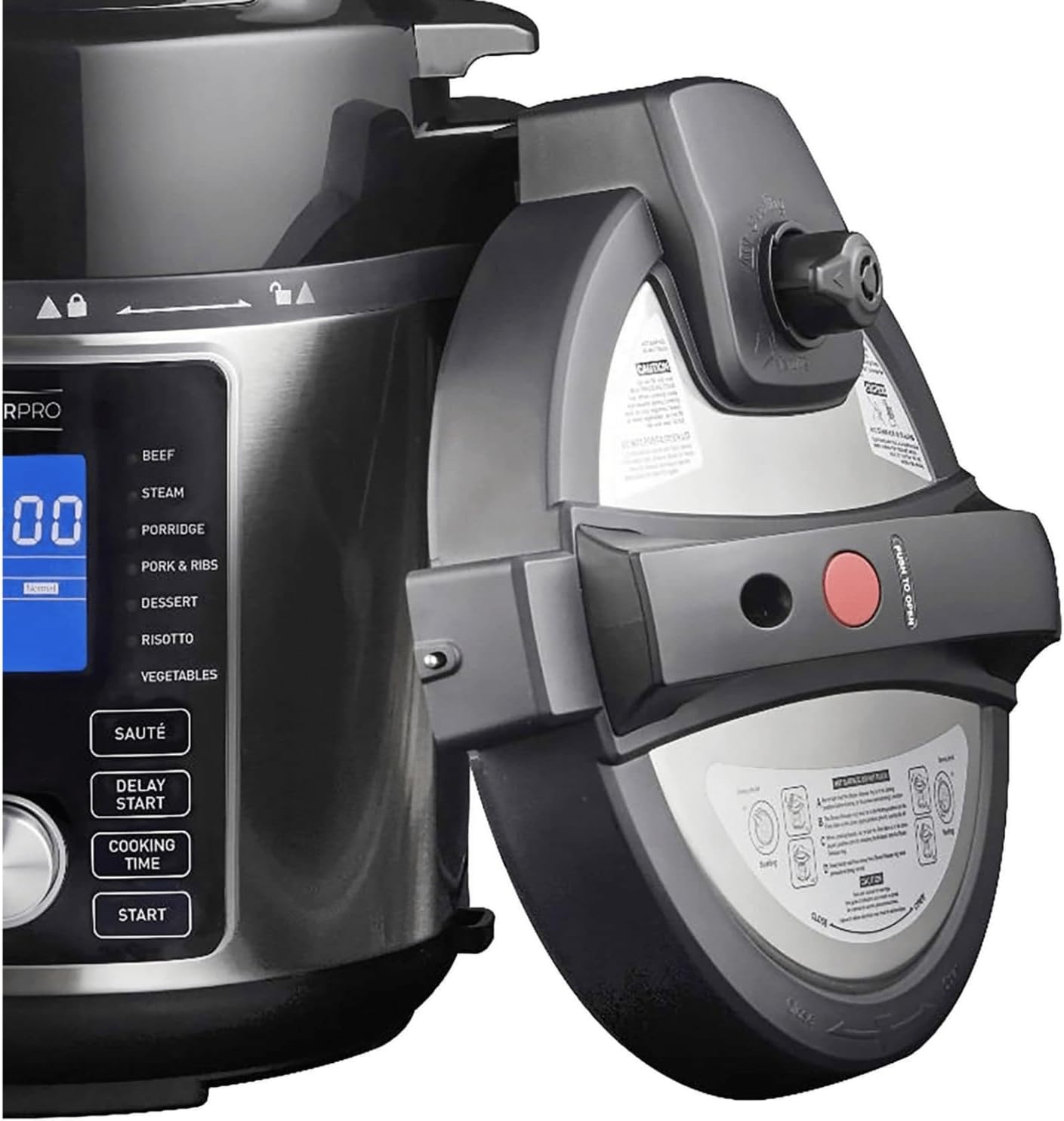

Figura 6: Un primo piano view of the pressure cooker lid, highlighting the easy-release mechanism with the red button and the pressure valve. This shows the design for safe operation.

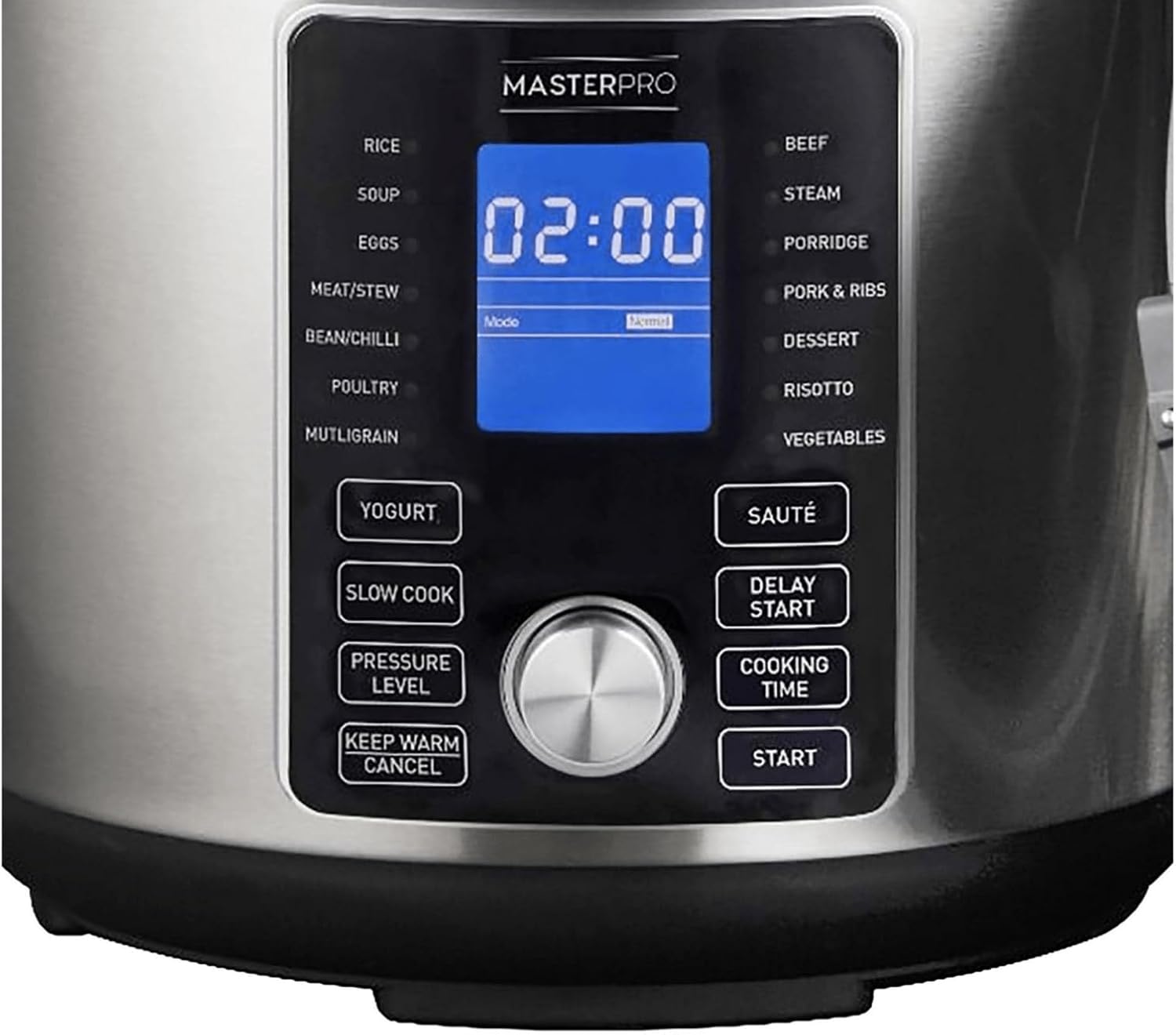

Figura 7: A detailed shot of the multi-cooker's main control panel, focusing on the digital display showing "02:00" and the various program buttons like Rice, Soup, Meat/Stew, and the central control dial.

Figura 8: Un esploso view diagram illustrating all the main components of the MASTERPRO Multi Cooker and Airfryer, including the air fryer lid, multi cooker lid, lid rest, basket, silicone gasket, steam rack, stainless steel inner pot, stainless steel base, measuring cup, and rice paddle.

The MASTERPRO Ultimate All-in-One Multi Cooker and Airfryer comes with several key components:

• Unità principale: La base dell'apparecchio contiene l'elemento riscaldante e il pannello di controllo.
• Pentola interna in acciaio inossidabile: The removable cooking pot where food is prepared.
• Coperchio della pentola a pressione: Used for pressure cooking, slow cooking, and steaming. Features a pressure release valve and float valve.
• Air Fryer Lid: Used for air frying, roasting, and baking. Features a touch control panel and heating element.
• Accessori: Includes a steam rack, air fryer basket, measuring cup, and rice paddle.

Impostare

1. Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per un eventuale stoccaggio o trasporto futuro.
2. Pulizia iniziale: Before first use, wash the stainless steel inner pot, silicone gasket, steam rack, air fryer basket, measuring cup, and rice paddle with warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit and lids with a damp stoffa.
3. Posizionamento: Place the main unit on a stable, level, heat-resistant countertop, ensuring adequate space around the appliance for ventilation. Do not place near heat sources or in direct sunlight.
4. Collegamento elettrico: Plug the power cord into a grounded electrical outlet. The display will illuminate, indicating the appliance is ready for use.

Istruzioni per l'uso

Multi Cooker Functions (Pressure Cook, Slow Cook, Steam, Sauté)

1. Preparare gli ingredienti: Place desired ingredients and liquid into the stainless steel inner pot. Do not fill above the MAX fill line.
2. Coperchio sicuro: Place the pressure cooker lid onto the main unit, aligning the arrow on the lid with the arrow on the base. Rotate the lid clockwise until it locks into place. Ensure the pressure release valve is in the "Sealing" position.
3. Seleziona programma: Use the Easy Dial on the control panel to scroll through the available multi-cooker programs (e.g., Rice, Soup, Meat/Stew, Slow Cook, Pressure Level). Press the dial to select.
4. Regola impostazioni: If applicable, adjust cooking time or pressure level using the "Cooking Time" or "Pressure Level" buttons and the dial.
5. Inizia a cucinare: Press the "Start" button to begin the cooking cycle. The appliance will preheat, then begin cooking.
6. Rilascio della pressione: Once cooking is complete, allow natural pressure release or use the quick release method by carefully turning the pressure release valve to the "Venting" position. Exercise extreme caution as hot steam will be released.
7. Coperchio aperto: Once the float valve drops, indicating pressure is fully released, rotate the lid counter-clockwise and lift to open.

Air Fryer Functions

1. Preparare gli ingredienti: Place food into the air fryer basket. Do not overcrowd the basket to ensure even cooking.
2. Place Air Fryer Lid: Ensure the pressure cooker lid is removed. Place the air fryer lid directly onto the main unit.
3. Seleziona programma: Use the touch screen control panel on the air fryer lid to select a pre-set air frying program (e.g., Homemade Chips, Chicken, Fish).
4. Regola impostazioni: Adjust the cooking temperature and time as needed using the dedicated buttons on the air fryer lid's control panel.
5. Inizia a cucinare: Press the "Start/Pause" button to begin air frying.
6. Check and Shake: For best results, periodically check food and shake or flip items in the basket halfway through cooking.
7. Completamento: The appliance will beep when cooking is complete. Carefully lift the air fryer lid using the handle.

Manutenzione e pulizia

Una pulizia regolare garantisce prestazioni ottimali e prolunga la durata del tuo elettrodomestico.

• Scollega sempre: Prima di procedere alla pulizia, staccare sempre la spina dell'apparecchio dalla presa di corrente e lasciarlo raffreddare completamente.
• Pentola interna e accessori: The stainless steel inner pot, steam rack, air fryer basket, measuring cup, and rice paddle are dishwasher safe or can be washed by hand with warm, soapy water. Rinse thoroughly and dry completely.
• Coperchi: Wipe the pressure cooker lid and air fryer lid with a damp cloth. Pay attention to the sealing ring and valves on the pressure cooker lid, ensuring they are free of food debris. The air fryer lid's heating element area should be wiped gently. Do not immerse lids in water.
• Unità principale: Pulire l'esterno dell'unità principale con un panno morbido eamp panno. Non utilizzare detergenti abrasivi o pagliette. Non immergere mai l'unità principale in acqua.
• Anello di tenuta: Periodically remove the silicone sealing ring from the pressure cooker lid for thorough cleaning. Ensure it is properly reinstalled before next use. Replace if damaged or stretched.

Risoluzione dei problemi

Specifiche

• Marca: MaestroPro
• Numero modello: MPMULTIPRO
• Colore: Acciaio inossidabile / nero
• Dimensioni del prodotto: 33 x 33 x 53 cm (circa)
• Capacità: 5 litri
• Materiale: Acciaio inossidabile
• Peso dell'articolo: 9.7 kg
• Caratteristiche speciali: Timer, Multi-functionality (Pressure Cooker, Slow Cooker, Air Fryer, Steamer, Sauté)

Garanzia e supporto

MasterPro products are manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts, please refer to the warranty card included with your purchase or visit the official MasterPro website. Please have your model number (MPMULTIPRO) and purchase date ready when contacting support.

Per ulteriore assistenza, puoi anche contattare il rivenditore presso cui hai acquistato il prodotto.
