Silvercrest SEF3 2000 D3 Stainless Steel Deep Fryer Instruction Manual

1. Importanti istruzioni di sicurezza

Please read these instructions carefully before using the appliance and keep them for future reference. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.

• Always ensure the appliance is unplugged from the power outlet before cleaning, maintenance, or if it is not in use.
• Non immergere l'apparecchio, il cavo o la spina in acqua o altri liquidi.
• Questo apparecchio è destinato esclusivamente all'uso domestico. Non utilizzarlo all'aperto o per scopi commerciali.
• Tenere l'apparecchio e il relativo cavo fuori dalla portata dei bambini.
• Hot oil can cause severe burns. Exercise extreme caution when handling hot oil.
• Do not overfill the oil container beyond the maximum fill line.
• Assicurarsi che l'apparecchio sia posizionato su una superficie stabile e resistente al calore, lontano da pareti e materiali infiammabili.
• Non lasciare mai la friggitrice incustodita mentre è in funzione.
• Non toccare le superfici calde. Utilizzare maniglie e manopole.
• Se il cavo di alimentazione è danneggiato, deve essere sostituito dal produttore, dal suo agente di assistenza o da personale qualificato per evitare pericoli.

2. Prodotto finitoview

The Silvercrest SEF3 2000 D3 Deep Fryer is designed for efficient and safe home frying. It features a stainless steel housing, a removable lid with a viewing window, and an aluminum permanent filter. The appliance comes with multiple baskets to accommodate different frying needs.

Image 1: The Silvercrest SEF3 2000 D3 Deep Fryer. This image shows the complete deep fryer unit with its stainless steel body, black lid, control knob, and indicator lights.

Le caratteristiche principali includono:

• One large frying basket, suitable for approximately 900g of fries, fish, or similar items.
• Two small frying baskets for simultaneous use, each accommodating approximately 450g of fries, chicken wings, or spring rolls.
• Coperchio rimovibile con un viewing window and an integrated aluminum permanent filter.
• Non-stick coated oil container for easy cleaning.
• Dishwasher-safe lid and frying baskets.

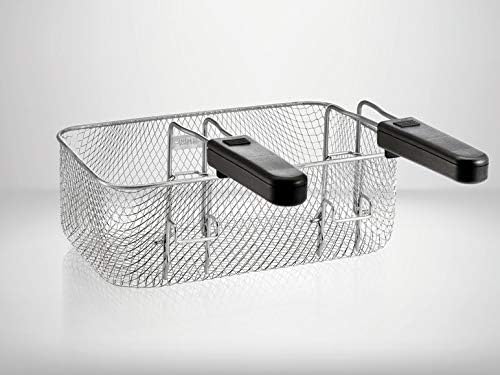

Image 2: The large frying basket. This basket is designed for larger quantities of food, such as a single batch of fries or fish.

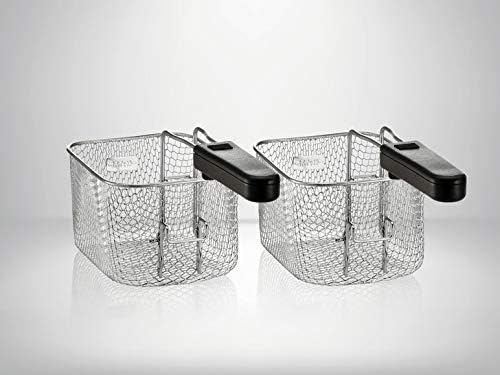

Image 3: Two small frying baskets. These baskets allow for frying different food items simultaneously or smaller portions.

3. Specifiche tecniche

4. Impostazione

1. Disimballaggio: Carefully remove all packaging materials and check the appliance for any damage. Keep packaging materials away from children.
2. Pulizia iniziale: Before first use, clean the oil container, lid, and frying baskets thoroughly with warm soapy water. Rinse and dry completely. The lid and baskets are dishwasher safe.
3. Posizionamento: Place the deep fryer on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the appliance for ventilation, at least 10 cm from walls or other objects. Do not place it near flammable materials or under wall cabinets.
4. Aggiunta di olio: Pour frying oil or fat into the oil container. Ensure the oil level is between the MIN and MAX markings. Do not exceed the MAX level (4 liters).
5. Lid and Baskets: Place the lid securely on the deep fryer. Choose the appropriate basket(s) for your frying needs (one large or two small) and ensure they are properly assembled.

5. Istruzioni per l'uso

1. Connettiti all'alimentazione: Plug the power cord into a grounded electrical outlet. The 'POWER' indicator light will illuminate.
2. Imposta temperatura: Turn the temperature control knob to your desired frying temperature (up to 190 °C). Refer to food packaging for recommended temperatures.
3. Preriscaldamento: The 'READY' indicator light will turn off during heating and illuminate once the set temperature is reached. This process may take several minutes.
4. Prepara da mangiare: While the oil is preheating, prepare your food. Ensure food items are dry to prevent excessive splattering. Do not overload the baskets.
5. Lowering Food: Once the oil is ready, carefully lower the basket(s) containing the food into the hot oil. Use the basket handle to avoid direct contact with hot oil.
6. Frittura: Close the lid during frying. You can monitor the cooking process through the viewing window. Fry for the recommended time, stirring occasionally if necessary (with the lid open and basket raised).
7. Rimozione del cibo: When food is cooked, carefully lift the basket(s) out of the oil and hook them onto the edge of the deep fryer to allow excess oil to drain.
8. Porzione: Trasferire il cibo fritto su un piatto da portata rivestito di carta assorbente per assorbire l'olio rimasto.
9. Spegnimento: After use, turn the temperature control knob to the 'OFF' position and unplug the appliance from the power outlet. Allow the oil to cool completely before handling.

6. Pulizia e manutenzione

Regular cleaning and maintenance will ensure the longevity and optimal performance of your deep fryer.

1. La sicurezza prima di tutto: Always unplug the deep fryer and allow the oil and appliance to cool down completely before cleaning. This can take several hours.
2. Scarico dell'olio: Once the oil is cool, carefully pour it into a suitable container for disposal or storage. Do not pour hot oil down the drain.
3. Contenitore dell'olio: The non-stick coated oil container can be cleaned with warm soapy water and a soft sponge. Avoid abrasive cleaners or scouring pads that could damage the non-stick coating. Rinse thoroughly and dry completely.
4. Lid and Baskets: The lid and frying baskets are dishwasher safe. Alternatively, wash them by hand with warm soapy water, rinse, and dry.
5. Filtro permanente: The aluminum permanent filter in the lid can be cleaned by rinsing it under warm running water. Ensure it is dry before reassembling.
6. Esterno: Pulisci l'esterno della friggitrice con un pannoamp stoffa. Non utilizzare prodotti chimici aggressivi o materiali abrasivi.
7. Magazzinaggio: Store the clean and dry deep fryer in a cool, dry place.

7. Risoluzione Dei Problemi

Se riscontri problemi con la tua friggitrice, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

• L'apparecchio non si accende:
  • Verificare che il cavo di alimentazione sia collegato saldamente a una presa funzionante.
  • Ensure the temperature control knob is not in the 'OFF' position.
• Il petrolio non si scalda:
  • Verify that the temperature is set correctly.
  • Allow sufficient time for preheating; the 'READY' light indicates when the temperature is reached.
• Il cibo non è croccante:
  • Ensure food items are dry before frying. Excess moisture can prevent crisping.
  • Do not overload the baskets; fry in smaller batches if necessary.
  • Check if the oil temperature is correct.
• Fumo eccessivo:
  • The oil may be too old or dirty. Replace the oil.
  • The temperature may be set too high. Reduce the temperature.

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.

8. Garanzia e supporto

This Silvercrest SEF3 2000 D3 Deep Fryer comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

Per supporto tecnico, pezzi di ricambio o reclami in garanzia, contattare il servizio clienti Silvercrest. Le informazioni di contatto sono in genere riportate sulla confezione del prodotto o sul sito ufficiale Silvercrest. websito.

When contacting support, please have your model number (SEF3 2000 D3) and proof of purchase readily available.
