Severin Electric Grill SEVO GTS 8107 Instruction Manual

1. Importanti istruzioni di sicurezza

Please read these instructions carefully before using the appliance and keep them for future reference. This appliance is intended for domestic use only. Misuse can lead to personal injury and property damage. The manufacturer accepts no liability for damage caused by non-observance of these instructions.

• Sicurezza elettrica: Assicurare il volumetage indicated on the rating label matches your mains supply. Do not operate the grill with a damaged cord or plug. Always connect the grill to a properly grounded outlet.
• Pericolo di calore e ustioni: The grill surfaces become very hot during operation. Always use oven mitts or heat-resistant gloves when handling hot parts. Despite the SafeTouch housing, exercise caution.
• Vassoio dell'acqua: Always fill the water tray with water before grilling to prevent fat fires and facilitate cleaning. Do not overfill.
• Posizionamento: Use the grill on a stable, heat-resistant surface. Ensure adequate ventilation. Do not use near flammable materials. Suitable for indoor and outdoor use, including balconies.
• Bambini e persone vulnerabili: Questo apparecchio può essere utilizzato da bambini di età pari o superiore a 8 anni e da persone con ridotte capacità fisiche, sensoriali o mentali o prive di esperienza e conoscenza, se sono state supervisionate o hanno ricevuto istruzioni sull'uso sicuro dell'apparecchio e se ne comprendono i pericoli. I bambini non devono giocare con l'apparecchio. La pulizia e la manutenzione da parte dell'utente non devono essere eseguite da bambini senza supervisione.
• Pulizia: Always unplug the grill and allow it to cool completely before cleaning. Do not immerse the heating element or electrical components in water.

2. Prodotto finitoview

The Severin SEVO GTS 8107 is a high-performance electric grill designed for versatile grilling experiences. It features a powerful 3000W heating system with a 500°C boost zone, precise temperature control, and an integrated core thermometer for optimal cooking results.

2.1 Componenti

• Grill unit with SafeTouch housing
• Coperchio
• Heating element with integrated OLED display and control dial
• Grill grates (stainless steel)
• Water tray / Drip tray
• Windshield (if applicable)
• Integrated core thermometer probes
• Base frame (for stand-up use)

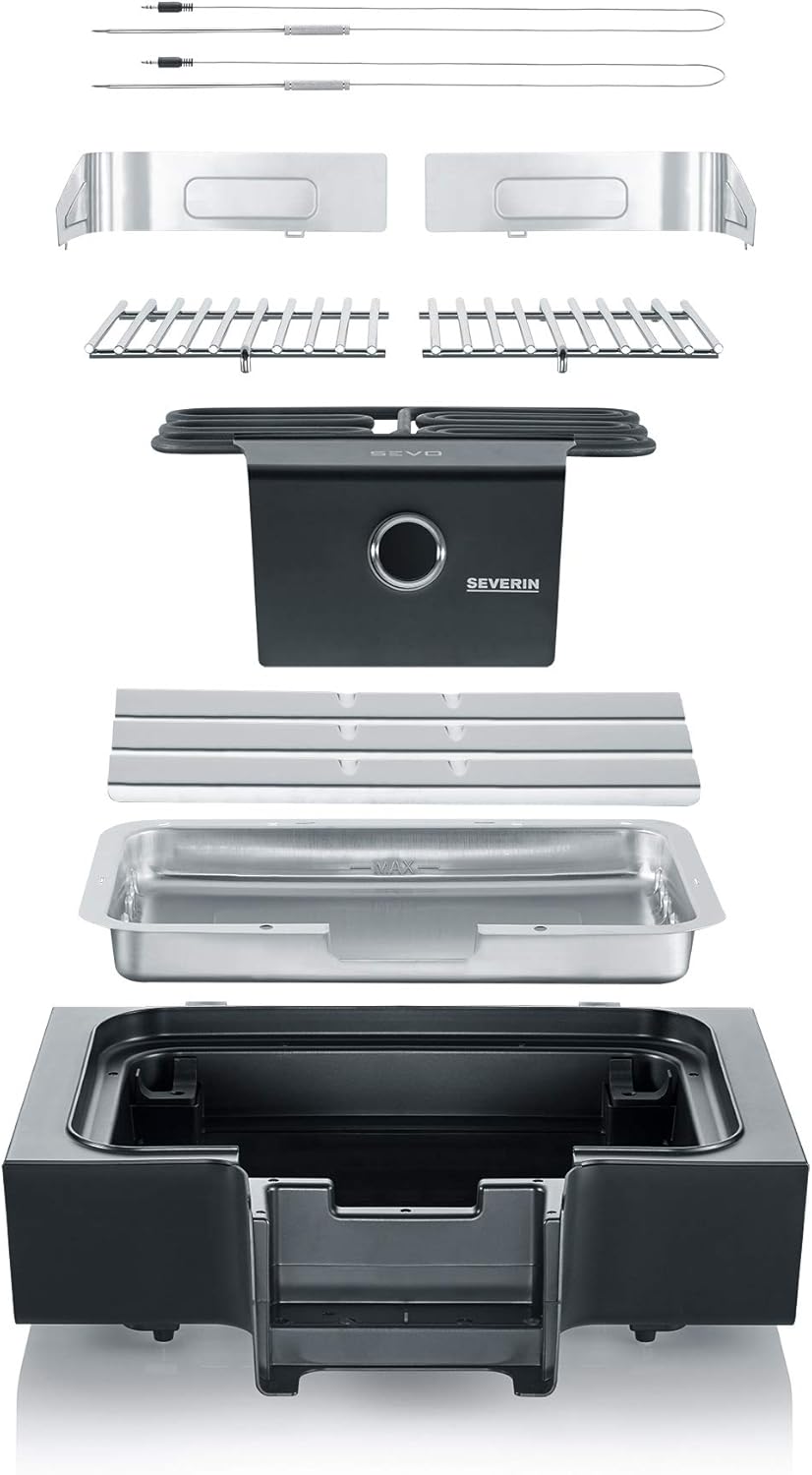

Figura 1: Esploso view showing all individual components of the Severin SEVO GTS 8107 electric grill, including the main unit, heating element, grill grates, water tray, and lid.

3. Installazione e assemblaggio

The Severin SEVO GTS 8107 requires some assembly before first use. Follow these steps carefully.

3.1 Disimballaggio e ispezione iniziale

• Rimuovere con attenzione tutti i componenti dalla confezione.
• Check for any signs of damage. Do not use if damaged.
• Rimuovere tutti i materiali di imballaggio, gli adesivi e le pellicole protettive.

3.2 Assembling the Base Frame (if applicable)

If your model includes a base frame, follow the separate assembly instructions provided in the box for the frame. Ensure all screws are tightened securely for stability.

3.3 Grill Unit Assembly

1. Place the main grill housing onto the assembled base frame or a stable, heat-resistant surface.
2. Insert the water tray into the designated slot at the bottom of the grill unit.
3. Fill the water tray with approximately 1 liter of water up to the 'MAX' mark. This is crucial for preventing fat fires and for optimal grilling results.

Figura 2: A hand pouring water into the designated water tray of the electric grill. Ensure the water level reaches the 'MAX' indicator.

4. Carefully place the heating element assembly into the grill unit, ensuring it sits securely.
5. Position the grill grates over the heating element.
6. Place the lid on top of the grill unit.

3.4 Pulizia iniziale

Before first use, clean the grill grates and water tray with warm soapy water. Wipe the exterior of the grill unit with a damp panno. Asciugare accuratamente tutte le parti.

4. Istruzioni per l'uso

Follow these steps to operate your Severin Electric Grill SEVO GTS 8107.

4.1 Collegamento di alimentazione

• Ensure the grill is correctly assembled and the water tray is filled.
• Plug the power cord into a suitable grounded electrical outlet. The OLED display will illuminate.

4.2 Controllo della temperatura

• Turn the control dial to select your desired grilling temperature, ranging from 80°C to 500°C. The selected temperature will be shown on the OLED display.
• The grill will begin to preheat. The indicator light will show when the desired temperature is reached.

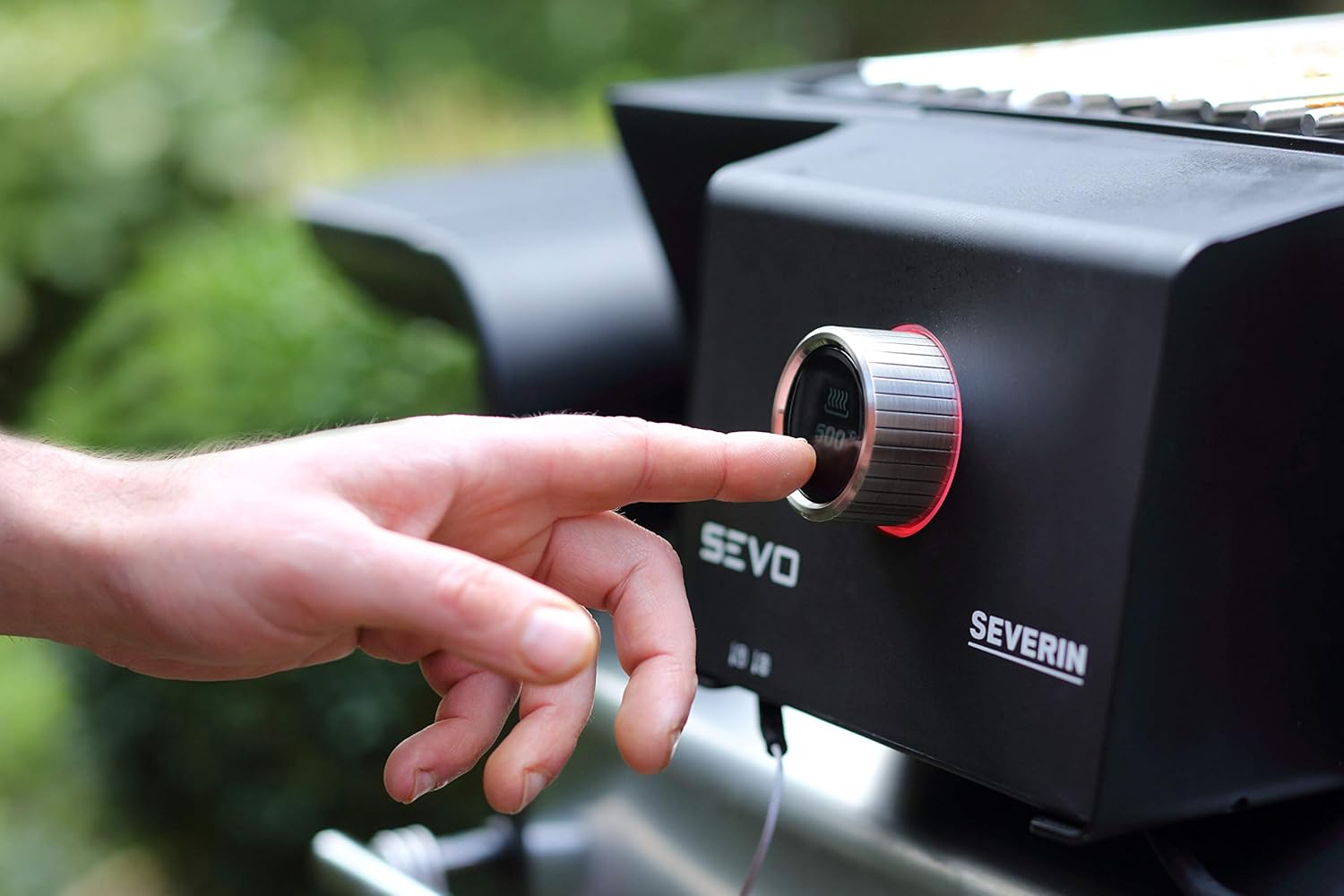

Figura 3: A user adjusting the temperature using the control dial. The OLED display clearly shows the selected temperature setting.

Figura 4: The Severin electric grill with its lid closed, highlighting the control panel and temperature dial during operation.

4.3 Boost Zone (500°C)

For perfect searing and grill marks, activate the 500°C boost zone. Refer to the specific instructions in your grill's manual for activating this feature, usually by pressing or turning the dial to the maximum setting.

4.4 Slow Cooking Function

The precise temperature control and practical lid make this grill ideal for slow cooking dishes like pulled pork or spare ribs. Set the temperature to a lower range (e.g., 80-150°C) and allow for longer cooking times.

4.5 Using the Integrated Core Thermometer

• Insert the core thermometer probe into the thickest part of the food, avoiding bone.
• Connect the probe to the designated port on the grill unit.
• The internal temperature of your food will be displayed on the OLED screen, allowing for precise cooking.

Figura 5: A core thermometer being inserted into a thick cut of meat on the grill, demonstrating precise temperature monitoring.

4.6 Grilling Food

• Once preheated, place your food on the grill grates.
• Close the lid for faster and more even cooking, especially for larger items.
• Monitor cooking progress and internal temperature using the core thermometer.

Figura 6: A person grilling a large steak and vegetables on the Severin electric grill, with the lid open and steam rising.

4.7 Funzione timer

The grill features a 24-hour timer. Consult your specific model's manual for detailed instructions on setting and using the timer function.

5. Manutenzione e pulizia

Una pulizia e una manutenzione regolari garantiranno la longevità e le prestazioni ottimali della tua griglia.

5.1 Dopo ogni utilizzo

1. Unplug the grill from the power outlet and allow it to cool completely.
2. Remove the grill grates and clean them with warm soapy water and a non-abrasive sponge.
3. Carefully remove the heating element assembly.

Figura 7: A person carefully removing the heating element from the grill unit, demonstrating the ease of disassembly for cleaning.

4. Empty and clean the water tray. Dispose of any fat and food residues responsibly.
5. Wipe the interior and exterior of the grill housing with a damp stoffa. Non utilizzare detergenti abrasivi o pagliette.
6. Assicurarsi che tutti i componenti siano completamente asciutti prima di rimontare o riporre la griglia.

5.2 Pulizia profonda

For stubborn residues, you may use specialized grill cleaners. Always follow the cleaner's instructions and ensure it is safe for stainless steel surfaces. Do not use metal brushes on the grill grates as this can damage the surface.

6. Risoluzione Dei Problemi

If you encounter issues with your Severin Electric Grill, refer to the following common problems and solutions.

If you experience a problem not listed here, or if the suggested solutions do not resolve the issue, please contact Severin customer support.

7. Specifiche

• Numero modello: 8107
• Dimensioni (L x P x A): Dimensioni: 66 x 126 x 119 cm
• Peso: 29.4 kg
• Materiale: Acciaio inossidabile
• Fonte di energia: Elettrico
• Energia: 3000 L
• Intervallo di temperatura: 80°C - 500°C (Boost Zone)
• Caratteristiche speciali: Easy to clean, SafeTouch housing, OLED display, Integrated core thermometer, 24-hour timer
• Componenti inclusi: Grill unit, Lid, Base frame
• Assemblaggio richiesto: SÌ

8. Garanzia e supporto

Severin products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.

8.1 Assistenza clienti

For technical assistance, spare parts, or warranty claims, please contact Severin customer service. Contact details can typically be found on the official Severin websito o nella documentazione fornita con il prodotto.

Risorse online: Visit the official Severin websito per FAQ, registrazione del prodotto e materiale di supporto aggiuntivo.
