1. Introduzione

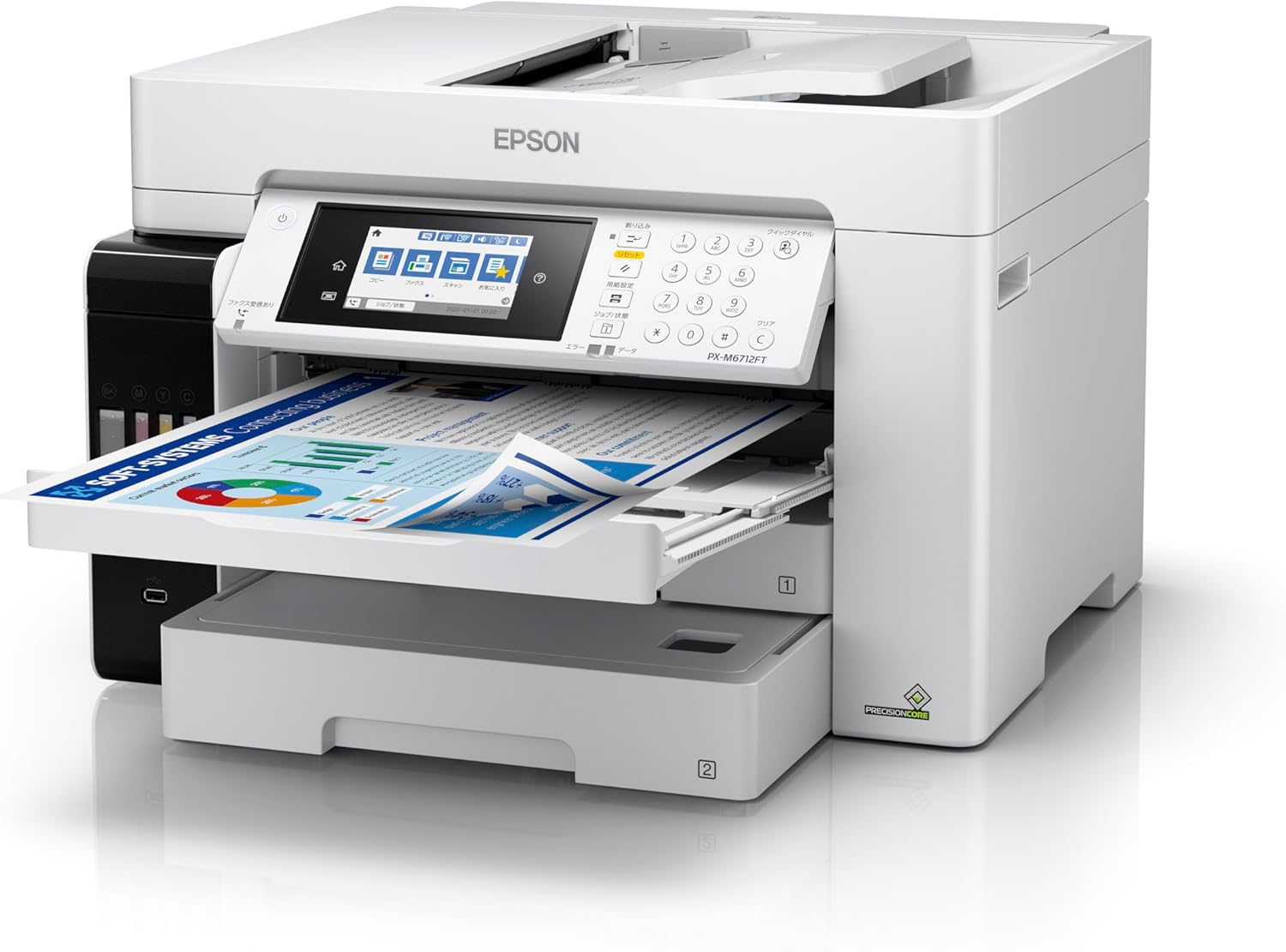

This manual provides detailed instructions for setting up, operating, and maintaining your Epson EcoTank PX-M6712FT A3 Color Inkjet Multifunction Printer. This device offers low printing costs, large ink capacity, and high-speed printing, making it suitable for various business needs. It integrates print, scan, copy, and fax functions, supporting A3+ paper sizes and featuring a large 550-sheet paper capacity.
For additional support and resources, please visit the official Negozio Epson.
2. Informazioni sulla sicurezza
Leggere attentamente tutte le istruzioni di sicurezza prima di utilizzare la stampante per evitare lesioni o danni. Conservare il presente manuale per riferimento futuro.
- Collegare sempre la stampante a una presa di corrente dotata di messa a terra.
- Do not place the printer in direct sunlight, near heat sources, or in areas with excessive dust or humidity.
- Keep ink bottles out of reach of children. If ink is swallowed, seek medical attention immediately.
- Avoid touching internal components of the printer, especially during operation.
- Use only genuine Epson ink bottles and recommended paper types for optimal performance and to avoid damage.
3. Impostazione
3.1 Disimballaggio e posizionamento
Carefully remove the printer from its packaging. Ensure all protective materials and tapes are removed. Place the printer on a stable, level surface with adequate space around it for ventilation and paper handling.
3.2 Riempimento dei serbatoi di inchiostro
The EcoTank system allows for easy and mess-free ink refilling. Open the ink tank unit cover located on the side of the printer. Unscrew the cap of each ink bottle and insert it into the corresponding color tank. The ink will automatically fill and stop when the tank is full. Close the caps and the tank unit cover.
3.3 Collegamento dell'alimentazione e configurazione iniziale
Connect the power cord to the printer and then to a power outlet. Turn on the printer. Follow the on-screen instructions on the control panel to complete the initial setup, including language selection and date/time settings.
3.4 Installazione del software
Insert the provided software disk into your computer or download the latest drivers and software from the Epson support website. Follow the on-screen prompts to install the necessary software for printing, scanning, and faxing.
3.5 Connessione di rete
The printer supports Ethernet, USB, and Wi-Fi connectivity. For Wi-Fi setup, navigate to the network settings on the printer's control panel and select your Wi-Fi network. Enter the password if prompted. For Ethernet, connect a network cable from the printer to your router or network hub.
3.6 Caricamento della carta
The printer features two front paper cassettes, each holding 250 sheets, for a total standard capacity of 500 sheets. It also has a rear manual feed tray for specialized media. Load paper into the desired tray, ensuring it is aligned correctly. The printer supports A3+ paper sizes.
4. Istruzioni per l'uso
4.1 Stampa di base
To print a document from your computer, select the Epson PX-M6712FT from your printer list. Adjust print settings such as paper size (A4, A3+, etc.), color/monochrome, and duplex printing as needed. The printer offers high-speed printing at approximately 25 images per minute (ipm) and a first print out time of about 5.5 seconds.
4.2 Copia dei documenti
Place your document on the scanner glass or in the Automatic Document Feeder (ADF). On the printer's touchscreen control panel, select the 'Copy' function. Adjust settings like number of copies, color/monochrome, and paper size. Press the Start button to begin copying.
4.3 Scansione di documenti
Place your document on the scanner glass or in the ADF. Select the 'Scan' function from the control panel. Choose your scan destination (e.g., computer, cloud service, USB drive) and adjust scan settings. Press Start to scan.
4.4 Invio di fax
Load your document into the ADF. Select the 'Fax' function on the control panel. Enter the recipient's fax number using the keypad or select from your address book. Press Start to send the fax.
4.5 Stampa mobile
The Epson PX-M6712FT supports mobile printing via Wi-Fi. Download the Epson iPrint app or use compatible mobile printing services. Connect your mobile device to the same Wi-Fi network as the printer and follow the app's instructions to print documents or photos directly from your device.
5. Manutenzione
5.1 Controllo dei livelli di inchiostro e ricarica
Regularly check the ink levels in the EcoTank system. When a tank is low, refill it using the appropriate color ink bottle as described in Section 3.2. The 'Just Insert and Fill' system ensures easy and clean refilling.
5.2 Pulizia della testina di stampa
If print quality declines (e.g., missing lines, streaking), perform a print head cleaning from the printer's maintenance menu on the control panel. This process clears clogged nozzles.
5.3 Waste Ink Tank Replacement
The printer has a user-replaceable waste ink tank. When prompted by the printer, replace the waste ink tank. Refer to the user guide for specific instructions on how to access and replace this component.
5.4 Pulizia del percorso della carta
If paper jams occur frequently or print quality is affected by smudges, clean the paper path rollers. Consult the detailed user guide for instructions on how to perform this procedure safely.
6. Risoluzione Dei Problemi
This section addresses common issues you might encounter with your Epson PX-M6712FT printer.
- La stampante non risponde: Ensure the printer is powered on and properly connected to your computer or network. Check for any error messages on the control panel.
- Inceppamenti della carta: Follow the on-screen instructions or refer to the detailed user guide to clear any jammed paper. Always remove paper gently to avoid tearing.
- Scarsa qualità di stampa: Perform a nozzle check and print head cleaning (Section 5.2). Ensure you are using appropriate paper and genuine Epson ink. Note that bleeding may occur with certain markers or paper combinations; it is recommended to wait approximately 5 minutes after printing before using markers.
- Problemi di connettività: For Wi-Fi, verify your network connection and password. For USB, ensure the cable is securely connected. For Ethernet, check the network cable and router connection.
- Ink Bleeding: Epson does not guarantee printed paper in environments where it is exposed to water. Bleeding may occur depending on the marker used or the combination with the paper.
For more complex issues, refer to the comprehensive user guide available on the Epson support website or contact Epson customer support.
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | PX-M6712FT |
| Marca | Epson |
| Fattore di forma | All-in-One (Print, Scan, Copy, Fax) |
| Tecnologia di stampa | Getto d'inchiostro |
| Uscita della stampante | Colore |
| Risoluzione di stampa massima (monocromatica) | 1200 dpi |
| Supporto per le dimensioni del foglio | A3+ |
| Stampa fronte-retro | SÌ |
| Paper Capacity (Standard) | 500 sheets (2 x 250-sheet front cassettes) |
| Max Load Capacity (ADF) | 100 fogli |
| Max Copies per Session | 999 |
| Tipo di scanner | Foto |
| Tecnologia di connettività | Ethernet, USB, Wi-Fi |
| Dispositivi compatibili | PC desktop, laptop |
| Tipo di controllore | Controllo touchpad |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 97.6 x 51.5 x 52.1 cm |
| Peso dell'articolo | 24.5 chilogrammi |
| Componenti inclusi | 1 ink bottle of each color, power cord, software disk, user guide, warranty claim form |
8. Garanzia e supporto
8.1 Informazioni sulla garanzia
The Epson EcoTank PX-M6712FT comes with a 1-year on-site repair warranty. Please retain your purchase receipt and the warranty claim form included with your product for any warranty services.
8.2 Assistenza clienti
For technical assistance, troubleshooting, or warranty claims, please contact Epson customer support. You can find contact information and additional resources on the official Epson websito.
