HHT Heat N Glo 146-500 Wall Thermostat Instruction Manual

1. Introduzione

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HHT Heat N Glo 146-500 Wall Thermostat. This genuine OEM replacement part is designed for use with Hearth & Home gas stoves and fireplaces, compatible with both LP (liquid propane) and NG (natural gas) units. The thermostat operates on a millivolt system, eliminating the need for batteries.

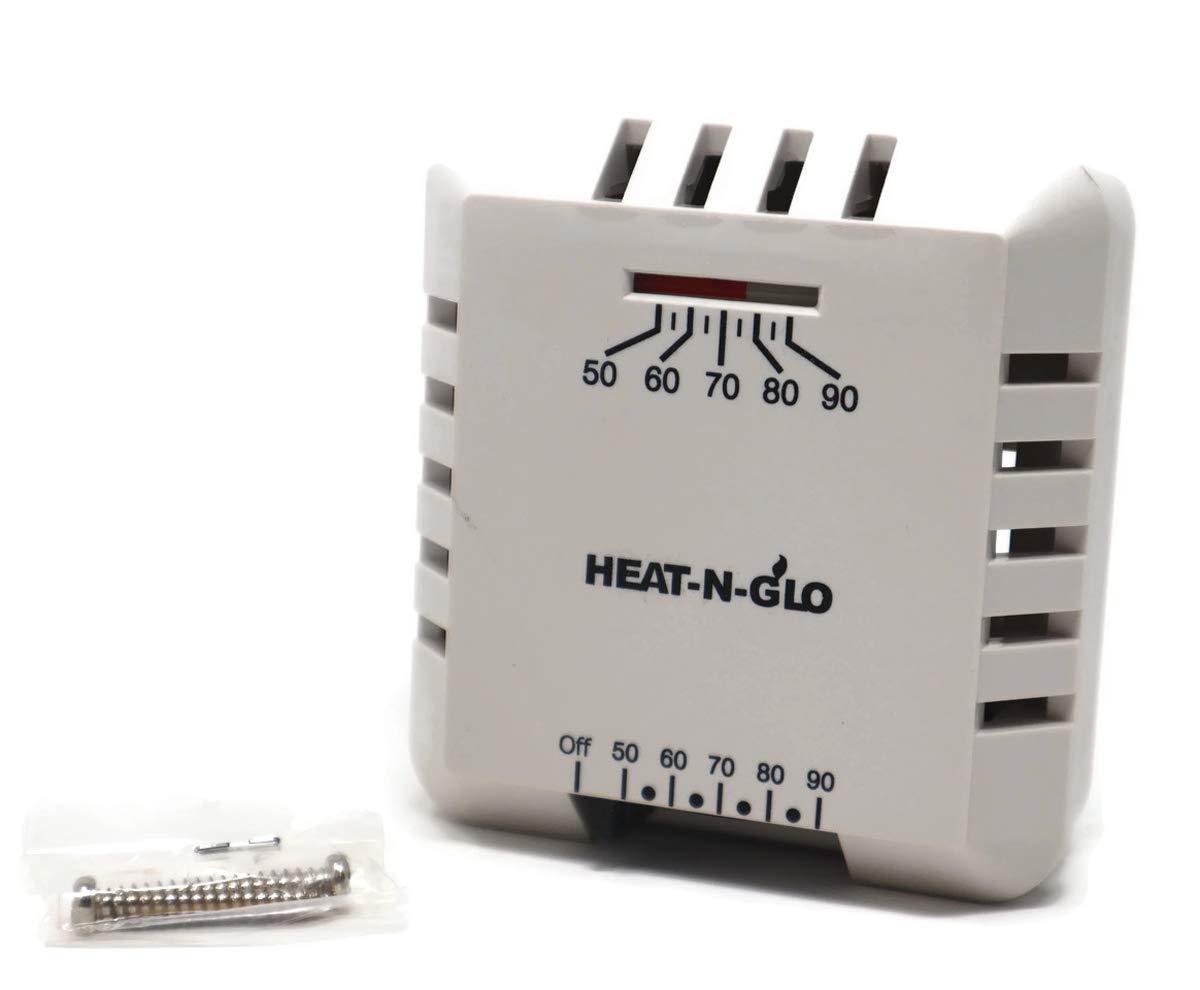

Figura 1: HHT Heat N Glo 146-500 Wall Thermostat. This image shows the front view of the white, rectangular wall-mounted thermostat with a manual control dial.

2. Informazioni sulla sicurezza

Please read and understand all safety instructions before installing or operating this thermostat. Failure to follow these instructions could result in property damage, personal injury, or death.

• Rischio elettrico: Disconnect power to the fireplace or heating appliance before installation or servicing to prevent electrical shock.
• Personale qualificato: Installation and servicing should be performed by a qualified service technician.
• Sicurezza degli apparecchi a gas: Always refer to the gas fireplace or stove manufacturer's manual for specific wiring diagrams and safety precautions related to the gas appliance.
• Cablaggio corretto: Assicurarsi che tutti i collegamenti elettrici siano sicuri e conformi alle normative elettriche locali.
• Uso previsto: Use this thermostat only for its intended purpose with compatible millivolt gas fireplaces and stoves.

3. Contenuto della confezione

Verificare che tutti gli elementi siano presenti prima di iniziare l'installazione:

• HHT Heat N Glo 146-500 Wall Thermostat (1)
• Mounting Hardware (screws, wall anchors) (1 set)
• Manuale di istruzioni (questo documento) (1)

4. Configurazione e installazione

This thermostat is designed for wall-mounted, wired installation and operates on a millivolt system. No external power supply or batteries are required for its operation, as it draws power directly from the millivolt generator in your gas fireplace.

1. Scegli la posizione: Select an interior wall location, away from direct sunlight, drafts, or heat sources (like the fireplace itself), which could affect temperature readings. The recommended height is approximately 5 feet (1.5 meters) from the floor.
2. Scollegare l'alimentazione: Before starting, ensure the gas supply to the fireplace is turned off and any electrical power to the fireplace is disconnected.
3. Montare il termostato:
   • Carefully separate the thermostat cover from its base.
   • Posizionare la base del termostato sulla parete nel punto prescelto.
   • Mark the mounting screw holes.
   • Drill pilot holes if necessary and secure the base to the wall using the provided mounting hardware.
4. Connessioni dei cavi:
   • Eseguire a basso volumetage thermostat wire (typically 18-gauge, 2-conductor) from your gas fireplace's millivolt valve terminals to the thermostat's terminals.
   • Connect one wire from the fireplace to one terminal on the thermostat.
   • Connect the second wire from the fireplace to the other terminal on the thermostat.
   • Ensure connections are tight and secure. Polarity is generally not critical for millivolt systems, but refer to your fireplace manual for specific instructions.
5. Riassemblare e testare:
   • Carefully snap the thermostat cover back onto its base.
   • Restore gas and electrical power to the fireplace.
   • Turn the thermostat dial to a setting above the current room temperature to test if the fireplace ignites.
   • Turn the dial below the current room temperature to ensure the fireplace turns off.

Importante: Always consult your specific gas fireplace or stove installation manual for detailed wiring diagrams and safety procedures. Incorrect wiring can damage the thermostat or the fireplace control system.

5. Istruzioni per l'uso

The HHT Heat N Glo 146-500 Wall Thermostat features simple manual control for your gas fireplace.

1. Impostazione della temperatura: Rotate the manual control dial (analog display) to your desired room temperature. The thermostat will activate the fireplace when the room temperature falls below your set point and deactivate it when the room temperature rises above the set point.
2. Turning Off the Fireplace: To turn off the fireplace, rotate the dial to its lowest setting or to the "OFF" position if marked.
3. Funzionamento continuo (se applicabile): Some fireplace systems may have a separate switch for continuous pilot operation. This thermostat controls the main burner based on temperature.

This thermostat provides basic temperature regulation. For advanced features or programming, a different type of thermostat would be required.

6. Manutenzione

The HHT Heat N Glo 146-500 Wall Thermostat requires minimal maintenance to ensure reliable operation.

• Pulizia: Pulire periodicamente l'esterno del termostato con un panno morbido e asciutto.amp panno. Non usare detergenti abrasivi o solventi.
• Flusso d'aria: Ensure that the vents or openings on the thermostat casing non siano ostruiti da polvere o detriti, poiché ciò potrebbe compromettere la precisione del rilevamento della temperatura.
• Connessioni: Annually, or if experiencing issues, have a qualified technician check the wiring connections at both the thermostat and the fireplace valve for tightness and corrosion.

7. Risoluzione Dei Problemi

If your fireplace system is not operating as expected with the thermostat, refer to the following common issues and solutions:

For persistent issues, contact a qualified HVAC technician or the fireplace manufacturer's support.

8. Specifiche

9. Informazioni sulla garanzia

This HHT Heat N Glo 146-500 Wall Thermostat is a genuine OEM replacement part. Warranty coverage, if any, is typically provided by the manufacturer, HHT (Hearth & Home Technologies), and may vary. Please retain your proof of purchase. For specific warranty terms and conditions, refer to the documentation provided with your original fireplace unit or contact HHT customer service directly.

10. Assistenza clienti

For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact the manufacturer:

• Produttore: HHT (Hearth & Home Technologies)
• Refer to your original fireplace manual for specific contact details or visit the official HHT websito per informazioni di supporto.
• When contacting support, please have your product model number (146-500) and the model number of your fireplace readily available.
