AGPTEK HT-420 Rechargeable Electric Air Pump User Manual

Introduzione

This manual provides comprehensive instructions for the safe and efficient operation of your AGPTEK HT-420 Rechargeable Electric Air Pump. Designed for convenience and portability, this pump can both inflate and deflate various items, including air mattresses, inflatable pools, and other recreational inflatables. Please read this manual thoroughly before use and retain it for future reference.

The AGPTEK HT-420 features a built-in rechargeable battery and multiple charging options, making it ideal for both indoor and outdoor use.

Istruzioni di sicurezza

• Non fare use this air pump for inflating high-pressure products such as vehicle tires, basketballs, or balloons. This pump is designed for low-pressure, high-volume inflatables.
• Non fare operate the pump continuously for more than 10 minutes to prevent overheating. Allow the pump to cool down for at least 15 minutes after 10 minutes of continuous use.
• Non fare expose the pump to rain or moisture. Store the pump indoors in a dry environment.
• Keep the pump away from children and pets. This is not a toy.
• Ensure the air inlet and outlet are clear of obstructions during operation.
• Utilizzare solo il cavo di ricarica e gli adattatori forniti.
• If the pump shows any signs of damage, discontinue use immediately and contact customer support.

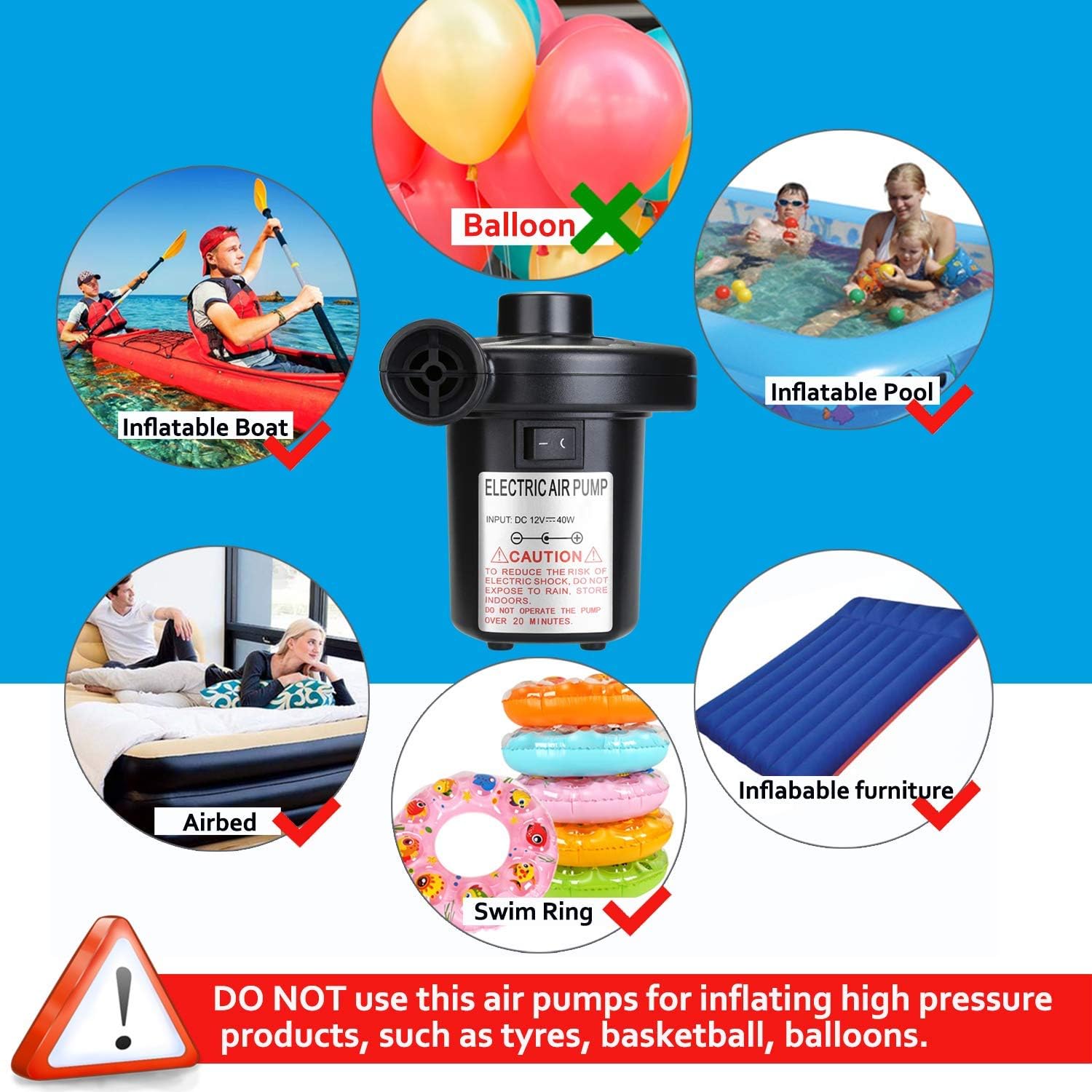

Immagine: The AGPTEK Electric Air Pump is suitable for inflatable boats, pools, airbeds, and swim rings. It is not designed for balloons or high-pressure items.

Contenuto della confezione

Verifica che tutti gli articoli siano presenti nel tuo pacco:

• 1 x AGPTEK HT-420 Rechargeable Electric Air Pump
• 3 x Nozzles (S, M, L sizes)
• 1 cavo di ricarica USB
• 1 x Car Power Adapter (12V DC)
• 1 x Home Power Adapter (110V AC)
• 1 x Borsa portaoggetti

Immagine: Contents of the AGPTEK Electric Air Pump package, including the pump, various nozzles, and power adapters.

Specifiche

Immagine: Dettagliato view of the AGPTEK Electric Air Pump, showing its dimensions, inflate port, and deflate port.

Impostare

1. Charging the Air Pump

Before initial use, fully charge the air pump. The built-in 4000mAh Li-ion battery provides cordless operation.

• Connect the provided USB charging cable to the pump's USB port.
• Collegare l'altra estremità del cavo USB a una fonte di alimentazione:
• Home Charging: Use the included home power adapter and plug it into a standard wall outlet.
• Ricarica auto: Use the included car power adapter and plug it into your vehicle's 12V DC outlet.
• Banca di potere: Connect to a portable power bank for charging on the go.
• The indicator lights on the pump will show the charging status and battery level. A full charge typically takes about 4 hours.

Immagine: The AGPTEK Electric Air Pump supports multiple charging methods, including home outlets, car chargers, and power banks.

Immagine: Close-up of the AGPTEK HT-420 pump showing the USB charging port and battery indicator lights.

2. Selezione dell'ugello corretto

The pump comes with three different nozzle sizes to fit various inflatable valves:

• Taglia S: Ideal for small inflation port toys, such as swimming rings.
• Taglia M: Ideal for airbeds, inflatable pools, or seats, and for extracting air from vacuum compression bags.
• Taglia L: Ideal for inflating air mattresses, larger inflatable pools, or boats.

Choose the nozzle that best fits the valve of the item you intend to inflate or deflate.

Immagine: The AGPTEK HT-420 pump includes three nozzle sizes (S, M, L) for versatile use with different inflatables.

Istruzioni per l'uso

1. Inflating an Item

1. Select the appropriate nozzle and firmly attach it to the inflate port (the side outlet) of the air pump.
2. Insert the nozzle securely into the inflation valve of the item you wish to inflate.
3. Press the ON/OFF switch to turn on the pump.
4. Once the item is inflated to the desired firmness, press the ON/OFF switch again to turn off the pump.
5. Remove the nozzle from the item and the pump.

2. Deflating an Item

1. Select the appropriate nozzle and firmly attach it to the deflate port (the top outlet) of the air pump.
2. Insert the nozzle securely into the deflation valve of the item you wish to deflate.
3. Press the ON/OFF switch to turn on the pump. The pump will begin to suck air out of the item.
4. Once the item is deflated, press the ON/OFF switch again to turn off the pump.
5. Remove the nozzle from the item and the pump.

Immagine: Illustration of the inflation and deflation functions, along with the ON/OFF switch of the AGPTEK Electric Air Pump.

Immagine: The AGPTEK rechargeable air pump being used to inflate an airbed and an inflatable pool, demonstrating its cordless convenience.

Manutenzione

• Pulizia: Pulire l'esterno della pompa con un panno morbido e asciutto. Non utilizzare detergenti abrasivi né immergere la pompa in acqua.
• Magazzinaggio: Store the pump and its accessories in the provided storage bag in a cool, dry, indoor location, away from direct sunlight and moisture.
• Cura della batteria: If the pump will not be used for an extended period, charge it fully every 3-6 months to maintain battery health.

Risoluzione dei problemi

Garanzia e supporto

AGPTEK products are designed for reliability and performance. For any questions, concerns, or technical support regarding your AGPTEK HT-420 Rechargeable Electric Air Pump, please contact our customer service team.

E-mail del cliente: cs@agptek.com

Please have your product model number (HT-420) and purchase information ready when contacting support.
