1. Prodotto finitoview
The DEWINNER 360° Rotating Automatic Garden Water Sprinkler is designed for efficient and versatile irrigation of various outdoor spaces. Its robust construction and intelligent design ensure reliable performance for watering lawns, gardens, vegetable patches, and more.
Caratteristiche principali:
- Costruzione di alta qualità: Manufactured from durable ABS plastic, ensuring a lightweight yet robust design. Internal threading provides a secure, watertight seal.
- Facile da usare: Connects directly to standard household water pressure, enabling automatic 360-degree rotation without the need for additional auxiliary equipment.
- Design a doppio ugello: Includes both a three-arm rotating nozzle and a butterfly nozzle, allowing users to select different spray patterns to meet diverse watering requirements.
- Tandem Use Capability: For larger areas, multiple DEWINNER sprinklers can be connected in series to achieve comprehensive irrigation coverage.
- Applicazione multifunzionale: Ideal for garden, yard, and farm irrigation, including vegetables, flowers, and fruit trees. Can also be used as a fun outdoor water activity for children.
2. Informazioni sulla sicurezza
Please read and understand all safety instructions before operating the sprinkler. Failure to follow these instructions may result in injury or damage to the product.
- Avoid direct contact with high-pressure water jets. Keep a safe distance from the sprinkler while it is in operation.
- Do not allow children to play unsupervised near the sprinkler, especially when it is operating at high pressure.
- Ensure all connections are secure to prevent leaks and potential tripping hazards.
- Do not use the product with water temperatures exceeding 40°C (104°F).
- Store the sprinkler indoors during freezing temperatures to prevent damage from ice expansion.
- Use the product strictly according to the manufacturer's instructions. Any unauthorized modifications may void the warranty and pose safety risks.
3. Contenuto della confezione
Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:
- 1 x DEWINNER 360° Rotating Automatic Garden Water Sprinkler (main base with three-arm nozzle)
- 1 x Butterfly Nozzle (alternative spray head)
- 2 x Hose Connectors (for standard garden hoses)
- 1 x Male Connector (additional adapter)
4. Guida all'installazione
Follow these steps to set up your DEWINNER Garden Water Sprinkler:
Step 1: Attach the Sprinkler Head
Securely screw the desired sprinkler head (either the three-arm rotating head or the butterfly nozzle) onto the central connection point of the sprinkler base. Ensure it is tightly fastened to prevent any water leakage during operation.
Screw the chosen sprinkler head onto the base. Fase 2: collegare il tubo
Attach one of the provided hose connectors to your garden hose. Then, connect the hose connector to the inlet port located on the side of the sprinkler base. Push firmly until it clicks into place or is securely threaded.
Connect your garden hose to the sprinkler inlet. Passaggio 3: connessioni sicure

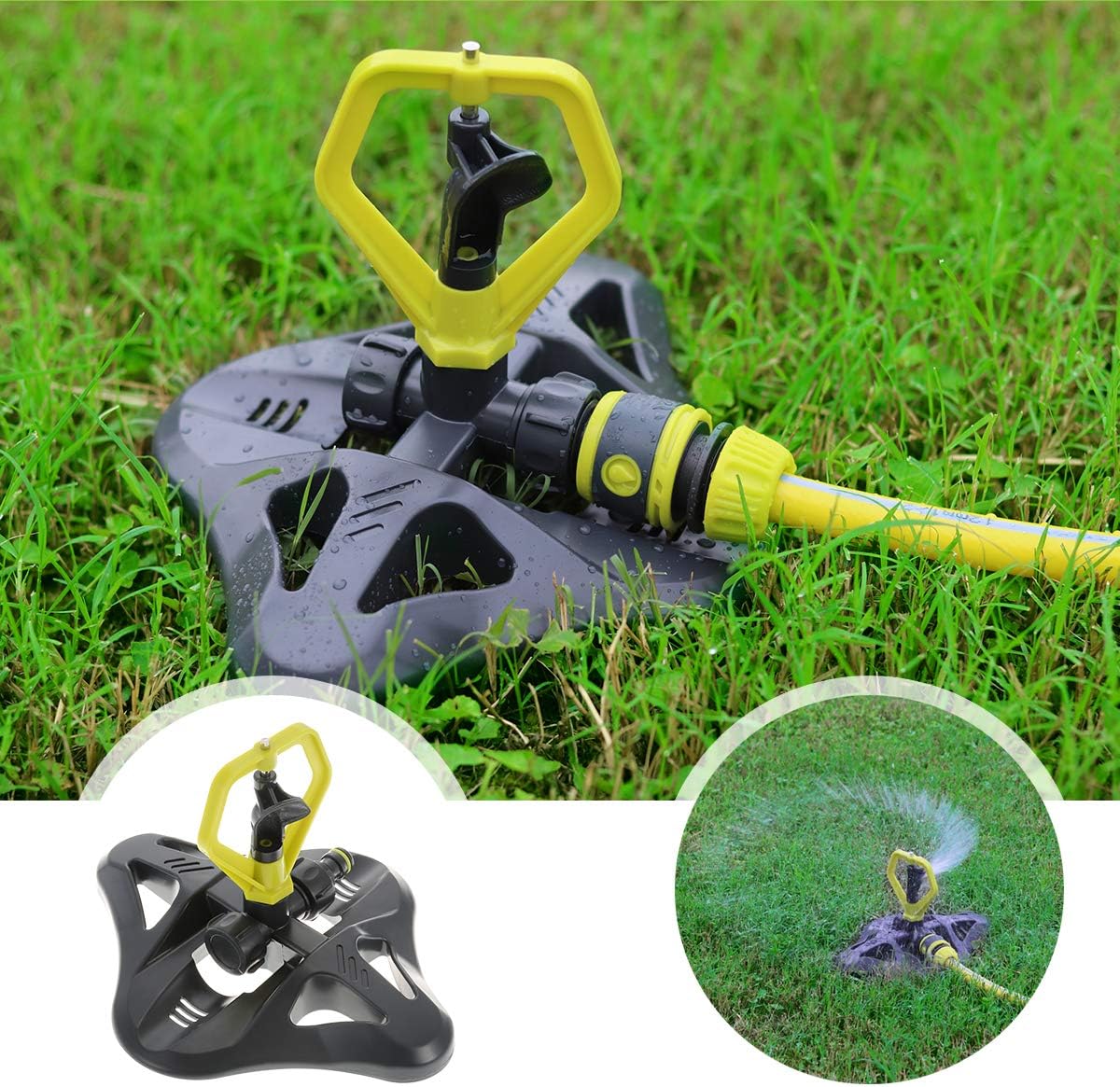

Double-check that all connections, including the sprinkler head and hose connector, are firm and watertight. Hand-tighten any threaded fittings to ensure no leaks occur when water pressure is applied.
Assicurarsi che tutti i collegamenti siano ben saldi e sicuri. Step 4: Position the Sprinkler
Place the sprinkler on a flat, stable surface in the area you intend to irrigate. Ensure the spray path is clear of any obstructions such as walls, fences, or delicate plants that could be damaged by water jets.
Place the sprinkler in the desired watering area.
5. Istruzioni per l'uso
Once set up, operating your DEWINNER sprinkler is straightforward:
Starting Irrigation:
Slowly turn on your water supply from the faucet. The sprinkler will begin to rotate automatically and spray water across the designated area. The rotation speed and spray distance are influenced by your household water pressure.
Regolazione dei modelli di spruzzo:
The DEWINNER sprinkler offers versatility with its two interchangeable nozzles:
- Three-Arm Rotating Nozzle: Provides a wide, even spray pattern suitable for general lawn and garden irrigation. The spray angle and distance are primarily determined by water pressure.
- Butterfly Nozzle: Offers a more concentrated, fixed spray pattern, ideal for targeted watering of smaller areas or specific plants.
To change the nozzle, turn off the water supply completely, unscrew the currently attached nozzle, and screw on the desired alternative. Ensure it is tightly secured before resuming water flow.
Connecting Multiple Sprinklers (Tandem Use):
For irrigating larger gardens or lawns, DEWINNER sprinklers can be connected in series. Use the provided connectors to link multiple sprinklers together, ensuring a continuous water flow across the entire area. This allows for expanded coverage from a single water source.
6. Manutenzione
Regular maintenance will ensure the longevity and optimal performance of your DEWINNER sprinkler:
Pulizia:
- Periodically inspect the nozzles for any debris, dirt, or mineral buildup that might obstruct water flow or affect the spray pattern.
- If blockages are present, turn off the water supply, remove the nozzle, and gently clean it with a soft brush and water. Avoid using harsh chemicals or abrasive tools that could damage the plastic.
Magazzinaggio:
- Before storing the sprinkler for extended periods, especially during cold weather or winter months, ensure all water is drained from the unit and connected hoses.
- Store the sprinkler in a dry, protected area, away from direct sunlight and extreme temperatures, to prevent material degradation and damage from freezing.
7. Risoluzione Dei Problemi
If you encounter any issues with your DEWINNER sprinkler, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Low Water Pressure / Uneven Spray | Kinked hose, partially closed faucet, clogged nozzles, insufficient household water pressure. | Check the hose for kinks or blockages. Ensure the water supply faucet is fully open. Clean the sprinkler nozzles for any debris. If household water pressure is consistently low, consider a pressure booster (consult a plumber). |
| Perdite nei collegamenti | Loose connections, damaged rubber washers, incorrect hose fitting. | Ensure all hose connectors and sprinkler head are tightly secured. Check the rubber washers inside the connectors for proper seating and any signs of wear or damage; replace if necessary. Use compatible hose fittings. |
| Sprinkler Not Rotating | Insufficient water pressure, internal mechanism obstruction, clogged nozzles. | Verify that there is adequate water pressure. Turn off water, disconnect, and check the rotating mechanism for any visible obstructions. Clean the nozzles thoroughly. |
| Watering Area Too Small / Too Large | Water pressure too low/high, incorrect nozzle type for area size. | Adjust water pressure at the faucet. For larger areas, ensure sufficient pressure or consider connecting multiple sprinklers in tandem. For smaller areas, reduce pressure or use the butterfly nozzle for more targeted watering. |
8. Specifiche
Detailed technical specifications for the DEWINNER 360° Rotating Automatic Garden Water Sprinkler:
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | 01 |
| Dimensioni (L x P x A) | 26.67 x 19.3 x 8.67 cm (10.5 x 7.6 x 3.4 pollici) |
| Peso | 350 grammi (0.77 libbre) |
| Materiale | Plastica ABS di alta qualità |
| Colore | Nero, Giallo |
| Pressione massima | 7E+1 PSI (70 PSI) |
| Codice UPC | 759663942324 |
| Stile | Durevole |
9. Garanzia e supporto
Informazioni sulla garanzia:
DEWINNER products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your purchase, please refer to the documentation included with your product or contact DEWINNER customer service directly. Keep your proof of purchase for warranty claims.
Assistenza clienti:
For technical assistance, inquiries about replacement parts, or any other support needs, please visit the official DEWINNER website or contact their customer support team. You can find more information and contact details on the DEWINNER brand store page:
