Sauder Iron City Lateral File Manuale di istruzioni del modello di armadio 427135

1. Prodotto finitoview

The Sauder Iron City Lateral File Cabinet, Model 427135, offers optimal storage for your office space with an industrial-inspired design. This unit features two large drawers equipped with full extension slides, designed to accommodate both letter and legal-size hanging files. Its robust construction includes a textured, powder-coated metal pipe frame and a Checked Oak finish, ensuring durability and a versatile aesthetic. The cabinet is finished on all sides, allowing for flexible placement within your home or office environment.

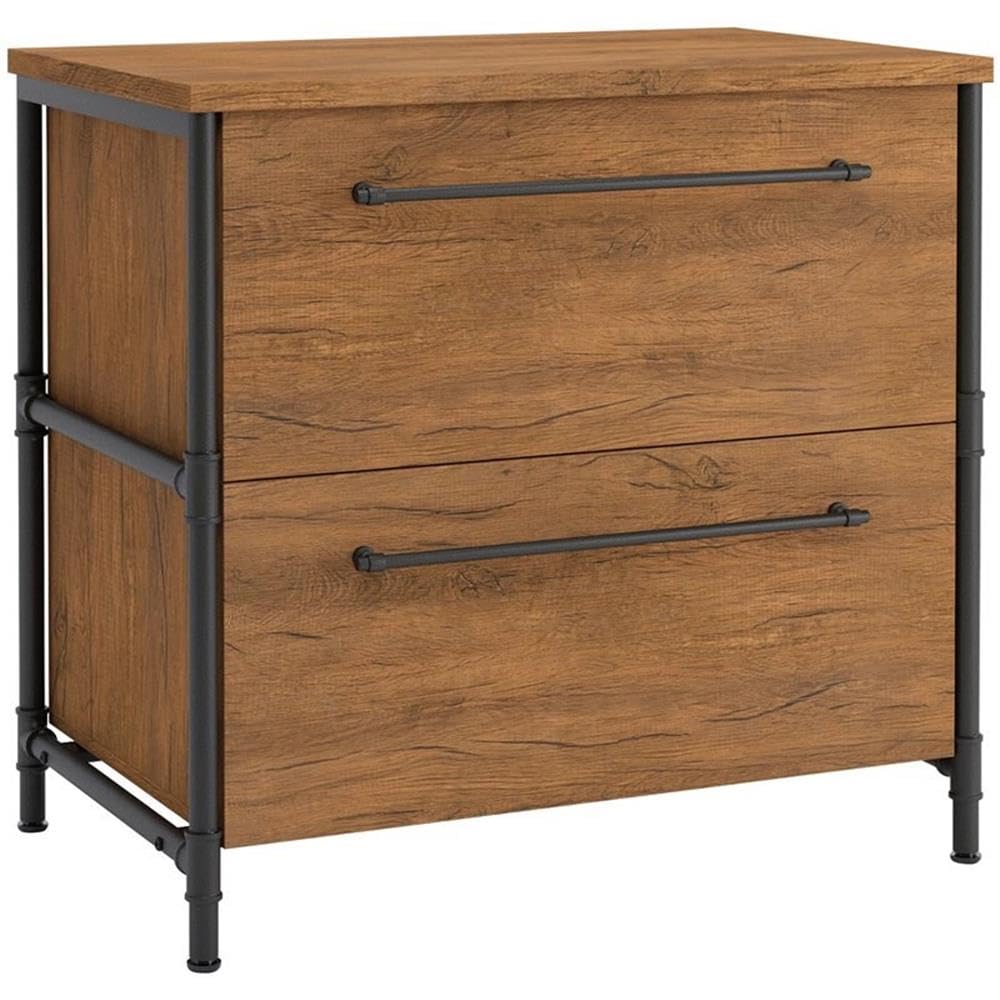

Image: Sauder Iron City Lateral File Cabinet in Checked Oak finish.

2. Informazioni sulla sicurezza

Questo file cabinet is designed with a patented interlocking safety mechanism that permits only one drawer to open at a time. This feature is crucial for preventing the cabinet from tipping over, enhancing safety in busy environments.

• Always ensure the cabinet is placed on a level surface.
• For assembly and moving, it is recommended to have two people due to the item's weight (approximately 92.4 lbs).
• Non salire o stare in piedi sul mobile.
• Keep small children and pets away from the cabinet during assembly and when drawers are open.

3. Istruzioni di montaggio

IL file cabinet is designed for straightforward assembly. Please review all instructions and identify all parts before beginning. Ensure you have adequate space and the necessary tools.

3.1 Strumenti necessari

• Cacciavite con testa Phillips
• Martello (facoltativo, per i tasselli)

3.2 Identificazione delle parti

Verify that all materials and hardware components listed in your packaging are present before starting assembly. Each piece is typically marked for easy identification.

3.3 Assemblaggio passo dopo passo

3.3.1 Cam and Dowel Assembly

This video demonstrates the proper technique for assembling components using cam and dowel fasteners, a common method in Sauder furniture. Pay close attention to the alignment of the cam lock arrow.

Video: How to assemble Cam & Dowel fasteners.

3.3.2 Drawer Slide Separation and Installation

Learn how to correctly separate the drawer slides from their extension rails, and how to insert and remove drawers after assembly. This is essential for proper drawer function and maintenance.

Video: How to separate slides from extension rails, insert, and remove drawers.

3.3.3 Fasi dell'assemblea generale

Follow the detailed assembly instructions provided in the packaging to construct the cabinet frame and drawers. Ensure all screws and fasteners are securely tightened for stability.

Image: Dimensions of the Lateral File Mobiletto.

Image: Detail of the metal pipe frame.

4. Istruzioni per l'uso

4.1 Funzionamento del cassetto

IL file cabinet features two drawers with full extension slides, allowing complete access to your stored documents. To open a drawer, gently pull the handle. To close, push the drawer firmly until it is fully seated.

The patented interlocking safety mechanism ensures that only one drawer can be opened at a time. If one drawer is open, the other will remain locked. This prevents the cabinet from becoming unbalanced and tipping over.

Image: Lateral file cabinet with one drawer open.

4.2 File Organizzazione

The drawers are designed to hold both letter and legal-size hanging files. Adjust the file rails as needed to accommodate your document size. Organize your files efficiently to maximize storage capacity.

Immagine: Interno view of a drawer with hanging files.

5. Manutenzione

5.1 Pulizia

Per pulire il mobile, strofinare le superfici con un panno morbido eamp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish. For the metal frame, a mild soap solution can be used.

5.2 Cura

• Evitare di posizionare il mobiletto alla luce diretta del sole o vicino a fonti di calore per evitare deformazioni o scolorimenti.
• Controllare periodicamente tutti i dispositivi di fissaggio e, se necessario, serrarli per mantenere la stabilità.
• Do not overload drawers beyond the recommended weight limit of 85 pounds.

6. Risoluzione Dei Problemi

6.1 Drawers Not Opening/Closing Smoothly

• Check for any obstructions or debris in the drawer slides.
• Ensure the drawer slides are properly aligned and securely attached. Refer to the 'Drawer Slide Separation and Installation' video if needed.
• Verify that the cabinet is on a level surface.

6.2 Cabinet Wobbles

• Confirm that all assembly fasteners (cams, dowels, screws) are fully tightened.
• Assicurarsi che il mobile sia posizionato su una superficie piana e stabile.

6.3 Parti mancanti

If you find any missing parts, please contact Sauder customer support for assistance. Do not attempt to substitute parts.

7. Specifiche

8. Garanzia e supporto

8.1 Informazioni sulla garanzia

This product is covered by Sauder's standard warranty. For specific details regarding your product's warranty period and coverage, please refer to the documentation included with your purchase or visit the official Sauder website. Optional protection plans (2-Year, 3-Year, or Complete Protect) may be available for purchase separately to extend coverage.

8.2 Assistenza clienti

Sauder is committed to providing excellent customer service. For assistance with assembly, missing parts, or any other inquiries, please utilize the following resources:

• Chat dal vivo: On-demand support for immediate assistance.
• Assembly Tip Videos: Helpful visual guides for complex steps.
• Parti di ricambio: Quick shipping for any necessary replacement components.
• Domestic Call Center: Ready to assist with any questions or concerns.

Visitare il Sauder Store on Amazon per ulteriori informazioni e risorse di supporto.
