1. Introduzione
Thank you for choosing the Cecotec Power Titan Black 1200 XL Hand Blender. This powerful appliance is designed to help you prepare a wide variety of recipes quickly and efficiently, offering excellent performance for blending, chopping, and crushing ingredients, including ice. Please read this manual carefully before first use to ensure safe and optimal operation of your new hand blender.
2. Prodotto finitoview e componenti
The Cecotec Power Titan Black 1200 XL Hand Blender comes with several accessories to enhance its versatility. Familiarize yourself with each component before use.
- Hand Blender Motor Unit: The main body containing the 1200W motor, speed selector, and turbo function.
- XL Extra-Long Foot: Stainless steel blending shaft with CrossBlades Technology (4-bladed titanium coated knife).
- 800 ml Measuring Cup: BPA-free cup for blending and measuring, includes a lid.
- 600 ml Food Processor/Chopper: For mincing meat, vegetables, or nuts.
- IceBlade Knife: Specifically designed for crushing ice, included with the chopper.
- Whisk Rods: For whipping, mixing, and creating creams or beating eggs.
- Mixing Rods: Two innovative blender rods for making fluffy cookies.
- Puree Accessory (Pasapure): For effortlessly making soft and creamy purees.
Figure 2.1: The Cecotec Power Titan Black 1200 XL Hand Blender shown with its main unit and all six included accessories: the blending shaft, whisk attachment, mixing rods, 800ml measuring cup, 600ml chopper with ice blade, and puree accessory.
Figure 2.2: The hand blender and its various attachments neatly arranged on a wooden kitchen countertop, ready for use. This image highlights the compact and organized nature of the set.
Figure 2.3: A hand holding the Cecotec hand blender with the whisk attachment inserted into a measuring cup containing a white liquid, demonstrating its use for whipping or blending liquids.
Figura 2.4: Un primo piano view of the top of the hand blender's motor unit, showing the power button, speed control dial, and turbo button. The ergonomic design and soft-touch coating are visible.

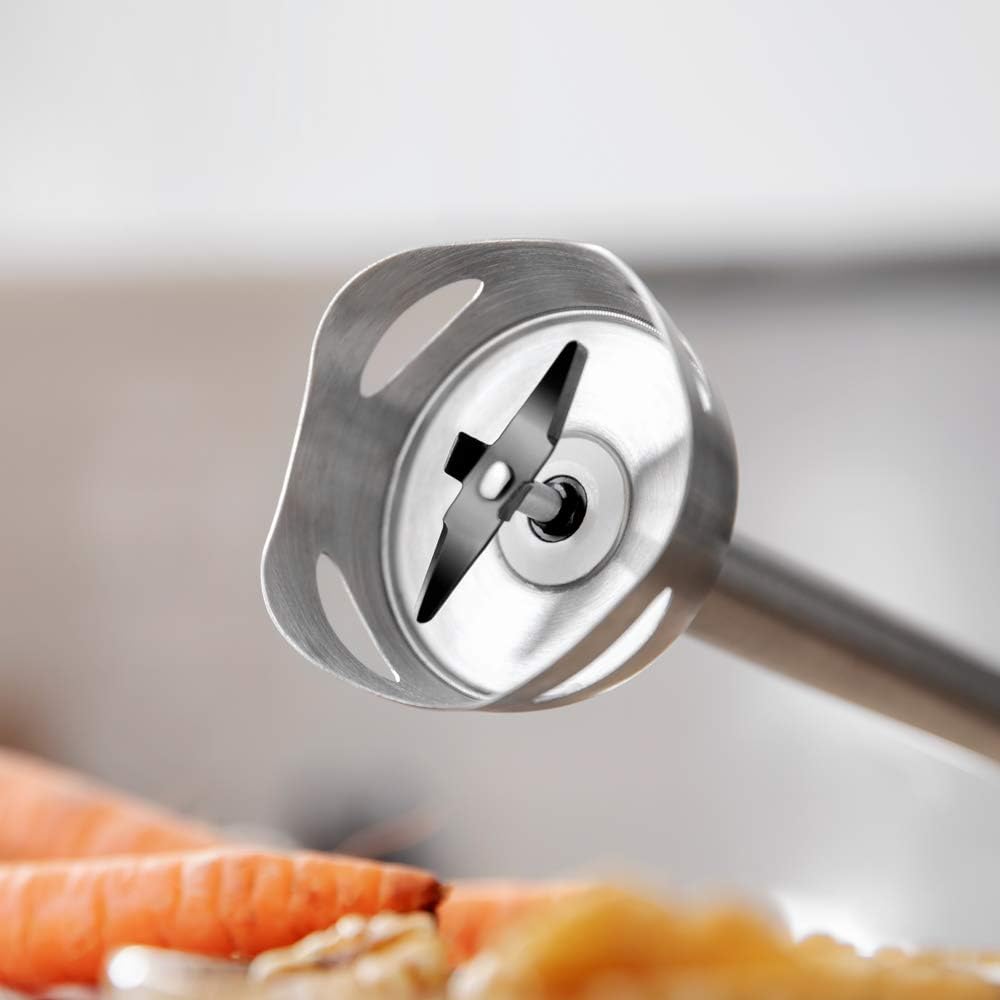

Figura 2.5: Un dettaglio view of the stainless steel blending foot, highlighting the 4-bladed knife with black titanium coating, designed for efficient and homogeneous blending.
Figura 2.6: Un collage mostraasing the hand blender and its accessories in different kitchen scenarios, including blending, whisking, and chopping, illustrating its versatility.
3. Impostazione
- Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Conservare l'imballaggio per un eventuale stoccaggio o trasporto futuro.
- Pulizia iniziale: Before first use, wash all detachable parts (blending shaft, measuring cup, chopper bowl, blades, whisks, puree accessory) in warm soapy water. Rinse thoroughly and dry completely. The motor unit should only be wiped with a damp stoffa.
- Montaggio:
- To attach the blending shaft or whisk attachment: Align the attachment with the motor unit and twist until it clicks securely into place (Fix Plus system).
- To use the chopper: Place the IceBlade knife onto the central pin in the chopper bowl. Add ingredients. Place the chopper lid onto the bowl, then attach the motor unit to the lid, twisting to secure.
- To use the puree accessory: Attach it to the motor unit as you would the blending shaft.
- Collegamento elettrico: Ensure the appliance is unplugged before assembling or disassembling parts. Once assembled, plug the power cord into a suitable electrical outlet (220V).
4. Istruzioni per l'uso
The Power Titan Black 1200 XL Hand Blender offers adjustable speed and a turbo function for optimal results.
- Preparazione: Cut large ingredients into smaller pieces before blending or chopping. For best results, do not overfill the measuring cup or chopper bowl.
- Blending (Hand Blender Shaft):
- Immerse the blending shaft into the ingredients. The anti-splash design cap helps prevent splattering.
- Tieni premuto il pulsante di accensione per iniziare.
- Adjust the speed using the speed selector dial on top of the motor unit. Start with a lower speed and increase as needed.
- For maximum power and quick results, press the Turbo button. This will operate at the highest speed regardless of the dial setting.
- Muovere delicatamente il frullatore su e giù per garantire che tutti gli ingredienti vengano lavorati in modo uniforme.
- Release the power button to stop.
- Chopping (Chopper Attachment):
- Assemble the chopper with the IceBlade knife and ingredients. Attach the motor unit.
- Press the power button or Turbo button for short pulses until desired consistency is achieved.
- For crushing ice, use the IceBlade knife and the Turbo function in short bursts.
- Whipping/Mixing (Whisk/Mixing Rods):
- Attach the whisk or mixing rods to the motor unit.
- Use in the measuring cup or a suitable bowl.
- Select appropriate speed for whipping creams, beating eggs, or mixing dough for cookies.
- Pureeing (Puree Accessory):
- Attach the puree accessory to the motor unit.
- Use for cooked vegetables or fruits to create smooth purees.
- Indicatore LED: The LED lights on the motor unit indicate operation status.
5. Manutenzione e pulizia
Proper cleaning and maintenance will extend the life of your hand blender.
- Scollegare sempre l'apparecchio prima della pulizia.
- Unità motore: Pulire l'unità motore con un panno morbido, damp stoffa. Non immergerlo in acqua o in qualsiasi altro liquido.
- Detachable Accessories: The blending shaft, measuring cup, chopper bowl, blades, whisk rods, mixing rods, and puree accessory are dishwasher safe for easy cleaning. Alternatively, wash them by hand in warm soapy water, rinse thoroughly, and dry immediately.
- Lame: Maneggiare le lame con estrema cura perché sono molto affilate.
- Magazzinaggio: Store the hand blender and its accessories in a dry place, away from direct sunlight and out of reach of children.
6. Risoluzione Dei Problemi
If you encounter issues with your hand blender, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Blender non si accende. | Non collegato; alimentazione spentatage; montaggio improprio. | Ensure the power cord is securely plugged into a working outlet. Check your home's circuit breaker. Reassemble the motor unit and attachment, ensuring they are securely locked. |
| Il motore funziona, ma gli ingredienti non si amalgamano. | Too little liquid; ingredients too large; blade obstruction. | Add more liquid if blending. Cut ingredients into smaller pieces. Unplug the unit and carefully clear any obstructions from the blade. |
| Rumori o vibrazioni insoliti. | Improper assembly; hard ingredients; worn parts. | Ensure all parts are correctly assembled and locked. Avoid blending excessively hard ingredients continuously. If the issue persists, contact customer support. |
| Plastic connection wears out quickly (reported in some reviewS). | Excessive force or continuous blending of very hard ingredients. | Avoid prolonged blending of extremely hard ingredients like large ice cubes or very dense nuts. Use short pulses for tough tasks. Ensure attachments are correctly seated to minimize strain on the connection. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti Cecotec.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Cecotec |
| Numero di modello | 04293 |
| Potenza/Watttage | 1200 L |
| Voltage | 220 Volt |
| Materiale | Stainless Steel (blending shaft), BPA-free plastic (cups) |
| Capacità della tazza di misurazione | 800 ml |
| Capacità del tritatutto | 600 ml |
| Caratteristiche speciali | Multiple speeds, Turbo function, CrossBlades Technology (4-bladed titanium coated knife), Anti-splash design, Fix Plus system, Soft Touch Coating, LED lights. |
| Componenti inclusi | Hand blender, 800 ml measuring cup with lid, 600 ml chopper, IceBlade knife, whisk rods, mixing rods, puree accessory, manual. |
| Dimensioni del prodotto | 6.8D x 6.8B x 48H centimeter |
8. Garanzia e supporto
Cecotec products are manufactured to high-quality standards. For information regarding warranty coverage and customer support, please refer to the warranty card included with your product or visit the official Cecotec website. Specific warranty details are not provided within this manual.
For technical assistance, spare parts, or any inquiries, please contact Cecotec customer service through their official channels.
