Tuzi Qiuge H3 Thermoregulator User Manual

1. Introduzione

This manual provides essential information for the installation, operation, and maintenance of your Tuzi Qiuge H3 Thermoregulator. This touchscreen thermostat is designed for controlling underfloor or electric heating systems, offering precise temperature regulation and programmable scheduling for enhanced comfort and energy efficiency.

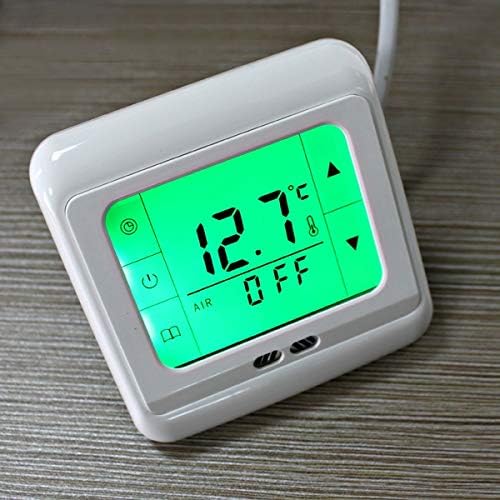

Figure 1: Tuzi Qiuge H3 Thermoregulator with green backlit display.

2. Caratteristiche del prodotto

• Interfaccia touchscreen: Funzionamento semplice e intuitivo.
• Ampio display LCD: Clear visibility with selectable blue, white, or green backlight options.
• Modalità programmabili: Supports 5+2, 6+1, or 7-day time period modes.
• Programmazione giornaliera: Allows setting up to 6 time periods and corresponding temperatures per day.
• Elevata affidabilità: Designed for strong anti-interference performance.
• Memoria di interruzione di corrente: The internal clock continues during power outages, preserving time settings.
• Compatibilità universale: Junction box size suitable for various installations.

3. Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:

• 1 x Thermostat with Backlight
• 1 x 3-meter Sensor Cable
• 2 viti di montaggio
• 1 x Manuale utente (inglese)

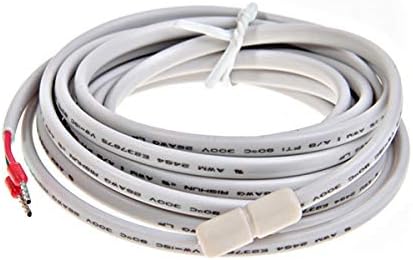

Figure 2: Included 3-meter NTC sensor cable.

4. Installazione e configurazione

Importante: Installation of this thermostat involves high voltage wiring. It is strongly recommended that installation be performed by a qualified electrician to ensure safety and proper functionality. Incorrect installation can lead to electric shock or damage to the device and property.

4.1 Cablaggio

Refer to the detailed wiring diagrams provided in the physical user manual included in your package. Ensure all connections are secure and comply with local electrical codes. The 3-meter sensor cable should be correctly connected to monitor the floor or ambient temperature as required by your heating system.

4.2 Montaggio

Mount the thermostat in a standard electrical junction box using the provided mounting screws. Ensure the thermostat is level and securely fastened to the wall.

5. Istruzioni per l'uso

The Tuzi Qiuge H3 Thermoregulator features a user-friendly touchscreen interface for easy control of your heating system.

5.1 Accensione/spegnimento

Press the power icon on the touchscreen to turn the thermostat on or off. When off, the display may show 'OFF' or a standby screen.

5.2 Regolazione della temperatura

Use the up (▲) and down (▼) arrow icons on the touchscreen to adjust the desired temperature. The current room temperature and the set temperature will be displayed.

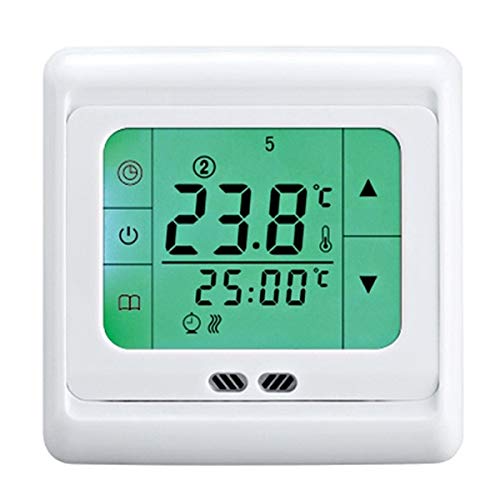

Figure 3: Thermostat display with blue backlight.

5.3 Modalità di programmazione

The thermostat supports various programmable modes (5+2, 6+1, 7 days) allowing you to set different temperature schedules for weekdays and weekends, or for each day individually. Consult the detailed programming section in your physical user manual for step-by-step instructions on setting daily time periods and temperatures.

Figure 4: Thermostat display showing 'OFF' status.

5.4 Controllo della retroilluminazione

The LCD display features a backlight that can be set to blue, white, or green. Specific instructions for changing the backlight color can be found in the comprehensive user manual.

6. Manutenzione

The Tuzi Qiuge H3 Thermoregulator requires minimal maintenance to ensure optimal performance.

• Pulizia: Pulisci delicatamente il touchscreen e casincon un panno morbido e asciutto. Non utilizzare detergenti abrasivi, solventi o spray chimici, poiché potrebbero danneggiare la superficie e i componenti interni.
• Evitare l'umidità: Mantenere il termostato asciutto. Non esporlo all'acqua o a umidità eccessiva.
• Controlli regolari: Periodically check for any loose connections or signs of wear, especially if the device is in a high-traffic area.

7. Risoluzione Dei Problemi

Se riscontri problemi con il termostato, fai riferimento ai seguenti passaggi comuni per la risoluzione dei problemi:

• Nessun display/Nessuna alimentazione: Controllare l'alimentazione principale del termostato e assicurarsi che tutti i collegamenti elettrici siano saldi. Verificare che l'interruttore automatico dell'impianto di riscaldamento non sia scattato.
• Lettura errata della temperatura: Ensure the external sensor cable is properly connected and positioned. Avoid placing the thermostat or sensor in direct sunlight or near heat sources that could affect readings.
• Riscaldamento non attivato: Check the set temperature to ensure it is above the current room temperature. Verify that the thermostat is in an active heating mode (not 'OFF' or in a programmed 'OFF' period). Inspect heating elements for functionality.
• Touchscreen che non risponde: Prova a riavviare il termostato spegnendolo e riaccendendolo. Se il problema persiste, contatta l'assistenza clienti.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact customer support or a qualified technician.

8. Specifiche

9. Garanzia e supporto

Your Tuzi Qiuge H3 Thermoregulator is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact the retailer where you purchased the product or visit the official Tuzi website for customer service contact information. When contacting support, please have your product model number (H3 / QiuGe3368) and purchase date readily available.
