Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your Prominence Home Potomac Smart Ceiling Fan (Model 51640-01). This 52-inch smart ceiling fan integrates modern design with advanced technology, offering control via voice, remote, or the FansIO app. Please read these instructions thoroughly before installation and use to ensure safe and efficient operation.

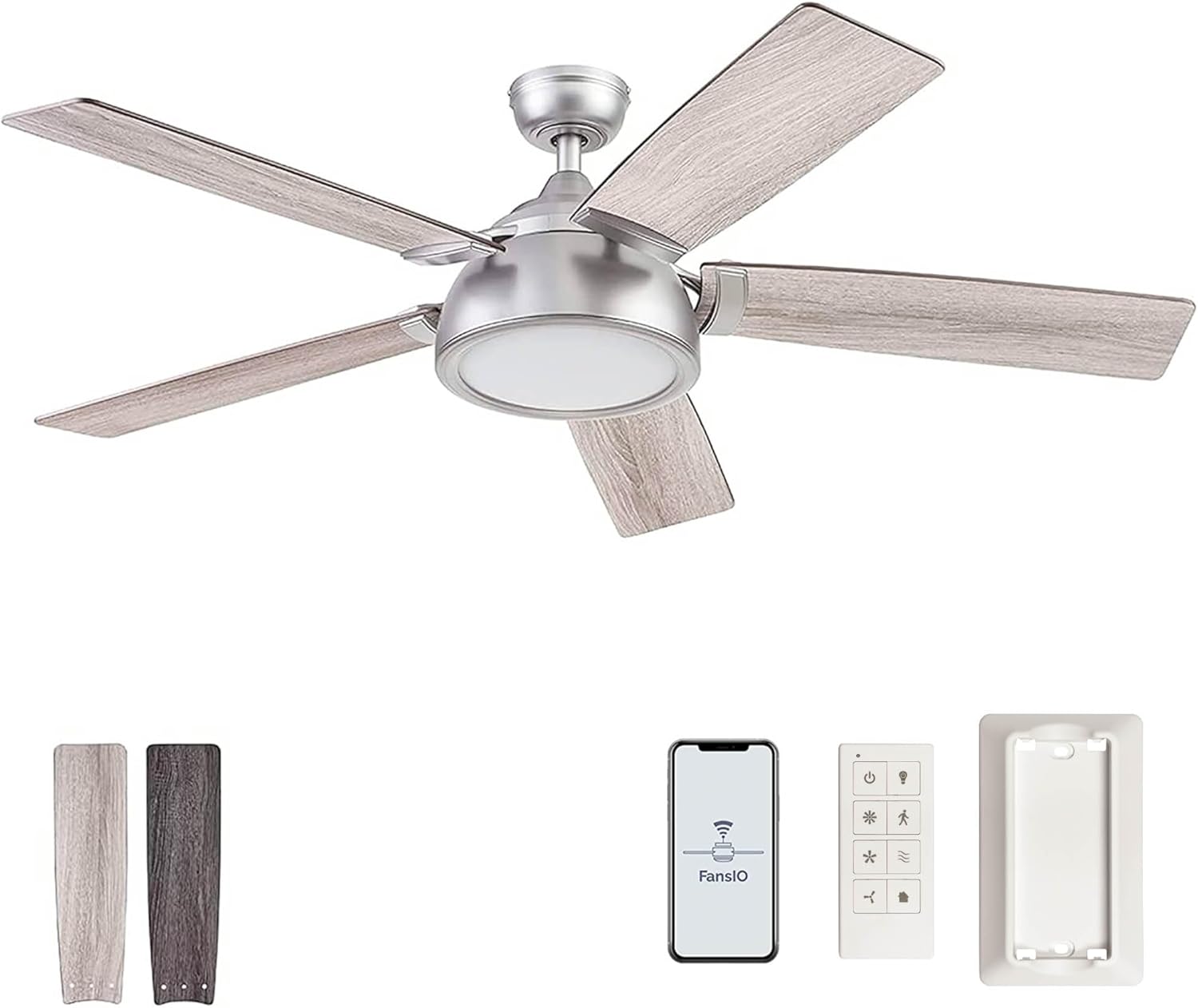

Image: The Prominence Home Potomac Smart Ceiling Fan, featuring a pewter finish and light gray wood-tone blades, with an integrated LED light kit.
Informazioni sulla sicurezza
- Prima di procedere all'installazione o alla manutenzione, scollegare sempre l'alimentazione dall'interruttore automatico.
- Assicurarsi che tutti i collegamenti elettrici siano conformi ai codici e alle ordinanze locali.
- This fan is ETL dry-rated and designed for indoor use only. Do not install in damp o luoghi umidi.
- Montare il ventilatore su una trave del soffitto o su una struttura di supporto in grado di sostenerne il peso.
- Non inserire oggetti nel percorso delle pale del ventilatore.
- In caso di dubbi sulle procedure di cablaggio, consultare un elettricista qualificato.
Image: Certifications indicating compliance with safety and environmental standards, including ETL, DOE, and CA CEPA/CARB regulations.
Contenuto della confezione
Verificare che tutti i componenti siano presenti prima di iniziare l'installazione:
- Ferri da stiro Blade
- Lame (5)
- Pacchetto hardware
- Kit luce
- Manuale del proprietario (questo documento)
- Telecomando
- Asta di prolunga da 4 pollici
Configurazione e installazione
Opzioni di montaggio
The Prominence Home Potomac fan supports dual mounting options:
- Standard Downrod Mount: Utilizes the included 4-inch downrod.
- Supporto a soffitto angolato: Suitable for sloped ceilings. An angle bracket for angles greater than 17 degrees is sold separately.
- Montaggio a filo: This fan can also be flush mounted directly to the ceiling without the 4-inch downrod, which is ideal for rooms with lower ceilings.
Cablaggio e assemblaggio
Follow the detailed wiring diagram provided in the separate installation guide. Ensure all wires are securely connected and properly housed within the canopy. The smart fan controller requires careful placement within the electrical box.

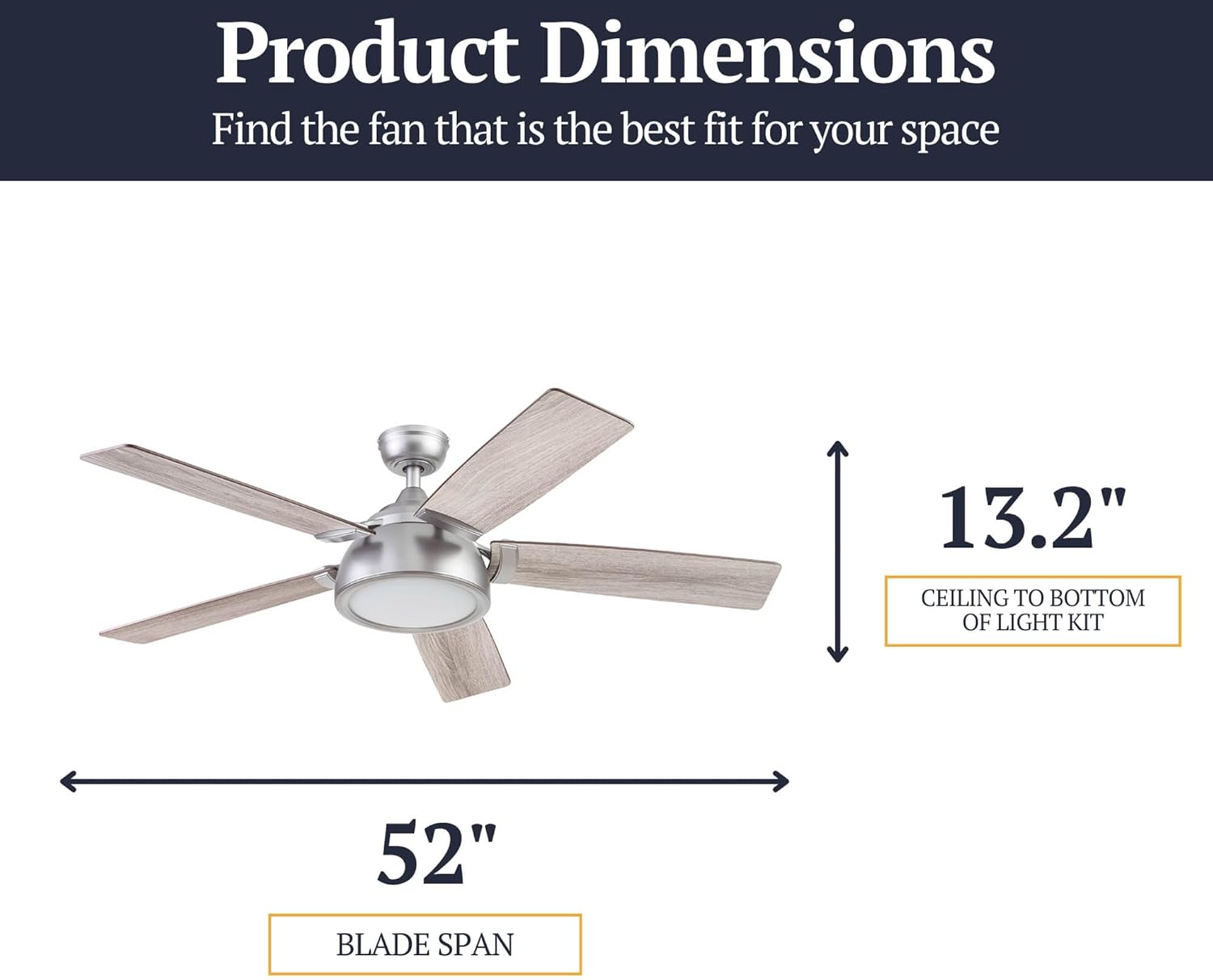

Image: Diagram illustrating the dimensions of the fan: 52-inch blade span and 13.2 inches from the ceiling to the bottom of the light kit.
Image: Guide for selecting the appropriate fan size based on room dimensions: Small Room (up to 32-in fan), Medium Room (32-in to 48-in fan), Large Room (48-in to 58-in fan). This 52-inch fan is suitable for large rooms.
Istruzioni per l'uso
Opzioni di controllo
Your Prominence Home Potomac Smart Ceiling Fan can be controlled in three ways:
- Telecomando: Use the included handheld remote.
- App per smartphone: Download the FansIO app from the App Store or Google Play.
- Controllo vocale: Compatibile con Amazon Alexa e Google Assistant.
Image: Illustration of the three control methods: a handheld remote, voice commands via a smart speaker (Alexa), and the FansIO smartphone application.
Funzioni del telecomando
The included remote control allows for direct operation of the fan and light. A wall dock is also included for convenient storage.
Immagine: dettagliata view of the remote control, showing buttons for Power Indicator, Power Fan On/Off, High Speed, Medium Speed, Low Speed, Light On/Off (hold to dim), Walk Away Light Delay, Variable Breeze, and HomeShield (simulates occupancy).
- Power Fan On/Off: Accende o spegne la ventola.
- Luce accesa/spenta: Press to toggle the light. Hold to dim the light from 10% to 100%.
- Velocità della ventola: Buttons for High, Medium, and Low fan speeds.
- Ritardo luce allontanamento: Delays light off for one minute.
- Variable Breeze: Simula una brezza naturale variando la velocità della ventola.
- HomeShield™: Simulates occupancy while away from home.
FansIO App Control
The FansIO app provides advanced control features:
- Remote control of fan speed and light dimming.
- Set fan schedules.
- Utilize sleep timers and light timers.
- Access seasonal reminders to change fan direction.
Nota: For initial setup and pairing, ensure your Wi-Fi network is set to 2.4 GHz. Some users may need to temporarily set their phone's Wi-Fi to 2.4 GHz for successful pairing.
Controllo vocale
Integrate your fan with Amazon Alexa or Google Assistant for convenient voice commands. Link the FansIO app to your smart home platform. You can typically turn the fan and light on/off and dim the light using voice commands.
Funzione motoria reversibile
The fan features a quiet, 3-speed reversible motor to optimize air circulation year-round. A physical switch on the fan housing allows you to change the direction of the blades.
- Modalità estiva (in senso antiorario): Crea un flusso d'aria verso il basso, producendo un effetto rinfrescante.
- Modalità invernale (senso orario): Crea un flusso d'aria verso l'alto, facendo circolare l'aria calda intrappolata vicino al soffitto.
Image: Illustration demonstrating the reversible motor's function: in winter, it circulates warm air upwards; in summer, it creates a downward breeze for cooling.
Kit di luci LED integrate
The fan includes an integrated 6-inch LED light board providing 19.5 watts and 1600 lumens. The light has a color temperature of 3000K and is dimmable from 10% to 100% via the remote or app.

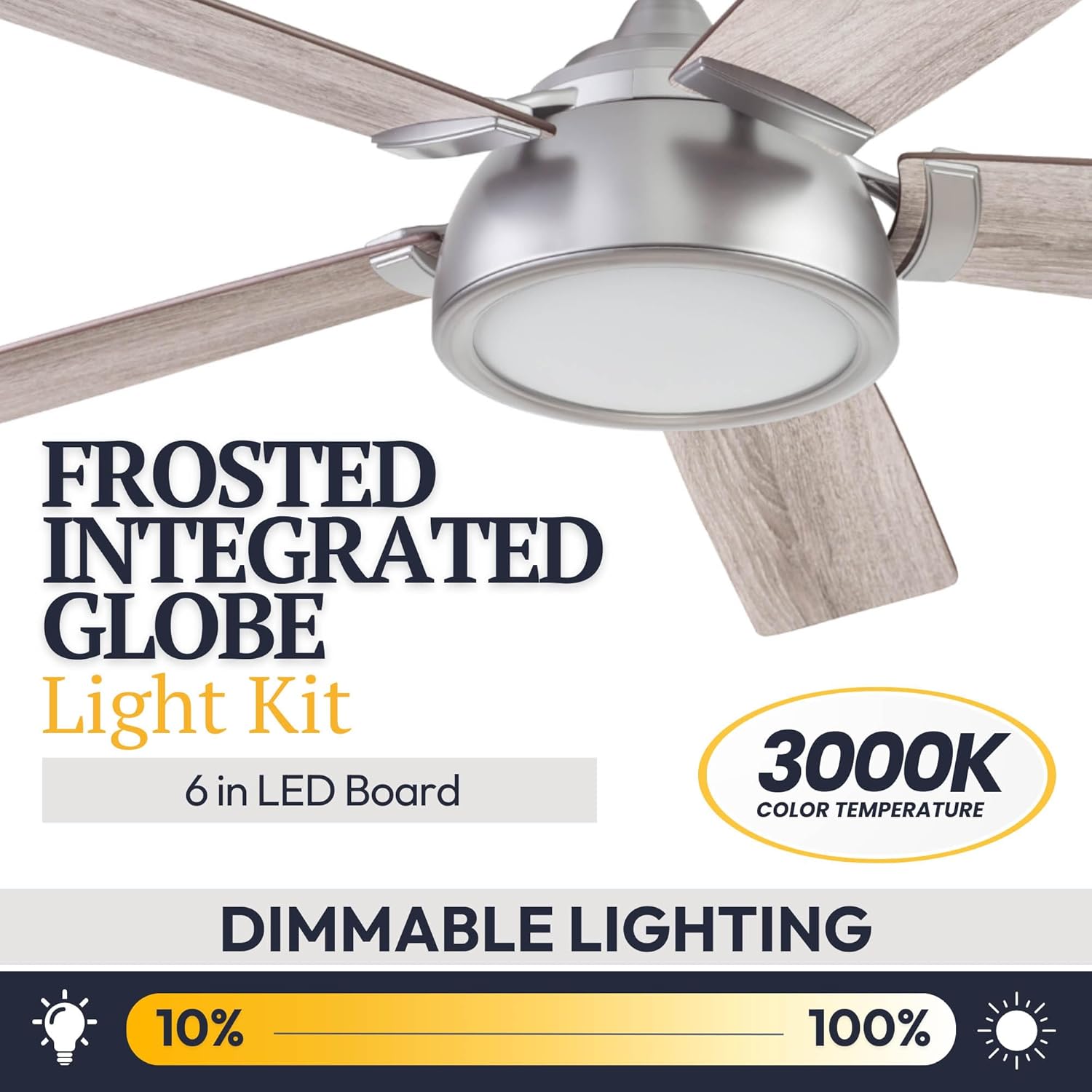

Image: Close-up of the frosted integrated globe light kit, highlighting its 6-inch LED board, 3000K color temperature, and dimmable range from 10% to 100%.
Lame reversibili
The fan blades feature a dual-finish design, allowing you to choose between Gray Oak and Coal finishes to match your decor.
Image: Comparison of the reversible fan blades, displaying one side in Gray Oak finish and the other in Coal finish.
Manutenzione
- Pulizia: Periodically clean the fan and blades with a soft, damp panno. Non usare detergenti abrasivi o solventi.
- Bilanciamento della lama: If the fan wobbles, ensure all blade screws are tightened. A balancing kit (not included) can be used if wobbling persists.
- Kit luci: The integrated LED light board is designed for long life and typically does not require replacement.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La ventola non funziona. | Nessuna alimentazione, cavi allentati, batteria del telecomando scarica. | Controllare l'interruttore automatico. Assicurarsi che tutti i collegamenti elettrici siano saldi. Sostituire la batteria del telecomando. |
| La luce non si accende. | No power, loose wiring, LED board issue. | Check power. Verify wiring. Contact support if LED board is suspected. |
| La ventola traballa. | Viti delle lame allentate, lame sbilanciate, montaggio non corretto. | Tighten all blade screws. Ensure mounting bracket is secure. Use a balancing kit if necessary. |
| Cannot connect to FansIO app or smart assistant. | Incorrect Wi-Fi band, pairing issue. | Ensure your Wi-Fi network is 2.4 GHz. Temporarily set your phone to 2.4 GHz for pairing. Follow app pairing instructions carefully. If issues persist, try resetting the fan's Wi-Fi module (refer to the full installation guide for specific steps). |
| Il telecomando non risponde. | Batteria scarica, telecomando non associato. | Replace the remote battery (Lithium). Refer to the full installation guide for remote pairing instructions. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | 51640-01 |
| Marca | Prominence Home |
| Size (Blade Span) | 52 pollici |
| Colore | Peltro |
| Materiale | Metal, Wood Laminate, Glass |
| Fonte di alimentazione | AC |
| Voltage | 120 Volt |
| Tipo di luce | Integrated LED (6-inch board) |
| Luce Wattage | 19.5 watt |
| Luminosità | 1600 Lumens (Dimmable 10%-100%) |
| Temperatura del colore | 3000K |
| Tipo di montaggio | Downrod Mount (4-inch downrod included), Angled Mount, Flush Mount |
| Certificazione | ETL Dry-Rated |
| Tipo di controllore | Remote Control, App Control (FansIO), Voice Control (Alexa, Google Assistant) |
| Peso dell'articolo | 9.84 kg |
Garanzia e supporto
Garanzia a vita limitata
This Prominence Home ceiling fan is backed by a Limited Lifetime Warranty provided by the manufacturer. Please refer to the warranty card included with your product for specific terms and conditions.
Assistenza clienti
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Prominence Home customer support. Contact information can typically be found on the manufacturer's websito o sulla confezione del prodotto.
