1. Introduzione
This BLACK+DECKER portable air conditioner is designed to provide immediate and uninterrupted comfort by cooling, dehumidifying, and circulating air. It features easy-to-use LED electronic controls and operates quietly, making it suitable for various living spaces. The unit is equipped with rolling castors and side carrying handles for convenient mobility and includes all necessary components for a straightforward installation.
Image: The BLACK+DECKER 10,000 BTU Portable Air Conditioner unit shown with its remote control.
2. Informazioni sulla sicurezza
Leggere attentamente tutte le istruzioni prima di utilizzare questo apparecchio per evitare lesioni o danni. Conservare il presente manuale per riferimento futuro.
- Ensure the unit is placed on a firm, smooth, and level floor strong enough to support its weight to minimize noise and vibration.
- Only use the unit with a properly grounded electrical outlet.
- Non utilizzare l'unità con un cavo o una spina danneggiati.
- Keep all windows and doors closed for optimal cooling performance.
- Do not block air vents or exhaust hose.
- Allow 3 minutes for the compressor to operate after power-on or mode change.
- This unit is designed for use with double-hung or sliding windows only.
3. Contenuto della confezione
Verificare che tutti gli articoli siano presenti nella confezione:
- Unità di condizionamento dell'aria portatile
- Telecomando
- Window Kit with all needed accessories (foam seal, slider bracket, air exhaust hose with connector, drain hose, hose inlet and outlet, 1 screw)
- Manuale d'uso
4. Caratteristiche del prodotto
The BLACK+DECKER Portable Air Conditioner offers a range of features designed for your comfort:
- Funzionalità 3 in 1: Combines air conditioning, fan, and dehumidifier modes for versatile climate control.
- Raffreddamento potente: 6,000 BTU SACC/CEC (10,000 BTU ASHRAE) cooling capacity, capable of cooling rooms up to 450 sq. ft. The unit can cool air down to 64°F.
- Funzionamento silenzioso: Operates at a noise level of 54 dB, ensuring peaceful sleep and minimal disturbance.
- Controllo facile: Features a top-mounted LED display and comes with a full-function remote control for convenient operation.
- Timer 24 ore: Allows for programmable operation to suit your schedule and save energy.
- Portabilità: Equipped with rolling castors and side carrying handles for easy movement between rooms.
Immagine: in alto view highlighting 3-in-1 AC/Fan/Dehumidifier modes and LED controls.
Image: Unit's cooling capacity for areas up to 450 sq. ft.
Image: Guide for selecting correct cooling capacity based on room size and conditions.
Prodotto finitoview Video
Video: Un funzionario sopraview of the BLACK+DECKER 10,000 BTU Portable Air Conditioner, demonstrating its features and ease of use.
5. Configurazione e installazione
Installing your portable air conditioner is simple and quick:
- Posizionamento: Wheel the unit into the desired room. Ensure it is placed on a firm, level surface.
- Kit di montaggio per finestre: Assemble the window kit components (slider bracket, foam seal) to fit your double-hung or sliding window.
- Giunzione di tubi: Attach the air exhaust hose to the unit and then to the window adapter.
- Installazione della finestra: Secure the window kit in your window opening and connect the exhaust hose. Ensure a tight seal to prevent air leakage.
- Collegamento elettrico: Collegare l'unità a una presa elettrica standard da 115 Volt.

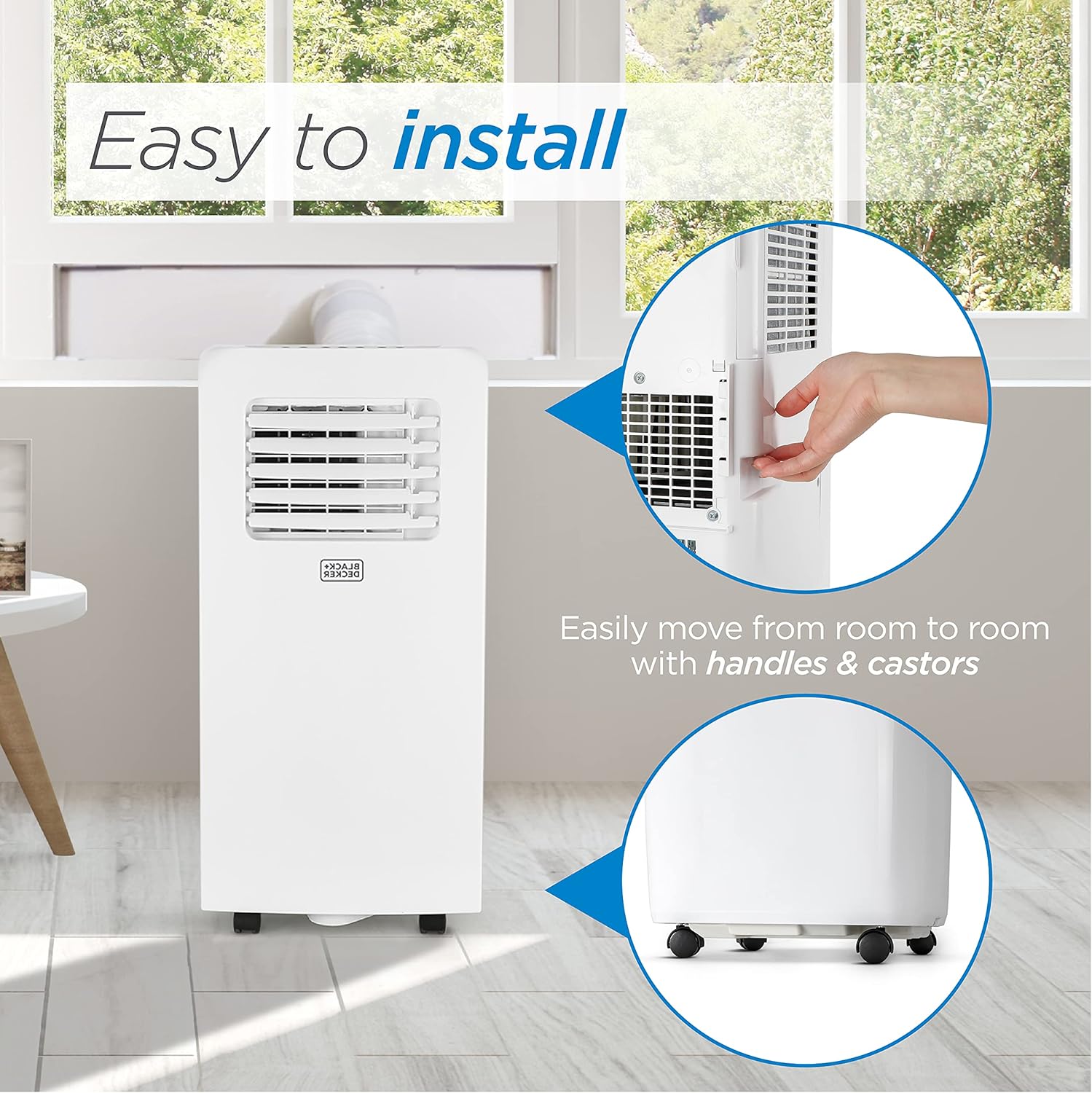

Image: Demonstrates easy installation into a window and the unit's portability with handles and castors.
6. Istruzioni per l'uso
Operate your air conditioner using the top-mounted LED display or the remote control:
- Accensione/spegnimento: Premere il pulsante di alimentazione per accendere o spegnere l'unità.
- Selezione della modalità: Cycle through Cool, Fan, and Dehumidify modes using the mode button.
- Regolazione della temperatura: Utilizzare le frecce su/giù per impostare la temperatura desiderata.
- Velocità della ventola: Adjust the fan speed (low, medium, high) to your preference.
- Funzione timer: Set the 24-hour timer for automatic power-on or shut-off.
Image: The remote control provides full functionality for convenient operation.
7. Manutenzione
Una manutenzione regolare garantisce prestazioni ottimali e longevità della tua unità:
- Pulizia del filtro: The unit features a washable filter. Slide it out from the back of the unit. Rinse it thoroughly under running water. Allow it to air dry completely before reinserting. Clean the filter approximately twice a month, or more frequently depending on usage and air quality.
- Pulizia dell'unità: Pulire l'esterno dell'unità con un panno morbido, damp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
- Magazzinaggio: At the end of the cooling season, disconnect the hose and window adapter, drain any accumulated water, clean the filter, and store the unit in a cool, dry place.
8. Risoluzione Dei Problemi
If you encounter issues with your portable air conditioner, refer to the following common solutions:
- L'unità non si accende: Check if the power cord is securely plugged into a working outlet. Ensure the unit's power button is pressed and the timer is not set to off.
- L'unità non raffredda efficacemente: Verify that all windows and doors in the room are closed. Check if the exhaust hose is properly connected and not obstructed. Clean the air filter if it is dirty. Ensure the room size is within the unit's cooling capacity.
- Perdita d'acqua: This unit has a self-evaporating system, but in very humid conditions, water may accumulate. Check the drain hose connection and ensure it is properly positioned if continuous drainage is set up.
- Rumore insolito: Ensure the unit is on a stable, level surface. Check for any obstructions in the air intake or exhaust vents.
Per problemi persistenti, contattare l'assistenza clienti.
9. Specifiche
| Specificazione | Dettaglio |
|---|---|
| Numero di modello | BP06PWA |
| Dimensioni del prodotto | 11.2 x 13 x 26.77 pollici (P x L x A) |
| Peso dell'articolo | 45.2 libbre |
| Potenza di raffreddamento | 6000 British Thermal Units (SACC/CEC) / 10,000 BTU (ASHRAE) |
| Copertura dell'area del pavimento | Fino a 450 piedi quadrati |
| Voltage | 115 Volt |
| Livello di rumore | 54 dB |
| Refrigerante | R-32 |
| Fattore di forma | Portatile |
| Produttore | W Appliance Company |
| Paese di origine | Cina |
Image: Detailed dimensions of the portable air conditioner unit.
10. Garanzia e supporto
This BLACK+DECKER portable air conditioner comes with a Garanzia di 1 anno dalla data di acquisto.
For any product inquiries, technical assistance, or warranty claims, please contact Customer Support. Refer to your purchase documentation or the official BLACK+DECKER websito per dettagli di contatto specifici.
Puoi anche trovare ulteriore supporto e risorse visitando il Negozio BLACK+DECKER su Amazon.
