Manuale utente della stampante termica diretta per etichette Xprinter XP-470B

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of the Xprinter XP-470B Direct Thermal Label Printer. The XP-470B is designed for efficient label printing in various applications, including manufacturing, healthcare, and retail. It features a high-quality double-walled clamshell design and supports multiple interfaces for versatile connectivity.

Please read this manual thoroughly before operating the printer to ensure proper usage and to prevent damage.

2. Informazioni sulla sicurezza

• Utilizzare sempre l'adattatore di alimentazione fornito con la stampante.
• Non esporre la stampante all'acqua o a umidità eccessiva.
• Evitare di posizionare la stampante alla luce diretta del sole o vicino a fonti di calore.
• Assicurarsi che la stampante sia posizionata su una superficie stabile e piana.
• Non tentare di smontare o riparare la stampante autonomamente. Rivolgersi a personale qualificato.
• Unplug the printer from the power outlet before cleaning or if it will not be used for an extended period.

3. Contenuto della confezione

Si prega di controllare il contenuto del pacco. Se qualche articolo risulta mancante o danneggiato, contattare immediatamente il venditore.

• Xprinter XP-470B Direct Thermal Label Printer
• Adattatore di alimentazione e cavo di alimentazione
• Cavo USB
• Quick Start Guide (or User Manual CD/Link)
• Label Roll Spindle (if not pre-installed)

4. Caratteristiche del prodotto

The Xprinter XP-470B is equipped with features designed for reliable and efficient label printing:

• Design di alta qualità: Features a durable double-walled clamshell design.
• Head-Up Sensor: For improved label detection and error prevention.
• Memoria: Includes 8MB SDRAM and 8MB Flash memory.
• Risoluzione: 203 dpi resolution for clear print quality.
• Alta velocità di stampa: Capable of up to 152mm (6 inches) per second maximum printing speed.
• Interfacce multiple: Standard USB and TF card support. Optional interfaces include Serial, LAN (Ethernet), Wi-Fi, and Bluetooth.

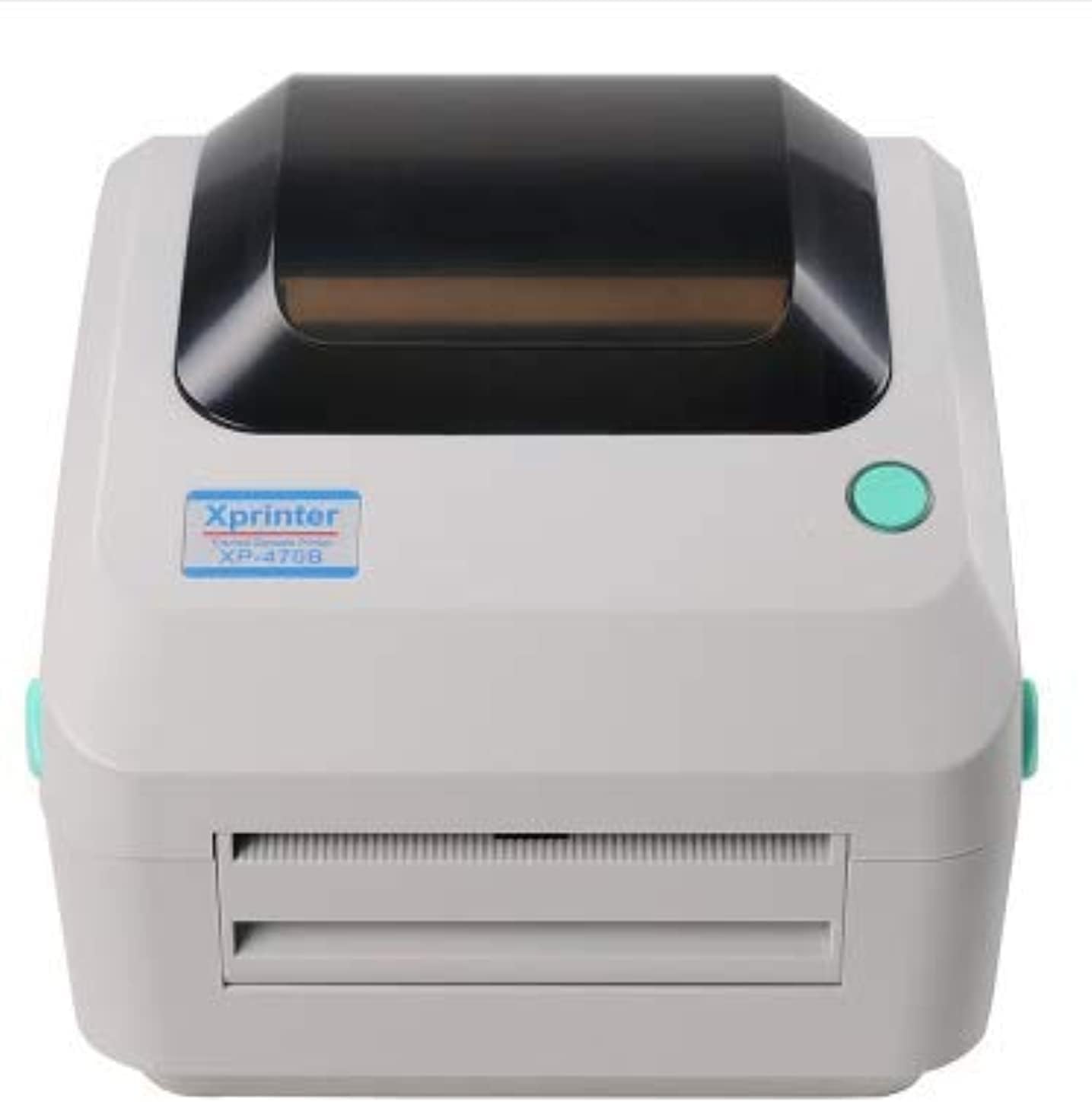

Figura 4.1: Fronte view of the Xprinter XP-470B printer. This image displays the printer's front panel, including the label output slot and the Xprinter branding.

5. Impostazione

5.1 Collegamento della stampante

1. Posizionare la stampante su una superficie piana e stabile.
2. Connect the power cord to the power adapter, then connect the adapter to the printer's power port. Plug the power cord into a suitable electrical outlet.
3. Connect the USB cable from the printer's USB port to an available USB port on your computer. If using Ethernet, connect an Ethernet cable from the printer's LAN port to your network router or switch.
4. Accendere la stampante utilizzando l'interruttore di alimentazione situato sul retro.

Figura 5.1: Posteriore view of the Xprinter XP-470B printer. This image highlights the various connectivity options available on the back of the printer, including the Ethernet port, USB port, and power input.

5.2 Caricamento delle etichette

1. Open the printer's top cover by pulling the release levers on both sides.
2. Place the label roll onto the label roll spindle, ensuring the labels feed from the bottom of the roll.
3. Insert the spindle with the label roll into the label compartment.
4. Pull the leading edge of the labels through the label guide until it extends slightly past the print head.
5. Adjust the label guides to fit the width of your labels snugly, without pinching them.
6. Close the top cover firmly until it latches.

5.3 Installazione del driver

Before printing, you must install the appropriate printer drivers on your computer. Drivers are typically provided on a CD included with the printer or can be downloaded from the Xprinter official websito.

1. Insert the driver CD into your computer's CD-ROM drive, or navigate to the downloaded driver file.
2. Run the setup executable (e.g., "setup.exe" or "install.exe").
3. Follow the on-screen instructions to complete the driver installation. Select your printer model (XP-470B) and the correct connection type (USB, Ethernet, etc.).
4. After installation, it is recommended to restart your computer.

5.4 Printer Calibration

To ensure accurate label printing and proper label detection, calibrate the printer after loading new labels or changing label types.

• With the printer powered on and labels loaded, press and hold the FEED button (usually a green button on top) until the printer feeds a few blank labels and stops. This typically calibrates the sensor to the label gap or black mark.
• Refer to the detailed driver settings for advanced calibration options if needed.

6. Istruzioni per l'uso

6.1 Stampa di base

1. Assicurarsi che la stampante sia collegata al computer e accesa.
2. Open the document or application from which you wish to print labels (e.g., label design software, word processor).
3. Vai a "File" > "Stampa" oppure clicca sull'icona di stampa.
4. Select "Xprinter XP-470B" as your printer.
5. Access "Printer Properties" or "Preferences" to configure label size, orientation, and print quality settings to match your labels and desired output.
6. Click "Print" to send the print job to the printer.

Figure 6.1: Xprinter XP-470B in operation. This image shows the printer actively dispensing a printed label, demonstrating its primary function.

6.2 Opzioni di connettività

The XP-470B offers flexible connectivity:

• USB: Direct connection to a single computer. Most common for desktop use.
• Ethernet (LAN): Connects the printer to a network, allowing multiple users to print from different computers on the same network. Requires network configuration.
• Wi-Fi (Optional): Wireless network connectivity. Configuration typically done via a utility or web interfaccia.
• Bluetooth (facoltativo): Short-range wireless connection, often used with mobile devices. Pairing instructions will be specific to your device.

Refer to the printer's network configuration guide or driver utility for detailed setup instructions for Ethernet, Wi-Fi, or Bluetooth connections.

7. Manutenzione

7.1 Pulizia della stampante

Una pulizia regolare aiuta a mantenere la qualità di stampa e prolunga la durata della stampante.

• Testina di stampa: Use an alcohol swab or a specialized print head cleaning pen. Gently wipe the print head surface from center to edge. Allow it to dry completely before use. Clean every few label rolls or if print quality degrades.
• Rullo di laminazione: Use an alcohol swab to clean the rubber roller. Rotate the roller manually to clean the entire surface.
• Esterno: Pulire l'esterno della stampante con un panno morbido eamp panno. Non usare detergenti abrasivi o solventi.

Attenzione: Always turn off the printer and unplug the power cord before cleaning. The print head can be hot immediately after printing; allow it to cool down.

7.2 Replacing Labels

Follow the instructions in Section 5.2 "Loading Labels" when your current label roll runs out. Ensure you use labels compatible with direct thermal printing.

8. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your XP-470B printer.

If the problem persists after trying these solutions, please contact Xprinter customer support or your vendor for further assistance.

9. Specifiche

10. Garanzia e supporto

Warranty information for the Xprinter XP-470B is typically provided with your purchase documentation. Please refer to the warranty card or contact your point of purchase for details regarding warranty coverage and terms.

For technical support, driver downloads, or further assistance, please visit the official Xprinter website or contact their customer service department. Keep your product model number (XP-470B) and serial number (if applicable) ready when contacting support.
