Bush Business Furniture Universal Tall Storage Cabinet

Introduzione

This manual provides instructions for the assembly, operation, and maintenance of your Bush Business Furniture Universal Tall Storage Cabinet. Designed with commercial quality and contemporary styling, this cabinet is suitable for various environments including home offices, commercial spaces, laundry rooms, and garages. It features two fixed shelves and three adjustable shelves, each capable of supporting up to 50 pounds, offering versatile storage for a range of items.

Image: The Universal Tall Storage Cabinet in a modern office setting.

Informazioni sulla sicurezza

AVVERTIMENTO: La mancata osservanza di queste istruzioni di sicurezza può provocare lesioni o danni al prodotto.

• Ensure proper installation using the provided wall attachment hardware for maximum stability. This is crucial to prevent tipping, especially in households with children or pets.
• Do not overload shelves. Each shelf is designed to support a maximum of 50 pounds. The total weight limit for the cabinet is 250 pounds.
• Montare il mobile su una superficie morbida e pulita per evitare graffi.
• Durante il montaggio, tenere le parti di piccole dimensioni e la ferramenta lontano dalla portata dei bambini.
• Use adjustable levelers on the base to compensate for uneven surfaces and ensure the cabinet is stable and level.

Questo prodotto contiene sostanze chimiche che lo Stato della California ritiene possano causare cancro, malformazioni congenite o altri danni riproduttivi (avvertenza ai sensi della Proposta 65).

Contenuto della confezione

Prima di iniziare il montaggio, verificare che tutti i componenti siano presenti e integri. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

• Tall Storage Cabinet panels (sides, top, bottom, back)
• Ante per armadietti (2)
• Fixed Shelves (2)
• Ripiani regolabili (3)
• Brushed Nickel Handles (2)
• Euro-style Hinges (4)
• Adjustable Levelers (4)
• Wall Attachment Hardware
• Assembly Hardware (screws, dowels, shelf pins, etc.)

Istruzioni per l'installazione e il montaggio

Assembly is required for this product. It is recommended to have two people for assembly. Please follow the detailed instructions provided in the separate assembly guide included with your packaging. The general steps are outlined below:

1. Disimballare e identificare le parti: Carefully remove all components from the packaging. Lay them out on a protected surface and compare them against the parts list in your assembly guide.
2. Montare il telaio del mobile: Collegare i pannelli laterali ai pannelli superiore e inferiore utilizzando la ferramenta fornita.
3. Installare ripiani fissi: Fissare i due ripiani fissi nelle posizioni designate all'interno della struttura del mobile.
4. Fissare i pannelli posteriori: Fasten the back panels to the rear of the cabinet frame to ensure structural integrity.
5. Installare ripiani regolabili: Insert shelf pins into the desired holes for the three adjustable shelves. Place the shelves on the pins.
6. Fissare porte e maniglie: Mount the Euro-style hinges to the cabinet frame and doors. Attach the Brushed Nickel handles to the doors.
7. Regola i livellatori: Once the cabinet is in its final position, adjust the levelers on the base to ensure the cabinet is stable and plumb on any surface.
8. Fissaggio al muro: For enhanced safety and stability, use the provided wall attachment hardware to secure the cabinet to a wall stud.

Image: Cabinet dimensions: 17.2"D x 35.71"W x 61.81"H.

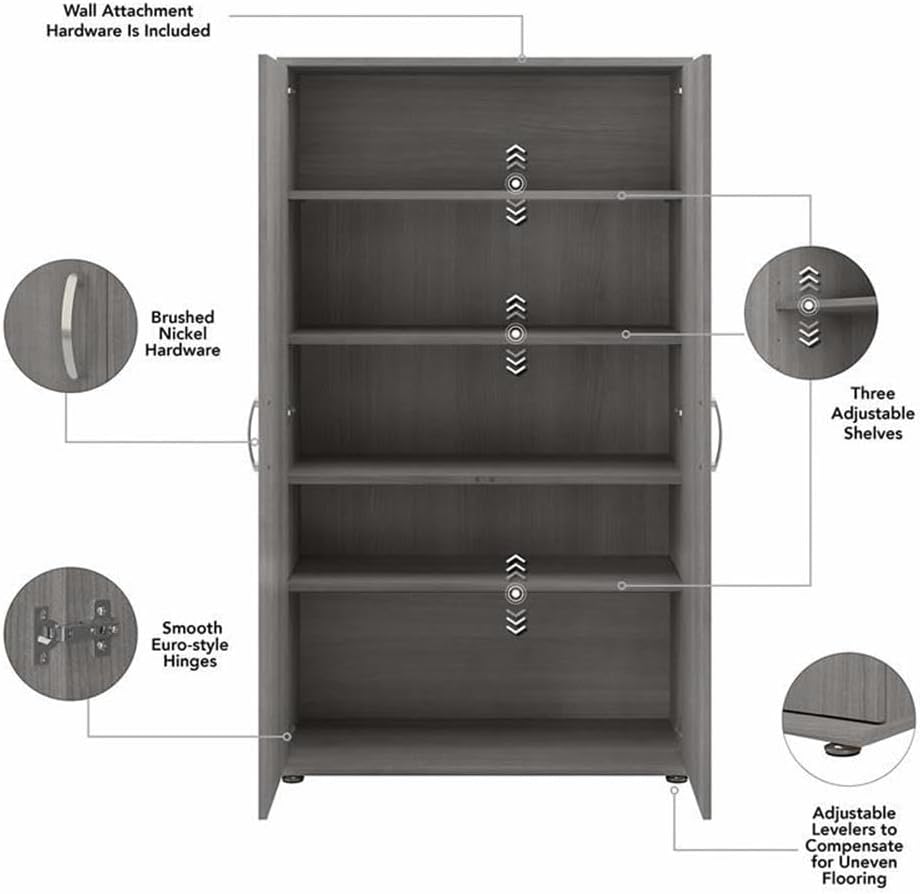

Immagine: dettagliata view of the cabinet's interior, highlighting three adjustable shelves, wall attachment hardware, smooth Euro-style hinges, and adjustable levelers.

Image: Close-up of the Brushed Nickel handle on the cabinet door.

Image: Close-up of a smooth Euro-style hinge used on the cabinet doors.

Istruzioni per l'uso

• Apertura/chiusura porte: Gently pull the Brushed Nickel handles to open the cabinet doors. Push the doors firmly to close them. The Euro-style hinges ensure smooth operation.
• Ripiani di regolazione: To adjust the height of the three adjustable shelves, first remove all items from the shelf. Carefully lift the shelf and remove the four shelf pins. Reinsert the shelf pins into the desired holes at the new height, ensuring they are fully seated. Then, place the shelf back onto the pins.

Manutenzione

• Pulizia: Pulisci le superfici del mobile con un panno morbido eamp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Hardware: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Livellamento: Re-check the cabinet's level periodically, especially if moved, and adjust the levelers as needed to maintain stability.

Risoluzione dei problemi

• Il mobile è traballante: Ensure the adjustable levelers on the base are properly adjusted to compensate for uneven flooring. Verify that all assembly hardware is securely tightened. Confirm the cabinet is anchored to the wall using the provided hardware.
• Le porte non sono allineate: The Euro-style hinges allow for minor adjustments. Refer to your detailed assembly guide for specific instructions on adjusting door alignment. Ensure the cabinet itself is level.
• Difficoltà nella regolazione degli scaffali: Ensure shelf pins are fully inserted into the desired holes and are not obstructed. Do not force shelves into place.

Specifiche

Garanzia e supporto

This Bush Business Furniture product is backed by a Garanzia del produttore di 10 anno, che copre difetti di materiali e fabbricazione in normali condizioni di utilizzo.

For warranty claims, missing parts, or technical assistance, please contact Bush Furniture customer support. Refer to the contact information provided in your original product packaging or visit the official Bush Furniture websito.
