Introduzione
The Infinity Kappa Series component speaker system is engineered to deliver exceptional car audio performance. Featuring Plus One fiberglass woofers for powerful bass and high-resolution edge-driven textile dome tweeters for clear highs, this system provides a superior listening experience in virtually any vehicle. This manual provides essential information for installation, operation, and maintenance of your KAPPA693C speaker system.

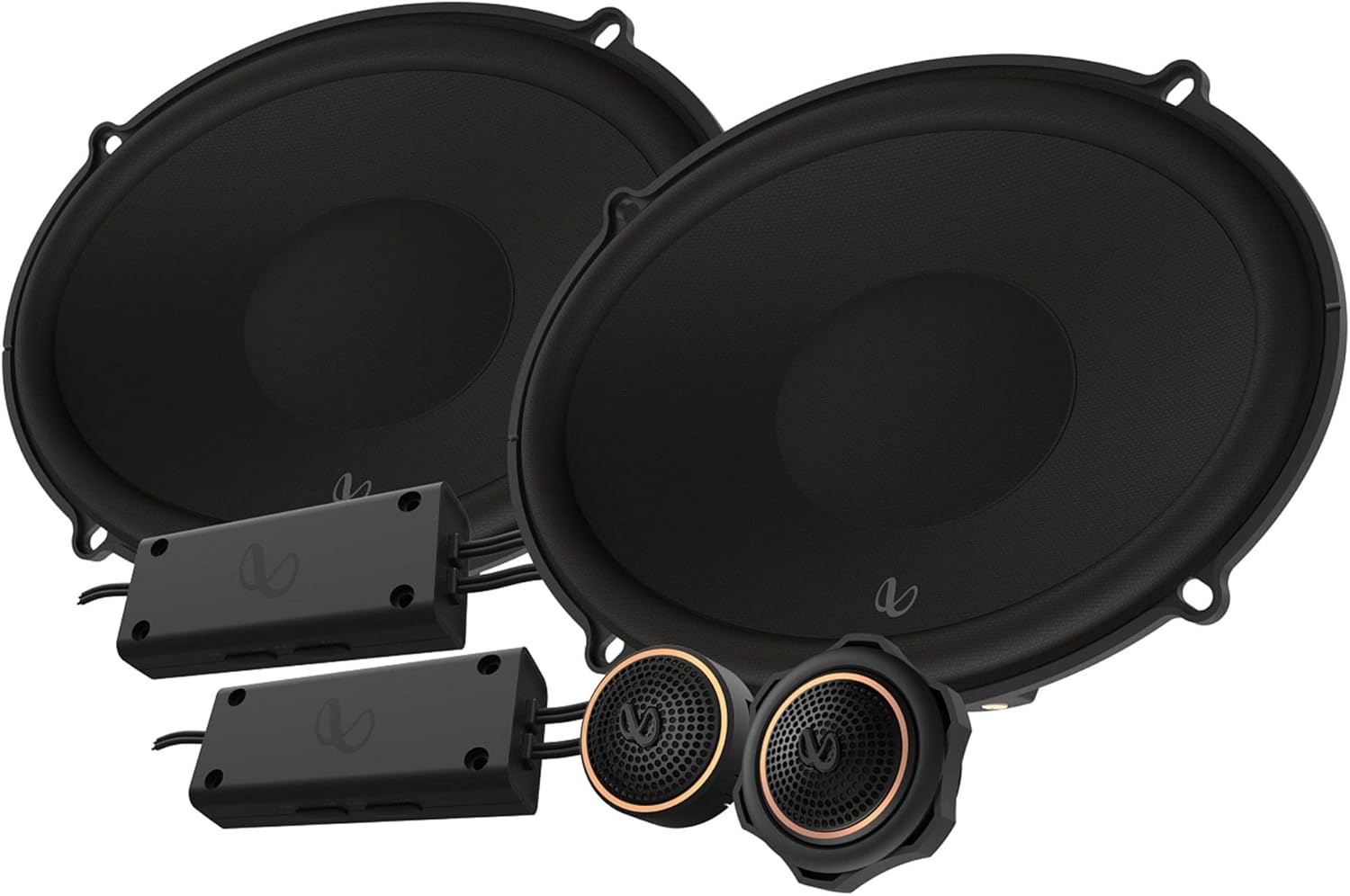

Figure 1: Infinity KAPPA693C Component Speaker System components.
Cosa c'è nella scatola
Verifica che tutti i componenti elencati di seguito siano presenti nel tuo pacchetto:
- 2 altoparlanti (woofer)
- 2x distanziatori
- 2x guarnizioni in schiuma
- 2x crossover
- 2x tweeter
- 2x adattatori da incasso filettati
- 2x dadi di bloccaggio in plastica
- 2x tazze per montaggio superficiale
- 2x supporti per tweeter Starfish
- 22x Viti
- 16x clip di velocità
- 1x punta a brugola (2.5 mm)
- 2x badge logo Infinity Infinity
- 2x adesivi di marca
- 1x Owner’s manual (this document)
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Tipo di altoparlante | 6" x 9" (168mm x 240mm) Two-way Component System |
| Gestione della potenza | 145 W RMS, 435 W di picco |
| Sensibilità (@ 2.83 V) | 94 dB |
| Risposta in frequenza | Frequenza di campionamento: |
| Impedenza | 3.0 ohm |
| Diametro del woofer | 15.24 cm (6 pollici) |
| Diametro del tweeter | 1.91 cm (0.75 pollici) |
| Peso lordo | 5.06 kg (10.93 libbre) |
| Numero di modello | INFSPKKA693CAM |
| Codice UPC | 050667376987 |
Caratteristiche principali
- Plus One Fiberglass Woofers: Lighter and stiffer cones provide increased low-frequency output and higher efficiency for robust bass.
- Edge-Driven Silk Dome Tweeters: Equipped with oversized voice coils for smooth highs and impressive thermal power handling up to 40kHz.
- Adjustable Tweeter Output: A push-button on the angled tweeter allows for 0dB or -3dB output level control to optimize system linearity based on installation.
- Compact Crossovers: Designed for easy integration, with 2-way and 3-way selections to accommodate optional midrange upgrades.
Figura 2: dettagliata views of the woofer, tweeters, and crossovers.
Configurazione e installazione
Professional installation is recommended for optimal performance and to prevent damage to your vehicle's electrical system. Always disconnect the vehicle's battery before beginning any electrical work.
1. Pianificazione dell'installazione
- Selezione della posizione: Choose suitable locations for the woofers, tweeters, and crossovers within your vehicle. Ensure adequate clearance and proper acoustic placement.
- Schema elettrico: Refer to the detailed wiring diagram provided in the physical owner's manual for correct connections between your head unit, amplifier (if used), crossovers, woofers, and tweeters.
- Strumenti necessari: Gather necessary tools including screwdrivers, wire strippers, crimpers, drill, and appropriate safety gear.
2. Mounting the Woofers
- Carefully remove existing speakers or prepare the mounting location.
- Use the provided spacers and foam gaskets as needed to ensure a secure and sealed fit.
- Secure the woofers using the supplied screws and speed clips.
Figura 3: lato view of the woofer, illustrating mounting depth considerations.
3. Mounting the Tweeters
- Choose between flush-mount, surface-mount, or starfish tweeter mounts based on your vehicle's interior and desired sound dispersion.
- Install the tweeters securely using the appropriate adapters and nuts.
- Adjust the tweeter output level (0dB or -3dB) using the push-button on the tweeter to match your listening preference and vehicle acoustics.
4. Installing Crossovers
- Mount the compact crossovers in a dry, accessible location, away from excessive heat or moisture.
- Connect the input from your amplifier/head unit to the crossover, and then connect the woofer and tweeter outputs from the crossover to their respective speakers.
- Assicurarsi che tutti i collegamenti siano sicuri e adeguatamente isolati per evitare cortocircuiti.
Istruzioni per l'uso
Once installed, operate your Infinity KAPPA693C system as follows:
- Accensione iniziale: Dopo l'installazione, ricollegare la batteria del veicolo. Accendere l'impianto audio dell'auto a basso volume.
- Regolazione del volume: Gradually increase the volume to a comfortable listening level. Avoid excessively high volumes that can cause distortion or damage to the speakers.
- Impostazioni audio: Adjust your head unit's equalizer and sound settings to optimize the audio output for your vehicle's acoustics and personal preference. Experiment with bass, treble, and balance controls.
- Tweeter Level: If you notice the highs are too bright or too subtle, re-adjust the tweeter output level on the tweeters (0dB or -3dB) as needed.
Manutenzione
To ensure the longevity and optimal performance of your Infinity KAPPA693C speakers, follow these maintenance guidelines:
- Pulizia: Utilizzare un panno morbido e asciutto per pulire delicatamente le griglie e le cornici degli altoparlanti. Evitare l'uso di prodotti chimici aggressivi o detergenti abrasivi.
- Protezione ambientale: Sebbene siano progettati per l'uso automobilistico, evitare di esporre gli altoparlanti a umidità estrema o alla luce solare diretta per periodi prolungati, poiché ciò può deteriorare i materiali nel tempo.
- Ispezione regolare: Controllare periodicamente che i collegamenti degli altoparlanti siano ben saldi e assicurarsi che nessun filo sia sfilacciato o esposto.
- Evitare di esagerare: Do not continuously play audio at distortion levels, as this can cause permanent damage to the speaker components.
Risoluzione dei problemi
If you experience issues with your speaker system, consult the following common troubleshooting steps:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun suono dagli altoparlanti | Collegamenti elettrici allentati o errati. Amplifier/head unit not powered on or faulty. Speaker wires shorted. | Check all wiring connections at the head unit, amplifier, crossovers, and speakers. Ensure proper polarity. Verify power to your audio system components. Inspect speaker wires for damage or shorts. |
| Suono distorto | Volume troppo alto. Ampguadagno del lifier impostato su un valore troppo alto. Impostazioni di crossover errate. Altoparlante danneggiato. | Ridurre il volume. Regolare ampimpostazioni del guadagno lifier. Verify crossover connections and settings. Inspect speakers for physical damage. |
| Un altoparlante non funziona | Loose connection to that specific speaker or crossover. Damaged speaker or crossover. | Check connections for the affected speaker. Swap the speaker with a known working one to isolate the issue. |
| Lack of Bass | Incorrect woofer wiring polarity. Insufficiente amppotere lificatore. Poor speaker seal in mounting location. | Verify woofer wiring polarity. Garantire amplificatore fornisce potenza adeguata. Check for air leaks around the speaker mounting. |
If the problem persists after trying these steps, contact Infinity customer support or a qualified car audio technician.
Garanzia e supporto
Informazioni sulla garanzia: This product comes with a Limited Warranty provided by Infinity. Please refer to the physical owner's manual included in your package for specific terms, conditions, and duration of the warranty. Retain your proof of purchase for warranty claims.
Assistenza clienti: For technical assistance, installation questions, or warranty service, please visit the official Infinity website or contact their customer support line. Contact information can typically be found in your physical manual or on the manufacturer's websito.
Puoi anche visitare il Infinity Store on Amazon per maggiori informazioni sul prodotto e risorse di supporto.
