1. Introduzione
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Xprinter XP-N160II thermal receipt printer. Please read this manual thoroughly before using the printer to ensure optimal performance and to prevent damage.
2. Prodotto finitoview
2.1 Caratteristiche principali
- Marca: Xprinter
- Colore: Nero
- Printer Type: Receipt Thermal Printer
- Numero di modello: N160
- Tecnologia di connettività: USB
- Printer Output: Monochrome
- Print Media: Labels
- Maximum Black and White Print Resolution: 203 dpi
2.2 Componenti della stampante
Familiarize yourself with the various parts of your Xprinter XP-N160II printer:

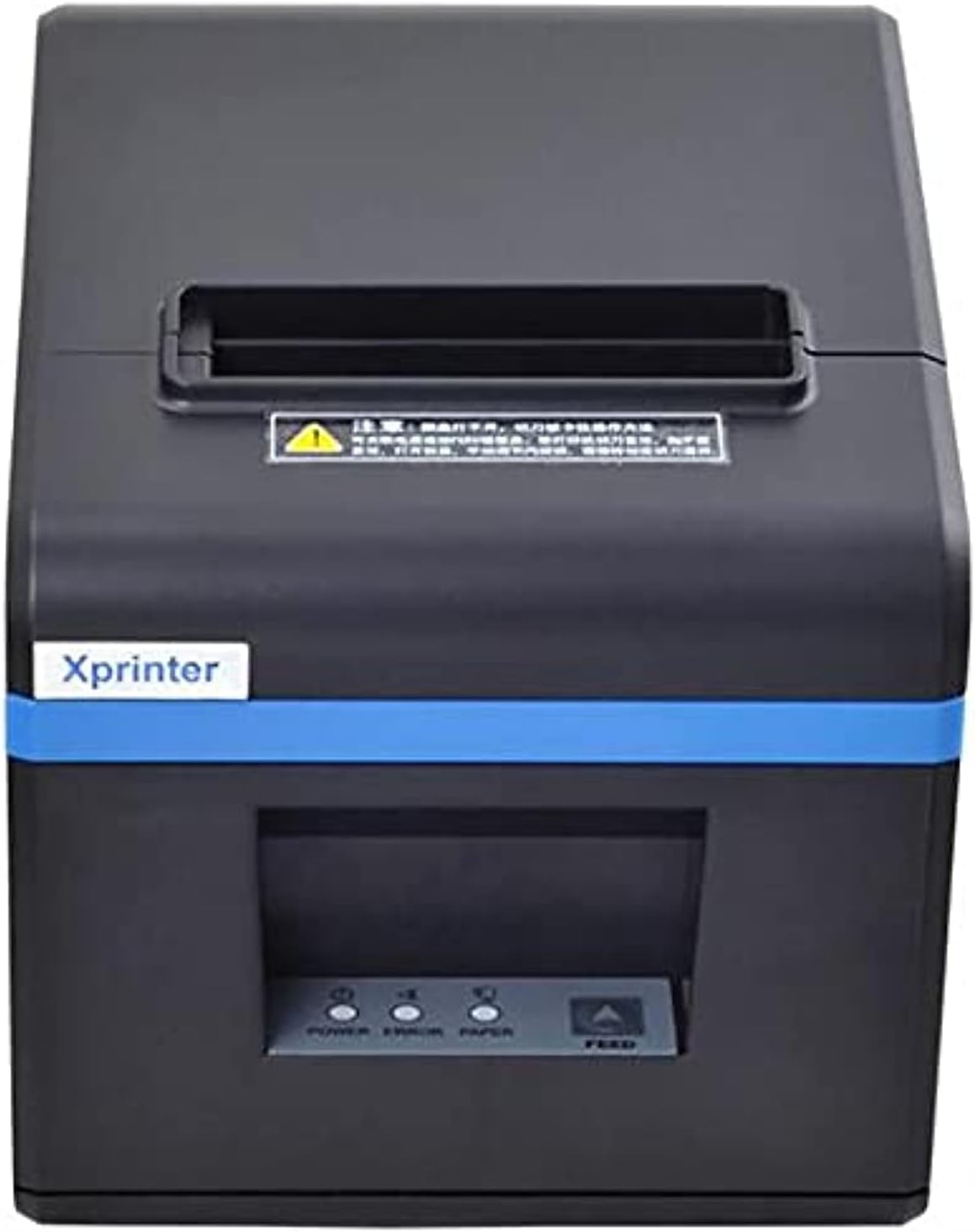

Figura 1: Davanti view of the Xprinter XP-N160II thermal receipt printer, showing the paper output slot, control panel with indicator lights (POWER, ERROR, PAPER), and FEED button.

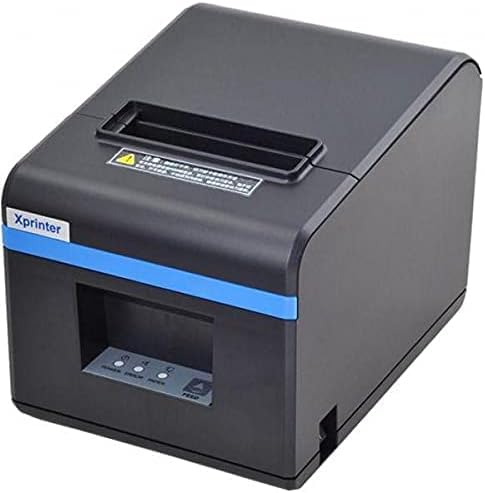

Figura 2: Fronte angolato view of the Xprinter XP-N160II, highlighting its compact design and the Xprinter branding on the front.

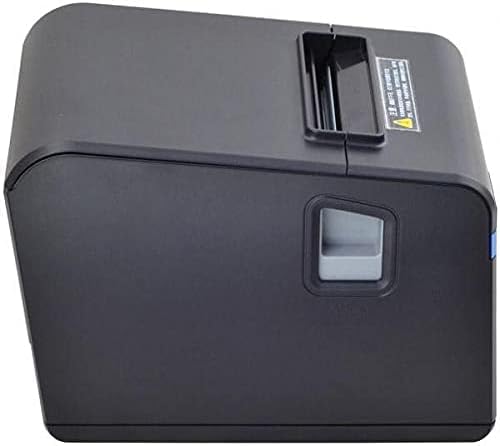

Figura 3: Lato view of the Xprinter XP-N160II, illustrating the paper cover release lever for easy paper roll replacement.
Figura 4: Posteriore view of the Xprinter XP-N160II, displaying the power input port, USB port, and an additional port (likely for cash drawer connection).
3. Istruzioni per l'installazione
- Disimballaggio: Carefully remove the printer from its packaging. Retain all packaging materials for future transport or storage.
- Connetti alimentazione: Connect the power adapter to the printer's power input port (refer to Figure 4) and then plug the power cord into a suitable electrical outlet.
- Collegare il cavo dati: Connect the USB cable from the printer's USB port (refer to Figure 4) to your computer or point-of-sale system.
- Caricare il rotolo di carta:
- Press the paper cover release lever (refer to Figure 3) to open the printer cover.
- Insert a new thermal paper roll into the compartment, ensuring the paper feeds from the bottom and the leading edge extends slightly out of the printer.
- Chiudere saldamente il coperchio della stampante finché non scatta in posizione.
- Installa i driver: Insert the driver CD (if included) into your computer or download the latest drivers from the official Xprinter websito. Seguire le istruzioni visualizzate sullo schermo per completare l'installazione del driver.
- Accensione: Press the power button on the printer. The POWER indicator light should illuminate.
4. Istruzioni per l'uso
- Self-Test Print: To perform a self-test, turn off the printer. While holding down the FEED button, turn the printer back on. Release the FEED button once the printer starts printing. This will print a configuration page, confirming basic functionality.
- Printing from Application: Ensure the printer is connected and drivers are installed. In your application (e.g., POS software, word processor), select the Xprinter XP-N160II as your default printer and initiate the print command.
- Feeding Paper Manually: Press the FEED button on the front panel to advance the paper by a small amount. Hold the FEED button down to continuously feed paper.
5. Manutenzione
- Pulizia della testina di stampa: Regularly clean the thermal print head with an alcohol swab or a specialized print head cleaning pen. Ensure the printer is turned off and cooled down before cleaning.
- Pulizia del rullo di stampa: Utilizzare un morbido, damp cloth to wipe the platen roller (the rubber roller that feeds the paper) to remove any paper dust or debris.
- Sostituzione del rotolo di carta: Replace the paper roll when the PAPER indicator light illuminates or when the red line appears on the paper, indicating the end of the roll is near. Follow the steps outlined in Section 3.4.
- Pulizia generale: Keep the printer exterior clean by wiping it with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La stampante non si accende | No power supply; faulty power adapter | Check power cable connection; ensure outlet is functional; try a different power adapter if available. |
| No paper feeding / PAPER light on | Paper roll empty or incorrectly loaded | Replace paper roll or re-load correctly (refer to Section 3.4). |
| Print output is blank or faded | Paper loaded incorrectly (upside down); print head dirty or damaged | Ensure thermal paper is loaded with the thermal side facing the print head; clean the print head (refer to Section 5). |
| Stampante non riconosciuta dal computer | USB cable disconnected; drivers not installed or corrupted | Check USB cable connection; re-install printer drivers (refer to Section 3.5). |
| La spia ERROR è accesa | Paper jam; print head overheating; cover open | Clear any paper jams; allow printer to cool down; ensure printer cover is closed properly. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del marchio | Stampante X |
| Nome del modello | N160 |
| Colore | Nero |
| Tecnologia della stampante | Termico |
| Tecnologia di connettività | USB |
| Uscita della stampante | Monocromo |
| Stampa Media | Etichette |
| Risoluzione massima di stampa in bianco e nero | 203 dpi |
| Capacità massima del foglio | 50 (referring to individual labels or a roll capacity equivalent) |
| Dimensioni del pacco | Dimensioni: 33 x 21.4 x 18.3 cm |
| Peso dell'articolo | 1.62 kg |
| Produttore | Stampante X |
| Data prima disponibilità | 1 giugno 2021 |
8. Informazioni sulla sicurezza
- Non esporre la stampante all'acqua o a umidità elevata.
- Evitare di posizionare la stampante alla luce diretta del sole o vicino a fonti di calore.
- Utilizzare solo l'adattatore di alimentazione fornito con la stampante.
- Non tentare di smontare o riparare la stampante autonomamente. Rivolgersi a personale qualificato.
- Tenere fuori dalla portata dei bambini.
