Introduzione
Thank you for choosing the HOFTRONIC Odessa Solar Garden Spot Light. This manual provides essential information for the safe and efficient use of your new solar light. Please read these instructions carefully before installation and retain them for future reference.
The Odessa LED solar ground spot features a warm white light color of 3000K and delivers up to 300 lumens of brightness. Designed for outdoor use, it offers up to 12 hours of illumination on a full charge, thanks to its efficient solar panel and powerful lithium-ion battery.
Informazioni sulla sicurezza
- Per una ricarica ottimale, assicurarsi che il prodotto sia installato in un luogo esposto alla luce solare diretta.
- Non tentare di smontare o modificare il prodotto. Ciò potrebbe invalidare la garanzia e rappresentare un rischio per la sicurezza.
- Keep the solar panel clean to ensure maximum charging efficiency.
- Questo prodotto è progettato per l'uso esterno ed è classificato IP65 per la resistenza all'acqua e alla polvere. Tuttavia, evitare di immergerlo in acqua.
- Dispose of the battery responsibly according to local regulations when it reaches the end of its life.
Contenuto della confezione
Verificare che tutti i componenti siano presenti prima dell'installazione:
- HOFTRONIC Odessa Solar Garden Spot Light (Quantity: 6)
- Ground Spike(s) for installation
- Mounting Screws (for wall/surface mounting option)
- Manuale d'uso
Configurazione e installazione
The HOFTRONIC Odessa Solar Garden Spot Light offers flexible installation options: ground stake or surface mounting.
1. Scegli una posizione
Select a location that receives at least 6-8 hours of direct sunlight daily. This is crucial for the solar panel to charge the battery effectively. Avoid areas under trees or shadows from buildings.
2. Ground Installation (using stake)
- Attach the ground spike firmly to the bottom of the solar spot light.
- Carefully push the assembled light into the soft ground at your desired location. Ensure it is stable and upright.
Image: Installing the solar spot light into the ground using the provided stake.
Image: The solar spot light held by hand, demonstrating its compact size and ground stake attachment.
3. Surface Installation (using screws)
- Identify the mounting holes on the light's base.
- Mark the desired drilling points on the wall, fence, or pergola.
- Drill pilot holes if necessary and secure the light using the provided screws.
4. Adjusting the Solar Panel and Light Angle
The solar light features an adjustable angle of 120 degrees for both the solar panel and the light head, ensuring flexible use and optimal sun exposure.
Image: The articulated design allows for 120-degree adjustment of both the solar panel and the light head.
Istruzioni per l'uso
The HOFTRONIC Odessa Solar Garden Spot Light is equipped with two light modes and an on/off button.
Accensione/spegnimento e selezione della modalità
Image: The control button for selecting light modes and powering the device.
- Prima stampa: Attiva Mode 1 (Dim Light). The light will illuminate at a lower intensity.
- Seconda stampa: Attiva Mode 2 (Bright Light). The light will illuminate at full 300 lumens intensity.
- Terza stampa: Turns the light SPENTO.
The light features an automatic dusk-to-dawn sensor. Once turned on (Mode 1 or Mode 2), it will automatically activate at dusk and turn off at dawn, or when the battery is depleted.
Image: The solar spot light effectively illuminating a tree at night.
Manutenzione
Regular maintenance ensures optimal performance and longevity of your solar garden spot light.
- Pulizia del pannello solare: Pulire periodicamente il pannello solare con un panno morbido e asciutto.amp panno per rimuovere polvere, sporco o detriti. Un pannello pulito garantisce una ricarica efficiente.
- Cura della batteria: The integrated lithium-ion battery is designed for long life. For best performance, allow the light to fully charge in direct sunlight before its first use.
- Spettacolo invernale: The monocrystalline solar panel technology improves charging efficiency even in lower light conditions, making it suitable for winter use. However, reduced sunlight hours in winter may result in shorter illumination times.
- Resistenza alle intemperie: The IP65 rating means the light is fully waterproof and dustproof. No special protection is needed against rain or frost.
Image: The monocrystalline solar panel, designed for efficient charging even in less ideal conditions.

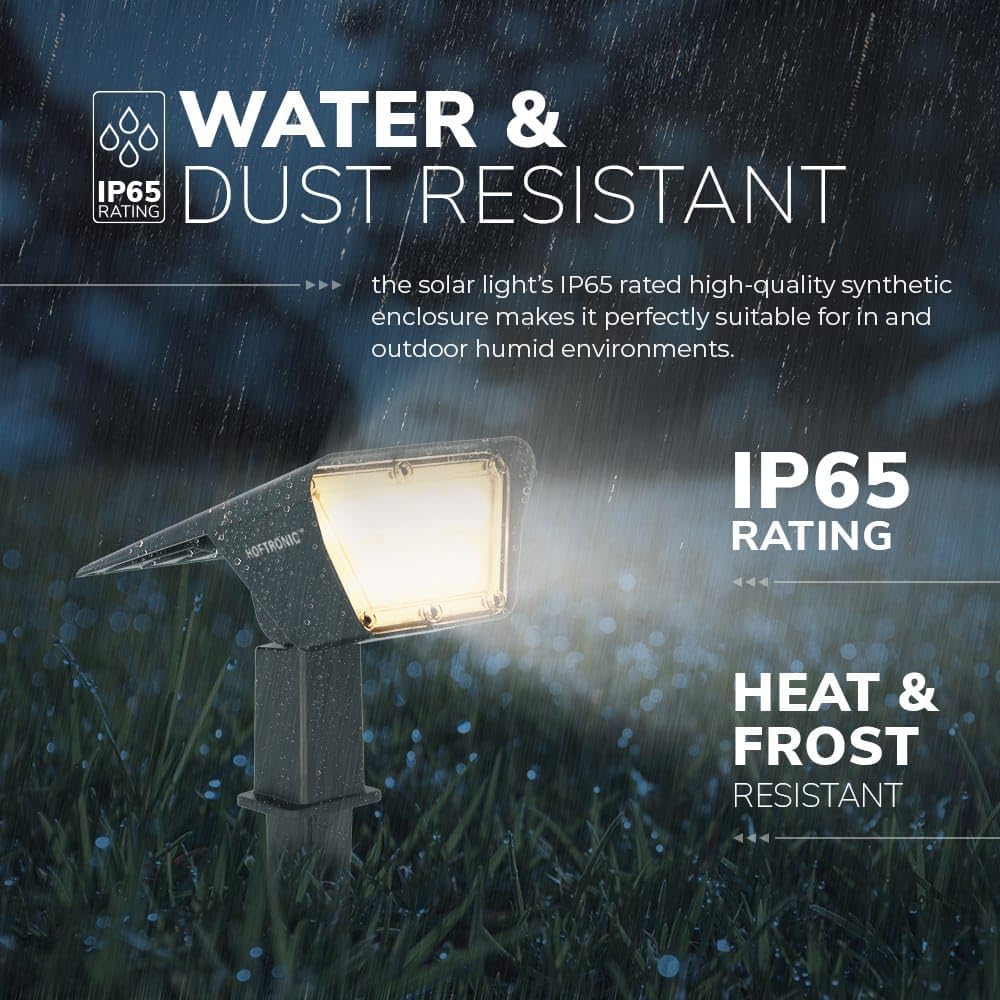

Image: The IP65 rating ensures the light is resistant to water and dust, suitable for various outdoor environments.
Risoluzione dei problemi
If your HOFTRONIC Odessa Solar Garden Spot Light is not functioning as expected, please refer to the following common issues and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La luce non si accende di notte. | 1. Luce solare insufficiente per la ricarica. 2. Light is switched off. 3. Il pannello solare è sporco. | 1. Spostare la lampada in una zona con maggiore luce solare diretta. 2. Press the power button to select Mode 1 or Mode 2. 3. Clean the solar panel with a soft, damp stoffa. |
| La durata della luce è più breve del previsto. | 1. Insufficient charging due to cloudy weather or shade. 2. Battery capacity reduced over time. 3. Light is set to Bright Mode (Mode 2) which consumes more power. | 1. Ensure optimal sun exposure. Allow several sunny days for a full charge. 2. This is normal for rechargeable batteries over many years. Consider replacing the unit if performance significantly degrades. 3. Switch to Dim Mode (Mode 1) for longer illumination. |
| La luce tremola o è fioca. | 1. Batteria scarica. 2. Loose connection (unlikely for sealed unit). | 1. Allow the light to charge for a full day in direct sunlight. 2. Ensure the unit is not damaged. |
Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | 5421723 |
| Marca | HOFTRONIC |
| Potenza luminosa | Fino a 300 Lumen |
| Colore chiaro | Bianco caldo 3000K |
| Fonte di alimentazione | Alimentato ad energia solare |
| Batteria | Ioni di litio (4500 mAh) |
| Tempo di ricarica | 4-6 hours (full sunlight) |
| Tempo di illuminazione | Fino a 12 ore (a carica completa) |
| Materiale | Plastica |
| Grado di protezione IP | IP65 (impermeabile e antipolvere) |
| Metodo di controllo | Premere il pulsante |
| Tipo di montaggio | Ground Mount / Surface Mount |
| Dimensioni (L x P x A) | 16.5 x 11.6 x 11.6 cm (approximate for single unit) |
| Peso | 5 Kilograms (for 6 units) |
Garanzia e supporto
HOFTRONIC products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or visit the official HOFTRONIC websito. Quando contatti l'assistenza, tieni a portata di mano il numero del modello (5421723) e la data di acquisto.
