Introduzione

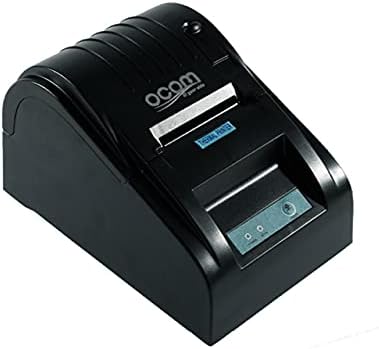

This image shows the OCOM OCPP-585A-U-B Thermal Receipt Printer from a slightly elevated front-right angle. The printer is black with a sleek, compact design. The paper output slot is visible at the top, and the control panel with 'POWER' and 'MODE' indicators is located on the front.
This manual provides detailed instructions for the OCOM OCPP-585A-U-B Thermal Receipt Printer. Please read this manual carefully before using the printer to ensure proper operation and longevity.
Guida all'installazione
1. Disimballaggio
Carefully remove the printer and all accessories from the packaging. Verify that all components are present: printer unit, power adapter, USB cable, and a roll of thermal paper.
2. Caricamento della carta termica
- Aprire il coperchio della carta premendo il pulsante di apertura (solitamente situato sul lato o sulla parte anteriore).
- Insert the thermal paper roll into the paper compartment, ensuring the printing side of the paper faces the print head. The paper should feed smoothly from the bottom of the roll.
- Pull out a small length of paper beyond the paper exit slot.
- Chiudere saldamente il coperchio della carta finché non scatta in posizione.
This image displays the OCOM OCPP-585A-U-B Thermal Receipt Printer from a direct top-down perspective. The paper compartment is visible, showing a thermal paper roll correctly inserted. The 'THERMAL PRINTER' label and the control panel with 'POWER' and 'MODE' indicators are clearly visible.
3. Collegamento della stampante
- Connect the power adapter to the printer's power input port and then plug it into a power outlet.
- Connect the USB cable to the printer's USB port and the other end to your computer or POS system.
- Press the power button to turn on the printer. The power indicator light should illuminate.
Istruzioni per l'uso
Stampa di base
Once connected and powered on, the printer is ready to receive print commands from your connected device. Ensure the correct printer driver is installed on your computer/POS system.
- Apri il documento o l'applicazione da cui desideri stampare.
- Select 'Print' from the file menu.
- Choose 'OCOM OCPP-585A-U-B' as your printer.
- Adjust print settings if necessary (e.g., paper size, print quality).
- Fare clic su "Stampa".
Self-Test Print
To perform a self-test print, ensure the printer is off. Hold down the 'FEED' button (if available, or a combination of buttons as per specific model) while turning on the printer. Release the button once printing begins. This will print a configuration page, confirming basic printer functionality.
Manutenzione
Pulizia della testina di stampa
Regular cleaning of the print head ensures optimal print quality and extends printer life.
- Spegnere la stampante e scollegare il cavo di alimentazione.
- Aprire il coperchio di carta.
- Utilizzare un batuffolo di cotone leggermenteampened with isopropyl alcohol to gently wipe the thermal print head (the dark strip inside the printer).
- Lasciare asciugare completamente la testina di stampa prima di chiudere il coperchio e accendere la stampante.
Cleaning the Paper Path
Rimuovere la polvere o i detriti di carta dal percorso della carta utilizzando una spazzola morbida o aria compressa.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La stampante non si accende | Power cable loose; Power outlet faulty | Check power connections; Try a different outlet |
| Nessuna stampa in uscita | Paper loaded incorrectly; Out of paper; Driver not installed/selected | Reload paper correctly; Replace paper roll; Install/select correct printer driver |
| Faint or blank print | Thermal paper loaded upside down; Print head dirty; Paper quality issue | Flip paper roll; Clean print head; Try new thermal paper |
| Printer offline | USB cable disconnected; Printer driver issue | Reconnect USB cable; Reinstall printer driver |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Prima data disponibile | 2021 giugno 20 |
| Produttore | OCOM |
| ASIN | B097LSGP62 |
| Numero modello articolo | OCPP-585-U-B |
| Nome del marchio | OCOM |
| Tecnologia di connettività | USB |
| Tecnologia della stampante | Termico |
| Colore | Nero |
| Nome del modello | OCPP 585 U B |
| Stampa Media | Etichette |
| Tipo di scanner | Ricevuta |
Garanzia e supporto
This OCOM printer typically comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, or visit the official OCOM websito per informazioni dettagliate sulla garanzia.
For technical support, driver downloads, or further assistance, please visit the OCOM official support website or contact their customer service. Keep your model number (OCPP-585A-U-B) and purchase details ready when seeking support.
