Manuale utente della poltrona reclinabile elettrica MCombo modello 7287

1. Introduzione

This manual provides comprehensive instructions for the safe and effective use of your MCombo Power Lift Recliner Chair, Model 7287. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

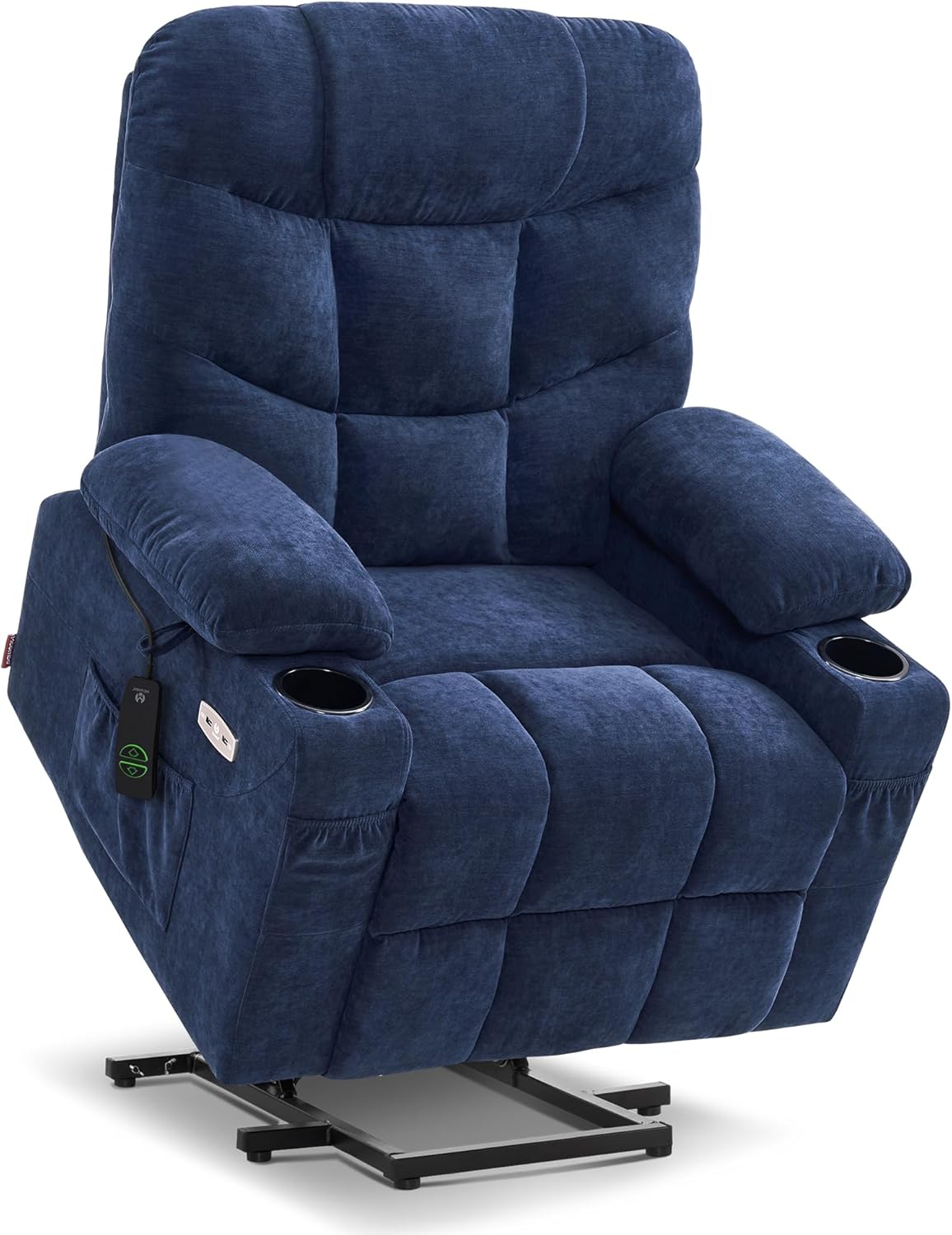

Image 1.1: The MCombo Power Lift Recliner Chair in Navy Blue, shown in an upright position.

2. Importanti istruzioni di sicurezza

To reduce the risk of injury, always follow these basic safety precautions:

• This chair is designed for personal use and is not intended for commercial purposes.
• La capacità massima di peso per questa sedia è 350 libbre (158 kg)Non superare questo limite.
• Always use the lift and recline functions with caution to avoid injury. Ensure the area around the chair is clear before operating.
• Keep children and pets away from the chair's moving parts to prevent entanglement or injury.
• Do not place hands or feet under the chair while it is in operation.
• This chair does not include massage or heating features.
• Assicurarsi che tutti i collegamenti elettrici siano saldi e che il cavo di alimentazione non sia schiacciato o danneggiato.
• Utilizzare solo l'alimentatore fornito.

3. Contenuto della confezione

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact MCombo customer support.

• Base
• Schienale
• Bracciolo sinistro
• Bracciolo destro
• Accessories Box (containing power adapter, remote control, and small parts)
• Manuale di istruzioni

Image 3.1: Main components of the MCombo Power Lift Recliner Chair, including the base, backrest, and armrests.

4. Installazione e assemblaggio

Assembly of the MCombo Power Lift Recliner Chair is designed to be straightforward and typically takes approximately 15 minutes for a novice, with no additional tools required. It is recommended to have assistance due to the weight of the boxes and components.

1. Disimballare i componenti: Carefully remove all parts from the packaging. The chair is typically shipped in two boxes.
2. Collegare lo schienale: Slide the backrest onto the metal tracks located on the chair base. Ensure it is fully seated and secured. An audible click may indicate proper engagement.
3. Attacca braccioli: Connect the left and right armrests to their respective sides of the chair base. Ensure they are firmly attached.
4. Connetti alimentazione: Locate the power adapter from the accessories box. Connect the power cord to the chair and then plug it into a standard electrical outlet.

Ensure all connections are secure before proceeding to operation.

5. Istruzioni per l'uso

The MCombo Power Lift Recliner Chair features a simple two-button remote control for all functions.

5.1. Funzioni di controllo remoto

Image 5.1: The two-button remote control for the chair's lift and recline functions.

• Funzione di sollevamento: Premere e tenere premuto il tasto Pulsante freccia SU to raise the chair to a standing assist position. This mechanism gently lifts the chair, making it easier to stand up.
• Funzione reclinazione: Premere e tenere premuto il tasto Pulsante freccia GI to recline the backrest and extend the footrest. The chair can recline up to 140 degrees. Release the button when the desired position is reached.
• Ritorno in posizione verticale: To return to the upright position from a reclined state, press and hold the Pulsante freccia SU.

5.2. Extended Footrest

The chair features a 4.7-inch extended footrest designed to provide full leg support and prevent feet from dangling, enhancing comfort, especially for users between 5'1" and 5'9" in height.

Image 5.2: Illustration of the extended footrest providing full leg support.

5.3. USB Ports and Cup Holders

The chair is equipped with two USB ports and two cup holders for convenience. The USB ports allow you to charge mobile devices while relaxing. The cup holders provide a secure place for beverages.

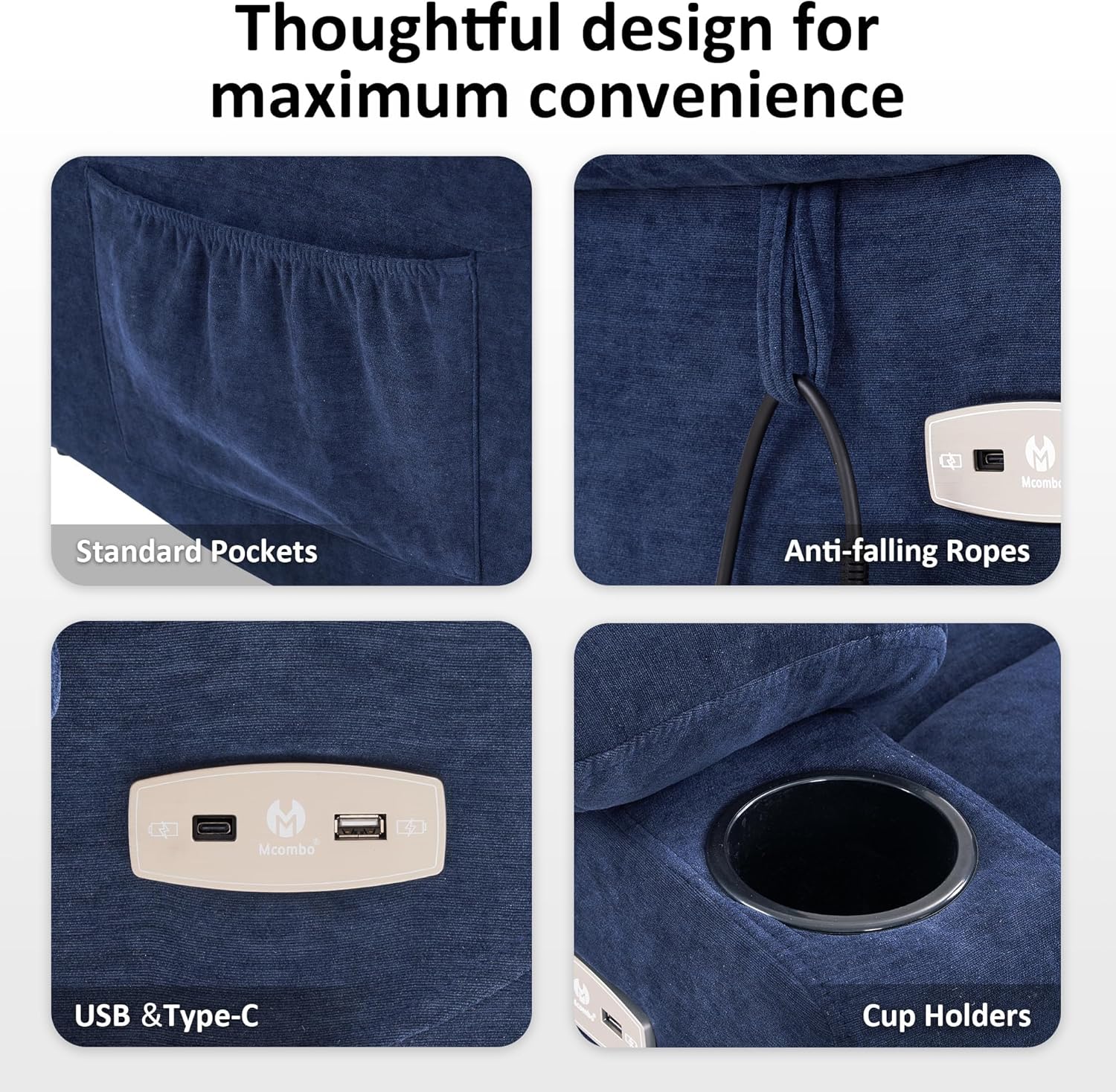

Image 5.3: Detail showing the integrated USB ports, cup holders, and side pockets.

Image 5.4: A user demonstrating the power lift assistance feature, showing the chair tilting forward to aid standing.

6. Manutenzione e cura

Proper care will ensure the longevity and appearance of your MCombo Power Lift Recliner Chair.

• Pulizia del tessuto: The high-quality fabric material is skin-friendly and easy to clean. For general cleaning, wipe with a dry or damp lint-free cloth. For spills, blot immediately with a clean, dry cloth. Avoid harsh chemicals or abrasive cleaners.
• Cura del meccanismo: The reclining and lift mechanisms are designed for durability. Avoid forcing the chair into positions. Periodically check for any loose connections or obstructions.
• Cavo di alimentazione: Regularly inspect the power cord for any signs of damage. Do not use the chair if the cord is frayed or compromised.

Image 6.1: Detail of the chair's fabric, highlighting its texture and OEKO-TEX Standard 100 certification for safety.

7. Risoluzione Dei Problemi

If you encounter any issues with your MCombo Power Lift Recliner Chair, refer to the following common troubleshooting steps:

• Chair Not Operating: Ensure the power cord is securely plugged into both the chair and a working electrical outlet. Check for any tripped circuit breakers.
• Il telecomando non risponde: Verify that the remote control cable is firmly connected to the chair.
• Rumori insoliti: Inspect the chair's mechanism for any obstructions. Ensure all assembly connections are tight.
• Movimento irregolare: Check that the chair is placed on a flat, stable surface.

If the problem persists after attempting these steps, please contact MCombo customer support for further assistance.

8. Specifiche

9. Garanzia e supporto

9.1. Informazioni sulla garanzia

The MCombo Power Lift Recliner Chair comes with a Garanzia limitata del produttore di 2 anniLa presente garanzia copre:

• Meccanismo di reclinazione e sollevamento
• Parti elettriche
• Materiale di rivestimento
• Cuscini
• Struttura in legno e metallo

Conservare la prova d'acquisto per eventuali richieste di garanzia.

9.2. Assistenza clienti

For any questions, concerns, or warranty claims, please contact MCombo customer support. Refer to the contact information provided with your purchase or visit the official MCombo websito.
