DEWINNER Cordless Hedge Trimmer

1. Introduzione

Thank you for choosing the DEWINNER 20V Cordless Hedge Trimmer. This manual provides important information for the safe and effective operation, maintenance, and care of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

This cordless hedge trimmer is designed for trimming hedges, shrubs, and bushes in domestic gardens. Its lightweight design and powerful battery system ensure efficient and comfortable use.

2. Istruzioni di sicurezza

Osservare sempre le precauzioni di sicurezza di base quando si utilizzano utensili elettrici per ridurre il rischio di incendi, scosse elettriche e lesioni personali. Il mancato rispetto di queste istruzioni può causare lesioni gravi.

• Dispositivi di protezione individuale (DPI): Always wear safety glasses, gloves, and sturdy footwear when operating the hedge trimmer. Hearing protection is also recommended.
• Area di lavoro: Keep the work area clean and well-lit. Do not operate the trimmer in wet or damp conditions. Keep children and bystanders away.
• Doppio interruttore di sicurezza: The trimmer features a 2-level trigger system (double safety switch) to prevent accidental starting. Both the ON/OFF switch and the trigger switch must be engaged simultaneously to operate the tool.
• Sicurezza della lama: Never touch the blades while the tool is running. Ensure the blade cover is in place when storing or transporting the trimmer.
• Sicurezza della batteria: Utilizzare solo la batteria e il caricabatterie specificati. Non esporre le batterie a temperature estreme o all'acqua.
• Manutenzione: Scollegare la batteria prima di effettuare qualsiasi operazione di manutenzione, pulizia o sostituzione degli accessori.

The double safety switch design increases security by preventing accidental operation. Both the ON/OFF switch and the trigger switch must be pressed.

3. Contenuto della confezione

Al momento della ricezione, controllare il contenuto del pacco per assicurarsi che tutti gli articoli siano presenti e integri:

• DEWINNER Cordless Hedge Trimmer Unit
• 2 batterie agli ioni di litio da 20 V 2000 mAh
• 1 caricabatterie rapido da 1 ora
• Copri lama
• Manuale dell'utente (questo documento)

4. Prodotto finitoview

Familiarize yourself with the components of your DEWINNER Cordless Hedge Trimmer:

This diagram illustrates the key components of the hedge trimmer, including the 510mm blade, front and rear handles, trigger switch, ON/OFF switch, safety guard, and battery.

• 16mm Dual Action Blade: Hardened steel blade for efficient and smooth cutting.
• Maniglia anteriore: Ergonomic D-shaped handle for comfortable grip.
• Maniglia posteriore: Rubber-covered for improved grip and comfort.
• Interruttore a grilletto: Part of the double safety system.
• Interruttore ON/OFF: Main power switch, part of the double safety system.
• Guardia di sicurezza: Protegge l'utente dai detriti e dalla lama.
• Indicatore della batteria: Visualizza lo stato di carica della batteria.
• Splash Baffle: Designed to prevent most splashes of twigs and debris during operation.

The splash baffle helps contain debris, and the battery indicator lights provide real-time charging status.

5. Impostazione

Before first use, ensure the battery is fully charged and the blade cover is removed.

1. Carica della batteria: Insert the 20V Lithium-ion battery into the fast charger. The charger indicator lights will show the charging status. A full charge takes approximately 1 hour.
2. Installazione della batteria: Slide the charged battery into the battery slot on the rear of the hedge trimmer until it clicks securely into place. Ensure it is firmly seated.
3. Rimozione del coperchio della lama: Carefully slide the blade cover off the cutting blade. Store the cover in a safe place for future use.

The large capacity 20V 2000mAh Lithium battery provides ample power for extended operation.

6. Istruzioni per l'uso

Follow these steps for safe and effective operation of your hedge trimmer:

1. Avvio del trimmer: To start the trimmer, first press the ON/OFF switch located on the handle, then simultaneously squeeze the trigger switch. The trimmer will only operate when both switches are engaged.
2. Arresto del trimmer: Release either the ON/OFF switch or the trigger switch to stop the trimmer.
3. Tecnica di rifinitura: Hold the trimmer firmly with both hands. Use a sweeping motion to cut through hedges. For best results, cut small amounts at a time. The 51cm blade and 16mm tooth opening capacity are ideal for most common hedge types.
4. Ergonomia: The lightweight design (2.5kg) and ergonomic D-shaped handle with rubberized grip allow for comfortable operation, reducing fatigue during prolonged use.

The lightweight and ergonomic design allows for easy and comfortable trimming of hedges.

7. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali del vostro tagliasiepi.

• Pulizia della lama: Dopo ogni utilizzo, scollegare la batteria e pulire accuratamente le lame con una spazzola rigida per rimuovere linfa e detriti.
• Lubrificazione della lama: Apply a light machine oil or blade lubricant to the cutting blades regularly to ensure smooth operation and prevent rust. The blades are designed to be rust-proof, but lubrication enhances performance.
• Magazzinaggio: Always attach the blade protective sleeve before storing the trimmer. Store the tool and batteries in a dry, secure place, out of reach of children.
• Cura della batteria: Conservare le batterie in un luogo fresco e asciutto. Non conservare le batterie completamente scariche per periodi prolungati. Ricaricarle periodicamente se non vengono utilizzate.

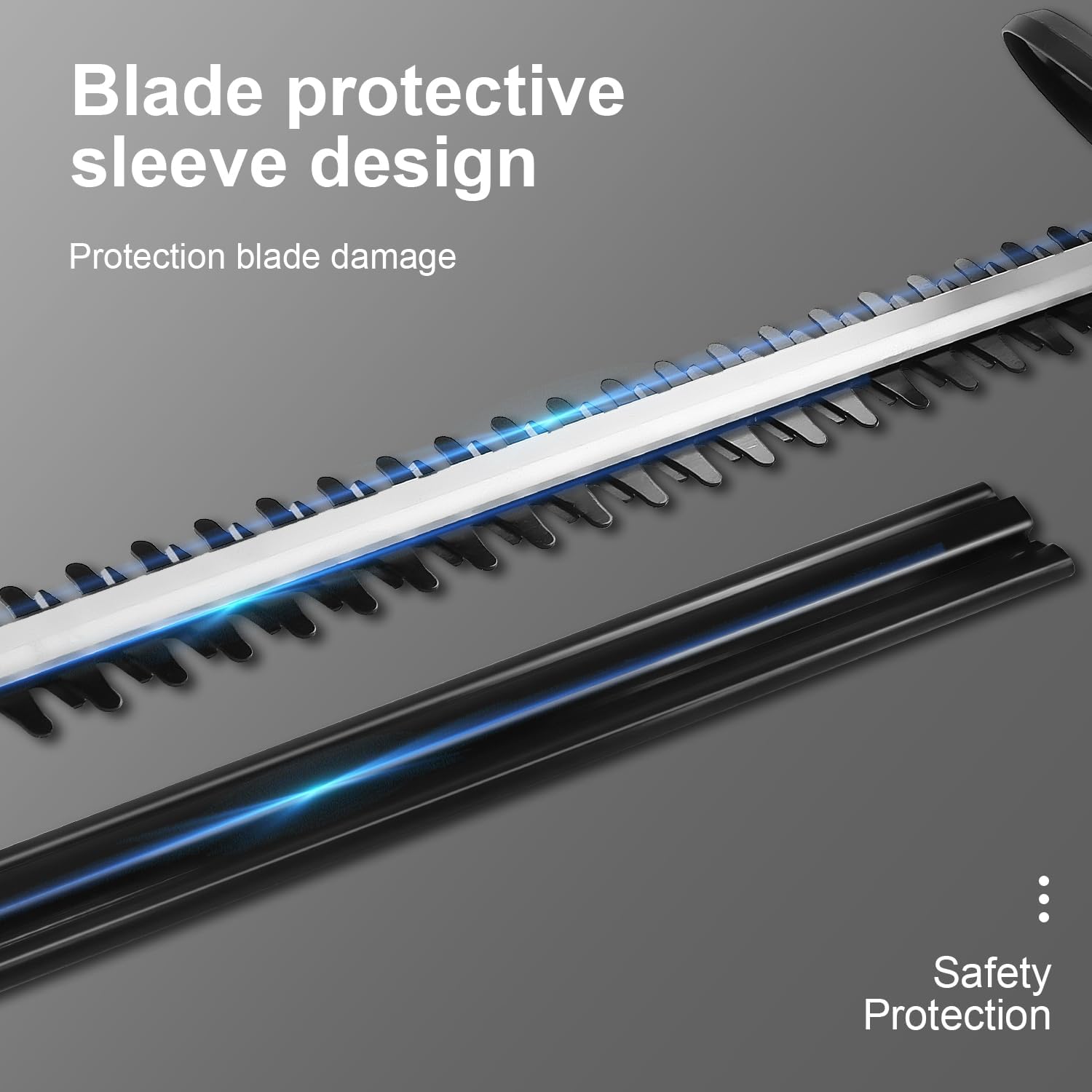

The blade protective sleeve provides safety and prevents damage to the blade during storage.

The upgraded rust-proof blade offers sharp, high hardness and wear resistance for smooth pruning.

8. Risoluzione Dei Problemi

Se riscontri problemi con il tuo tagliasiepi, fai riferimento ai seguenti problemi comuni e alle relative soluzioni:

If the problem persists after attempting these solutions, please contact DEWINNER customer support.

9. Specifiche

10. Garanzia e supporto

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. DEWINNER is committed to providing quality products and customer satisfaction.

If you require technical support or have questions regarding your DEWINNER Cordless Hedge Trimmer, please contact DEWINNER customer service through the contact information provided on the product packaging or the official DEWINNER websito.
