SINOTIMER TM618 -7 Days Programmable Weekly Timer Module

1. Finitaview

The SINOTIMER TM618 timer module is designed to automatically control the power supply to various electrical apparatus, such as streetlights, neon signs, billboards, and other appliances, based on a preset time schedule. This digital timer switch features a rechargeable internal battery to maintain program settings during power outages.

Figura 1.1: Fronte view of the TM618 Timer Module.

2. Caratteristiche principali

• Design compatto e salvaspazio.
• Engineered with advanced digital timing technology.
• High functionality for precise time control.
• Built-in rechargeable battery for program retention.
• Multiple ON/OFF programs for weekly scheduling.

3. Configurazione e installazione

3.1. Schema elettrico

Proper wiring is crucial for the safe and correct operation of the TM618 timer module. Refer to the diagram below for connection details. Ensure power is disconnected before performing any wiring.

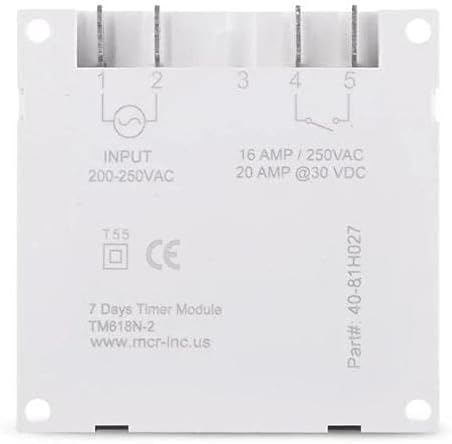

Figure 3.1: Wiring Terminals and Specifications.

• Input (200-250VAC): Connect your main power supply to terminals 1 and 2.
• Output (16 AMP / 250VAC, 20 AMP @30 VDC): Terminals 3, 4, and 5 are for the controlled output. Terminal 3 is common, Terminal 4 is normally open (NO), and Terminal 5 is normally closed (NC). Connect your load to the appropriate terminals based on your application (e.g., between 3 and 4 for normally off, turning on when timed).

3.2. Initial Power-Up and Battery

Upon initial power-up, the timer's internal rechargeable battery (40mAh) will begin charging. This battery saves your programmed settings during power interruptions. Allow the unit to be powered for at least 30 minutes for the battery to gain sufficient charge before programming or disconnecting power.

Figure 3.2: Internal 40mAh Rechargeable Battery.

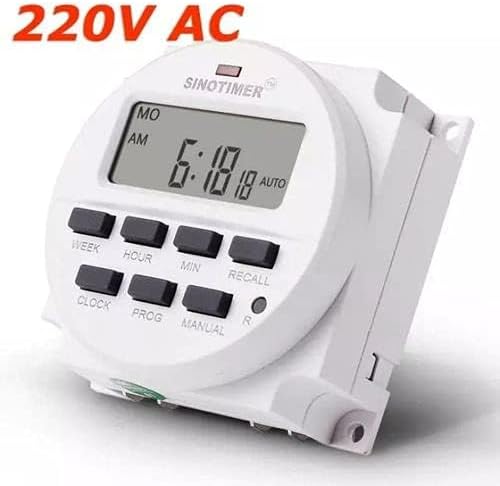

Figure 3.3: TM618 Operating Voltage (220V AC shown).

4. Istruzioni per l'uso

The TM618 timer allows for precise control with up to 16 ON/OFF programs per day or week. The buttons on the front panel are used for setting the time and programs.

Figure 4.1: Timer Module with Manual.

4.1. Impostazione dell'ora corrente

1. Premere il tasto OROLOGIO button and hold it.
2. Mentre si tiene OROLOGIO, premere SETTIMANA per impostare il giorno corrente della settimana.
3. Mentre si tiene OROLOGIO, premere ORA per impostare l'ora corrente.
4. Mentre si tiene OROLOGIO, premere MINIMO per impostare il minuto corrente.
5. Rilasciare il OROLOGIO pulsante. L'ora è ora impostata.

4.2. Programmazione degli orari di accensione/spegnimento

Il timer supporta fino a 16 programmi di accensione/spegnimento. Ogni programma è composto da un orario di accensione e uno di spegnimento.

1. Premere il tasto PROG una volta il pulsante. Il display mostrerà "1 ON".
2. Premere SETTIMANA to select the day(s) for this program (e.g., MO, TU, WE, TH, FR, SA, SU, or combinations like MO-FR, SA-SU, MO-SA, etc.).
3. Premere ORA per impostare l'ora di accensione desiderata.
4. Premere MINIMO per impostare il minuto di accensione desiderato.
5. Premere PROG again. The display will show "1 OFF".
6. Repeat steps 2-4 to set the desired OFF day(s), hour, and minute for this program.
7. Premere PROG to advance to the next program ("2 ON") or to exit programming mode if no more programs are needed.
8. To clear a program, press RICHIAMO Mentre viewing the specific ON or OFF program you wish to clear.

4.3. Azionamento manuale

Premere il tasto MANUALE button to cycle through different operating modes:

• AUTO ACCESO: The timer is currently ON and will follow the programmed schedule.
• SPEGNIMENTO AUTOMATICO: The timer is currently OFF and will follow the programmed schedule.
• SOPRA: The timer is forced ON, overriding any programs.
• OFF: The timer is forced OFF, overriding any programs.

4.4. Recall Function

IL RICHIAMO button (often marked 'R' or 'RESET') is used to clear specific program settings or to reset the timer. A small pinhole button (R) is typically used for a full reset, which clears all programs and resets the time.

5. Manutenzione

5.1. Cura della batteria

The TM618 features a built-in rechargeable battery. To ensure its longevity and proper function, keep the timer connected to power for regular charging. If the timer is stored for extended periods without power, the battery may discharge, requiring a full charge upon reconnection.

5.2. Pulizia

Clean the exterior of the timer module with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the plastic casing or display. Ensure no liquids enter the device.

6. Risoluzione Dei Problemi

• Il display è vuoto: Check power connections. Ensure the unit has been powered for at least 30 minutes to charge the internal battery.
• Programs not executing: Verify that the current time is set correctly. Check that the timer is in "AUTO ON" or "AUTO OFF" mode, not forced ON/OFF. Review your programmed ON/OFF times for accuracy.
• Timer not responding to buttons: Perform a full reset using the small 'R' pinhole button. If issues persist, ensure proper power supply.

7. Specifiche

7.1. Dimensioni

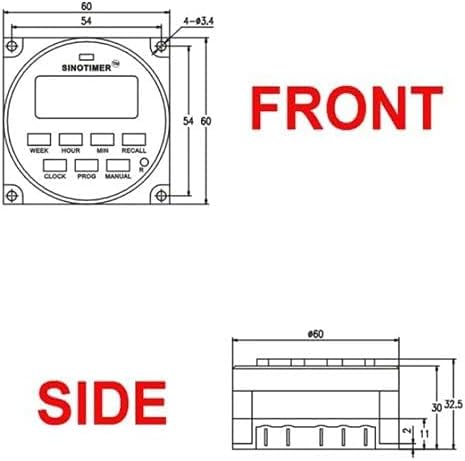

Figure 7.1: Front Dimensions.

Figure 7.2: Side Dimensions.

8. Garanzia e supporto

For information regarding product warranty, technical support, or service, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
