Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your BLANCO WEGA-F II kitchen faucet. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Informazioni sulla sicurezza
- Always turn off the main water supply before attempting any installation, maintenance, or repair work on the faucet.
- Professional installation by a qualified plumber is recommended to ensure correct setup and prevent leaks.
- Ensure all connections are secure and watertight to prevent water damage.
- Do not use abrasive cleaners, harsh chemicals, or scouring pads on the faucet's finish, as these can cause irreparable damage.
- Tenere le parti di piccole dimensioni e i materiali di imballaggio fuori dalla portata dei bambini.
Contenuto della confezione
Prima di iniziare l'installazione, verificare che tutti i seguenti componenti siano presenti nella confezione:
- BLANCO WEGA-F II Kitchen Faucet
- Mounting Kit (includes necessary hardware for installation)
- Tubi flessibili di collegamento
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | 526404 |
| Produttore | BIANCO |

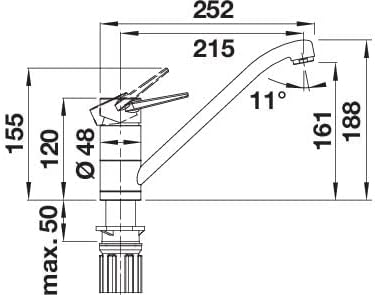

| Dimensioni del prodotto (L x P x A) | Dimensioni: 48 x 25.2 x 18.8 cm |
| Peso | 1.51 chilogrammi |
| Tipo di pressione | Alta pressione |
| Colore | Cromo |
| Fine | cromato |
| Materiale | Ottone |
| Metodo di installazione | Foro singolo |
| Numero di fori richiesti | 1 |
| Numero di maniglie | 1 |
| Posizione della maniglia | Centro |
| Caratteristica speciale | Lever faucet for flexible planning and easy use (Window Function) |
| Uso consigliato | Cucina |
Configurazione e installazione
Follow these steps for proper installation of your BLANCO WEGA-F II kitchen faucet. Ensure the water supply is turned off before starting.
- Preparare il lavandino: Ensure the sink has a single hole for faucet mounting. Clean the area around the mounting hole.
- Montare il rubinetto: Insert the faucet body into the mounting hole from above the sink. From underneath, secure the faucet using the provided mounting kit (washer, gasket, and nut). Tighten firmly but do not overtighten.
- Collegare le linee idriche: Attach the flexible hot and cold water supply hoses to the corresponding inlets on the faucet body. Connect the other ends of the hoses to your hot and cold water supply valves. Ensure connections are hand-tight, then use a wrench for a quarter turn to secure.
- Check Window Function Clearance: Before finalizing, ensure the flexible hoses and connections allow the faucet to be pulled up and laid flat without obstruction, especially if installing in front of a window.
- Test per perdite: Slowly turn on the main water supply and check all connections for leaks. If any leaks are detected, tighten the connections further.
Istruzioni per l'uso
The BLANCO WEGA-F II faucet is designed for intuitive use and features a convenient window function.
- Controllo del flusso e della temperatura dell'acqua: The single lever controls both water flow and temperature. Lift the lever upwards to increase water flow. Move the lever to the left for hot water and to the right for cold water.
- Window Function (Laying Flat): To open a window located directly above your sink, grasp the faucet body and pull it upwards. Once disengaged from its base, gently lay the faucet flat into the sink basin. This action provides the necessary clearance for the window to open freely.
- Ritorno alla posizione eretta: To return the faucet to its upright, operational position, simply lift it from the basin until it clicks securely back into its base.
Manutenzione
Proper care and maintenance will ensure the longevity and appearance of your BLANCO WEGA-F II faucet.
- Pulizia della finitura: Pulisci regolarmente il rubinetto con un panno morbido eamp cloth and a mild, non-abrasive soap. Rinse thoroughly with clean water immediately after cleaning and dry with a soft cloth to prevent water spots and mineral buildup.
- Evitare detergenti aggressivi: Do not use abrasive sponges, scouring powders, steel wool, or cleaners containing alcohol, acids, ammonia, or other harsh chemicals. These can damage the chrome finish and internal components.
- Manutenzione dell'aeratore: If water flow becomes restricted, the aerator at the tip of the spout may be clogged with mineral deposits. Unscrew the aerator, clean it under running water, and reattach.
- Cartuccia in ceramica: The faucet is equipped with a high-quality ceramic cartridge designed for drip-free performance. This component typically requires no user maintenance.
Risoluzione dei problemi
Per i problemi più comuni e le possibili soluzioni, fare riferimento alla tabella seguente.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Basso flusso d'acqua | Partially closed supply valves, clogged aerator, mineral buildup in hoses. | Ensure hot and cold water supply valves are fully open. Clean or replace the aerator. Check supply hoses for kinks or blockages. |
| Leaks from Spout | Loose connections, damaged O-rings, faulty ceramic cartridge. | Check and tighten all water supply connections. If leaks persist, contact a professional plumber to inspect or replace O-rings or the ceramic cartridge. |
| Stiff Handle Operation | Mineral deposits, worn cartridge. | Regular cleaning can prevent mineral buildup. If the handle remains stiff, the ceramic cartridge may need inspection or replacement by a professional. |
| Faucet Does Not Lay Flat | Obstruction under the sink, flexible hoses are not positioned correctly. | Ensure there are no obstructions (e.g., pipes, cleaning supplies) preventing the faucet from laying flat. Verify that the flexible hoses are not kinked or caught. |
Garanzia e supporto
BLANCO products are manufactured to high-quality standards and undergo rigorous quality control. For specific warranty terms and conditions applicable to your BLANCO WEGA-F II faucet, please refer to the warranty documentation included with your purchase or visit the official BLANCO website. For technical assistance, spare parts, or customer support, please contact BLANCO customer service directly. Keep your proof of purchase for warranty claims.
Informazioni sui contatti: Per favore visita www.blanco.com per i dettagli di contatto regionali e le risorse di supporto.
