Manuale utente del sintonizzatore TV digitale Rebel KOM1060 USB DVB-T2 H.265 HEVC

1. Introduzione

This manual provides comprehensive instructions for the Rebel KOM1060 USB DVB-T2 H.265 HEVC Digital TV Tuner. This device allows you to receive digital television and radio broadcasts on your personal computer. It supports DVB-T, DVB-T2, and DVB-C standards, along with H.265 HEVC decoding for high-quality video. Key features include Full HD channel support, recording capabilities, TimeShift functionality, and EPG (Electronic Program Guide) support.

Immagine 1.1: In alto view of the Rebel KOM1060 USB Digital TV Tuner.

Please read this manual carefully before using the product to ensure proper installation and operation.

2. Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:

• Rebel KOM1060 USB Digital TV Tuner
• Telecomando
• Antenna estensibile
• driver CD
• Manuale dell'utente (questo documento)

Image 2.1: Rebel KOM1060 USB Digital TV Tuner, antenna, and connecting cable.

3. Requisiti di sistema

To ensure optimal performance, your computer system should meet the following specifications:

• Sistema operativo: Windows XP / Vista / 7 / 8 / 10
• Processore: Intel Pentium 4 2.0 GHz or equivalent AMD Athlon XP (minimum)
• Memoria RAM: 512 MB (1 GB recommended for Full HD view(ing)
• Capacità di archiviazione: 300 MB free space (1 GB recommended)
• Scheda grafica: Compatibile con DirectX 9.0
• Scheda audio: Necessario
• Porta USB: Porta USB 2.0
• Unità ottica: CD drive for driver installation
• Connessione Internet: Recommended for software updates and EPG data

4. Guida all'installazione

4.1 Installazione hardware

1. Collegare l'antenna: Attach the extendable antenna to the BLC antenna connection port on the USB TV tuner. For best reception, position the antenna in an area with clear signal.
2. Insert the Tuner: Plug the Rebel KOM1060 USB Digital TV Tuner into an available USB 2.0 port on your computer.

Image 4.1: Rebel KOM1060 USB Digital TV Tuner with its protective cap removed, showing the USB connector.

4.2 Installazione del software

1. Inserire il CD del driver: Place the provided Driver CD into your computer's CD drive.
2. Esegui l'installazione: Follow the on-screen instructions to install the necessary drivers and application software. If auto-run does not start, navigate to the CD drive in 'My Computer' or 'This PC' and run the 'setup.exe' file.
3. Installazione completa: Riavviare il computer se richiesto al termine dell'installazione.
4. Aggiornamenti software: It is recommended to check the manufacturer's website for the latest software updates to ensure compatibility and access to new features.

5. Istruzioni per l'uso

5.1 Launching the Application

After successful installation, launch the TV application from your desktop shortcut or Start Menu. The application interface will appear, allowing you to control the tuner.

5.2 Scansione dei canali

1. Upon first launch, the software will typically prompt you to perform a channel scan. If not, locate the 'Channel Scan' or 'Settings' menu within the application.
2. Select your region and the type of broadcast (DVB-T, DVB-T2, or DVB-C) you wish to scan for.
3. Initiate the scan. This process may take several minutes.
4. Once complete, the available TV and radio channels will be listed.

5.3 Watching TV and Listening to Radio

• Selezione canale: Use the channel list within the application or the provided remote control (Image 5.1) to navigate between channels.
• Controllo del volume: Adjust the volume using the application's controls or the remote control.
• Supporto Full HD: The tuner supports Full HD channels, providing high-resolution viewing where available.
• Ricezione radiofonica: Switch to radio mode within the application to access FM, DAB, DAB+, VHF, and UHF radio stations.

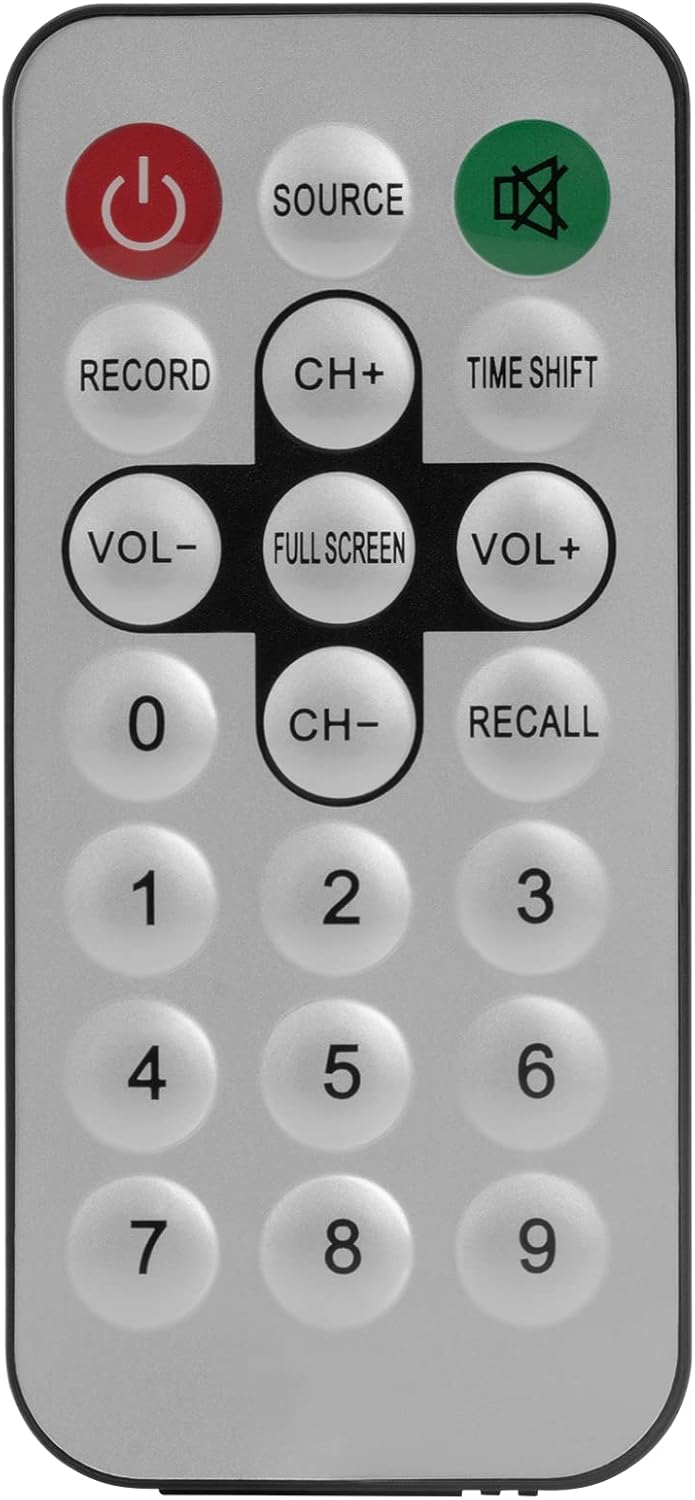

Image 5.1: The included remote control for the Rebel KOM1060 tuner.

5.4 Recording and TimeShift

• Funzione di registrazione: Use the 'Record' button on the remote control or the corresponding option in the software to record live TV programs. Ensure you have sufficient storage space on your computer.
• Funzione TimeShift: The TimeShift feature allows you to pause live TV and resume watching later. Activate TimeShift via the remote control or software interface.
• Registrazione video: The device supports direct video recording of broadcasts.

5.5 EPG and Teletext

• EPG (Guida elettronica ai programmi): Access the EPG through the software to view upcoming program schedules and information.
• Televideo: The tuner supports teletext services, which can be accessed via the software interface.

6. Manutenzione

• Mantenere il dispositivo pulito e privo di polvere. Utilizzare un panno morbido e asciutto per la pulizia.
• Avoid exposing the tuner to extreme temperatures, humidity, or direct sunlight.
• Non tentare di smontare o riparare il dispositivo da soli. Rivolgersi a personale qualificato.
• Ensure the antenna connection is secure for optimal signal reception.

7. Risoluzione Dei Problemi

• Nessun segnale/Scarsa ricezione:
  • Ensure the antenna is properly connected and positioned for best reception.
  • Eseguire nuovamente una scansione dei canali.
  • Check for local broadcast availability in your area.
• Il software non si avvia/si blocca:
  • Verifica che il tuo sistema soddisfi i requisiti minimi.
  • Reinstall the drivers and software from the provided CD or the manufacturer's websito.
  • Assicurati che il tuo sistema operativo sia aggiornato.
• No Audio/Video Issues:
  • Check your computer's sound settings.
  • Ensure the correct codecs are installed (usually included with the software).
  • Aggiorna i driver della scheda grafica.
• Il telecomando non funziona:
  • Ensure there are no obstructions between the remote and the tuner's IR receiver.
  • Check if the remote control requires batteries and if they are correctly inserted and charged.

8. Specifiche

9. Garanzia e supporto

Rebel products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official Rebel website. For technical support, driver updates, or further assistance, please visit the manufacturer's support page or contact their customer service.

Conserva la prova d'acquisto per le richieste di garanzia.
