1. Introduzione
This user manual provides detailed instructions for the installation, operation, and maintenance of the POTTER 12/24 VDC 4-Wire Strobe Light, Model SL 5A C. This device is designed to provide visual signaling in various applications, particularly in fire safety and alarm systems. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
2. Informazioni sulla sicurezza
Always adhere to local codes and regulations when installing and operating this device. Failure to do so may result in property damage, injury, or death.
- Disconnect all power sources before installation, maintenance, or servicing.
- L'installazione deve essere eseguita solo da personale qualificato.
- Ensure proper wiring polarity and voltage (12/24 VDC) to prevent damage to the unit.
- Do not expose the device to excessive moisture or extreme temperatures outside its specified operating range.
- Ispezionare regolarmente il dispositivo per eventuali segni di danni o usura.
3. Prodotto finitoview
The POTTER SL 5A C is a robust 12/24 VDC 4-wire cylindrical strobe light designed for clear visual signaling. It features a durable metal construction with a powder-coated finish and utilizes a Light Emitting Diode (LED) as its light source. Available in clear, red, orange, and yellow lens options.
3.1. componenti
- Strobe Light Unit (Cylindrical Housing)
- Base di montaggio
- Wiring Terminals (4-wire connection)
- Lens (Clear, Red, Orange, or Yellow)
3.2. Immagine del prodotto

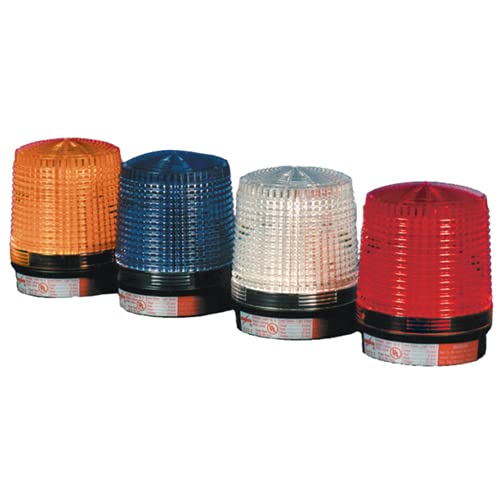

Image: A visual representation of four POTTER cylindrical strobe lights. From left to right, the lights are shown with orange, blue, clear, and red lenses. Each unit consists of a black base and a ribbed, translucent cylindrical lens, illustrating the design and color variations of the product line.
4. Configurazione e installazione
Follow these steps for proper installation of the POTTER SL 5A C strobe light:
- Disconnessione dell'alimentazione: Ensure all power to the installation area is disconnected at the circuit breaker or fuse box before beginning any wiring.
- Posizione di montaggio: Select a suitable mounting location that is stable, dry, and provides clear visibility for the strobe light. The device is designed for surface mounting.
- Montaggio della base: Secure the mounting base to the chosen surface using appropriate fasteners (not included). Ensure the base is firmly attached.
- Cablaggio: Connect the 4-wire power source to the terminals on the strobe light unit. Pay close attention to polarity (positive and negative) and ensure connections are secure. Refer to the wiring diagram provided with the product packaging for specific terminal assignments.
- Attach Strobe Unit: Once wiring is complete and verified, carefully attach the strobe light unit to its mounted base. Ensure it clicks or locks securely into place.
- Ripristino dell'energia: Restore power to the circuit and test the strobe light for proper operation.
5. Istruzioni per l'uso
The POTTER SL 5A C strobe light operates automatically when power is supplied to its 4-wire connection. It is designed to provide a continuous visual strobe signal when activated by the connected alarm or control panel.
- Attivazione: The strobe light will activate and begin flashing when the appropriate 12/24 VDC power is applied to its input terminals.
- Disattivazione: The strobe light will cease flashing when the power supply is removed.
- Prova: Regular testing of the strobe light, in accordance with local fire safety regulations and system requirements, is recommended to ensure proper functionality.
6. Manutenzione
The POTTER SL 5A C strobe light requires minimal maintenance. Regular inspection and cleaning will help ensure its longevity and reliable operation.
- Pulizia: Periodically clean the lens and exterior housing with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or lens.
- Ispezione: Annually inspect the wiring connections for tightness and signs of corrosion. Check the mounting for security.
- Prova di funzionalità: Perform regular functional tests as part of your overall fire alarm or security system maintenance schedule.
7. Risoluzione Dei Problemi
If the strobe light is not functioning as expected, refer to the following table for common issues and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Strobe light does not flash. | Nessuna alimentazione elettrica. Incorrect wiring/polarity. Unità difettosa. | Verify power is supplied to the unit. Check all wiring connections for correctness and tightness, ensuring correct polarity. If power and wiring are correct, the unit may be faulty and require replacement. |
| Strobe light flashes intermittently. | Collegamento del cablaggio allentato. Potenza insufficiente. | Controllare e serrare tutti i collegamenti elettrici. Ensure the power supply is stable and within the 12/24 VDC range. |
| L'emissione luminosa è scarsa. | Lente sporca. Basso volumetage. | Pulire la lente con un panno morbido, damp stoffa. Verificare il volume immessotage is within the specified range (12/24 VDC). |
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | SL 5A C |
| Numero di parte | PSL5AC |
| Codice UPC | 742779300874 |
| Voltage | 12 / 24 VDC |
| Cablaggio | Connessione a 4 fili |
| Tipo di sorgente luminosa | Diodo ad emissione luminosa (LED) |
| Opzioni colore | Clear, Red, Orange, Yellow (lens) |
| Forma | Cilindrico |
| Materiale | Metallo |
| Tipo di finitura | Verniciato a polvere |
| Tipo di montaggio | Montaggio in superficie |
| Produttore | VASAIO |
9. Garanzia e supporto
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official POTTER website. For technical support, troubleshooting assistance beyond this manual, or replacement parts, please contact POTTER customer service through their official channels.
Nota: modifiche o riparazioni non autorizzate potrebbero invalidare la garanzia del prodotto.
