SmallRig NP-F Battery Adapter Mount Plate 3168B User Manual

1. Introduzione

The SmallRig NP-F Battery Adapter Mount Plate 3168B is designed to provide a versatile power solution for various cameras, including BMPCC 4K, 6K, 6K Pro, Canon R5 C, and other mirrorless cameras. It supports a wide range of NP-F series batteries (NP-F970, NP-F550, NP-F770, etc.) and features dual DC outputs (7.4V and 12V) as well as a bi-directional USB-C port for charging and power output. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting.

2. Cosa c'è nella scatola

Si prega di controllare il contenuto del pacco per assicurarsi che siano presenti tutti gli articoli:

• NP-F Battery Adapter Mount Plate (Advanced Edition) x 1
• 1/4''-20 Screw x 1
• 5/32'' L-Shaped Allen Wrench x 1
• Manuale utente x 1

Image: Contents of the product package, including the battery plate, screw, and wrench.

3. Prodotto finitoview e Caratteristiche

The SmallRig NP-F Battery Adapter Mount Plate 3168B is engineered for durability and high performance. Key features include:

• Ampia compatibilità: Supports NP-F970, NP-F550, NP-F770, and other NP-F series batteries, including original Sony and third-party batteries.
• Dual DC Outputs: Provides 7.4V (max 22W) and 12V (max 36W) DC outputs, compatible with DC 5521 and DC 5525 cables.
• Porta USB-C: Bi-directional 36W USB-C interface for power output or charging NP-F batteries.
• Automatic Wake-up and Sleep Modes: Plug-and-play functionality with short circuit and high current protection.
• Indicatori della batteria: Four LED lights to check battery connection and remaining life.
• Costruzione durevole: Made from premium CNC aluminum alloy with gold-plated electrical contacts and a rubber pad to prevent scratches.

3.1 Identificazione dei componenti

Image: Detailed diagram of the battery plate's components.

1. DC 12V Output Port: Potenza massima 36 W.
2. Pulsante di accensione: Press to check battery status.
3. Indicatore della batteria: Four LED lights to show battery life.
4. DC 7.4V Output Port: Potenza massima 22 W.
5. USB-C In/Output Port: Bi-directional, maximum input/output 36W.
6. Indicatore di ricarica USB-C: Orange for slow charge / slow discharge, blue for fast charge / fast discharge.
7. Gold-plated Electrical Contacts: For stable and conductive connection.
8. Vite di montaggio: 1/4''-20 threaded hole for attachment.
9. Inner Thread: For mounting/removing screws.
10. Self-locking Button: For quick and secure battery installation.
11. Tampone di gomma: Prevents scratches to cameras and devices.

4. Impostazione

Follow these steps to set up your SmallRig NP-F Battery Adapter Mount Plate:

1. Attach to Camera Rig/Cage: Use the integrated 1/4''-20 threaded hole and the provided screw to securely attach the battery plate to your camera cage, handle, or other mounting points. Ensure it is firmly tightened using the L-shaped Allen wrench.
2. Insert NP-F Battery: Align your NP-F series battery (e.g., NP-F970, NP-F550) with the battery slot on the plate. Gently slide the battery into place until the self-locking button engages, securing the battery.
3. Connetti al dispositivo:
   • For DC-powered devices (e.g., BMPCC 4K/6K, Canon R5 C): Use a compatible DC 5521 or DC 5525 cable (not included) to connect the appropriate DC output port (7.4V or 12V) on the plate to your camera or device.
   • For USB-C powered devices: Use a USB-C to USB-C cable (not included) to connect the USB-C port on the plate to your device (e.g., smartphone, tablet, camera).

Image: Battery plate mounted on a camera setup.

5. Istruzioni per l'uso

5.1 Dispositivi di alimentazione

Once a compatible NP-F battery is inserted, the plate automatically wakes up and is ready to supply power. Simply connect your device to the desired output port.

Image: Higher output power details for DC 12V and USB-C ports.

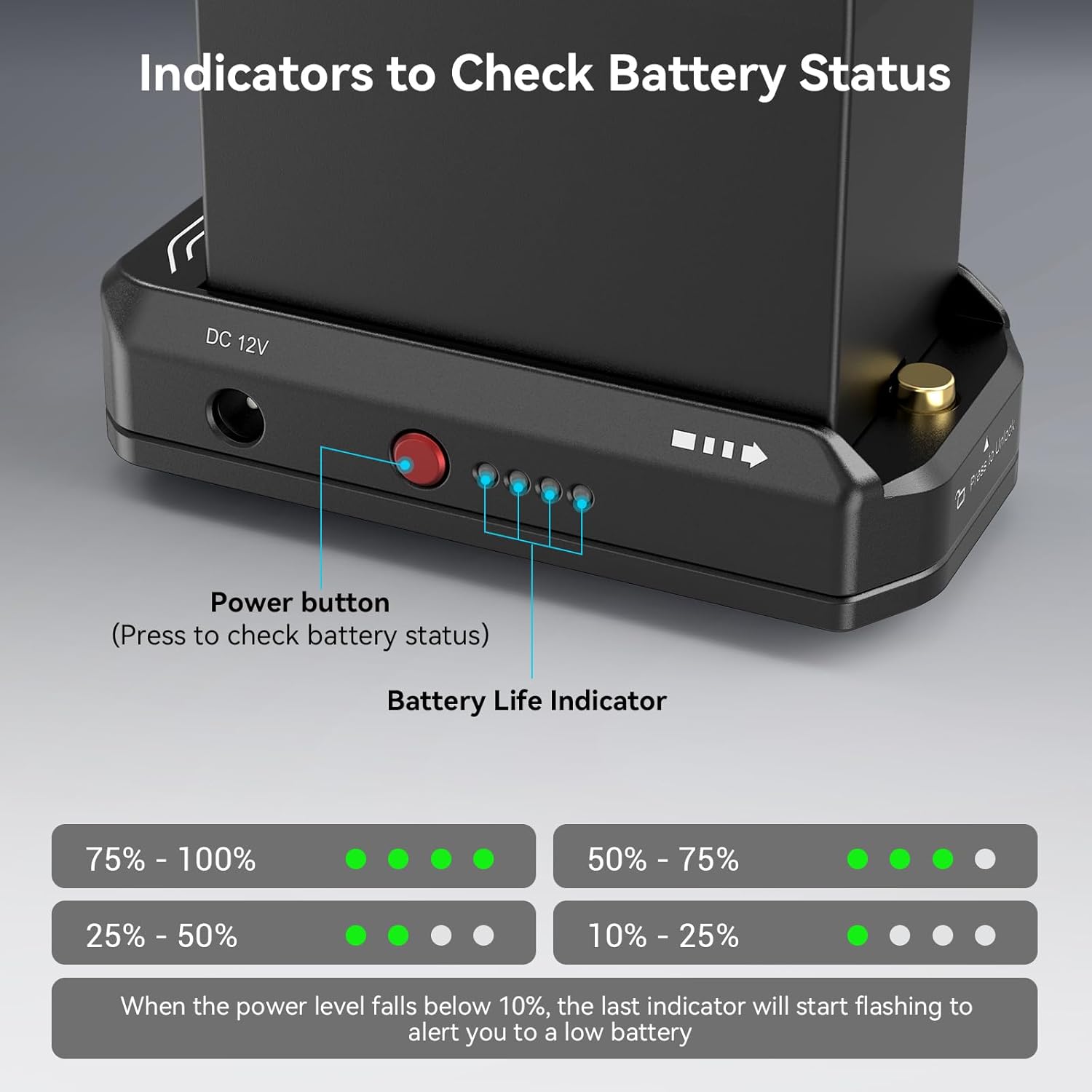

5.2 Controllo dello stato della batteria

Press the red power button on the side of the plate to check the remaining battery life. The four LED indicators will illuminate according to the charge level:

• 75% - 100%
• 50% - 75%
• 25% - 50%
• 10% - 25%

When the power level falls below 10%, the last indicator will start flashing to alert you to a low battery.

Image: Battery status indicators.

5.3 Charging NP-F Batteries via USB-C

The USB-C port supports bi-directional power. To charge an NP-F battery inserted in the plate, connect a USB-C power source (e.g., wall adapter, power bank) to the USB-C port on the plate using a USB-C to USB-C cable. The USB-C charging indicator will show:

• Arancia: Slow charge / slow discharge.
• Blu: Fast charge / fast discharge.

6. Manutenzione

• Pulizia: Use a soft, dry cloth to clean the surface of the battery plate. Do not use harsh chemicals or abrasive materials.
• Magazzinaggio: Store the plate in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Contatti: Periodically inspect the gold-plated electrical contacts for any debris or corrosion. Clean gently if necessary to ensure optimal conductivity.
• Evitare l'acqua: Questo prodotto non è impermeabile. Evitare l'esposizione all'acqua o a umidità elevata.

7. Risoluzione Dei Problemi

8. Specifiche

Immagine: Dimensioni e specifiche del prodotto.

9. Garanzia e supporto

SmallRig products are designed and manufactured to high-quality standards. For warranty information and technical support, please visit the official SmallRig websito o contattare direttamente il servizio clienti.

SmallRig ufficiale Websito: www.smallrig.com

For further assistance, refer to the user guide PDF available at: SmallRig NP-F Battery Adapter Mount Plate User Guide (PDF)
