Manuale d'uso del passeggino multifunzionale 2 in 1 LIONELO Amber

1. Introduzione

Thank you for choosing the LIONELO Amber 2-in-1 Multifunctional Baby Stroller. This manual provides essential information for the safe and proper use of your stroller. Please read it thoroughly before assembly and use, and keep it for future reference.

The LIONELO Amber is a versatile 2-in-1 system that functions as both a comfortable bassinet for newborns and a practical stroller seat for older infants and toddlers. It is designed to adapt to your child's growth and your family's needs.

Caratteristiche del prodotto:

• Funzionalità 2 in 1: Easily converts between a bassinet (suitable from birth up to 6 months or 9 kg) and a stroller seat (suitable up to 48 months or 22 kg). A bassinet mattress is included.
• Sedili regolabili: The stroller seat can be mounted both forward-facing and rear-facing. It offers 3 recline positions, from sitting to lying down, and a 3-position adjustable footrest.
• Maggiore sicurezza: Equipped with a 5-point safety harness and a safety bar for secure travel. Complies with European safety standard EN 1888, certified by Bureau Veritas.
• XXL Canopy: Features an extra-large canopy with sun protection material to shield your child from wind, rain, and sun.
• Maneuverable Wheels: Large, inflatable wheels with a central brake ensure smooth handling. 360-degree swivel front wheels provide excellent maneuverability.
• Accessori completi: Includes a bag, mosquito net, rain cover, changing mat, universal adapters, and covers for both the bassinet and stroller seat.

Cosa è incluso:

• Telaio del passeggino
• Pneumatici gonfiabili
• culla di vimini
• Bassinet floor
• Materasso
• Bassinet upholstery
• Sedile del passeggino
• Coprigambe
• Rain cover (universal for bassinet and stroller)
• Mosquito net (universal for bassinet and stroller)
• Adattatori per seggiolini auto
• Parent bag
• Materassino fasciatoio
• Plastic protective cover for the frame (against scratches during folding)
• Integrated mattress with reinforcement

2. Informazioni sulla sicurezza

ATTENZIONE: Questo prodotto non è adatto per la corsa o il pattinaggio.

• The baby stroller is intended for children from 0 to 4 years old and up to a maximum weight of 22 kg (whichever comes first).
• Culla: This product is not suitable for a child who can sit up unaided, roll over, or push themselves up on their hands and knees. Maximum child weight for the bassinet: up to 9 kg.
• AVVERTIMENTO: Do not use this bassinet on a stand.
• Prima dell'uso, assicurarsi sempre che tutti i dispositivi di bloccaggio siano inseriti.
• Non lasciare il bambino incustodito.
• Ensure that all harness straps are correctly fitted and adjusted.
• Qualsiasi carico attaccato alla maniglia e/o sul retro dello schienale e/o sui lati del prodotto comprometterà la stabilità del prodotto.
• Questo prodotto non è un giocattolo. Non permettere ai bambini di giocarci.
• Utilizzare solo parti di ricambio fornite o approvate dal produttore.

3. Installazione e assemblaggio

3.1. Assemblaggio del telaio

1. Unfold the stroller frame by releasing any transport locks. Ensure the frame locks securely into place.
2. Attach the wheels. The large inflatable wheels are designed for easy attachment and removal. Ensure they click firmly into position.
3. Adjust the handlebar to a comfortable height. The LIONELO Amber features a 5-position adjustable parent handle.

3.2. Bassinet Installation

1. Place the bassinet onto the stroller frame. Listen for a click to confirm it is securely attached.
2. Insert the bassinet floor and the included mattress. Ensure the mattress is flat and properly positioned.
3. Adjust the bassinet canopy as needed. The bassinet canopy is adjustable and includes a thick, comfortable cotton-covered mattress.

3.3. Stroller Seat Installation

1. To convert from bassinet to stroller seat, remove the bassinet from the frame.
2. Attach the stroller seat unit to the frame. The seat can be installed both forward-facing and rear-facing. Ensure it clicks securely into place.
3. Adjust the backrest and footrest to one of the 3 available positions for your child's comfort.
4. Secure the 5-point safety harness and the safety bar.

3.4. Car Seat Adapters (Optional)

The LIONELO Amber stroller includes universal adapters for car seat installation. Consult your car seat's manual for specific attachment instructions. Ensure the car seat is securely fastened to the adapters and the stroller frame before use.

Note: The following video demonstrates features of the LIONELO BIANKA stroller, which is a similar model from the same brand. Some features may vary slightly from the LIONELO Amber model.

4. Istruzioni per l'uso

4.1. Using the Brake

The stroller is equipped with a central foot brake. To engage the brake, press down firmly on the brake pedal located between the rear wheels. To release, lift the pedal upwards. Always engage the brake when the stroller is stationary.

4.2. Locking/Unlocking Front Wheels

The front wheels can swivel 360 degrees for easy maneuverability. For stability on rough terrain or when pushing straight, you can lock the front wheels. Locate the locking mechanism on each front wheel and engage it. To unlock, simply disengage the mechanism.

4.3. Regolazione della capottina

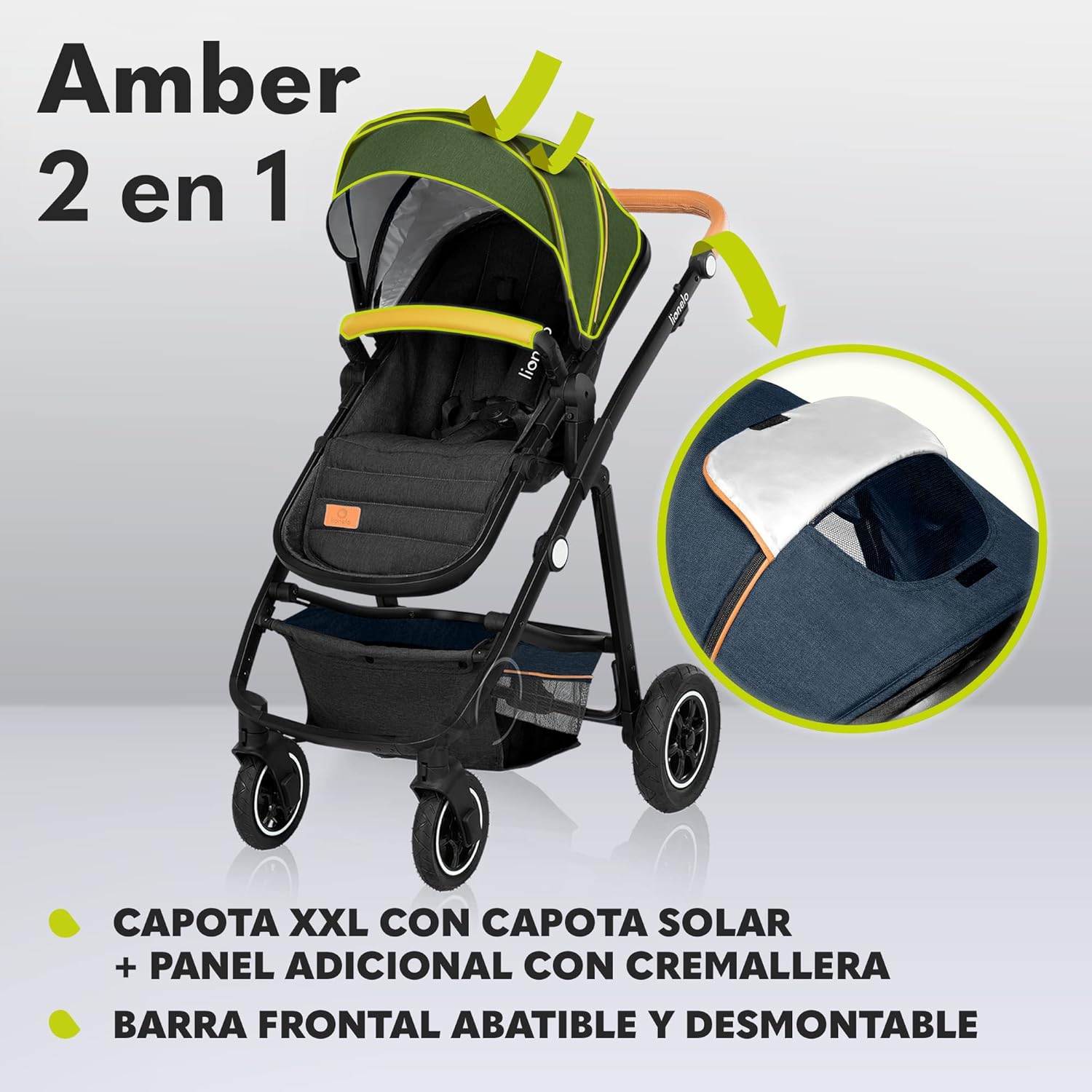

The XXL canopy provides extensive protection. To adjust its position, gently push or pull the canopy to the desired angle. It features an additional panel with a zipper for extended coverage and a visor for extra shade. The canopy material offers UV protection.

4.4. Regolazione dello schienale e del poggiapiedi

The stroller seat offers 3 recline positions for the backrest and 3 positions for the footrest. To adjust, locate the adjustment mechanisms (usually levers or buttons) and move to the desired position. Ensure the child is not in the seat when making these adjustments, or adjust carefully to avoid discomfort.

4.5. Regolazione dell'imbracatura

The 5-point safety harness should always be used and adjusted snugly around your child. To adjust the height of the shoulder straps, rethread them through the appropriate slots in the seat back. To tighten or loosen the harness, use the adjusters on the straps. Ensure the buckle is securely fastened.

4.6. Folding and Unfolding the Stroller

The LIONELO Amber stroller is designed for easy folding to a compact size. Refer to the specific folding mechanism on your stroller, typically involving pressing buttons or pulling levers on the handlebar and frame. Ensure the plastic protective cover is in place to prevent scratches during folding.

5. Manutenzione

Regular maintenance ensures the longevity and safe operation of your LIONELO Amber stroller.

• Cura del tessuto: Wash polyester and polyurethane parts by hand or machine wash on a gentle cycle with cold water and mild detergent.
• Pulizia del telaio: Clean aluminum parts with a damp stoffa.
• Ruote: Regularly check the inflatable tires for proper pressure and any signs of wear or damage. Keep them clean from dirt and debris.
• Parti mobili: Periodically check all moving parts, such as hinges and locking mechanisms, to ensure they operate smoothly. Lubricate if necessary with a silicone-based lubricant.
• Magazzinaggio: When not in use, store the stroller in a clean, dry place away from direct sunlight and extreme temperatures.

6. Risoluzione Dei Problemi

If you encounter any issues with your LIONELO Amber stroller, please refer to the following common solutions:

• Il passeggino non si apre/chiude senza problemi: Ensure all locking mechanisms are disengaged. Check for any obstructions in the folding joints. Apply a small amount of silicone lubricant to hinges if stiff.
• Le ruote non girano liberamente: Check for debris (e.g., hair, dirt) caught in the wheel axles. Ensure the wheel lock is disengaged. Verify tire pressure for inflatable wheels.
• Harness difficult to adjust/fasten: Ensure straps are not twisted. Check for any fabric caught in the buckle mechanism.
• Stroller feels unstable: Double-check that the frame is fully unfolded and all locking mechanisms for the frame, seat/bassinet, and wheels are securely engaged. Ensure the weight limits are not exceeded.

If the problem persists, please contact LIONELO customer support for assistance.

7. Specifiche

8. Garanzia e supporto

The LIONELO Amber 2-in-1 Multifunctional Baby Stroller comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including coverage period and claim procedures.

For technical support, spare parts, or any questions not covered in this manual, please contact LIONELO customer service. Contact information can typically be found on the product packaging or the official LIONELO websito.

Always use genuine LIONELO spare parts and accessories to ensure product safety and maintain warranty validity.
