Svater 150FT ST38 Outdoor String Lights User Manual

1. Introduzione

Thank you for choosing Svater Outdoor String Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new string lights. Please read these instructions carefully before use and retain them for future reference.

2. Informazioni sulla sicurezza

• Sicurezza elettrica: Always ensure the power is off before installation, replacement, or maintenance. Do not overload circuits. Use only with 120V power outlets.
• Uso esterno: These lights are designed for indoor and outdoor use. Ensure all connections are secure and protected from moisture. The IP44 weatherproof rating protects against splashes of water and solid objects larger than 1mm.
• Manipolazione della lampadina: The bulbs are shatterproof plastic, but handle them with care. Do not overtighten bulbs into sockets.
• Installazione: Do not mount or place near gas or electric heaters, fireplaces, candles, or other similar sources of heat. Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
• Connessione: Do not connect more than 6 strands (480 watts total) end-to-end to prevent electrical overload.
• Dimmer: These lights are dimmer compatible, but a dimmer switch is non incluso. Ensure any dimmer used is compatible with LED lighting.

3. Contenuto della confezione

Verifica che tutti i componenti siano presenti nel tuo pacchetto:

• 150FT String Light Strand with 75 E12 Sockets
• 75 ST38 Shatterproof LED Bulbs
• 3 Spare ST38 Shatterproof LED Bulbs
• Manuale dell'utente (questo documento)

4. Specifiche

5. Configurazione e installazione

Follow these steps to set up your Svater Outdoor String Lights:

1. Disimballare e ispezionare: Carefully remove the string lights and bulbs from the packaging. Inspect all components for any damage.
2. Pianifica il tuo layout: Determine where you want to hang the lights. Consider the length of the strand (150FT) and the location of power outlets. The lights can be hung using cable ties, cup hooks, or guide wires (not included).
3. Installa le lampadine: Gently screw each ST38 LED bulb into its E12 socket. Ensure they are finger-tight but do not overtighten.
4. Appendere le luci: Secure the string lights along your desired path. The sockets have integrated hanging loops for easy attachment. Ensure the main power plug is not yet connected to an outlet.

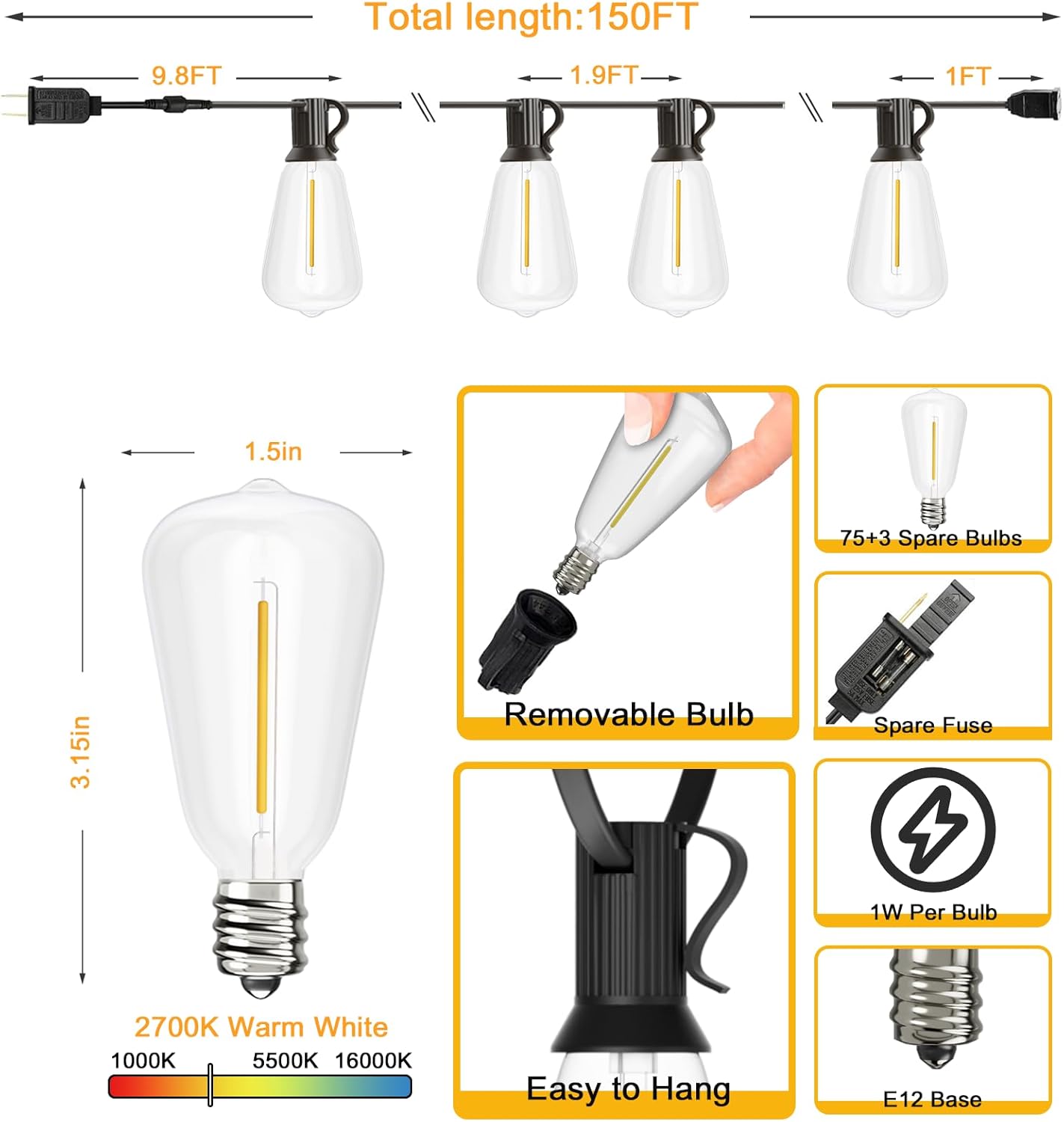

Image: Diagram showing bulb dimensions, E12 base, 1W LED, spare fuse location, and easy hanging design.

5. Collegare più fili (facoltativo): If you have additional Svater string light strands, you can connect them end-to-end. Locate the female connector at the end of the first strand and the male connector on the next strand. Securely twist them together. Remember not to exceed a total of 480 watts (6 strands).
6. Accensione: Once all bulbs are installed and the string lights are securely hung, plug the main power cord into a 120V outdoor-rated electrical outlet.

Image: Svater string lights installed outdoors, showcasing their weatherproof design during rainfall.

6. Istruzioni per l'uso

Operating your Svater Outdoor String Lights is straightforward:

• Accensione/spegnimento: Plug the string lights into a power outlet to turn them on. Unplug them or use an external switch (if installed) to turn them off.
• Funzionalità dimmerabile: These lights are compatible with most LED dimmers (not included). If you wish to adjust the brightness, install a compatible dimmer switch on your circuit. Follow the dimmer manufacturer's instructions for installation and use.

Image: Illustration of dimmable LED string lights showing brightness levels from 100% to 25%.

7. Manutenzione

• Pulizia: Disconnect power before cleaning. Wipe the bulbs and cord with a soft, damp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Sostituzione della lampadina: If a bulb needs replacement, ensure the power is off. Unscrew the old bulb and screw in a new ST38 E12 LED bulb. Use the provided spare bulbs or purchase compatible replacements.
• Sostituzione fusibile: The plug contains a spare fuse for protection. If the entire strand stops working, check the fuse in the plug. To replace, slide open the fuse compartment, remove the old fuse, and insert a new one of the same rating.
• Magazzinaggio: When not in use for extended periods, store the string lights in a cool, dry place, away from direct sunlight and extreme temperatures. Coil the strand neatly to prevent tangling.

Image: Detail of the power plug, highlighting the spare fuse compartment for easy replacement.

8. Risoluzione Dei Problemi

9. Garanzia e supporto

For warranty information or technical support, please contact Svater customer service. Refer to your purchase documentation for specific warranty terms and contact details. You can typically find support information on the official Svater websito o tramite il tuo rivenditore.
