1. Introduzione
Thank you for choosing the AONBOY F2-Orange Cat Water Fountain. This manual provides essential information for the proper setup, operation, and maintenance of your new pet water fountain. Designed to encourage your pet to drink more water, this fountain features a multi-stage filtration system, quiet operation, and an integrated LED light for enhanced visibility.

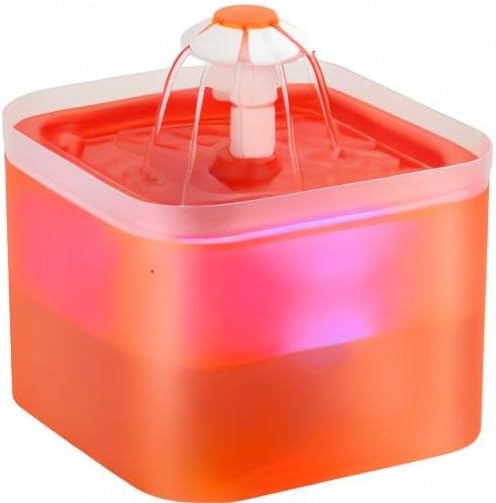

Image 1.1: The AONBOY F2-Orange Cat Water Fountain.
2. Cosa c'è nella scatola
Prima di procedere con la configurazione, assicurarsi che tutti i componenti siano presenti:
- Cat Water Dispenser (Main Unit)
- Pompa dell'acqua
- Filtro al carbone
- Spugna filtrante
- Flower Spout
- Adattatore di alimentazione
- Manuale dell'utente (questo documento)
Image 2.1: Included components of the AONBOY Cat Water Fountain.
3. Istruzioni per l'installazione
Follow these steps to assemble and prepare your AONBOY Cat Water Fountain:
- Risciacquare i componenti: Thoroughly rinse all parts of the fountain (except the power adapter) with water before first use.
- Installare la pompa: Place the water pump into the designated slot at the bottom of the main water dispenser unit. Ensure the power cord is routed through the provided channel.
- Preparare il filtro: Rinse the carbon filter and filter sponge under running water for several minutes to remove any loose carbon dust.
- Posiziona filtro: Insert the filter sponge into the pump, then place the carbon filter on top of the filter tray, ensuring it sits securely.
- Assemblaggio del vassoio: Place the filter tray assembly onto the main water dispenser unit, aligning it properly.
- Collegare il beccuccio: Insert the flower spout onto the pump's outlet on the filter tray. You can adjust the flower petals to achieve different water flow patterns.
- Riempire con acqua: Fill the water dispenser unit with clean water up to the 'MAX' line indicated on the side. Do not overfill. Ensure the water level is always above the pump to prevent dry running.
- Connetti alimentazione: Connect the power adapter to the fountain's power cord and then plug it into a standard electrical outlet. The LED light will illuminate, and water will begin to flow.
4. Istruzioni per l'uso
Your AONBOY Cat Water Fountain is designed for continuous operation to provide fresh, filtered water for your pet. The built-in LED light allows for easy monitoring of the water level and provides illumination in low-light conditions.
4.1 Water Flow Designs
The fountain offers three distinct water flow modes:
- Flower Waterfall: Water flows gently from the petals, mimicking a natural stream.
- Flower Bubble: A bubbling effect from the center of the flower.
- Soft Fountain: A gentle, calm flow without the flower attachment.
Adjust the flower spout to achieve your desired water flow pattern. Different patterns can encourage pets with varying preferences to drink more.
Image 4.1: Various water flow options.
4.2 Monitoraggio del livello dell'acqua
The translucent design and LED light allow you to easily monitor the water level without disassembling the fountain. Always ensure the water level is maintained above the minimum mark to prevent the pump from running dry, which can shorten its lifespan and cause noise.
Image 4.2: LED light for water level visibility.
5. Manutenzione
La pulizia regolare e la sostituzione del filtro sono essenziali per mantenere la qualità dell'acqua e la longevità della fontana.
5.1 Pulizia della fontana
Clean the entire fountain at least once a week. Disassemble all parts and wash them with mild soap and water. Rinse thoroughly to remove any soap residue. The main unit and tray are generally dishwasher-safe, but handwashing is recommended for the pump and flower spout.
5.2 Sostituzione del filtro
The carbon filter and filter sponge should be replaced every 2-4 weeks, depending on the number of pets using the fountain and the water quality in your area. Replace them more frequently if you notice a decrease in water flow or an unpleasant odor.
Image 5.1: Multi-layer filtration system components.
5.3 Pulizia della pompa
Periodically clean the water pump to ensure optimal performance and quiet operation. Disconnect the pump from power, remove it from the fountain, and carefully open its casing. Clean any debris, hair, or mineral buildup from the impeller and inside the pump with a small brush. Reassemble the pump securely.
6. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun flusso d'acqua | Low water level, clogged pump/filter, power disconnected. | Refill water to MAX line. Clean pump and filter. Check power connection. |
| La fontana è rumorosa | Low water level, dirty pump, pump not properly installed. | Refill water. Clean pump. Ensure pump is securely placed. |
| L'acqua ha un cattivo sapore o odore | Old or dirty filter, stagnant acqua. | Replace filter. Clean fountain thoroughly. Use fresh water. |
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | F2-Orange |
| Marca | Ragazzo AON |
| Capacità | 2 litri (67 once) |
| Dimensioni (L x P x A) | 6.3 x 6.3 x 6.3 pollici |
| Peso dell'articolo | 0.3 chilogrammi (10.6 once) |
| Materiale | Plastica |
| Consumo energetico della pompa | 1.5W |
| Livello di rumore | ≤30dB |
| Sistema di filtraggio | High-density cotton, coconut shell activated carbon, ion exchange resin |
8. Garanzia e supporto
The AONBOY brand is committed to customer satisfaction. For any questions or concerns regarding your cat water fountain, please contact our customer support team. Replacement parts, including filters and pumps, are readily available by searching for the brand name "AONBOY" online.
