TESSAN TS-TPM06-C Surge Protector Power Strip User Manual

Introduzione

Thank you for choosing the TESSAN TS-TPM06-C Surge Protector Power Strip. This device is designed to provide convenient power distribution and surge protection for your electronic devices. It features 6 AC outlets, 2 USB-A ports, and 1 USB-C port, all connected via a 15-foot flat plug extension cord. This manual provides essential information for safe and effective use.

Caratteristiche del prodotto

• Cavo di prolunga piatto da 15 piedi: Provides extended reach and a low-profile plug for tight spaces.
• 6 prese CA ampiamente distanziate: Può ospitare adattatori di alimentazione più grandi senza bloccare le prese adiacenti.
• 3 porte di ricarica USB: Includes 2 USB-A (2.4A Max) and 1 USB-C (3A Max) for versatile device charging.
• Protezione da sovratensioni 1700J: Safeguards your electronics from voltage picchi e picchi.
• Interruttore automatico integrato: Automatically trips to prevent overload when power exceeds 1625W.
• Interruttore On/Off: Conveniently controls power to all connected devices.
• Piedini in gomma antiscivolo: Garantisce stabilità su diverse superfici.

Impostare

Follow these steps to set up your TESSAN Surge Protector Power Strip:

1. Disimballare il dispositivo: Estrarre con cautela la ciabatta dalla confezione.
2. Position the Power Strip: Place the power strip on a stable, dry surface. The non-slip rubber feet on the bottom will help keep it in place.
3. Connect to a Wall Outlet: Plug the 15-foot flat plug extension cord into a standard 3-prong 125V AC wall outlet. The flat, right-angle design allows furniture to be placed closer to the wall.
4. Accensione: Press the ON/OFF switch to the 'ON' position. The 'Power' indicator light should illuminate, confirming the unit is receiving power. The 'Protected' indicator light should also be on, indicating active surge protection.

Istruzioni per l'uso

Utilize the various ports to power and charge your devices:

• Prese CA: Plug your electronic devices into the 6 widely spaced AC outlets. The wide spacing is designed to accommodate bulky power adapters without obstructing other outlets.

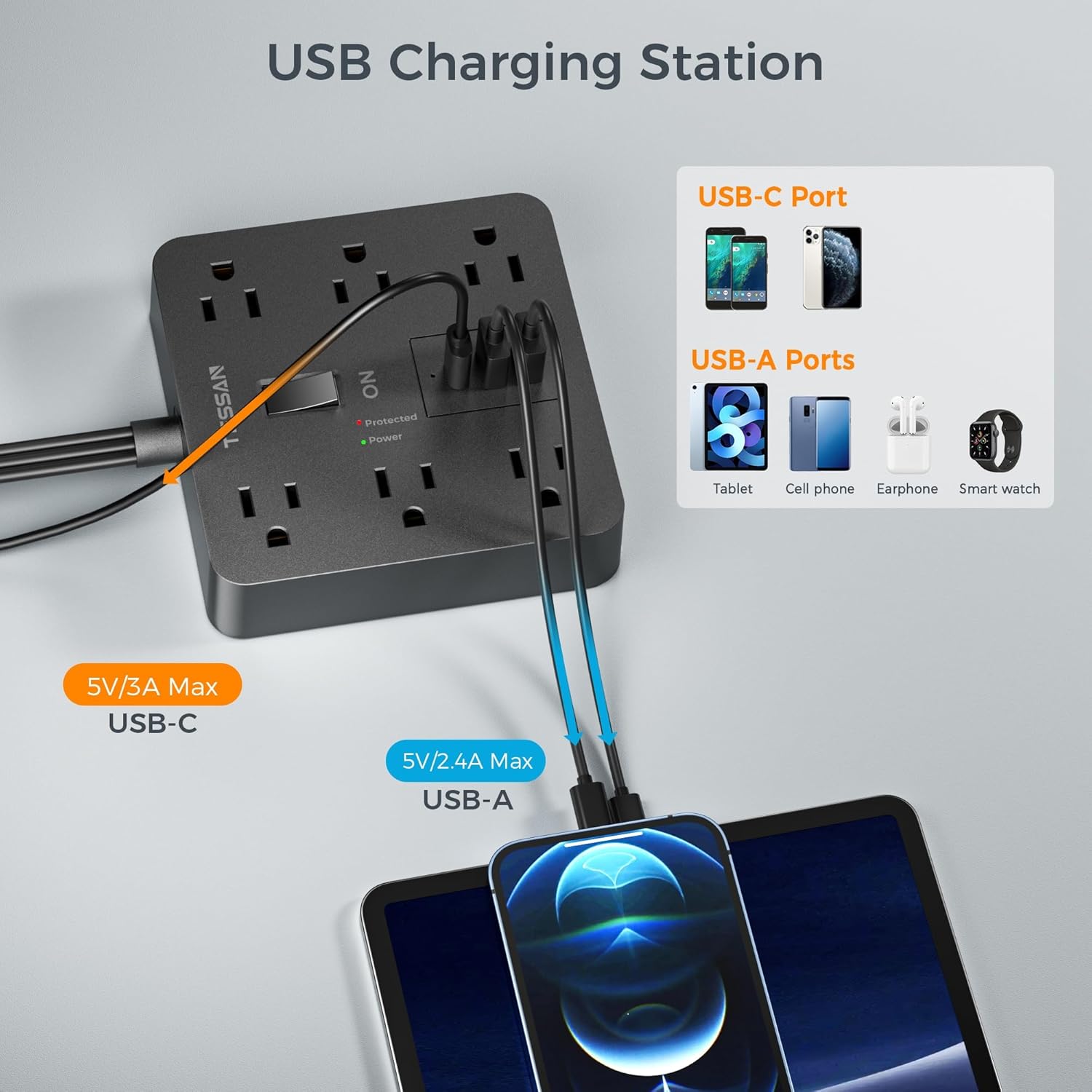

• Porte USB-A: Connect your USB-A compatible devices (e.g., smartphones, tablets, earphones) to the two USB-A ports for charging. Each port provides up to 2.4A.
• Porta USB-C: Use the USB-C port for faster charging of compatible devices. This port provides up to 3A.
• Controllo di potenza: Use the master ON/OFF switch to easily turn all connected devices on or off simultaneously.

Manutenzione

Per garantire la longevità e il funzionamento sicuro della tua ciabatta:

• Pulizia: Disconnect the power strip from the wall outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or immerse the unit in water.
• Magazzinaggio: Quando non viene utilizzata, conservare la ciabatta in un luogo fresco e asciutto, lontano dalla luce solare diretta e dall'umidità.
• Ispezione: Periodically inspect the cord and plug for any signs of damage. If damaged, discontinue use and replace the unit.
• Evitare il sovraccarico: Do not exceed the maximum power rating of 1625W. Overloading can cause the circuit breaker to trip and may damage the unit or connected devices.

Risoluzione dei problemi

If you encounter issues with your TESSAN Surge Protector Power Strip, refer to the following:

• Nessuna alimentazione ai dispositivi:
  • Assicurarsi che l'interruttore ON/OFF della ciabatta sia in posizione 'ON'.
  • Controllare che la ciabatta sia collegata saldamente a una presa a muro funzionante.
  • Verify that the 'Power' indicator light is illuminated. If not, try a different wall outlet.
• 'Protected' Light is Off:
  • If the 'Protected' indicator light is off, the surge protection feature may have been compromised due to a significant power surge. The power strip will continue to function as a power distributor, but without surge protection. It is recommended to replace the unit for continued protection.
• L'interruttore automatico è scattato:
  • If the power strip suddenly loses power, the integrated circuit breaker may have tripped due to an overload. Disconnect some devices, then press the reset button (usually located near the ON/OFF switch) to restore power.
• Porte USB non in carica:
  • Assicurarsi che la ciabatta sia accesa.
  • Controllare che il cavo USB non sia danneggiato e assicurarsi che sia collegato correttamente sia al dispositivo sia alla ciabatta.
  • Prova una porta USB o un cavo diverso.

Specifiche

Garanzia e supporto

TESSAN products are designed for reliability and performance. For warranty information or technical support, please refer to the product packaging or contact TESSAN customer service directly. Keep your purchase receipt for warranty claims.
