tectake Steel Office Cabinet (Model Blain) - User Manual

1. Introduzione

Thank you for choosing the tectake Steel Office Cabinet, Model Blain. This manual provides essential information for the safe and efficient use of your new cabinet. Please read these instructions carefully before assembly and operation, and retain them for future reference. This cabinet is designed for secure storage of documents and other items in various environments such as offices, workshops, and homes.

Image 1: The tectake Steel Office Cabinet, Model Blain, with its doors open, revealing organized files, binders, and a small safe on the top shelf. The cabinet is black and features multiple adjustable shelves.

2. Informazioni sulla sicurezza

Per garantire un funzionamento sicuro ed evitare lesioni o danni, osservare le seguenti linee guida di sicurezza:

• Always keep the cabinet doors closed when not in use to prevent accidental opening or obstruction.
• Exercise caution when opening the doors, as they can swing open to a wide angle (up to 130 degrees). Ensure the area around the cabinet is clear to avoid injury to persons or damage to objects.
• Utilize the cylinder lock to secure the cabinet when it is not in use or when storing valuable items, preventing unauthorized access.
• Do not overload the shelves. Each shelf has a maximum weight capacity of 40 kg. Distribute weight evenly.
• Assicurarsi che il mobile sia posizionato su una superficie stabile e piana per evitare che si ribalti.

3. Prodotto finitoview e Caratteristiche

The tectake Steel Office Cabinet is a robust and versatile storage solution. Key features include:

• Archiviazione sicura: Equipped with a cylinder lock and two keys for safeguarding contents.
• Ripiani regolabili: Five compartments with three individually height-adjustable shelves to customize storage space.
• Costruzione durevole: Made from high-quality powder-coated steel for longevity and resistance to rust and wear.
• Wide Opening Doors: Two large doors open up to 130 degrees for easy access.
• Elevata capacità di carico: Each shelf supports up to 40 kg.
• Funzionamento silenzioso: Doors feature rubber buffers for silent closing.

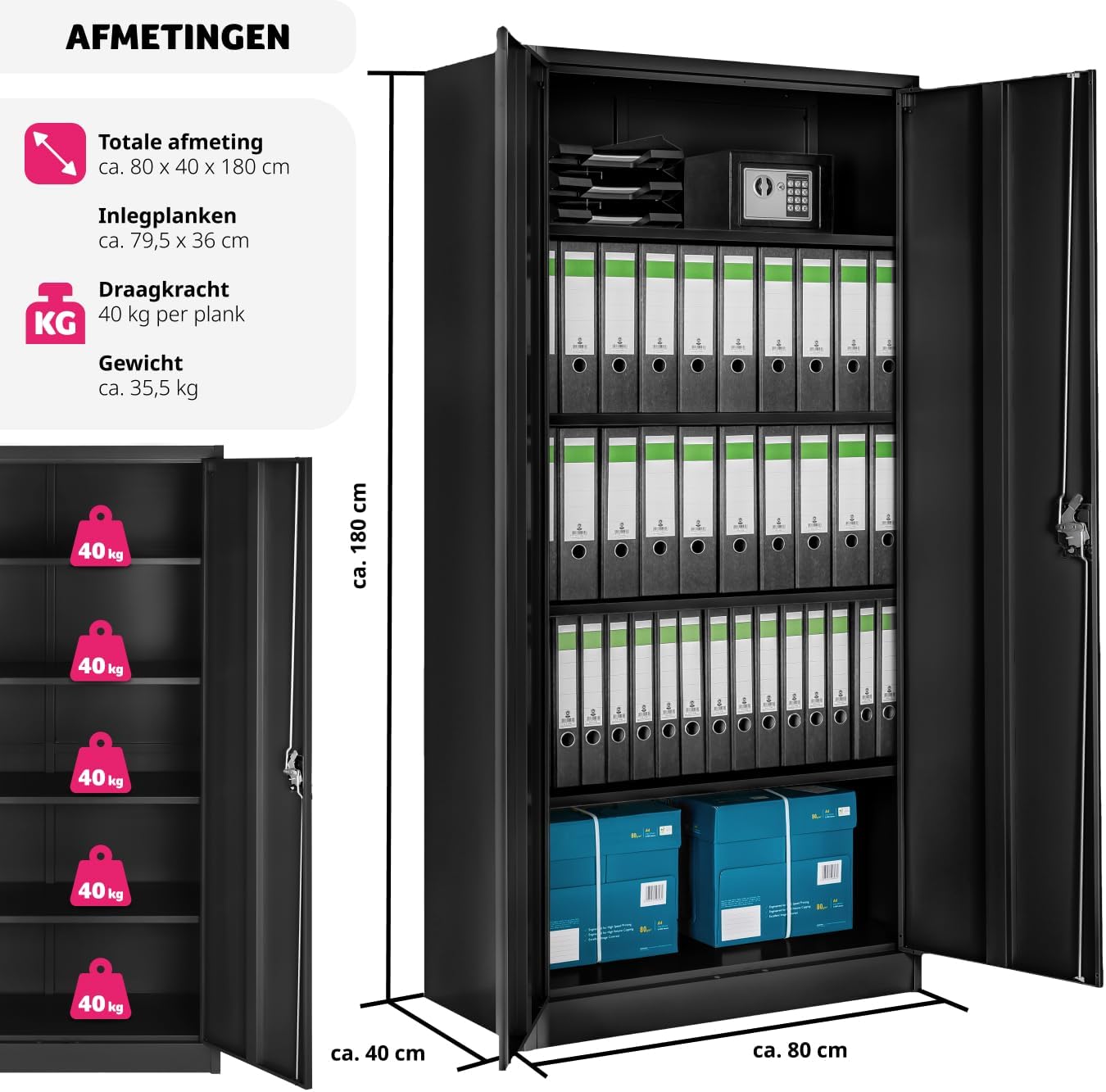

Image 2: A diagram illustrating the key dimensions and weight capacities of the cabinet. It shows an overall height of approximately 180 cm, width of 80 cm, and depth of 40 cm. Each shelf can hold up to 40 kg.

Immagine 3: Dettagliata views of the cabinet's features, including the secure cylinder lock with reserve keys, the individual height-adjustable shelf brackets, a stable shelf demonstrating its 40 kg load capacity, and the door buffers designed for silent closing.

4. Installazione e assemblaggio

The tectake Steel Office Cabinet requires assembly. While generally manageable, it is recommended to follow the detailed assembly instructions provided in the packaging. Ensure all components are present before beginning assembly.

1. Disimballare i componenti: Carefully remove all parts from the packaging. Check against the parts list in the separate assembly guide to ensure nothing is missing or damaged.
2. Preparare l'area di lavoro: Montare il mobile su una superficie pulita, piana e morbida per evitare graffi.
3. Seguire la guida di montaggio: Refer to the step-by-step illustrations and instructions in the dedicated assembly manual for precise construction.
4. Elementi di fissaggio sicuri: Ensure all screws, bolts, and other fasteners are tightened securely for stability. Do not overtighten.
5. Posizionamento: Once assembled, place the cabinet on a level floor. Adjust feet if necessary to ensure stability.

Note: Assembly may be easier with two people.

5. Istruzioni per l'uso

5.1. Regolazione dei ripiani

The cabinet features three adjustable shelves. To change their height:

1. Svuota lo scaffale che vuoi regolare.
2. Carefully lift the shelf and remove the four shelf support clips from their current positions.
3. Insert the shelf support clips into the desired slots on the cabinet's side panels, ensuring they are at the same height on both sides.
4. Place the shelf back onto the support clips, ensuring it is securely seated.

5.2. Blocco e sblocco

The cabinet is equipped with a cylinder lock for security.

• Chiudere a chiave: Close both doors firmly. Insert one of the provided keys into the lock, turn it clockwise until it stops, and then remove the key.
• Per sbloccare: Insert the key into the lock, turn it counter-clockwise until it stops, and then open the doors.
• Always keep a spare key in a safe place.

6. Manutenzione

Regular maintenance will help prolong the life and appearance of your tectake cabinet.

• Pulizia: Pulisci le superfici del mobile con un panno morbido eamp cloth. For stubborn dirt, a mild detergent can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners or solvents, as these can damage the powder coating.
• Ispezione: Controllare periodicamente tutti i dispositivi di fissaggio e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Cura della serratura: Se il meccanismo di bloccaggio diventa rigido, applicare una piccola quantità di lubrificante alla grafite sulla serratura.

7. Risoluzione Dei Problemi

Se riscontri problemi con il tuo mobile, prendi in considerazione le seguenti soluzioni comuni:

• Le porte non si chiudono correttamente:
  • Check if the cabinet is on a level surface. Adjust if needed.
  • Assicurarsi che nessun oggetto all'interno dell'armadietto ostruisca le porte.
  • Verificare che tutte le viti di montaggio siano serrate.
• Gli scaffali sono traballanti:
  • Ensure the shelf support clips are fully inserted into the correct slots and are level.
  • Confirm that the weight on the shelf does not exceed 40 kg and is evenly distributed.
• Lock is stiff:
  • Applicare del lubrificante alla grafite sulla serratura.
  • Assicurarsi che la chiave sia completamente inserita e girata correttamente.

If problems persist, please contact tectake customer support.

8. Specifiche

9. Garanzia e supporto

Per informazioni sulla garanzia e sull'assistenza clienti, consulta la documentazione allegata al tuo acquisto o visita il sito ufficiale tectake. websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

If you have questions regarding assembly, parts, or operation that are not covered in this manual, please contact tectake customer service for assistance.
