Manuale utente della mini stufa a gas a cassetta BRUNO BOE094-IV

1. Introduzione

This manual provides essential instructions for the safe and efficient use of your BRUNO BOE094-IV Mini Cassette Gas Stove. Designed for compact spaces and small meals, this stove is suitable for everyday use, outdoor activities, and emergency preparedness. Please read this manual thoroughly before operation and retain it for future reference.

The BRUNO BOE094-IV is a mini cassette stove, ideal for dining tables with limited space. It is perfect for reheating soups, boiling water, or preparing small meals. Developed in collaboration with a veteran manufacturer of gas appliances, it balances functionality with a stylish design. It is recommended for daily use, as well as for outdoor settings like gardens or verandas.

2. Precauzioni di sicurezza

Always prioritize safety when operating any gas appliance. Failure to follow these precautions may result in injury or damage.

• Use only butane gas canisters designed for cassette stoves.
• Operate in a well-ventilated area to prevent carbon monoxide buildup.
• Tenere i materiali infiammabili lontano dalla stufa durante il funzionamento.
• Ensure the stove is on a stable, level, and heat-resistant surface.
• Do not use pots or pans that are significantly larger than the stove's pot support, as this can impede ventilation and cause overheating.
• Non lasciare mai la stufa incustodita mentre è in funzione.
• Tenere fuori dalla portata dei bambini e degli animali domestici.
• Non modificare l'apparecchio.

3. Componenti del prodotto

Familiarize yourself with the main parts of your BRUNO BOE094-IV Cassette Gas Stove.

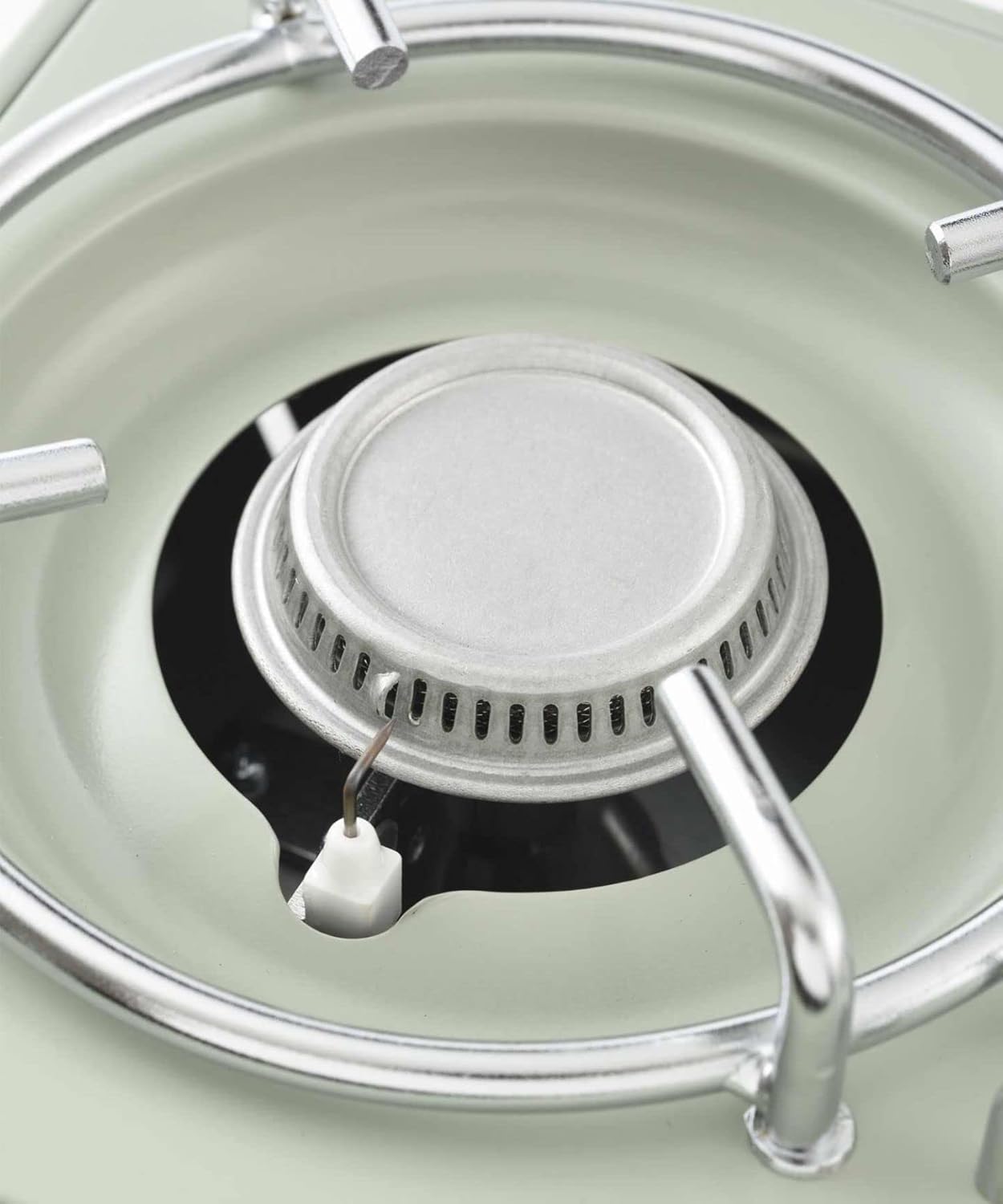

• Bruciatore: The central component where the flame is produced.
• Supporto per pentola: The metal grate above the burner designed to hold cookware.
• Gas Canister Compartment: Located on the side, for inserting the butane gas canister.
• Manopola di controllo: Used to turn the stove ON/OFF and adjust the flame intensity.
• Accenditore: The mechanism that creates a spark to ignite the gas.
• Pressure Sensing Safety Device: An internal mechanism that automatically shuts off gas flow if internal pressure becomes too high.

4. Impostazione

Follow these steps to prepare your stove for use.

4.1 Disimballaggio

• Rimuovere tutti i materiali di imballaggio.
• Inspect the stove for any damage. Do not use if damaged.

4.2 Inserting the Gas Canister

1. Assicurarsi che la manopola di controllo sia in posizione "OFF".
2. Open the gas canister compartment cover on the side of the stove.
3. Align the nozzle of the butane gas canister with the connector inside the compartment. The canister should be inserted with the notch facing upwards, matching the stove's connector.
4. Push the canister firmly until it clicks into place. The magnetic method ensures a secure connection.
5. Close the gas canister compartment cover.

4.3 Posizionamento

• Place the stove on a flat, stable, and non-combustible surface.
• Ensure there is adequate clearance around the stove for ventilation and to prevent heat damage to surrounding objects.

5. Istruzioni per l'uso

Follow these steps for safe operation of your BRUNO BOE094-IV stove.

5.1 Accensione

1. Ensure a gas canister is correctly installed.
2. Place your cookware on the pot support.
3. Turn the control knob counter-clockwise towards the "ON" position until you hear a click. This activates the piezoelectric ignition system and releases gas.
4. If the burner does not ignite immediately, return the knob to "OFF" and repeat the ignition process. Do not hold the knob in the "ON" position for extended periods without ignition.

5.2 Adjusting Flame

Once ignited, continue turning the control knob counter-clockwise to increase the flame intensity. Turn it clockwise to decrease the flame. Adjust the flame to suit your cooking needs.

5.3 Spegnimento

To turn off the stove, rotate the control knob clockwise until it reaches the "OFF" position. Ensure the flame is completely extinguished.

6. Manutenzione

Proper maintenance ensures the longevity and safe operation of your stove.

6.1 Pulizia

• Always ensure the stove is cool and the gas canister is removed before cleaning.
• Pulire le superfici esterne con un panno morbido, damp panno e detergente delicato.
• Non utilizzare detergenti abrasivi, pagliette o prodotti chimici aggressivi, poiché potrebbero danneggiare la finitura.
• Clean the pot support and burner head regularly to remove food residue. These parts may be removable for easier cleaning.
• Assicurarsi che tutte le parti siano completamente asciutte prima di riassemblarle o riporle.

6.2 Conservazione

• Remove the gas canister before storing the stove. Store gas canisters separately in a cool, dry, well-ventilated area, away from direct sunlight and heat sources.
• Store the stove in a clean, dry place, away from dust and moisture.
• Avoid storing heavy objects on top of the stove.

7. Risoluzione Dei Problemi

If you encounter issues with your stove, refer to the following common problems and solutions.

• La stufa non si accende:
  • Check if the gas canister is correctly inserted and securely connected.
  • Ensure the control knob is turned fully to the "ON" position during ignition.
  • Verify that the gas canister is not empty.
  • Check if the igniter pin is clean and positioned correctly near the burner.
• Fiamma debole o incostante:
  • Ensure the gas canister has sufficient fuel.
  • Check for any blockages in the burner holes. Clean if necessary.
  • Ensure the stove is not exposed to strong drafts.
• Gas leak smell:
  • Immediately turn off the stove and remove the gas canister.
  • Move the stove to a well-ventilated area.
  • Do not operate the stove if you detect a gas leak. Contact customer support.
• Stove shuts off unexpectedly:
  • The Pressure Sensing Safety Device may have activated due to high internal pressure. Allow the stove to cool down.
  • Ensure the correct type of gas canister is used.
  • Check for proper ventilation around the stove.

Se i problemi persistono dopo aver provato queste soluzioni, contattare l'assistenza clienti.

8. Specifiche

Detailed technical specifications for the BRUNO BOE094-IV Mini Cassette Gas Stove.

9. Informazioni sulla garanzia

Specific warranty terms and conditions for the BRUNO BOE094-IV Mini Cassette Gas Stove are typically provided at the time of purchase or included with the product packaging. Please refer to your purchase documentation or contact your retailer for detailed warranty information.

10. Assistenza clienti

For further assistance, technical support, or inquiries regarding your BRUNO BOE094-IV Mini Cassette Gas Stove, please contact the retailer from whom you purchased the product. You may also visit the official BRUNO websito per informazioni generali sui prodotti.
