Prodotto finitoview
The ARREGUI Print 141520 is a robust wall-mounted safe designed for secure storage in homes and businesses. It features advanced electronic locking mechanisms, including both fingerprint recognition and a numeric keypad, offering flexible access options. Constructed from durable steel, this safe is built to provide reliable protection for your valuables.
Its unique design allows for an adjustable depth, making it adaptable to various wall thicknesses. The safe also includes an emergency opening system for situations such as forgotten codes or depleted batteries, ensuring access to your contents at all times.
This image displays the front of the ARREGUI Print 141520 wall safe, highlighting its integrated electronic control panel. The panel features a fingerprint scanner, a numeric keypad with buttons labeled 1-4, and a central rotary knob for opening the safe. The safe is a dark grey color, designed for flush wall installation.
Configurazione e installazione
Proper installation of the ARREGUI Print 141520 wall safe requires construction work to embed it securely into a wall. Ensure the chosen location is suitable and provides adequate support for the safe's weight and dimensions.
Contenuto della confezione:
- ARREGUI Print 141520 Wall Safe
- Manuale d'uso
- 1 Emergency Key
- 4 batterie alcaline AA da 1.5 V
- External Micro USB Power Supply
- Viti di montaggio
This image illustrates the precise dimensions of the ARREGUI Print 141520 wall safe, including its height, width, and adjustable depth. Below the safe, it displays the components included in the package: the user manual, an external micro USB charger, an internal mat, and two emergency keys.
Installazione della batteria:
The safe is powered by 4 x AA 1.5V alkaline batteries. These are included in the package. Locate the battery compartment, typically on the inside of the safe door, and insert the batteries, ensuring correct polarity. The red LED light next to the keyboard will warn you when the batteries are low.
Base regolabile:
The safe features an adjustable base, allowing it to adapt to wall thicknesses between 150 mm and 250 mm. There are 5 possible floor positions (150/175/200/225/250 mm). Adjust the base as needed during installation to ensure a flush fit with your wall.

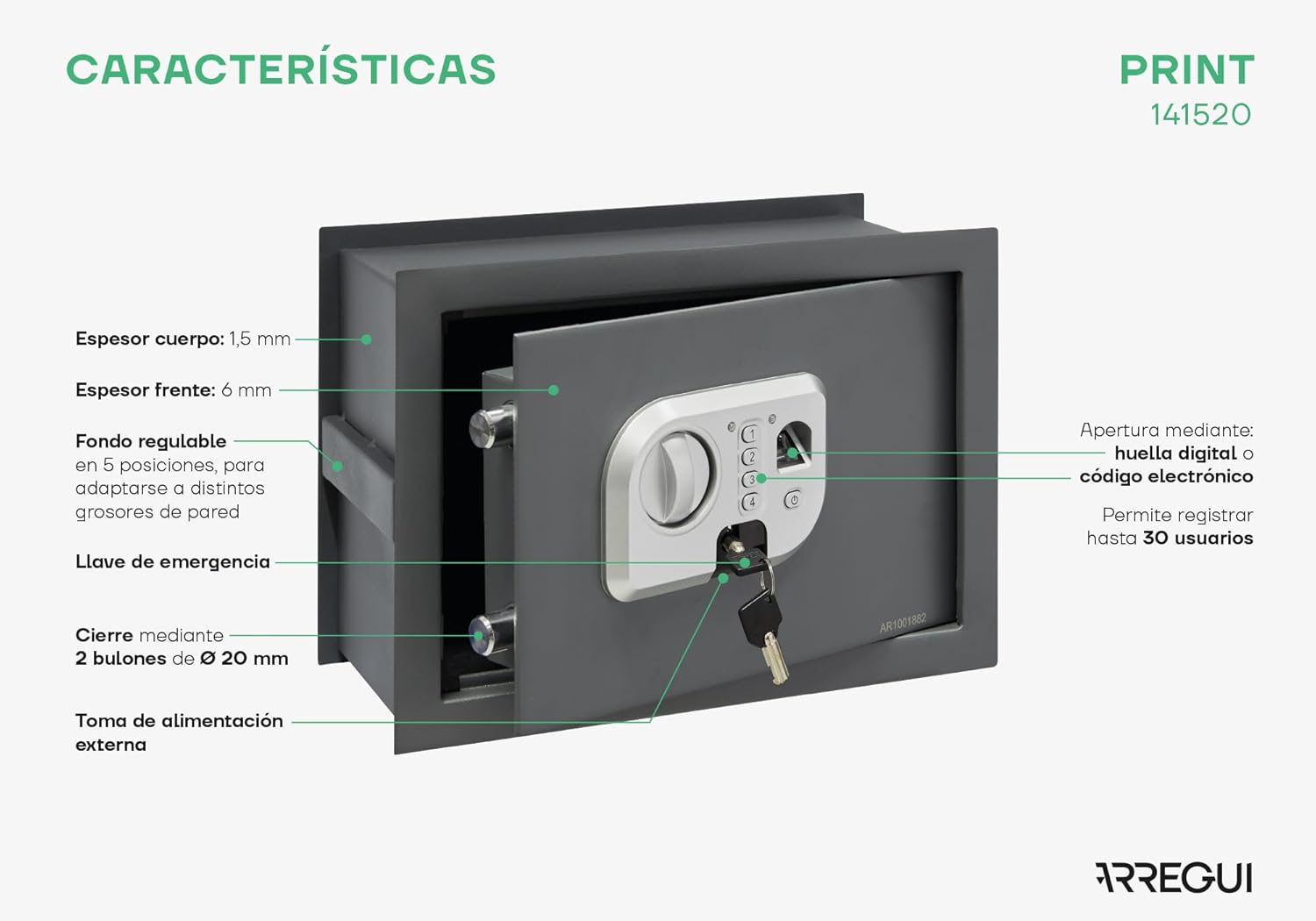

Questa immagine fornisce una descrizione dettagliata view of the ARREGUI Print 141520 safe's physical characteristics. It labels the 1.5 mm body thickness, 6 mm front thickness, adjustable base with 5 positions for wall depth, 20 mm diameter steel locking bolts, and the external power input. It also indicates the electronic opening system with fingerprint or code and the capacity to register up to 30 users.
Istruzioni per l'uso
The ARREGUI Print 141520 safe offers two primary methods for opening: fingerprint recognition and a numeric code.
Opening with Fingerprint Reader:
- Place your registered finger firmly on the fingerprint reader.
- Once the correct fingerprint is recognized, the safe will unlock.
- Turn the knob to open the safe door.
The safe can store up to 32 different fingerprints, allowing multiple authorized users.
Apertura con codice numerico:
- Enter your 3 to 8 digit opening code using the keypad.
- Once the correct code is entered, the safe will unlock.
- Turn the knob to open the safe door.
There are 100 million possible code combinations for enhanced security. The safe will temporarily lock after 3 incorrect code entries.
This diagram details the various ways to open the ARREGUI Print 141520 safe. It shows the habitual opening methods via fingerprint reader and a 4 to 8 digit code. It also illustrates emergency opening options using the included key and an external micro USB power supply. The diagram also points out the location for key duplication and technical assistance information.
Apertura di emergenza:
In case of forgotten codes, worn-out batteries, or keyboard malfunctions, the safe can be opened using the emergency key. Insert the emergency key into the designated lock and turn it to open the safe.
An external power supply with a microUSB connection is also provided. This can be used to temporarily power the keyboard, allowing you to open the safe and change the internal batteries if they are depleted.
This image shows the ARREGUI Print 141520 wall safe with its door open, revealing the spacious interior. Various items such as a smartphone, a camera, and a small box are placed inside to illustrate the storage capacity. The safe's internal tray is visible, and the robust locking bolts are extended from the door.
Manutenzione
Regular maintenance ensures the longevity and optimal performance of your ARREGUI Print 141520 wall safe.
Sostituzione della batteria:
When the red LED light next to the keyboard illuminates, it indicates that the batteries are low and need replacement. Use 4 x AA 1.5V alkaline batteries. Always replace all four batteries at once to ensure consistent power.
Pulizia:
Clean the exterior of the safe with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the finish or electronic components. Ensure the fingerprint reader and keypad are free from dust and debris for optimal functionality.
Controllo di sicurezza:
Periodically check the mounting screws and the integrity of the safe's installation to ensure it remains securely fixed to the wall.
Risoluzione dei problemi
If you encounter issues with your ARREGUI Print 141520 wall safe, refer to the following common troubleshooting steps:
- Safe Does Not Open with Code/Fingerprint:
- Check if the batteries are depleted. The red LED light indicates low battery. Replace all 4 AA batteries.
- Ensure you are entering the correct code. The safe temporarily locks after 3 incorrect attempts. Wait for the lockout period to expire.
- For fingerprint issues, ensure your finger is clean and dry, and placed correctly on the sensor. Try re-registering your fingerprint if issues persist.
- If the keypad is unresponsive, use the external micro USB power supply to temporarily power the system and open the safe.
- Red LED Light is On:
- This indicates low battery power. Replace the 4 x AA 1.5V alkaline batteries immediately.
- Emergency Key Not Working:
- Assicurarsi che la chiave sia completamente inserita e girata correttamente. Non forzare la chiave.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | ARREGUI |
| Numero di modello | 141520 |
| Materiale | Acciaio legato |
| Spessore frontale | 6 millimetri |
| Spessore del corpo | 1.5 millimetri |
| Bulloni di bloccaggio | 2 nickel-plated steel bolts, 20 mm diameter |
| Adjustable Base Positions | 5 positions (150/175/200/225/250 mm) |
| Capacità | 11 litri |
| Dimensioni (L x P x A) | Dimensioni: 25 x 35 x 26 cm |
| Peso | 10.08 kg |
| Fonte di alimentazione | 4 x AA 1.5V Alkaline Batteries (included) |
| Capacità dell'impronta digitale | Up to 32 different fingerprints |
| Lunghezza del codice | Da 3 a 8 cifre |
| Accesso di emergenza | Emergency key, External micro USB power supply |
Garanzia e supporto
Your ARREGUI Print 141520 wall safe comes with essential components to ensure its functionality and your peace of mind. The package includes a comprehensive user manual and an emergency key, which are vital resources for operation and troubleshooting.
For technical assistance or inquiries regarding key duplication, please refer to the contact information provided in the included user manual or visit the official ARREGUI website for support details specific to your region.
