Introduzione
This instruction manual provides essential information for the safe and correct assembly, operation, and maintenance of your DNYN Twin Size Upholstered Daybed with Trundle. Please read this manual thoroughly before beginning assembly and retain it for future reference. Ensure all components are present and undamaged before proceeding.
Installazione e assemblaggio
Assembly is required for this daybed. It is recommended that two adults perform the assembly. Please ensure you have sufficient space and all tools provided before starting.
Contenuto della confezione
- Componenti della struttura del divano letto (testiera, pediera, sponde laterali)
- Componenti del telaio del letto estraibile
- Wooden Slats for both upper bed and trundle
- Pacchetto hardware (viti, bulloni, rondelle, chiave a brugola)
- Foglio di istruzioni di montaggio
Fasi di assemblaggio (generali)
- Unpack all components and verify against the parts list in the provided assembly instructions sheet.
- Attach the side rails to the headboard and footboard of the main daybed frame using the provided hardware. Do not fully tighten bolts until all major components are connected.
- Insert the wooden slats into the designated slots or attach them to the support rails of the main daybed frame. Ensure slats are evenly spaced and securely fastened.
- Assemble the trundle bed frame following similar steps, attaching its side rails to its head and foot sections.
- Installare le doghe di legno per il letto estraibile.
- Carefully slide the assembled trundle bed into position under the main daybed frame.
- Una volta posizionati tutti i componenti, serrare completamente tutti i bulloni e le viti.
- Place the recommended mattresses (not included) onto the daybed and trundle.

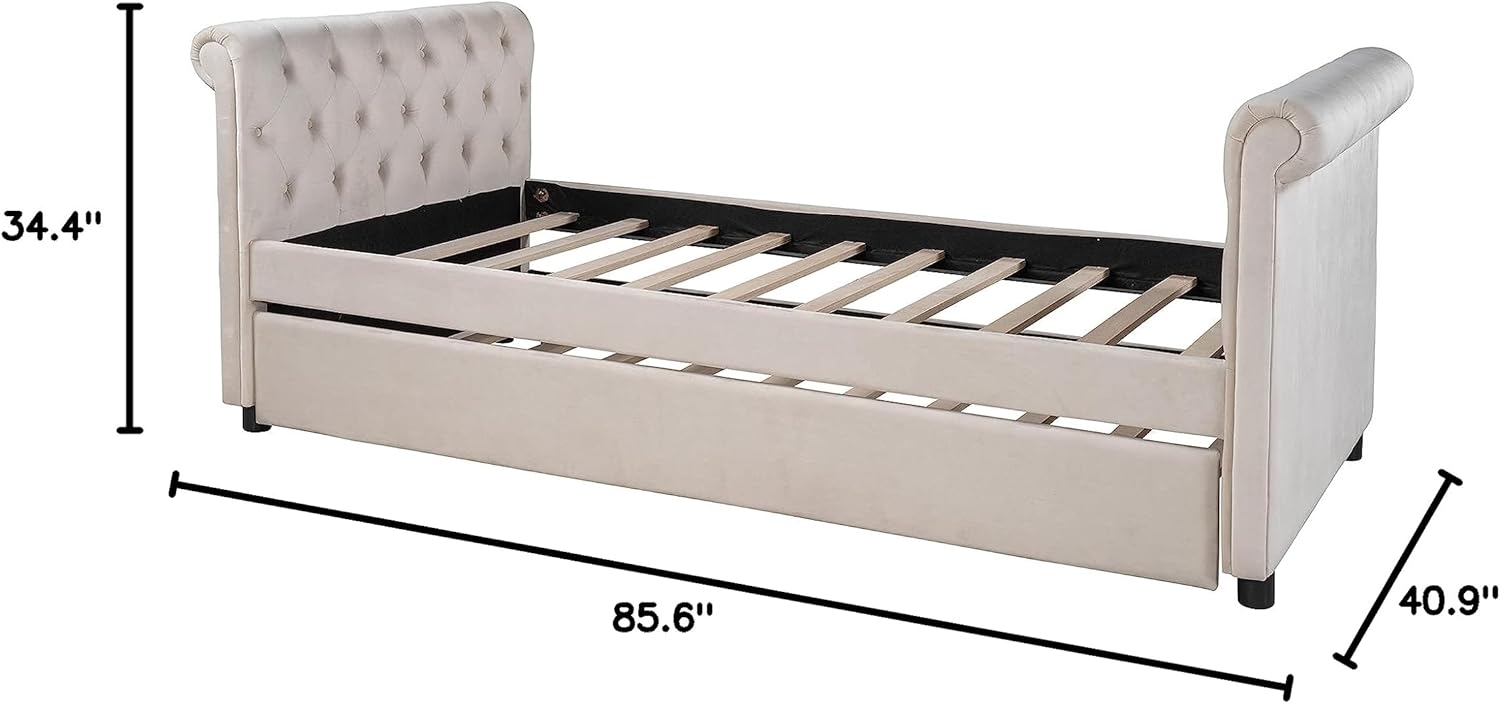

Image: Overall dimensions of the DNYN Twin Size Upholstered Daybed with Trundle. The main daybed measures approximately 85.6 inches in length, 40.9 inches in width, and 34.4 inches in height. The pull-out trundle is shown beneath the main bed.
Immagine: un primo piano view of the wooden slats that support the mattress. These slats are designed to provide ventilation and support without the need for a box spring.

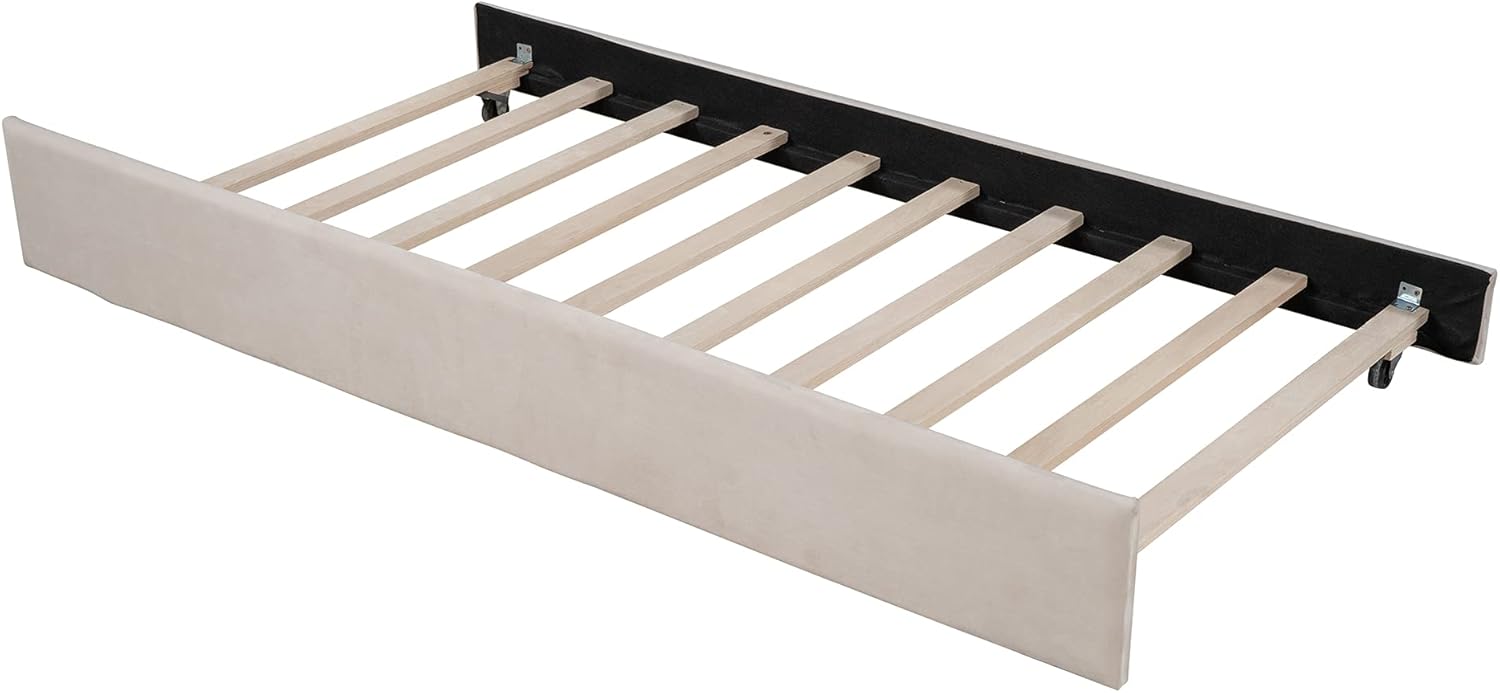

Image: The trundle bed frame shown separately, highlighting its wooden slat construction and the wheels for easy movement.
Istruzioni per l'uso
Utilizzo del letto estraibile
The DNYN Daybed features a convenient pull-out trundle bed, ideal for accommodating guests or maximizing space in smaller rooms.
- To extend the trundle, gently pull the front panel of the trundle bed outwards from under the main daybed frame. The trundle is equipped with smooth-gliding casters for easy movement.
- Position the trundle bed as desired.
- To retract the trundle, push it back under the main daybed frame until it is fully nested.
Nota: Ensure there are no obstructions when pulling out or pushing in the trundle bed to prevent damage to the frame or flooring.

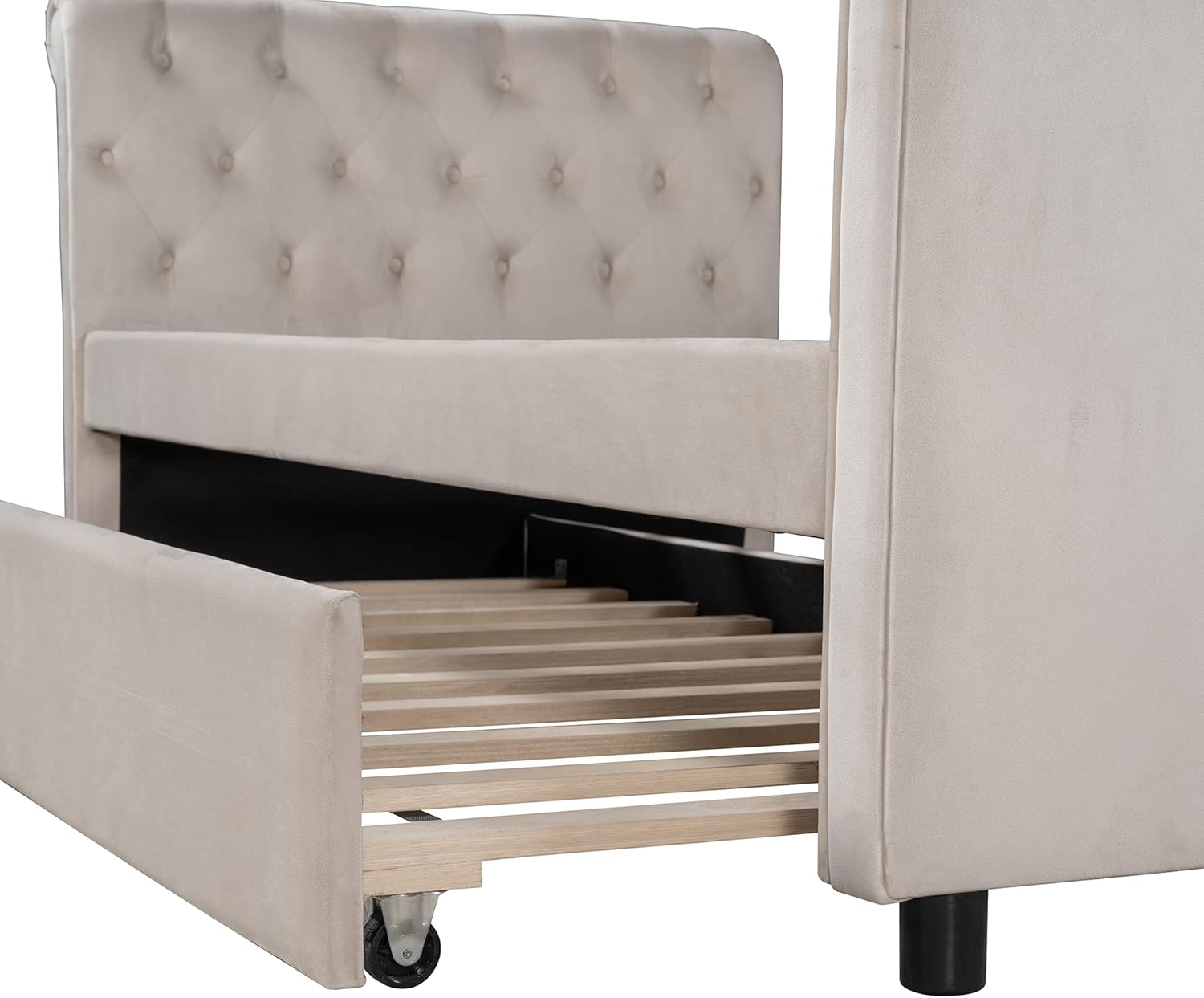

Image: The trundle bed partially pulled out from under the main daybed, demonstrating its mobility on casters.
Image: The DNYN daybed with its trundle fully extended, showing both sleeping surfaces ready for use. Mattresses are not included.
Manutenzione
Istruzioni per la pulizia
- Rivestimento in tessuto: For general cleaning, gently vacuum the upholstered surfaces using an upholstery attachment to remove dust and loose debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product's instructions, testing on an inconspicuous area first. Avoid harsh chemicals or abrasive cleaners.
- Telaio in legno: Wipe the wooden components with a soft, damp cloth. Dry immediately with a clean, dry cloth. Avoid excessive moisture.
- Doghe: Controllare periodicamente le doghe in legno per verificare la presenza di segni di usura o danni. Assicurarsi che rimangano saldamente in posizione.
Assistenza generale
- Regularly check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability.
- Avoid dragging the daybed or trundle across the floor; lift and move to prevent damage to legs, casters, or flooring.
- Do not exceed the recommended weight capacities for the upper bed and trundle.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il letto sembra traballante o instabile. | Bulloni o viti allentati. | Check and re-tighten all assembly hardware. Ensure all connections are secure. |
| Rumori stridenti. | Loose connections, friction between components, or uneven floor. | Re-tighten all hardware. Ensure the bed is on a level surface. Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if necessary, avoiding wood. |
| Il carrello non scorre agevolmente. | Obstruction, dirty casters, or uneven floor. | Check for any objects blocking the trundle's path. Clean casters of any debris. Ensure the floor surface is clean and level. |
| Parti mancanti o componenti danneggiati. | Difetto di fabbricazione o danni dovuti alla spedizione. | Do not proceed with assembly. Contact DNYN customer support immediately for assistance. |
Specifiche del prodotto
| Tipo di prodotto | Divano letto con rotelle |
| Misurare | Gemello |
| Dimensioni complessive del prodotto | 85.6 cm L x 40.9 cm P x 34.4 cm A |
| Peso complessivo del prodotto | 107 libbre |
| Capacità di peso (letto superiore) | 275 libbre |
| Weight Capacity (Trundle Bed) | 175 libbre |
| Spessore consigliato del materasso (letto superiore) | 8 pollici |
| Recommended Mattress Thickness (Trundle Bed) | 4 pollici |
| Materiale | Plywood, Fabric (Velvet), Engineered Wood |
| Box Spring richiesto | NO |
| Number of Slats (Upper Bed) | 10 |
| Number of Slats (Trundle Bed) | 10 |
| Assemblaggio richiesto | SÌ |
| Paese di origine | Vietnam |
Garanzia e supporto
For information regarding product warranty, please refer to the documentation included with your purchase or contact DNYN customer support directly. If you encounter any issues during assembly or operation, or if you have questions about your product, please reach out to the retailer or manufacturer for assistance.
Produttore: DNYN
ASIN: B0B852X3DX
Codice UPC: 615870351697
