FITNATION Treadwell Instruction Manual

1. Prodotto finitoview

The FITNATION Treadwell is a compact and lightweight exercise device designed for seated use, allowing you to incorporate movement into your daily routine from the comfort of your home or office. Its design prioritizes convenience and ease of storage.

Immagine 1.1: Dall'alto verso il basso view of the FITNATION Treadwell with its remote control.

Caratteristiche principali:

• Compact and lightweight design, ideal for any space and easy storage under a bed or sofa.
• Features a 10-degree incline.
• Capacità di peso massima di 110 libbre.
• Includes a remote control for adjusting settings.
• Offers 10 speed settings ranging from 0.5 mph to 1.8 mph.
• Timer function adjustable up to 30 minutes.

2. Informazioni sulla sicurezza

Please read all safety instructions carefully before using the Treadwell. Failure to follow these instructions may result in injury or damage to the product.

• IMPORTANTE: This unit is designed exclusively for seated exercises. Do not use while standing.
• Ensure the user's weight does not exceed the maximum capacity of 110 lbs (approximately 50 kg).
• Place the Treadwell on a stable, level surface during use.
• Keep hands, feet, and loose clothing clear of all moving parts.
• Do not allow children or pets near the device during operation.
• Scollegare l'unità dalla presa di corrente quando non è in uso o prima di pulirla.
• If you experience any pain, dizziness, or discomfort, stop exercising immediately and consult a physician.

3. Contenuto della confezione

Verificare che tutti i componenti siano presenti e integri all'apertura della confezione:

• FITNATION Treadwell Unit
• Telecomando
• Olio lubrificante
• Power Adapter (attached or separate)

4. Impostazione

The FITNATION Treadwell requires minimal assembly. Follow these steps to prepare your unit for use:

1. Unpack the Treadwell unit and all accessories from the packaging.
2. Place the unit on a flat, stable surface where you intend to use it. Ensure there is adequate space around the unit for safe operation.
3. Connect the power adapter to the Treadwell's power input port.
4. Collega l'alimentatore a una presa elettrica standard.

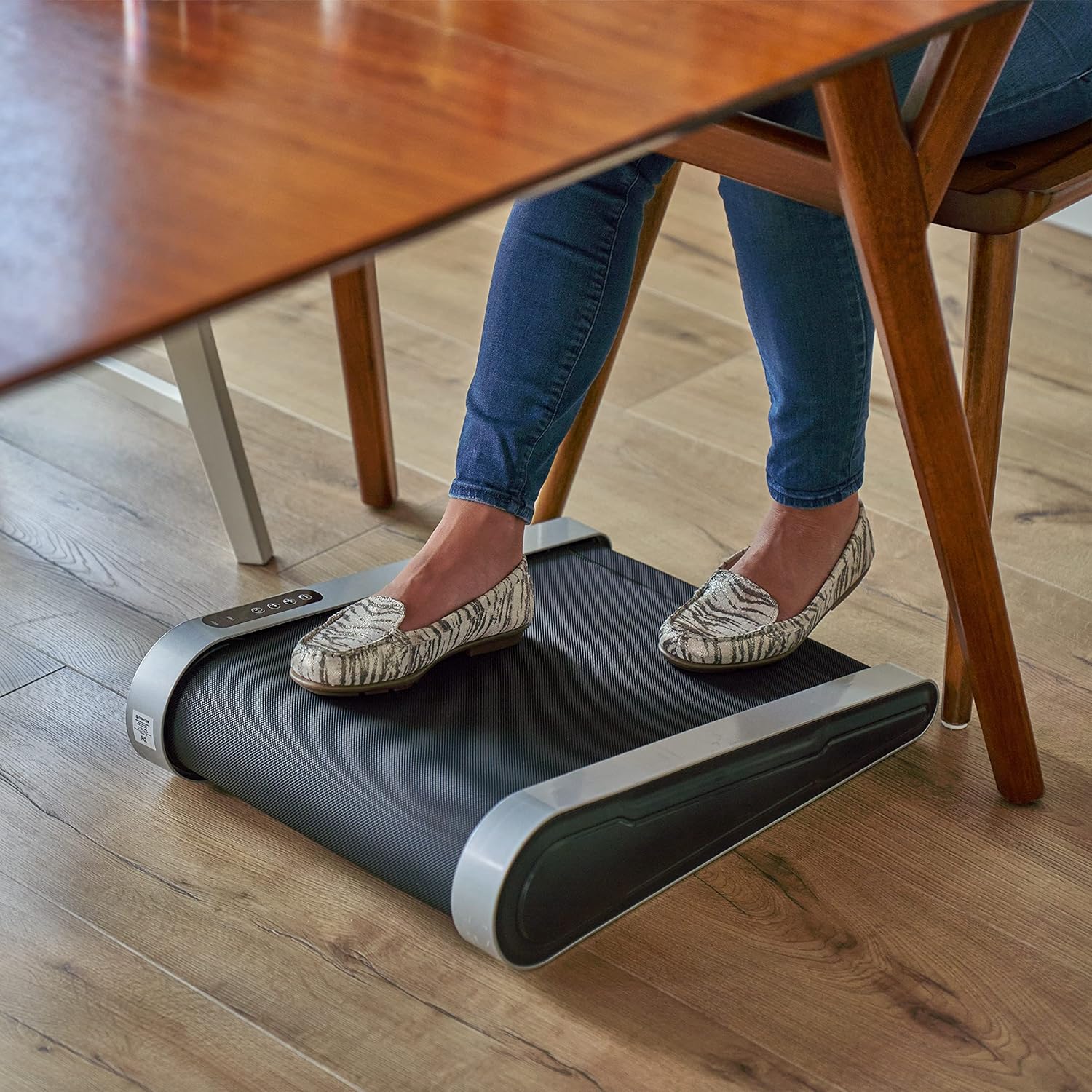

Image 4.1: The compact design allows for convenient placement, such as under a desk.

5. Istruzioni per l'uso

The Treadwell can be operated using the control panel on the unit or the included remote control.

Pannello di controllo:

The control panel features push buttons and a digital display for speed and time.

Telecomando:

Il telecomando consente un comodo accesso a tutte le funzioni.

Image 5.1: The included remote control for easy operation.

Funzionamento di base:

1. Accensione: Press the Power button (usually red or marked with a power symbol) on the unit's control panel or the remote. The display will illuminate.
2. Avvio/Arresto: Press the Start/Stop button (often green or with a play/pause symbol) to begin or pause the belt movement.
3. Regola la velocità: Use the '+' and '-' buttons on the control panel or remote to increase or decrease the speed. The Treadwell offers 10 speed settings from 0.5 mph to 1.8 mph.
4. Imposta timer: The timer can be set for up to 30 minutes. Refer to the remote control or unit's display for specific timer adjustment buttons (often labeled 'Time' or 'T').
5. Programmi: The unit may include pre-set programs. Use the 'P' or 'M' button on the remote to cycle through available programs or modes.
6. Spegni: Press the Power button again to turn off the unit. For complete power disconnection, unplug the unit from the wall outlet.

Image 5.2: The Treadwell is designed for comfortable use while seated, such as on a couch.

Immagine 5.3: Primo piano view of feet properly positioned on the Treadwell's walking belt.

6. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your Treadwell.

Pulizia:

• Scollegare sempre l'unità prima di pulirla.
• Pulisci le superfici esterne con un panno morbido, damp panno. Evitare detergenti abrasivi o solventi.
• Keep the walking belt clean and free of debris.

Lubrificazione:

The walking belt requires periodic lubrication to reduce friction and ensure smooth operation. Use the provided lubricant oil.

• Refer to the specific instructions in your quick start guide for the exact lubrication procedure, including frequency and application method.
• Typically, this involves lifting the edge of the belt and applying a small amount of lubricant to the deck underneath.

7. Risoluzione Dei Problemi

If you encounter issues with your Treadwell, try the following troubleshooting steps:

• L'unità non si accende: Ensure the power adapter is securely plugged into both the unit and a working electrical outlet. Check if the outlet is receiving power.
• La cinghia non si muove: Verify the unit is powered on and not in pause mode. Check for any obstructions under or around the belt.
• Rumori insoliti: Stop the unit immediately. Check for any foreign objects on the belt or under the motor cover. If the noise persists, contact customer support.
• Telecomando non funzionante: Check the battery in the remote control and replace if necessary. Ensure there are no obstructions between the remote and the unit's sensor.

If these steps do not resolve the issue, please contact FITNATION customer support.

8. Specifiche

9. Garanzia e supporto

Garanzia:

The FITNATION Treadwell comes with a 1-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Assistenza clienti:

For technical assistance, warranty inquiries, or to order replacement parts, please visit the official FITNATION websito web o contattare il servizio clienti. Le informazioni di contatto sono in genere reperibili sulla confezione del prodotto o sul sito ufficiale del marchio. websito.
