SINOTIMER TM612 Two Channel Programmable Electronic LCD Digital Time Switch User Manual

1. Introduzione

The SINOTIMER TM612 is a sophisticated two-channel, 7-day, 24-hour programmable electronic digital time switch designed for precise control of electrical circuits. It features two independent relay outputs, allowing for versatile application in various automation tasks. This manual provides essential information for the proper installation, operation, and maintenance of your TM612 timer switch.

Figura 1: Davanti view of the SINOTIMER TM612 Digital Time Switch, showing the LCD display and control buttons.

2 Caratteristiche

• Montaggio su guida DIN: 36mm DIN rail time switch for easy installation.
• Uscita a doppio canale: Two independent volt-free relay outputs.
• Programmable Cycles: Supports 7-day and 24-hour programming.
• Extensive Program Memory: 44 ON/OFF programs for daily and weekly cycles, plus 44 memory pulse programs.
• Adjustable Pulse Duration: Pulse duration can be adjusted from 1 second to 59 seconds.
• Alta precisione: Accurate-to-the-minute control with a low average error of 1s/24h (at 25°C).
• Multi-Language Display: Supports English, Portuguese, Italian, Spanish, German, and French.
• Schermo LCD: High contrast LCD display showing year/month/day/hour/minute.
• Indicatore di alimentazione: LED power ON/OFF indicator.
• Batteria di backup: Replaceable 3V CR2032 battery for power failure backup, providing up to 60 days of blackout memory.
• Low Consumption: Designed with low power consumption and a high-accuracy CMOS chip.
• Anti-Jamming: Strong anti-jamming capabilities.
• Certificazioni: Conforms to IEC 60367 and CE certified.

Figura 2: Visual representation highlighting key features of the TM612, including its dual-channel capability and LCD display.

3. Specifiche

Figura 3: Diagram illustrating the physical dimensions of the TM612 timer switch.

4. Contenuto della confezione

All'apertura del pacco, verificare che tutti gli articoli siano presenti e integri:

• 1 x SINOTIMER TM612 Two Channel Timer Switch
• 1 x Manuale utente (questo documento)

5. Configurazione e installazione

The TM612 is designed for 36mm DIN rail mounting. Ensure that installation is performed by a qualified electrician in accordance with local electrical codes and regulations.

5.1 Montaggio

1. Locate a suitable 36mm DIN rail within your electrical enclosure.
2. Align the timer switch with the DIN rail and press firmly until it clicks into place.
3. Ensure the device is securely fastened to prevent accidental dislodgement.

5.2 Cablaggio

Refer to the wiring diagram typically found on the device itself or in the included quick-start guide. The TM612 features two independent volt-free relay outputs. Connect the power supply (220V AC) to the designated input terminals (L and N). Connect your loads to the respective output terminals (C1, 1, 2 for Channel 1 and C2, 3, 4 for Channel 2, or similar markings depending on the specific unit). Always ensure power is disconnected before wiring.

5.3 Initial Power-Up and Battery Installation/Check

The device comes with a replaceable 3V CR2032 battery for backup. Upon initial power-up or after a prolonged power outage, the display may be blank or show incorrect time. The battery ensures that programmed settings are retained during power interruptions.

• If the display is blank, ensure the main power supply is connected and stable.
• The internal battery charges when the device is powered. Allow some time for the battery to charge if it's completely depleted.
• To replace the battery, carefully open the battery compartment (usually on the front or side) and insert a new CR2032 battery, observing polarity.

6. Istruzioni per l'uso

The TM612 is controlled via the buttons located on the front panel below the LCD display. These typically include "Menu", "Res" (Reset), directional arrows (up/down or left/right), and "OK".

6.1 Impostazione dell'ora e del giorno correnti

1. Press the "Menu" button to enter the main menu.
2. Navigate to the "Time Setting" or "Clock" option using the arrow buttons.
3. Press "OK" to select.
4. Adjust the year, month, day, hour, and minute using the arrow buttons.
5. Press "OK" after each adjustment to confirm and move to the next setting.
6. Press "Menu" again to exit the setting mode.

6.2 Programmazione dei cicli di accensione/spegnimento

The TM612 supports up to 44 ON/OFF programs. Each program can be set for specific days of the week or for daily repetition.

1. Premere il pulsante "Menu".
2. Navigate to "Program Setting" or "PROG" and press "OK".
3. The display will show "1 ON" (for the first ON program). Use arrow buttons to set the desired ON time (hour and minute).
4. Press "OK". The display will then show the day selection. Use arrow buttons to select the day(s) for this program (e.g., Mon-Sun, Mon-Fri, Sat-Sun, individual days).
5. Press "OK". The display will show "1 OFF" (for the first OFF program). Set the desired OFF time and day(s) similarly.
6. Repeat steps 3-5 for additional ON/OFF programs (2 ON, 2 OFF, etc.).
7. To exit programming, press "Menu" multiple times until you return to the main display.

6.3 Pulse Program (if applicable)

If your model supports pulse programming (44 memory pulse programs), you can set short duration outputs.

1. Enter "Program Setting" as described above.
2. Navigate to the "Pulse Program" option.
3. Set the start time and duration (1s to 59s) for the pulse.
4. Select the day(s) for the pulse.
5. Confirm and exit.

6.4 Override manuale

The TM612 typically includes a manual override function, allowing you to temporarily switch the output ON or OFF regardless of the programmed schedule. Look for a button labeled "Manual", "Mode", or similar. Pressing this button usually cycles through AUTO, ON, and OFF modes.

• AUTO: The timer operates according to the programmed schedule.
• SOPRA: The output is continuously ON.
• OFF: The output is continuously OFF.

Figura 4: The TM612 timer switch, emphasizing its programmable nature and dual-channel capability.

7. Manutenzione

The SINOTIMER TM612 is designed for long-term, reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance.

• Pulizia: Mantenere il dispositivo pulito e privo di polvere. Utilizzare un panno morbido e asciutto per la pulizia. Non utilizzare detergenti abrasivi o solventi.
• Connessioni: Controllare periodicamente tutti i collegamenti elettrici per accertarsi che siano saldi e privi di corrosione.
• Sostituzione della batteria: The internal CR2032 battery has a lifespan and will eventually need replacement. If the display becomes dim or settings are lost frequently during power outages, it may be time to replace the battery. Refer to Section 5.3 for battery replacement instructions.
• Ambiente: Ensure the operating environment remains within the specified temperature range (-20°C to +50°C) and is free from excessive humidity or corrosive gases.

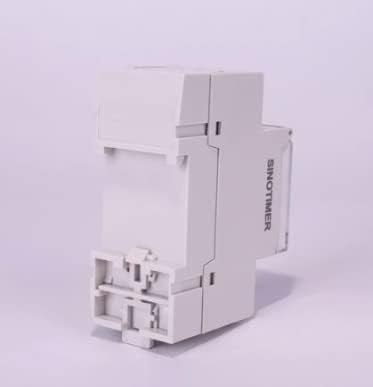

Figura 5: Lato view of the SINOTIMER TM612, showing its compact design suitable for DIN rail mounting.

8. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your TM612 timer switch.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact SINOTIMER customer support.

9. Garanzia e supporto

SINOTIMER products are manufactured to high quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official SINOTIMER websito.

For technical support, troubleshooting assistance, or spare parts, please contact SINOTIMER customer service through their official channels. When contacting support, please have your product model (TM612) and purchase details ready.

Ufficiale Websito: www.sinotimer.com (Nota: questo è un segnaposto URL. Please refer to actual product documentation for correct contact information.)
