Manuale utente del terminale portatile robusto Unitech HT330

Prodotto finitoview

The Unitech HT330 is a high-performance 4-inch rugged handheld terminal designed for demanding environments such as retail and warehousing. It features Android 12 with GMS certification, a powerful 2D scan engine, and robust connectivity options. Its durable design ensures reliable operation for extended periods.

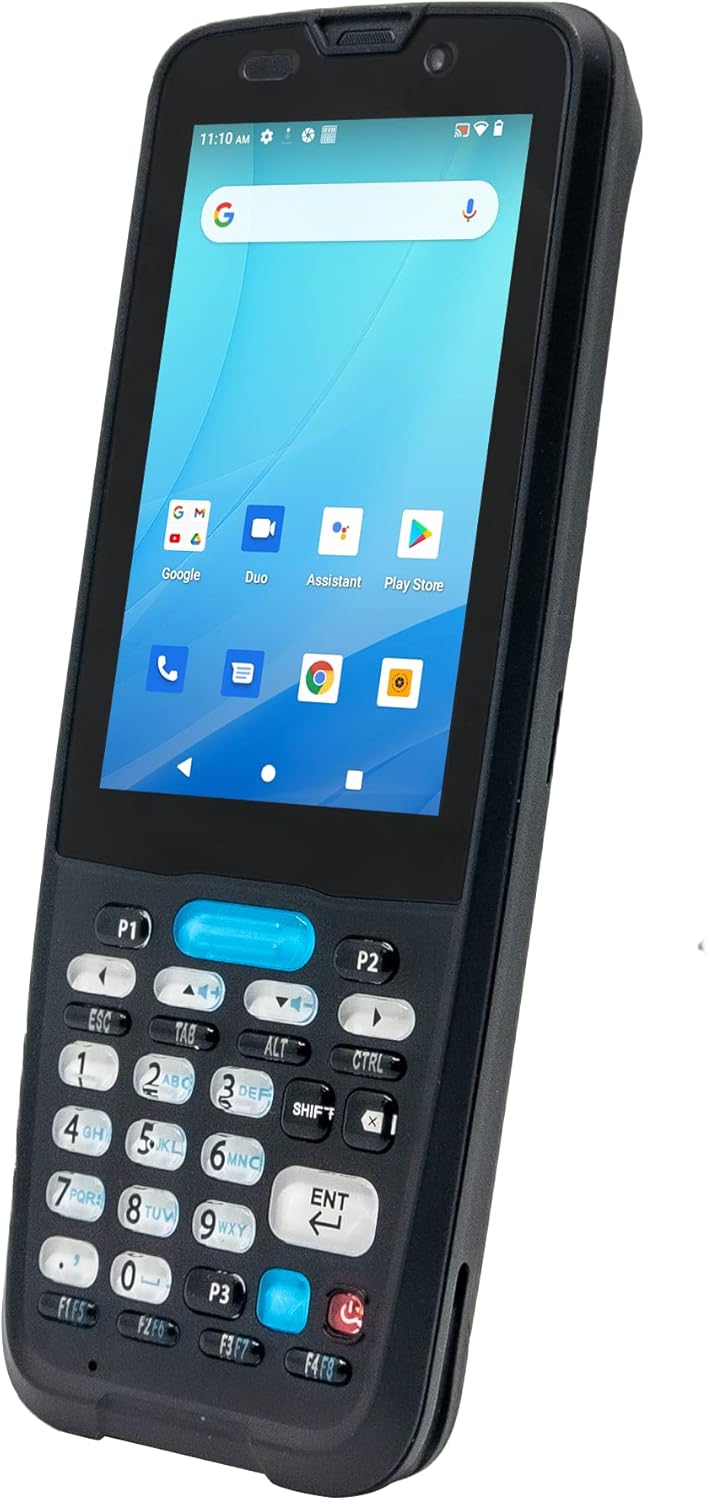

Davanti view of the Unitech HT330 Rugged Handheld Terminal, showcasing its 4-inch display and physical keypad.

Caratteristiche principali:

• Android 12 OS with GMS certified for access to Google services.
• Durable 32-key physical keypad with backlight, rated for 2.5 million lifetime clicks.
• Long-lasting 5200mAh removable battery providing up to 20 hours of operation.
• Integrated 2D scan engine for reliable barcode scanning.
• IP67 protection against water and dust, and 1.5m drop-resistant housing (1.8m with bumper).
• Support for Optical Character Recognition (OCR) technology.
• Rich wireless connectivity including Bluetooth 5.0 and 2.4G+5GHz Wi-Fi.

Cosa c'è nella scatola

Upon unboxing your Unitech HT330, please verify that all the following components are included:

• Unitech HT330 Handheld Terminal (with Camera, GPS, HF RFID, 2D scan engine)
• Battery Pack (5200mAh Lithium-ion)
• Cinturino da polso
• Cavo USB

Guida all'installazione

1. Installazione e ricarica della batteria

The HT330 comes with a removable 5200mAh Lithium-ion battery. Ensure the device is powered off before installing or removing the battery.

1. Individuare il vano batteria sul retro del dispositivo.
2. Aprire il coperchio della batteria.
3. Insert the battery, aligning the contacts correctly.
4. Chiudere saldamente il coperchio della batteria.
5. Connect the provided USB cable to the HT330's USB port and the other end to a power adapter or computer.
6. Allow the device to charge fully before first use. The charging indicator will show the battery status.

Posteriore view of the Unitech HT330, showing the battery compartment and camera.

2. Fissaggio del cinturino da polso

The included hand strap provides a secure grip and reduces the risk of accidental drops.

1. Thread the hand strap through the designated attachment points on the device.
2. Adjust the strap for a comfortable and secure fit.

3. Initial Power On and Android Setup

Press and hold the Power button until the Unitech logo appears. Follow the on-screen prompts to complete the initial Android 12 setup, including Wi-Fi connection and Google account sign-in (GMS certified).

Istruzioni per l'uso

1. Navigazione del dispositivo

The HT330 combines a 4-inch touchscreen with a 32-key physical keypad for versatile input.

• Schermo tattile: Use touch gestures (tap, swipe, pinch) to navigate the Android interface. The display is sunlight readable (450 nits).
• Tastiera fisica: Utilize the numeric and function keys for data entry and quick actions. The keypad is designed for durability with 2.5 million lifetime clicks.

Avvicinamento view of the Unitech HT330's physical keypad.

2. Scansione del codice a barre

The integrated 2D scan engine provides reliable performance for 1D and 2D barcodes.

1. Open the scanning application on your device.
2. Point the scanner at the barcode, ensuring the red aiming line covers the entire code.
3. Press the scan button (typically located on the side or a dedicated key on the keypad) to activate the scanner.
4. A successful scan will usually be indicated by an audible beep and/or a visual confirmation on the screen.

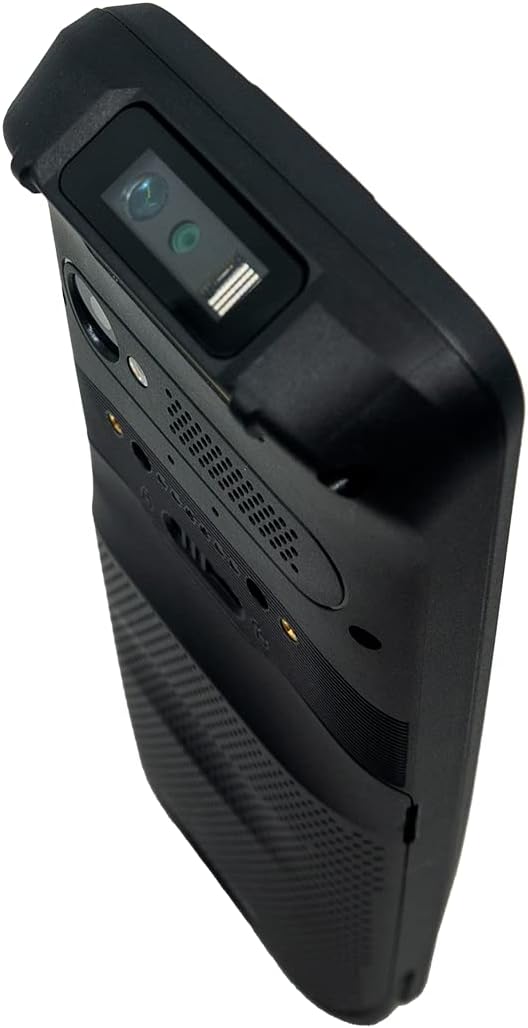

Superiore view of the Unitech HT330, highlighting the integrated 2D scan engine.

3. Optical Character Recognition (OCR)

The HT330 supports OCR technology through Unitech USS software, allowing for digital conversion of numbers or characters from various surfaces.

1. Launch the Unitech USS application.
2. Select the OCR function.
3. Position the device's camera over the text you wish to recognize.
4. Capture the image, and the software will convert the characters into digital format.

4. Connettività wireless

• Wifi: Connect to 2.4G and 5GHz Wi-Fi networks via Android settings for high-speed data transfer.
• Bluetooth: Pair with Bluetooth 5.0 compatible devices (e.g., printers, headsets) through Android's Bluetooth settings.
• Posizione GPS: The integrated GPS function allows for precise location tracking, useful for logistics and field services.

Manutenzione

1. Pulizia del dispositivo

Thanks to its IP67 rating, the HT330 is protected against dust and temporary immersion in water. To clean the device:

• Spegnere il dispositivo prima della pulizia.
• Utilizzare un morbido, damp cloth with mild soap or a screen cleaner for the display.
• Avoid abrasive cleaners, solvents, or spraying liquids directly onto the device.
• Assicurarsi che tutti i coperchi delle porte siano ben chiusi per garantire la resistenza all'acqua e alla polvere.

2. Cura della batteria

• Per massimizzare la durata della batteria, evitare temperature estreme.
• Caricare regolarmente la batteria ed evitare di lasciarla scaricare completamente frequentemente.
• If storing the device for an extended period, charge the battery to about 50% and remove it from the device.

3. Cura generale del dispositivo

While rugged, proper handling extends the device's life.

• Avoid dropping the device, even though it is rated for 1.5m drops (1.8m with optional bumper).
• Do not attempt to disassemble the device or perform repairs yourself. Refer to authorized service personnel.
• Tenere il dispositivo lontano da forti campi magnetici.

Risoluzione dei problemi

This section provides solutions to common issues you might encounter with your Unitech HT330. For more complex problems, please contact Unitech support.

Specifiche

Garanzia e supporto

The Unitech HT330 is manufactured by Unitech. For specific warranty information, including terms and conditions, please refer to the warranty card included with your product or visit the official Unitech websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

For technical support, service, or inquiries regarding your Unitech HT330, please contact Unitech customer service directly. You can find contact information on their official websito o nella confezione del prodotto.

Produttore: Unitech

Modello: HT330-QA62UM3G
