1. Introduzione
This manual provides detailed instructions for the proper use and maintenance of your New Bee BH58 Wireless Headset. Please read this manual thoroughly before using the product to ensure optimal performance and longevity. The BH58 headset features Bluetooth V5.0 connectivity, a noise-canceling microphone, and multiple connection options for various devices.
Figure 1: New Bee BH58 Wireless Headset with included USB dongle.
2. Contenuto della confezione
Assicurarsi che tutti gli articoli siano presenti nel pacco:
- New Bee BH58 Wireless Headset
- Chiavetta USB
- Cavo di ricarica USB-C
- Cavo audio da 3.5 mm
- Manuale dell'utente (questo documento)
3. Prodotto finitoview
Familiarizzare con i componenti e i comandi dell'auricolare.
Figure 2: Headset controls layout.
- Pulsante di disattivazione del microfono: Disattiva/attiva il microfono durante le chiamate.
- Volume + / -: Regola il volume dell'audio.
- Power On/Off / Multifunctional Button: Accensione/spegnimento, riproduzione/pausa della musica, risposta/fine delle chiamate.
- Interfaccia audio da 3.5 mm: Per connessione cablata.
- Porta di ricarica (USB-C): Per caricare l'auricolare.
- Microfono: Rotatable for optimal positioning.
Figure 3: The microphone can rotate 270 degrees for use on either ear.
4. Impostazione
4.1 Ricarica dell'auricolare
Before first use, fully charge the headset. Connect the USB-C charging cable to the headset's charging port and the other end to a USB power source. The LED indicator will show charging status. A full charge takes approximately 1.5 hours.
4.2 Accensione/spegnimento
- Accensione: Push the power button to the middle position and hold for 3 seconds until the LED indicator flashes red and green alternately (for computer pairing mode) or red and blue alternately (for cellphone pairing mode).
- Spegni: Push the power button to the bottom position to turn off the headset.
4.3 Associazione con i dispositivi
The BH58 headset supports three connection methods: Bluetooth, USB Dongle, and Wired.

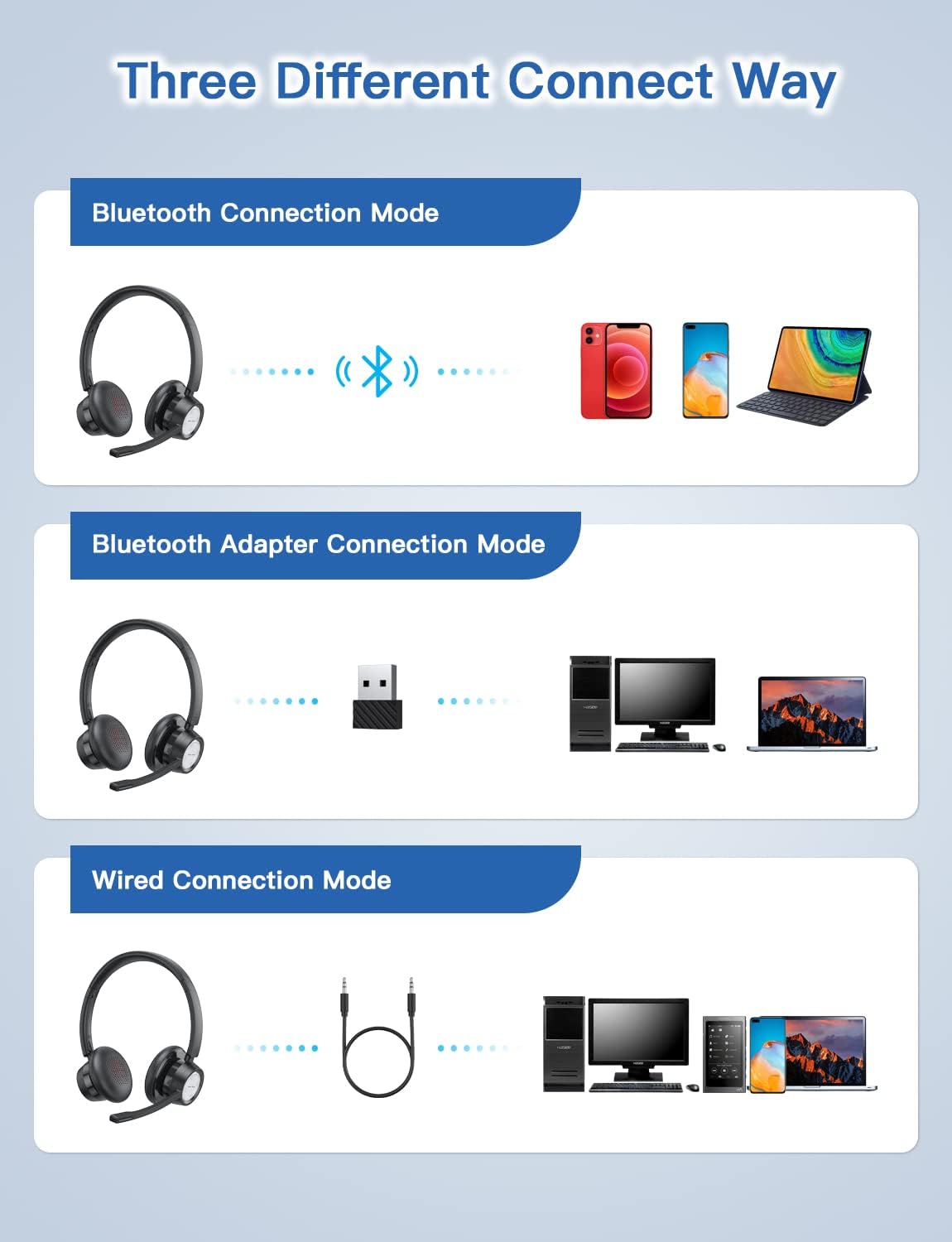

Figure 4: Multiple connection options for the BH58 headset.
4.3.1 Bluetooth Connection (for Cellphones/Tablets)
- Push the power button to the top and hold for 10 seconds until the headset LED indicator keeps flashing red and blue alternately. This indicates cellphone pairing mode.
- On your cellphone or tablet, go to 'Settings' > 'Bluetooth' and turn on Bluetooth.
- Cercare new devices and select 'BH58' from the list to connect.
- Once connected, you will hear a 'connected' voice prompt, and the LED indicator will flash blue every 30 seconds.
Video 1: Demonstrates the process of connecting the BH58 headset to a cellphone via Bluetooth.
4.3.2 USB Dongle Connection (for Computers without Bluetooth)
- Push the power button to the middle position to turn on the headset. The headset LED indicator keeps flashing red and green alternately, indicating computer pairing mode.
- Plug the Bluetooth transmitter (USB dongle) into your computer's USB port. It will automatically enter pairing mode. The Bluetooth transmitter LED indicator keeps flashing blue for about 3 seconds, then turns into red and blue flashing alternately.
- When hearing the 'connected' voice prompt, the connection is successful. The headset LED indicator flashes blue every 30 seconds, and the Bluetooth transmitter LED indicator is solid blue.
- On your computer, navigate to Sound Settings. Choose 'BH58' (or 'BTD-Q2' if listed) as the audio input and output device. Adjust sound settings as preferred.
Video 2: Illustrates how to connect the BH58 headset to a computer using the USB dongle and configure sound settings.
4.3.3 Connessione cablata
Connect the 3.5mm audio cable to the headset's 3.5mm audio interface and the other end to your device's audio jack. In wired mode, only the speaker has sound; the buttons and microphone on the headset do not function.
5. Funzionamento
5.1 Gestione delle chiamate
- Rispondi/Termina chiamata: Press the Multifunctional Button once.
- Rifiuta chiamata: Tenere premuto il pulsante multifunzione per 2 secondi.
- Disattiva/Riattiva microfono: Press the Mic Mute Button during an active call.
5.2 Controllo audio
- Aumenta volume: Premi il pulsante Volume +.
- Volume basso: Premere il pulsante Volume -.
- Riproduci/Pausa musica: Press the Multifunctional Button once.
5.3 Indossare l'auricolare
Adjust the headband for a comfortable fit. The microphone boom can be rotated 270 degrees to be worn on either the left or right ear. Position the microphone approximately 1-2 inches from your mouth for optimal voice clarity.
Figure 5: The headset can be adjusted for left or right ear wearing.
6. Durata della batteria
The BH58 wireless headset offers extended battery performance:
- Tempo di conversazione: Fino a 20 ore
- Tempo di riproduzione musicale: Fino a 28 ore
- Tempo di standby: Oltre 400 ore
- Tempo di ricarica: Circa 1.5 ore
Figura 6: Oltreview of BH58 headset battery performance.
7. Manutenzione
- Pulire regolarmente le cuffie con un panno morbido e asciutto.
- Avoid exposing the headset to extreme temperatures, moisture, or corrosive substances.
- Quando non vengono utilizzate, conservare le cuffie in un luogo fresco e asciutto.
- Non tentare di smontare o riparare autonomamente le cuffie, poiché ciò invaliderebbe la garanzia.
8. Risoluzione Dei Problemi
| Problema | Soluzione |
|---|---|
| L'auricolare non si accende. | Assicurarsi che l'auricolare sia completamente carico. |
| Impossibile effettuare l'associazione tramite Bluetooth. | Ensure the headset is in pairing mode (LED flashing red/blue or red/green). Turn off and on Bluetooth on your device. Clear previous Bluetooth connections. |
| Nessun suono o scarsa qualità del suono. | Check volume levels on both the headset and your device. Ensure 'BH58' is selected as the audio output device in your system settings. For wired mode, ensure the cable is fully inserted. |
| Il microfono non funziona. | Ensure the microphone is not muted. Check that 'BH58' is selected as the audio input device in your system settings. Microphone does not work in wired mode. |
| L'auricolare si disconnette frequentemente. | Ensure the headset is within the effective Bluetooth range (10-45 meters depending on mode and environment). Avoid obstacles that may interfere with the signal. |
9. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | BH58 |
| Tecnologia di connettività | Wireless (Bluetooth), cablato (3.5 mm) |
| Tecnologia di comunicazione wireless | Versione Bluetooth 5.0 |
| Controllo del rumore | Adaptive Noise Cancellation (ENC) |
| Microfono | Omnidirectional, 270° Rotatable |
| Tempo di conversazione | Fino a 20 ore |
| Tempo di riproduzione della musica | Fino a 28 ore |
| Tempo di standby | Oltre 400 ore |
| Tempo di ricarica | 1.5 ore |
| Porta di ricarica | USB-C |
| Portata Bluetooth | 10-45 meters (depending on mode/environment) |
| Materiale | Fabric, Memory Foam |
| Peso dell'articolo | 230 grammi (8.1 once) |
| Dispositivi compatibili | Computers, Laptops, Smartphones, Tablets, VoIP systems, Webinar systems, Skype, Zoom, Avaya, Call Centers, Online meeting systems, Home devices, Office devices |
10. Garanzia e supporto
New Bee provides excellent after-sales service, including a 12-month warranty from the date of purchase. A professional technical team and customer service center are available to assist you with any inquiries or issues.
For support, please refer to the contact information provided on the product packaging or the official New Bee websito.
