Introduzione
This manual provides comprehensive instructions for setting up, operating, and maintaining your FANTECH MAXFIT81 Mechanical Keyboard. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Cosa c'è nella scatola
- Tastiera meccanica FANTECH MAXFIT81
- Manopola dell'encoder rotativo
- Dual Stabilizer Mounts
- Gateron Yellow Switches (pre-installed)
- PBT Keycaps (pre-installed)
- Cavo USB (USB-C)
- Estrattore per tasti
- South-facing PCB (integrated)
- Transparent Retro Case (integrated)
Prodotto finitoview
Caratteristiche principali:
- Fattore di forma del 75%: Compact design retaining essential keys.
- Multi-Function Customizable OLED Display: Real-time information and personalization.
- Wireless (Bluetooth + Strikespeed Wireless) & Wired Connectivity: Versatile connection options.
- Hot-swappable Switches: Easy replacement of mechanical switches.
- South Facing PCB: Enhanced compatibility with various keycap profiles.
- Rotary Encoder Knob: Programmabile per varie funzioni.
- Retro Frosted Transparent Case: Unique aesthetic design.
Impostare

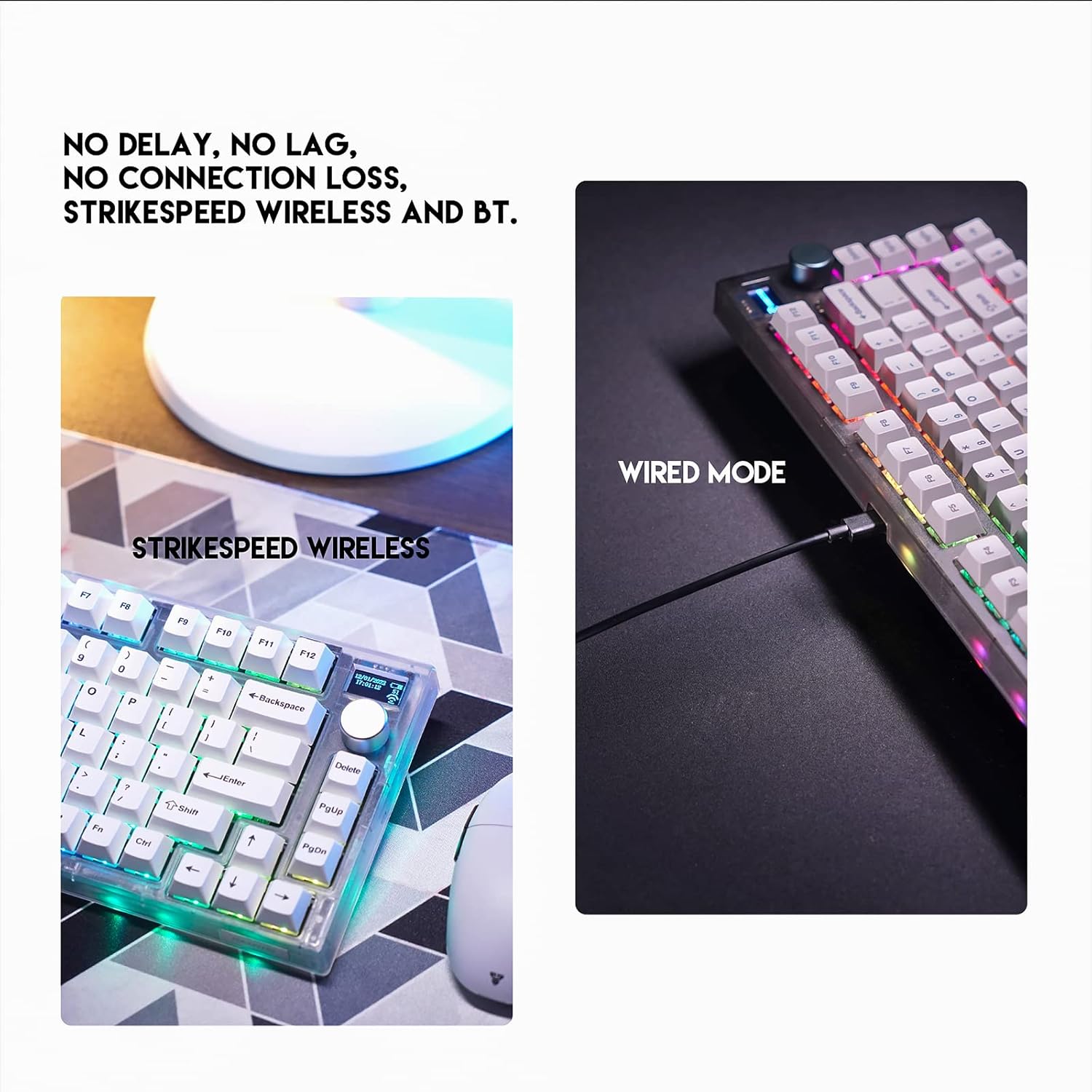

Connessione iniziale:
- Modalità cablata: Connect the provided USB-C cable to the keyboard and the other end to an available USB port on your computer. The keyboard will be automatically recognized.
- Strikespeed Wireless (2.4GHz): Insert the 2.4GHz USB receiver into an available USB port on your computer. Ensure the keyboard's mode switch is set to 2.4GHz. The keyboard should connect automatically.
- Modalità Bluetooth: Set the keyboard's mode switch to Bluetooth. On your device, search for Bluetooth devices and select "MAXFIT81". Follow any on-screen prompts to complete pairing. The keyboard can connect to up to 5 devices via Bluetooth.
Installazione del software:
For full customization of RGB lighting, key assignments, macro scripts, and OLED display settings, download the FANTECH MAXFIT81 FROST Wireless software from the official FANTECH webposto (www.fantechworld.com). The software is compatible with Windows 7 or newer operating systems.
Istruzioni per l'uso

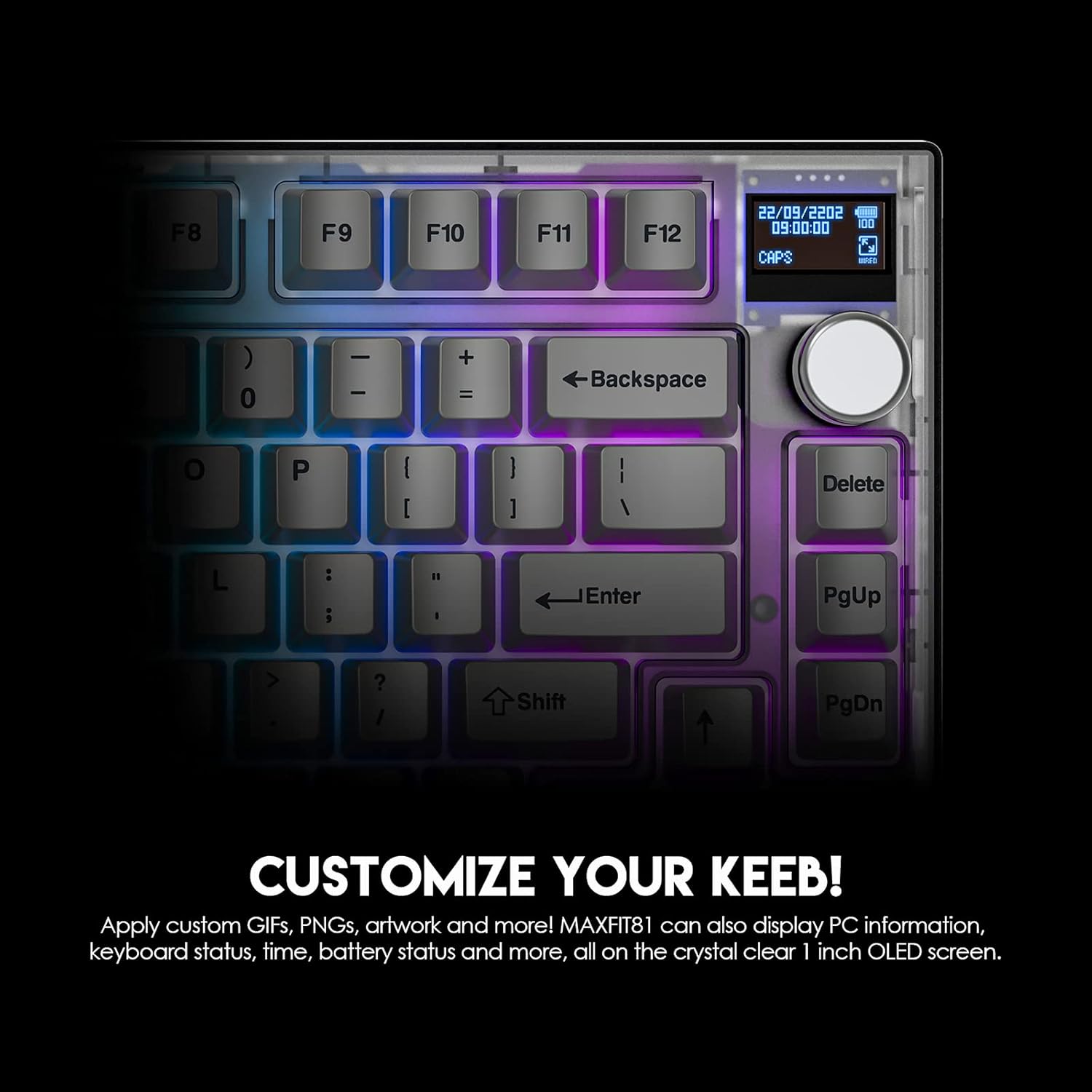

OLED Display Functions:
The 1-inch OLED screen can display various information including PC system data, keyboard status, time, and battery status. It also supports custom GIFs, PNGs, and artwork. Use the FANTECH software to configure display content.
Rotary Encoder Knob:
The programmable knob can be assigned to control volume, media playback, scrolling, or custom macros. Default function is volume control (rotate) and mute/unmute (press).
Controllo dell'illuminazione RGB:
The keyboard features customizable RGB backlighting. Lighting modes and effects can be adjusted via the FANTECH software or using keyboard shortcuts (refer to the software for specific key combinations).
Manutenzione
Pulizia:
Regularly clean the keyboard with a soft, dry cloth. For deeper cleaning, use the provided keycap puller to remove keycaps and clean underneath with compressed air or a small brush. Avoid using harsh chemicals or abrasive materials.
Sostituzione dell'interruttore:
The MAXFIT81 features hot-swappable switches. To replace a switch, gently pull the keycap off using the keycap puller. Then, use a switch puller (not included, but commonly available) to carefully remove the switch. Align the pins of the new switch with the holes on the PCB and press firmly until it clicks into place. Ensure the switch is fully seated to avoid bent pins.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La tastiera non risponde (cablata) | Collegamento del cavo allentato, porta USB difettosa. | Assicurati che il cavo USB-C sia collegato correttamente. Prova una porta USB o un cavo diverso. |
| La tastiera non risponde (wireless/Bluetooth) | Low battery, incorrect mode, pairing issue, receiver interference. | Charge the keyboard. Ensure mode switch is correct (2.4GHz or BT). Re-pair the device. Move closer to the receiver or device. |
| Tasti specifici non funzionanti | Faulty switch, bent switch pin, debris under keycap. | Remove keycap and inspect for debris. If hot-swappable, remove and re-insert switch, checking for bent pins. Replace faulty switch if necessary. |
| OLED display not working or showing incorrect info | Software issue, incorrect settings. | Ensure FANTECH software is installed and updated. Check display settings within the software. Restart the keyboard and software. |
| L'illuminazione RGB non funziona | Software settings, keyboard shortcut conflict. | Adjust RGB settings in the FANTECH software. Check for any conflicting keyboard shortcuts. |
Specifiche
- Nome del prodotto: MAXFIT81 MK910
- Numero di chiavi: 81 Keys + 1 Encoder
- Tipo di interruttore: Mechanical (Gateron Pro V2 Yellow Switch - Linear)
- Anti-ghosting: Tutte le chiavi
- Connessione: Wired (USB-C), StrikeSpeed Wireless (2.4GHz), Bluetooth (Connect up to 5 Devices)
- Capacità della batteria: 4000mAh
- Distanza wireless: Fino a 10m
- Peso: 1018 g (circa 2.24 libbre)
- Dimensioni: 303.2(L) x 104.3(W) x 45(H) mm (approx. 11.94 x 4.1 x 1.77 inches)
- Durata della batteria: Up to 70 hours (RGB OFF), Up to 15 hours (RGB ON)
- Dispositivi compatibili: PC
- Retroilluminazione della tastiera: Colore RGB
- Stile: Retro Frosted Transparent Case
Garanzia e supporto
For warranty information and technical support, please visit the official FANTECH webo contattare il servizio clienti. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.
Informazioni sulla sicurezza: The software only supports Windows 7 or newer.
