Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your Fruhdi Power Recliner Kaidi Motor KDPT007-279 Actuator Kit. This kit is designed as a replacement for electric sofas, massage chairs, and seat beds, specifically compatible with Kaidi motor model KDPT007-279 and can replace Limoss part numbers 450427 and 451011. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Informazioni sulla sicurezza
- Always disconnect power to the furniture before attempting any installation, removal, or maintenance.
- Prima di ripristinare l'alimentazione, assicurarsi che tutti i collegamenti siano saldi e orientati correttamente.
- Do not operate the actuator beyond its maximum load capacity of 1500N.
- Avoid operating the actuator continuously for extended periods. The recommended duty cycle is 2 minutes ON and 18 minutes OFF (10%).
- Durante il funzionamento, tenere le mani e gli abiti larghi lontani dalle parti in movimento.
- In caso di dubbi su qualche passaggio, consultare un tecnico qualificato.
Contenuto della confezione
Verificare che tutti i componenti siano presenti e integri prima di procedere con l'installazione:
- 1x KD Recliner Motor Actuator Replacement Model KDPT007-279
- 1x KD Round 2 Button 5 Pin Switch Remote Control
- 1x KD Lift Chair Power Supply Replacement Transformer Model KDDY008B
- 1x KD US Version AC Cable Cord
Image: Complete Fruhdi Power Recliner Kaidi Motor KDPT007-279 Actuator Kit, including the linear actuator, remote control, power supply, and AC cable.
Configurazione e installazione
This section outlines the general steps for replacing an existing recliner motor. Specific furniture designs may vary, so always refer to your furniture's original manual if available.
- Preparare i mobili: Position the recliner or lift chair in an accessible area. Ensure it is stable.
- Scollegare l'alimentazione: Unplug the recliner from the wall outlet. This is a critical safety step.
- Accedi al motore: Carefully turn the furniture over or tilt it to expose the underside where the motor is located. You may need to remove a fabric cover or panel.
- Identificare le connessioni: Note the connections of the existing motor. The KDPT007-279 kit uses a 2-pin flat round connector for the power transformer and a 5-pin connector for the hand control. Verify these match your existing setup.
- Rimuovere il vecchio motore: Disconnect the power supply and hand control cables from the old motor. Unbolt or unclip the old actuator from its mounting points on the chair frame. Keep any mounting hardware (bolts, pins) that are not included with the new kit.
- Installare il nuovo motore: Position the new KDPT007-279 actuator in the same location as the old one. Secure it using the appropriate mounting hardware. Ensure the actuator is aligned correctly and can move freely without obstruction. The minimum installation dimension is 153mm.
- Collegare il cablaggio:
- Connect the 2-pin flat round plug from the new power supply (KDDY008B) to the corresponding port on the actuator motor.
- Connect the 5-pin plug from the new hand control to the corresponding port on the actuator motor.
- Plug the AC cable cord into the power supply and then into a wall outlet.
- Funzionalità di prova: Before fully reassembling the furniture, carefully plug the recliner into a power outlet. Use the new hand control to test the motor's movement in both directions (extend and retract). Ensure smooth operation.
- Assemblaggio finale: Once confirmed operational, reattach any fabric covers or panels removed earlier.

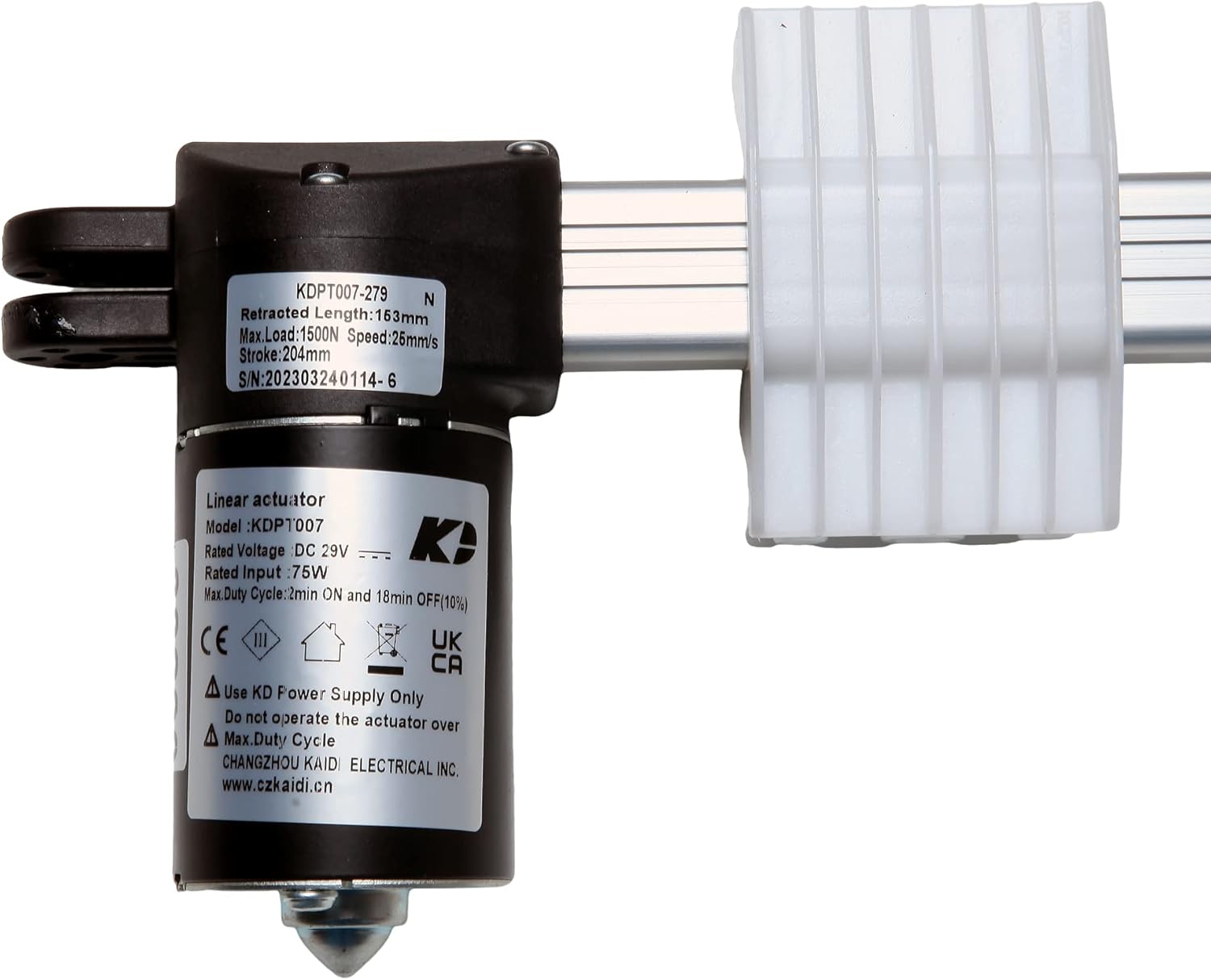

Immagine: Primo piano view of the motor label, showing model KDPT007-279, retracted length, stroke, max load, and speed specifications. Verify this label matches your requirements.
Image: Detail of the plastic bracket component on the linear actuator, which aids in mounting and stability.
Istruzioni per l'uso
The Fruhdi Power Recliner Actuator Kit operates via the included 2-button 5-pin remote control.
- Estendere: Press and hold the 'Extend' button (usually the upward arrow or 'Open' button) on the remote control to extend the actuator, causing the recliner to move to an open or reclined position.
- Ritrattare: Press and hold the 'Retract' button (usually the downward arrow or 'Close' button) on the remote control to retract the actuator, causing the recliner to return to a closed or upright position.
- Release either button to stop the movement at any desired position.
Manutenzione
Regular maintenance ensures the longevity and optimal performance of your actuator kit.
- Pulizia: Wipe the exterior of the motor and cables with a dry or slightly damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no liquids enter the motor housing.
- Ispezione: Periodically inspect all cables and connections for signs of wear, fraying, or damage. Ensure all mounting bolts are tight.
- Lubrificazione: The linear actuator is generally maintenance-free regarding internal lubrication. Do not attempt to lubricate internal components unless specifically instructed by the manufacturer.
- Ciclo di lavoro: Adhere to the recommended duty cycle (2 minutes ON, 18 minutes OFF) to prevent overheating and prolong motor life.
Risoluzione dei problemi
If you encounter issues with your actuator kit, refer to the following troubleshooting guide:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il motore non si muove | No power to the unit; Loose connections; Faulty remote control; Overload; Motor failure. | Check if the power cord is securely plugged into the wall and the power supply. Ensure all cables (power supply to motor, remote to motor) are firmly connected. Test with a known working remote if possible. Reduce load on the chair. If all else fails, the motor may need replacement. |
| Il motore si muove lentamente | Excessive load; Low voltage; Friction in chair mechanism; Normal operation (some replacement motors are slower than originals). | Ensure the chair is not overloaded beyond its weight capacity. Check power supply voltage. Inspect chair mechanism for obstructions or binding. Note that this replacement motor may operate slightly slower than some original factory motors. |
| Rumore insolito durante il funzionamento | Friction; Loose mounting; Internal motor issue. | Inspect the chair's moving parts for friction or obstructions. Ensure the motor is securely mounted and all bolts are tightened. If the noise persists and seems to originate from within the motor, discontinue use and seek professional assistance. |
| Il telecomando non risponde | Loose connection; Remote failure. | Check the 5-pin connection between the remote and the motor. Ensure it is fully inserted. If the connection is secure and the motor still doesn't respond, the remote control may be faulty. |
Specifiche
Technical data for the Fruhdi Power Recliner Kaidi Motor KDPT007-279 Actuator Kit:
| Caratteristica | Specificazione |
|---|---|
| Modello | KDPT007-279 |
| Lunghezza del tratto | 204mm |
| Minimum Install Dimension | 153mm |
| Carico massimo | 1500N (approximately 337 lbs) |
| Velocità | 25mm/secondo |
| Volume nominaletage | CC 29V |
| Ingresso nominale | 75W |
| Ciclo di lavoro | 2min ON / 18min OFF (10%) |
| Collegamento dell'alimentazione elettrica | 2 Pin Flat Round |
| Control Plug Connection | 5 Pin Hand |
Informazioni sulla garanzia
Specific warranty details for this product may vary. Please refer to the product packaging or your purchase documentation for information regarding the warranty period and terms. Keep your proof of purchase for any warranty claims.
Assistenza clienti
For further assistance, technical support, or inquiries regarding your Fruhdi Power Recliner Kaidi Motor KDPT007-279 Actuator Kit, please contact the seller or manufacturer through your original point of purchase. Provide your product model number (KDPT007-279) and a detailed description of your issue for efficient support.
