1. Introduzione
The MUNBYN IMC51 Money Counter Machine is designed for efficient and accurate banknote counting and counterfeit detection. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and longevity. Please read this manual thoroughly before operating the machine.
2. Informazioni sulla sicurezza
- Ensure the machine is connected to a 110V power supply.
- Do not expose the machine to water or excessive humidity.
- Durante il funzionamento, tenere le mani e gli abiti larghi lontani dalle parti in movimento.
- Scollegare la macchina prima di pulirla o di effettuare qualsiasi manutenzione.
- Do not attempt to disassemble or repair the machine yourself. Contact technical support for assistance.
3. Contenuto della confezione
Verificare che tutti gli articoli siano presenti nel pacco:
- MUNBYN IMC51 Contasoldi
- Display LCD esterno
- Cavo di alimentazione
- Spazzola per la pulizia
- Manuale dell'utente (questo documento)
- Fusibile di ricambio
Figure 3.1: Contents included in the MUNBYN IMC51 package.
4. Prodotto finitoview
Familiarize yourself with the main components of the IMC51 Money Counter:

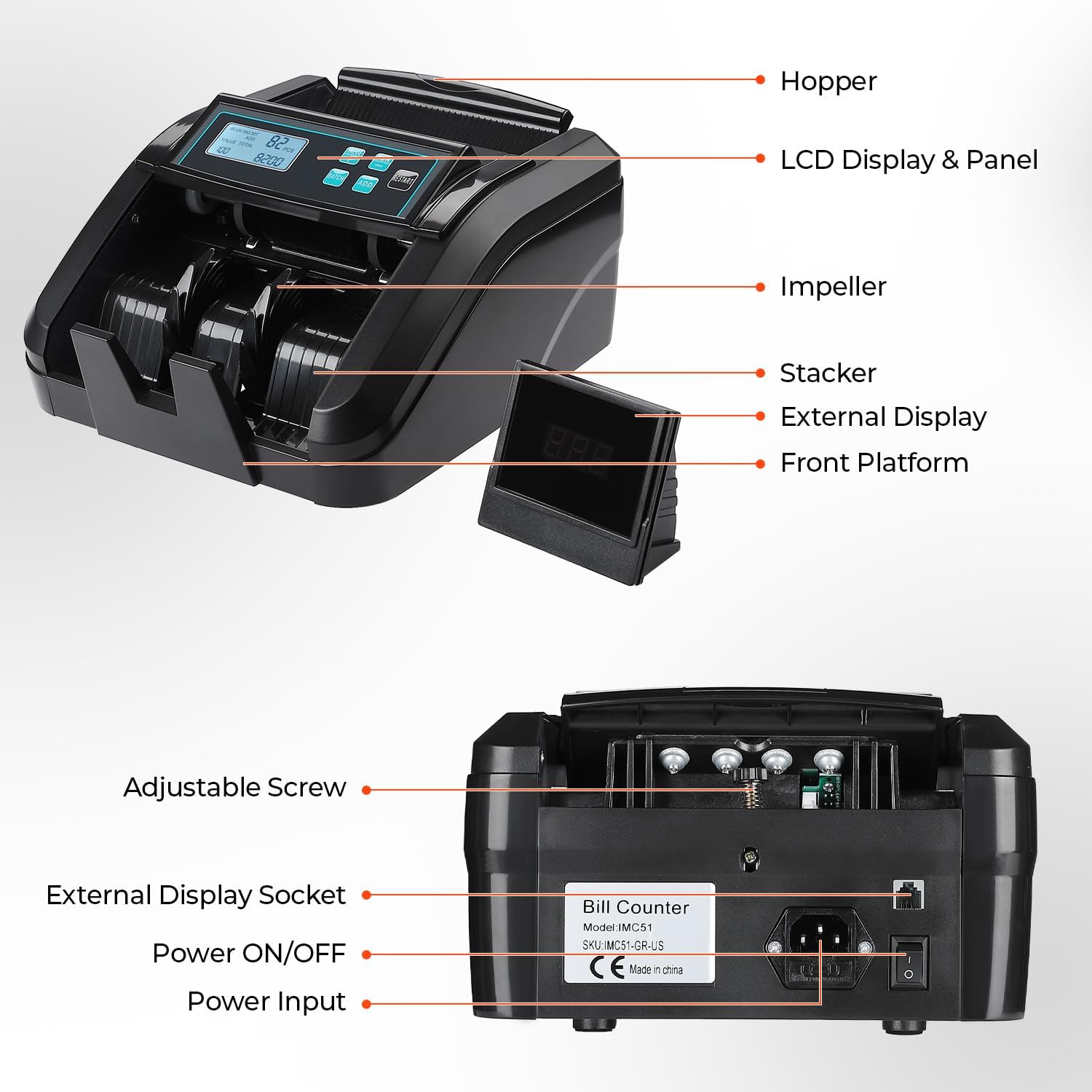

Figure 4.1: Key components of the IMC51 Money Counter.
- Tramoggia: Dove vengono caricate le banconote per il conteggio.
- LCD Display & Panel: Shows counting results, modes, and control buttons.
- Girante: Internal mechanism that feeds bills through the machine.
- Che impila: Dove vengono raccolte le banconote contate.
- Display esterno: Provides a separate view of the count for customers or observers.
- Front Platform: Guides bills into the counting mechanism.
- Vite regolabile: Used to fine-tune the feeding gap for different bill conditions.
- Presa per display esterno: Porta per il collegamento del display esterno.
- Accensione/spegnimento: Interruttore di alimentazione principale.
- Potenza in ingresso: Connects the power cord to the machine.
5. Impostazione
- Disimballare: Rimuovere con attenzione tutti i componenti dalla confezione.
- Posizionamento: Place the money counter on a stable, flat surface.
- Connetti alimentazione: Ensure the machine's power switch is OFF. Connect the power cord to the Power Input on the back of the machine, then plug the other end into a 110V AC power outlet.
- Collegare un display esterno: Plug the external LCD display cable into the External Display Socket on the back of the machine.
- Accensione: Flip the Power ON/OFF switch to the ON position. The machine will perform a self-test.
Video 5.1: Unboxing and initial setup of the MUNBYN IMC51 Money Counter.
6. Istruzioni per l'uso
The IMC51 offers various counting modes to suit your needs. Ensure bills are neatly stacked and free from excessive creases or tears for optimal performance.
Figure 6.1: The IMC51 machine helps save time in business operations.
6.1. Value Count Mode
This mode allows you to count the value of bills. It is crucial to separate bills by denomination before counting, as the machine does not count mixed denominations in this mode.
- Premere il tasto VALORE button to select the denomination you are counting (e.g., $1, $5, $10, $20, $50, $100).
- Place a stack of bills of the selected denomination into the hopper.
- The machine will count the number of pieces and display the total value.
- To add to the total, ensure AGGIUNGERE mode is active (see 6.2).
Figure 6.2: Display in Value Counting Mode.
6.2. Add + Batch Mode
IL AGGIUNGERE mode accumulates the total count across multiple batches. The LOTTO mode allows you to set a predetermined number of bills for the machine to stop at.
- Premere il tasto AGGIUNGERE button to activate Add mode. The display will show 'ADD'.
- Premere il tasto LOTTO button repeatedly to cycle through preset batch sizes (e.g., 10, 20, 50, 100) or use the +/- buttons to set a custom batch size.
- Place bills in the hopper. The machine will count and stop when the batch size is reached. Remove the batch and place more bills to continue counting and adding to the total.

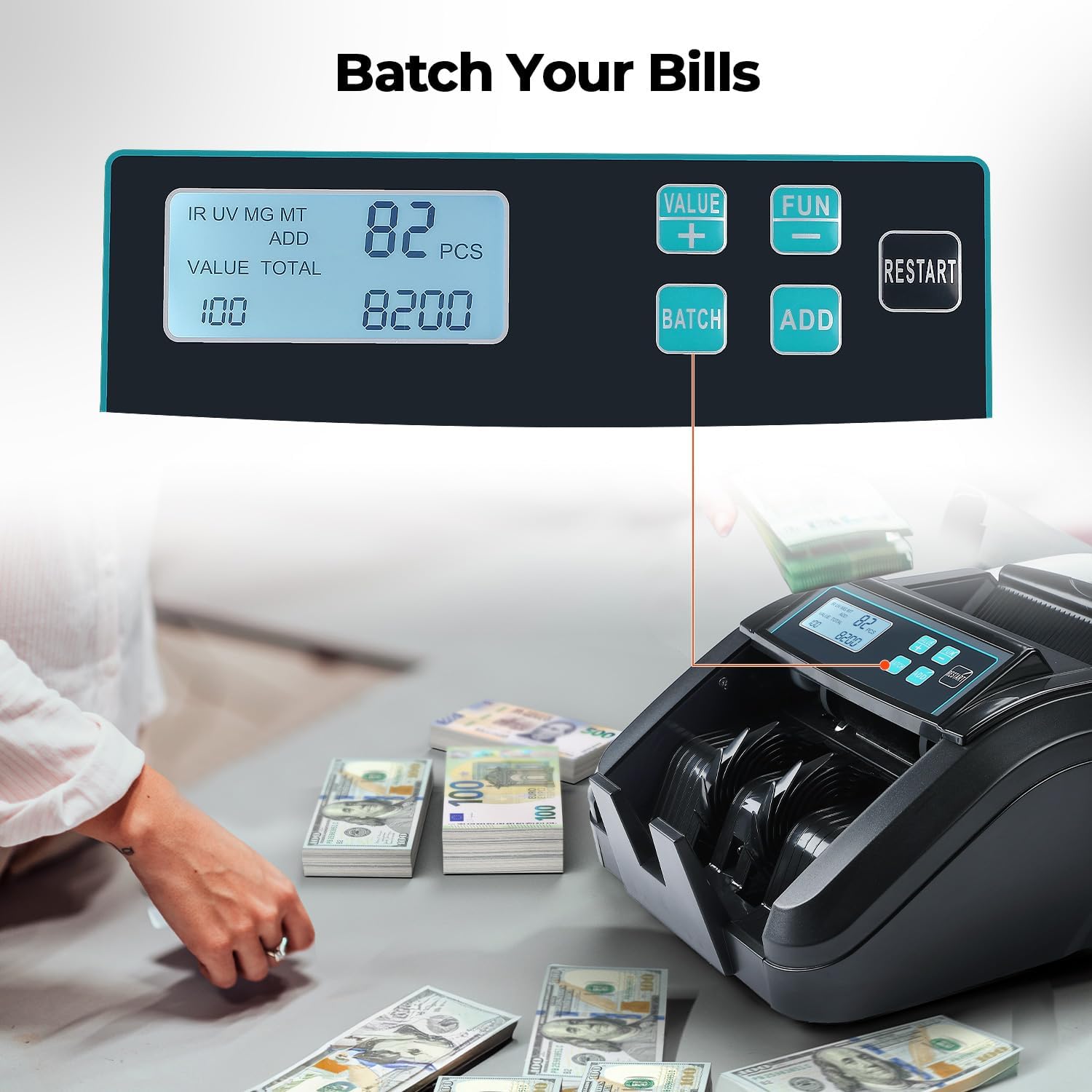

Figure 6.3: Batching bills for specific quantities.
6.3. Precise Detection (UV/MG/IR/MT)
The IMC51 uses multiple detection technologies to identify counterfeit bills:
- UV (ultravioletti): Detects UV features on banknotes.
- MG (Magnetic): Checks for magnetic ink and security threads.
- IR (Infrared): Verifies infrared patterns.
- MT (Metallic Thread): Rileva i fili di sicurezza metallici.
- The machine will stop and display an error code if a suspicious bill is detected. Remove the bill and press RICOMINCIA per continuare.
Figure 6.4: Comprehensive counterfeit detection methods.
6.4. Full Function Introduction Video
Video 6.1: Una panoramica dettagliataview of the MUNBYN IMC51's functions, including counting, batching, and counterfeit detection.
7. Manutenzione
Una manutenzione regolare garantisce la longevità e la precisione del tuo contasoldi.
7.1. Pulizia
Dust and debris can accumulate on sensors and rollers, affecting performance. Use the provided cleaning brush to regularly clean the internal components, especially the feeding sensors.
Figure 7.1: Internal rollers that require regular cleaning.
7.2. Feeding Gap Adjustment
If bills are jamming frequently or counting is inaccurate, the feeding gap may need adjustment. Use the adjustable screw on the back of the machine:
- Turn the screw clockwise to decrease the gap (tighten) for smoother feeding of worn or thin bills.
- Turn the screw anticlockwise to increase the gap (loosen) to reduce friction for new or thick bills.
- Test with a single banknote to ensure it passes through smoothly without triggering errors.
8. Risoluzione Dei Problemi
Problemi comuni e relative soluzioni:
8.1. Bill Jamming Problem
- Check Bill Condition: Ensure bills are not excessively creased, torn, or folded.
- Adjust Feeding Gap: Refer to Section 7.2 for instructions on adjusting the feeding gap.
- Clean Sensors/Rollers: Dust on sensors or rollers can cause jams. Clean them as described in Section 7.1.
8.2. Machine Does Not Work / No Power
- Controllare la connessione di alimentazione: Assicurarsi che il cavo di alimentazione sia collegato saldamente sia alla macchina sia alla presa a muro.
- Verifica presa di corrente: Prova la presa con un altro dispositivo per verificare che sia alimentata.
- Controllare il fusibile: The machine has a replaceable fuse. Check if the fuse is burnt out and replace it if necessary (refer to the maintenance video below).
8.3. Troubleshooting & Maintenance Video
Video 8.1: Guide on how to troubleshoot and perform basic repairs on the money counter.
9. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | MUNBYN |
| Numero di modello | IMC51-BK |
| Peso dell'articolo | 9.08 libbre |
| Dimensioni del prodotto | 11.1 x 9.41 x 5.71 pollici |
| Velocità di conteggio | 1100 bills/min |
| Tecnologia di rilevamento | UV/IR/MG/MT |
| Colore | Nero |
| Potenza in ingresso | 110 V (standard USA) |
10. Garanzia e supporto
MUNBYN is committed to providing comprehensive money handling solutions and technical assurance for all our products.
- Supporto tecnico: Expect a reply within 2 hours for any technical inquiries.
- Local Fix Zone: Access to local repair services.
- For detailed warranty information, please refer to the official MUNBYN websito o il manuale utente PDF fornito con il prodotto.
Puoi trovare anche il Manuale utente ufficiale (PDF) Qui.
