Machenike G6 Tri-mode Switch Controller User Manual

1. Introduzione

The Machenike G6 Tri-mode Switch Controller is a versatile gamepad designed for a wide range of gaming platforms, including PC, Nintendo Switch, iOS, Android, and TV boxes. It features advanced technologies such as magnetic Hall sensing joysticks and triggers, Kailh mechanical micro switches, 6-axis gyro motion control, and multi-level vibration feedback. This manual provides detailed instructions for setting up, operating, and maintaining your controller to ensure optimal performance.

2. Contenuto della confezione

Si prega di verificare che tutti gli articoli siano presenti nel pacco:

• Machenike G6 Tri-mode Switch Controller
• Cavo di ricarica USB-C
• Ricevitore wireless 2.4G
• Manuale d'uso

3. Disposizione del controller

Familiarize yourself with the buttons and features of your Machenike G6 controller.

The controller features standard gamepad buttons (A, B, X, Y), directional pad, dual joysticks, shoulder buttons (L1, R1), and triggers (L2, R2). Additional function buttons include Start, Select, Home, and programmable back buttons.

The back of the controller includes a mode switch slider and additional programmable buttons for enhanced gameplay customization.

4. Configurazione e connettività

4.1. Ricarica del controller

Connect the supplied USB-C cable to the controller's charging port and the other end to a USB power source (e.g., computer, wall adapter). The LED indicators will show charging status and power consumption.

4.2. Connecting via USB (Wired Mode)

Plug the USB-C cable directly from the controller to your PC or compatible device. The controller will automatically be recognized and ready for use.

4.3. Connessione tramite wireless 2.4G

1. Insert the 2.4G wireless receiver into a USB port on your device (PC, TV box, etc.).
2. Switch the mode slider on the back of the controller to the 2.4G position.
3. The controller will automatically pair with the receiver. LED indicators will confirm connection.

4.4. Connessione tramite Bluetooth 5.0

1. Switch the mode slider on the back of the controller to the Bluetooth position.
2. On your device (NS, iOS, Android, PC with Bluetooth), go to Bluetooth settings and search for new devices.
3. Select "Machenike G6" from the list of available devices to pair. LED indicators will confirm connection.

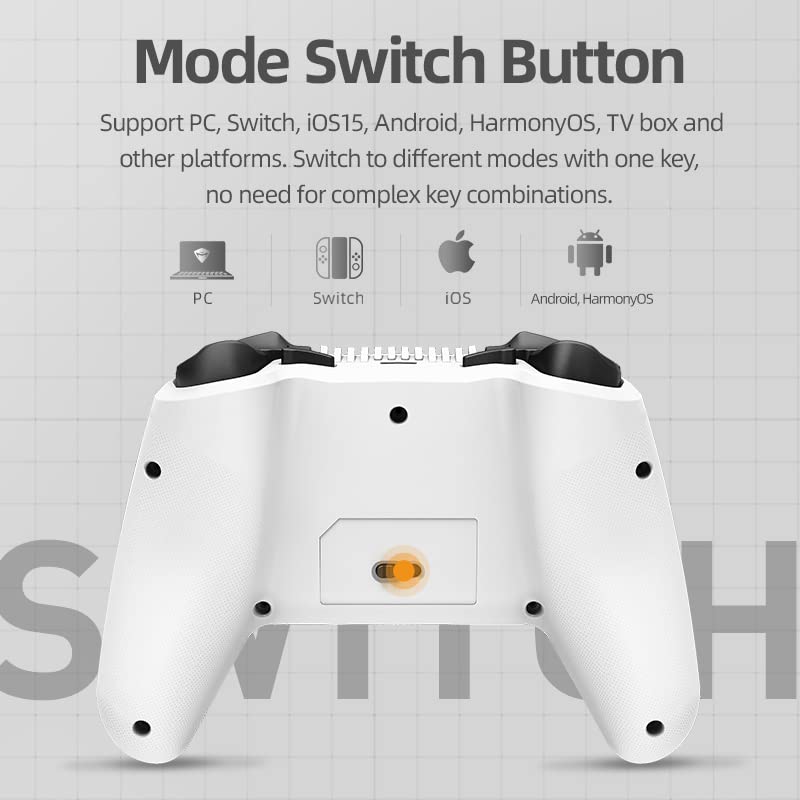

4.5. Cambio modalità

The Machenike G6 supports multiple platforms. Use the mode slider on the back of the controller to select the appropriate connection mode for your device (PC, Switch, iOS, Android, TV box).

5. Funzionamento del controller

5.1. Magnetic Hall Sensing Joysticks

The G6 controller features Hall effect joysticks that use magnetic induction for precise, drift-free input. This technology ensures long-term accuracy and smooth control without physical wear.

5.2. Three-Way Trigger Locks

Customize your trigger travel distance with three distinct settings:

• Gear 1 (FPS): Short pull for rapid response in first-person shooter games.
• Gear 2 (Universal): Normal travel distance for balanced gameplay across various genres.
• Gear 3 (RAC): Longer full pull for precise control in racing games or fine aiming.

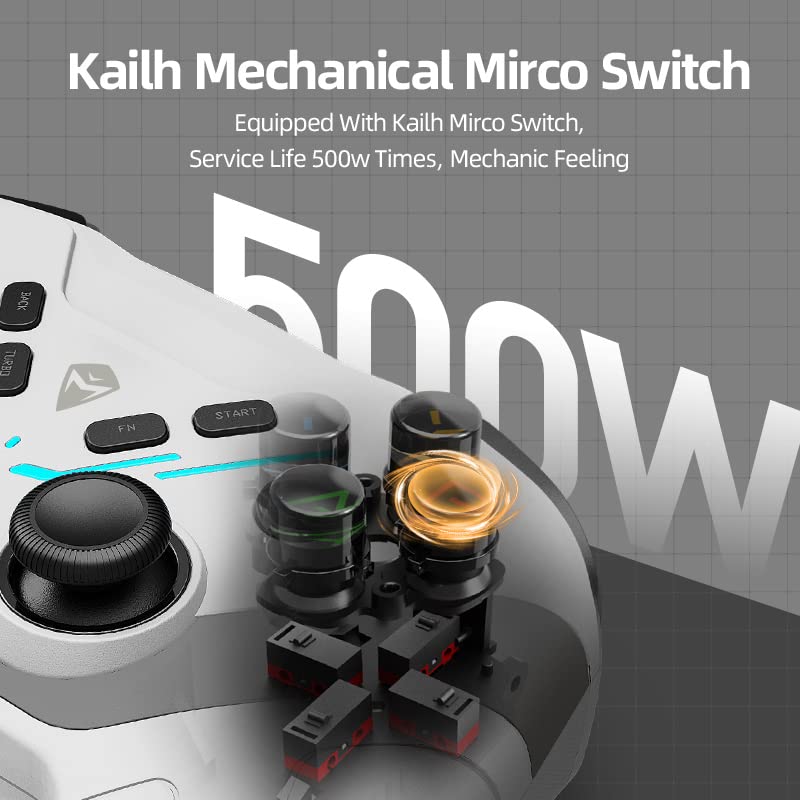

5.3. Kailh Mechanical Micro Switches

The action buttons utilize Kailh mechanical micro switches, providing a shorter trigger stroke and a tactile, responsive feel. This design allows for faster input and improved gaming performance.

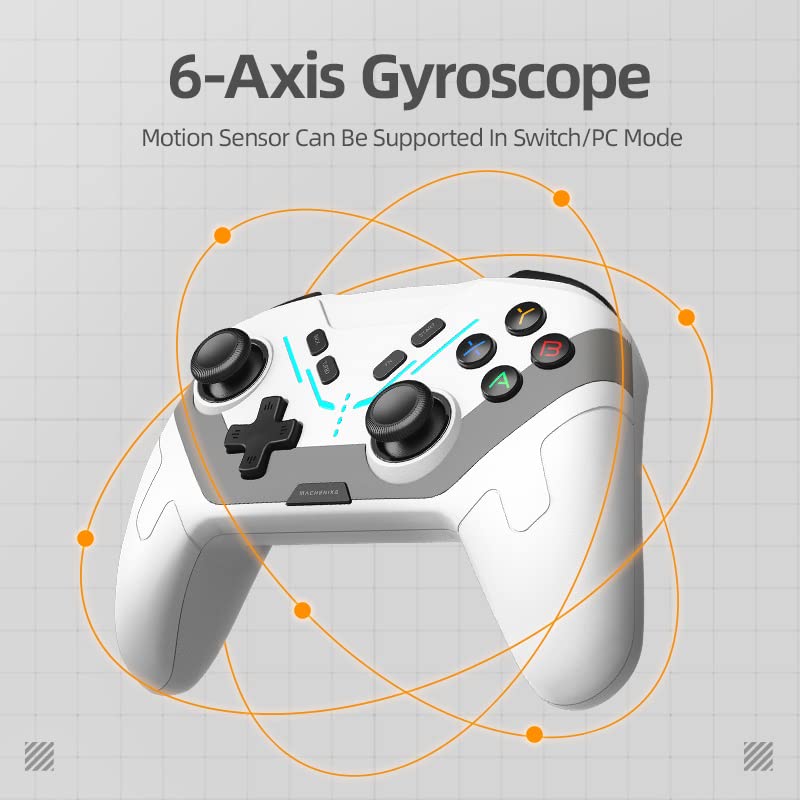

5.4. Controllo del movimento giroscopico a 6 assi

The integrated 6-axis gyro provides motion sensing capabilities, enhancing immersion and control in compatible games, particularly on Nintendo Switch and PC platforms. This allows for precise movements based on controller orientation.

5.5. Multi-level Vibration

The controller features dual motors with 100 adjustable levels of vibration. This provides realistic haptic feedback, enhancing immersion in games by simulating impacts, explosions, and other in-game events.

5.6. Funzione Turbo

Activate the Turbo function for rapid-fire inputs, useful in games requiring quick, repeated button presses. Refer to the in-app settings or specific button combinations for activation and customization.

5.7. Luci LED

The controller includes LED lights with four different modes to create an ambient gaming atmosphere. The visualized power display ensures you are aware of the battery status, allowing timely recharging.

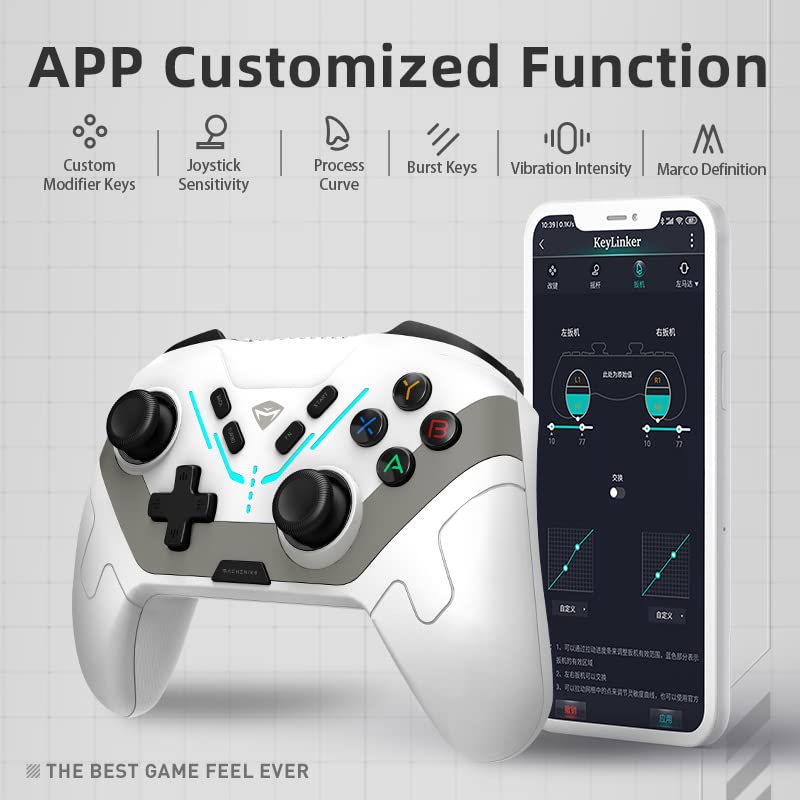

6. APP Customization and Macro Programming

The Machenike G6 controller can be customized using a dedicated smartphone application (KeyLinker). This app allows for extensive personalization of your gaming experience.

Le caratteristiche principali dell'app includono:

• Modifica macro: Record and assign up to 42 actions to programmable buttons.
• Linear Curve Adjustments: Regola con precisione la sensibilità del joystick e del grilletto.
• Button Function Mapping: Remap buttons to suit your playstyle.
• Effetti di luce: Regola le modalità e la luminosità della luce LED.
• Intensità di vibrazione: Regola l'intensità del feedback tattile.

7. Manutenzione

To ensure the longevity and optimal performance of your Machenike G6 controller, follow these maintenance guidelines:

• Pulizia: Utilizzare un panno morbido e asciutto per pulire il controller. Per lo sporco ostinato, leggermente dampLavare il panno con acqua. Evitare prodotti chimici aggressivi o materiali abrasivi.
• Magazzinaggio: Conservare il controller in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Evitare gocce: Proteggere il controller da urti e cadute, che potrebbero danneggiare i componenti interni.
• Cura del cavo: Handle the USB-C cable gently. Avoid bending or twisting it excessively.

8. Risoluzione Dei Problemi

If you encounter issues with your Machenike G6 controller, refer to the following common problems and solutions:

Controller Not Connecting/Disconnecting Frequently

• Controllare l'interruttore di modalità: Ensure the mode slider on the back of the controller is set to the correct position for your device (USB, 2.4G, or Bluetooth).
• Riassocia Bluetooth: If using Bluetooth, unpair the controller from your device and attempt to pair it again.
• Ricevitore 2.4G: Ensure the 2.4G receiver is securely plugged into a working USB port. Try a different USB port.
• Livello della batteria: Low battery can cause connectivity issues. Charge the controller fully.
• Interferenza: Allontanarsi da altri dispositivi wireless che potrebbero causare interferenze.
• Aggiornamento del firmware: Check the official Machenike website or app for any available firmware updates for the controller.

Pulsanti/joystick non rispondono o si muovono

• Ricalibrare: Use the companion app to recalibrate joysticks and triggers if available.
• Pulito: Assicurarsi che non vi siano detriti che impediscano il movimento dei pulsanti.
• Ricomincia: Turn off and restart the controller and your device.

Vibrazione non funzionante

• Check In-Game Settings: Ensure vibration is enabled in the game's settings.
• Controlla le impostazioni dell'app: Verify vibration intensity is not set to zero in the companion app.

9. Specifiche

10. Garanzia e supporto

The Machenike G6 Tri-mode Switch Controller comes with a standard manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the warranty card included in your product packaging or visit the official Machenike support website. For technical assistance, troubleshooting beyond this manual, or customer service inquiries, please contact Machenike customer support through their official channels.

11. Video di prodotto

Watch the official product video for a visual guide on the Machenike G6 Tri-mode Switch Controller's features and usage.
