vidaXL Foldable 3-Zone Massage Table User Manual

1. Informazioni sulla sicurezza

Please read all instructions carefully before assembling and using the massage table. Retain this manual for future reference.

• Prima dell'uso, assicurarsi che tutti i meccanismi di bloccaggio siano saldamente inseriti.
• Do not exceed the maximum weight capacity of the table. (Specific weight capacity not provided in product data, refer to product labeling if available).
• Keep hands and fingers clear of moving parts during setup and adjustment.
• Use on a flat, stable, and non-slip surface.
• Ispezionare regolarmente il tavolo per verificare eventuali segni di usura o danni. Non utilizzarlo se danneggiato.
• Keep children and pets away from the table during setup and use.

2. Prodotto finitoview

The vidaXL Foldable 3-Zone Massage Table is designed for comfort and portability, suitable for both amateur and professional use. It features a durable wood frame, adjustable height, and a comfortable foam cushion resistant to disinfectants and massage oils. The 3-zone design allows for versatile positioning.

Caratteristiche principali:

• 3-Zone Design: Allows for adjustable backrest and leg sections.
• Altezza regolabile: Customize the table height for user comfort.
• Adjustable Headrest and Arm Supports: Provides personalized comfort for clients.
• Costruzione durevole: Features a sturdy wood frame.
• Comfortable Cushion: 1.2-inch thick foam padding, resistant to disinfectants and massage oils.
• Portatile: Folds compactly and includes a carrying bag for easy transport and storage.

3. Istruzioni per l'installazione

3.1 Unfolding the Massage Table

1. Place the folded massage table on its side on a flat surface.
2. Unlatch the buckles on the side of the table.
3. Gently open the table like a suitcase, allowing the legs to unfold.
4. Once partially open, carefully stand the table upright on its legs.
5. Push down on the center of the table until the support cables are taut and the legs are fully extended and locked into place.

Image: The massage table in its folded, portable state, showing the carrying handle and latches.

Immagine: Un interno view of the folded massage table, revealing the stored headrest and arm supports.

3.2 Regolazione dell'altezza del tavolo

1. Locate the adjustment knobs or pins on each leg.
2. Loosen the knobs or pull the pins to release the leg extension.
3. Adjust each leg to the desired height, ensuring all legs are set to the same level for stability.
4. Securely tighten the knobs or re-insert the pins to lock the legs in place.

Image: The massage table fully set up, illustrating its overall dimensions including adjustable height (59-81 cm), length (191 cm), and width (70 cm).

3.3 Attaching Headrest and Arm Supports

1. Insert the headrest support bars into the designated holes at one end of the table.
2. Adjust the angle and height of the headrest for client comfort using the locking mechanism.
3. Attach the arm supports to the side of the table, if desired, ensuring they are securely fastened.

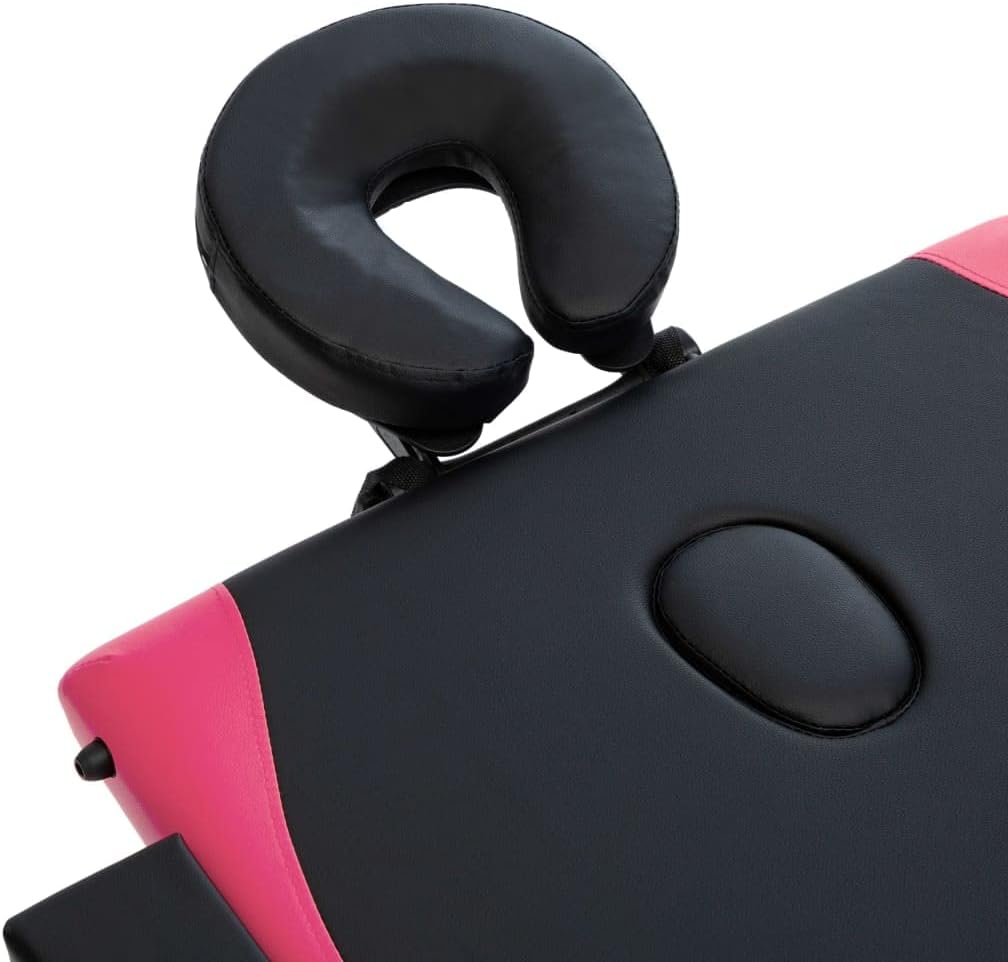

Immagine: Un dettaglio view of the adjustable headrest, showing its ergonomic design and attachment point.

Immagine: Un lato profile of the massage table demonstrating the range of motion for the adjustable headrest.

4. Istruzioni per l'uso

4.1 Regolazione dello schienale

1. To adjust the backrest, lift the section slightly to disengage the support mechanism.
2. Position the backrest to the desired angle.
3. Lower the backrest until the support mechanism locks into place. Ensure it is stable before use.

Immagine: Lato A view of the massage table illustrating the adjustable backrest, with arrows indicating its upward movement.

4.2 Client Positioning

Guide the client to lie down on the table. Adjust the headrest, arm supports, and backrest as needed to ensure maximum comfort and proper ergonomic positioning for the massage or treatment.

Image: The massage table fully assembled with headrest and arm supports, ready for client use.

Immagine: Un fronte view of the massage table, showcasing the headrest and arm supports from the client's perspective.

5. Manutenzione

5.1 Cleaning the Cushion

The cushion is designed to be resistant to disinfectants and massage oils. To clean:

• Pulire la superficie con un panno morbido dampened with a mild disinfectant solution or warm soapy water.
• Avoid abrasive cleaners or harsh chemicals that could damage the upholstery.
• Dry thoroughly with a clean, soft cloth after cleaning.

5.2 Frame and Hardware

• Wipe the wood frame with a dry or slightly damp panno. Evitare l'eccessiva umidità.
• Periodically check all screws, bolts, and locking mechanisms to ensure they are tight and secure. Tighten if necessary.
• Inspect the support cables for any fraying or damage. Replace if necessary.

6. Risoluzione Dei Problemi

• Il tavolo sembra instabile: Ensure all legs are adjusted to the same height and all locking mechanisms are fully engaged. Check that the table is on a flat, even surface.
• Difficoltà di piegatura/apertura: Ensure no parts are obstructed. Check that all adjustment knobs/pins are released before folding.
• Headrest/Arm supports not staying in place: Verify that the support bars are fully inserted and the locking mechanisms are tightened.

7. Specifiche

8. Garanzia e supporto

Specific warranty information is not provided in the product details. For warranty claims, technical support, or replacement parts, please contact vidaXL customer service directly through their official websito o rivenditore presso cui è stato acquistato il prodotto.
