Manuale utente della macchina etichettatrice MARKLIFE P50

Introduzione

This manual provides comprehensive instructions for the setup, operation, and maintenance of your MARKLIFE P50 Label Maker Machine. Please read this manual carefully before using the device to ensure proper functionality and longevity.

Cosa c'è nella scatola

Dopo aver disimballato il prodotto, verificare che siano presenti tutti i componenti elencati di seguito:

• Etichettatrice MARKLIFE P50
• Cavo di ricarica USB-C
• Label Tapes (3 rolls included):
  • 1.57" x 1.18" (40x30mm) White Gap Label
  • 2" x 2" (50x50mm) Circle Gap Label
  • 1.57" x 2.36" (40x60mm) White Gap Label

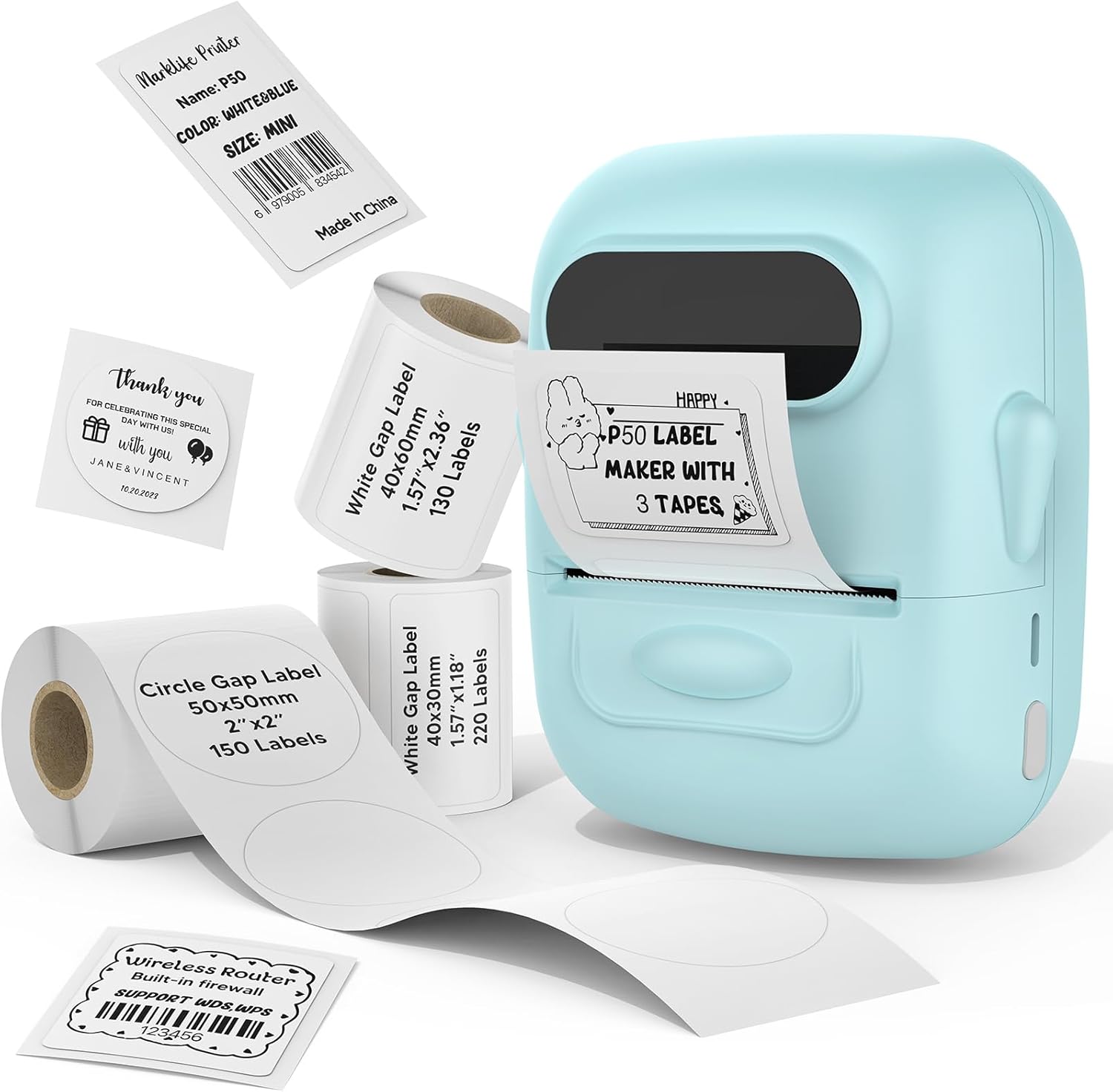

Image: The MARKLIFE P50 Label Maker Machine shown with three rolls of label tape of different sizes and shapes, demonstrating the variety included in the package.

Impostare

1. Label Paper Installation

1. Hold the sides of the label maker and gently lift up the paper cover to open the compartment.
2. Remove the paper roll holder from the paper bin.
3. Take out the left flap of the paper roll holder.
4. Place the label paper roll onto the right movable plate of the holder.
5. Insert the left bezel back onto the holder, ensuring the arrows on both baffles are uniformly facing forward.
6. Place the assembled paper roll holder back into the paper bin. Ensure the yellow label on the paper roll is on the right side and the print side of the label paper is facing down.
7. Trascinare una sezione della carta dell'etichetta verso l'uscita della carta.
8. Press down with both hands to close the paper cover firmly.
9. Long press the power switch to start the device. Double-click the switch key to perform a test print.
10. The label paper can be torn down and to the right near the paper outlet after printing.

2. App Download and Login

1. Download the "Marklife" app from your device's app store (available for Android and iOS).
2. Open the app. You can choose to log in using your email, a third-party app (like Facebook), or proceed as a guest.

3. Connessione Bluetooth

1. In the Marklife app, click on the "UNLINK" or "Not connected" icon, typically located in the top left corner.
2. Allow Bluetooth to be turned on when prompted by the app to connect to the printer.
3. The app will search for nearby print devices. Once your P50 printer appears in the list (e.g., "P50S_..."), click "UNLINK" or "Connect" next to it.
4. If the circle icon next to your printer name turns green, the printer is successfully connected.

Istruzioni per l'uso

1. Creazione di un'etichetta

1. From the main app screen, click "Create label".
2. Select the label stock type: "Continuous Label" if you are using continuous paper, or "Gap Label" if you are using pre-cut labels with gaps.
3. Click "Quick to select a size" and choose the same size as the label stock loaded into your label machine. Confirm your selection.

2. Editing Text

1. Double-click the text box on the label editor screen to enter the text.
2. Enter the desired text you want to print.
3. Click "Text layout" to adjust font size, spacing, and line spacing. Swipe left or right on the sliders to adjust these parameters.
4. Use the "B" icon to bold the text, the "U" icon to underline, and the "I" icon to italicize.
5. Click the vertical text icon (A with an arrow pointing up) to print text vertically.
6. Click "Font Options" to change the style of the font.
7. To move the text box, click "Text" and drag it to the desired position.
8. Pinch the text box to change the size of the label stock preview.
9. Click and move the double-headed arrow on the text box to increase its length.

3. Stampa

1. After editing, click "Print".
2. Adjust the "Print Density" slider to change the clarity of the font.
3. Use the minus (-) and plus (+) buttons next to "Print Copy" to increase or decrease the number of copies.
4. Click "Print Now" to start printing. You can cancel printing if needed.

Image: Various applications of the MARKLIFE P50 Label Maker, including price tags for clothing, labels for handmade soaps, and bakery item labels, showcasing its versatility for small businesses.

Image: Additional label examples, such as food identification labels for pork belly and homemade beverages, and a shipping address label on a package, highlighting practical uses.

Manutenzione

• Pulizia della testina di stampa: Regularly clean the thermal print head with an alcohol wipe to ensure clear and consistent print quality. Avoid touching the print head directly with your fingers.
• Cura della batteria: Per prolungare la durata della batteria, evitare di scaricare completamente il dispositivo frequentemente. Ricaricarlo regolarmente, soprattutto se si prevede di non utilizzarlo per un periodo prolungato.
• Magazzinaggio: Conservare l'etichettatrice in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Use Approved Labels: Only use thermal label paper specifically designed for the MARKLIFE P50 to prevent damage to the print head and ensure optimal performance.

Risoluzione dei problemi

Specifiche

Garanzia e supporto

For warranty information, technical support, or service inquiries, please refer to the official MARKLIFE webo contattare direttamente il servizio clienti. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.

You can also find additional support and tutorials by visiting the MARKLIFE store on Amazon: MARKLIFE Amazon Store.
