Graco FinishPro GX 19 Cordless Airless Sprayer User Manual

1. Introduzione

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Graco FinishPro GX 19 Cordless Airless Sprayer. The FinishPro GX 19 is designed for portability and performance, allowing for painting tasks in various locations without the need for direct power outlets.

Figure 1: Graco FinishPro GX 19 Cordless Airless Sprayer. This image shows the overall design of the sprayer, including the motor unit, hopper, and frame.

2. Istruzioni di sicurezza

Adhering to these safety guidelines is crucial for preventing injury and ensuring proper equipment function.

• Always read and follow the safety instructions provided with the product.
• Never operate the sprayer in hazardous environments.
• Always secure the drain line to prevent accidental disconnection.
• Keep the sprayer clean and free of debris to prevent mechanical risks.
• Always wear appropriate personal protective equipment (PPE) when using the sprayer, including eye protection, gloves, and a respirator.

3. Componenti e articoli inclusi

The Graco FinishPro GX 19 Cordless Airless Sprayer typically includes the following components:

• Contractor PC Compact Spray Gun
• RAC X FF LP 210 Spray Tip
• RAC X Guard
• 3/16 inch x 25 ft BlueMax II Airless Hose
• 2 - DEWALT 20V/60V Max FlexVolt Batteries
• DEWALT Fan-Cooled Fast Charger

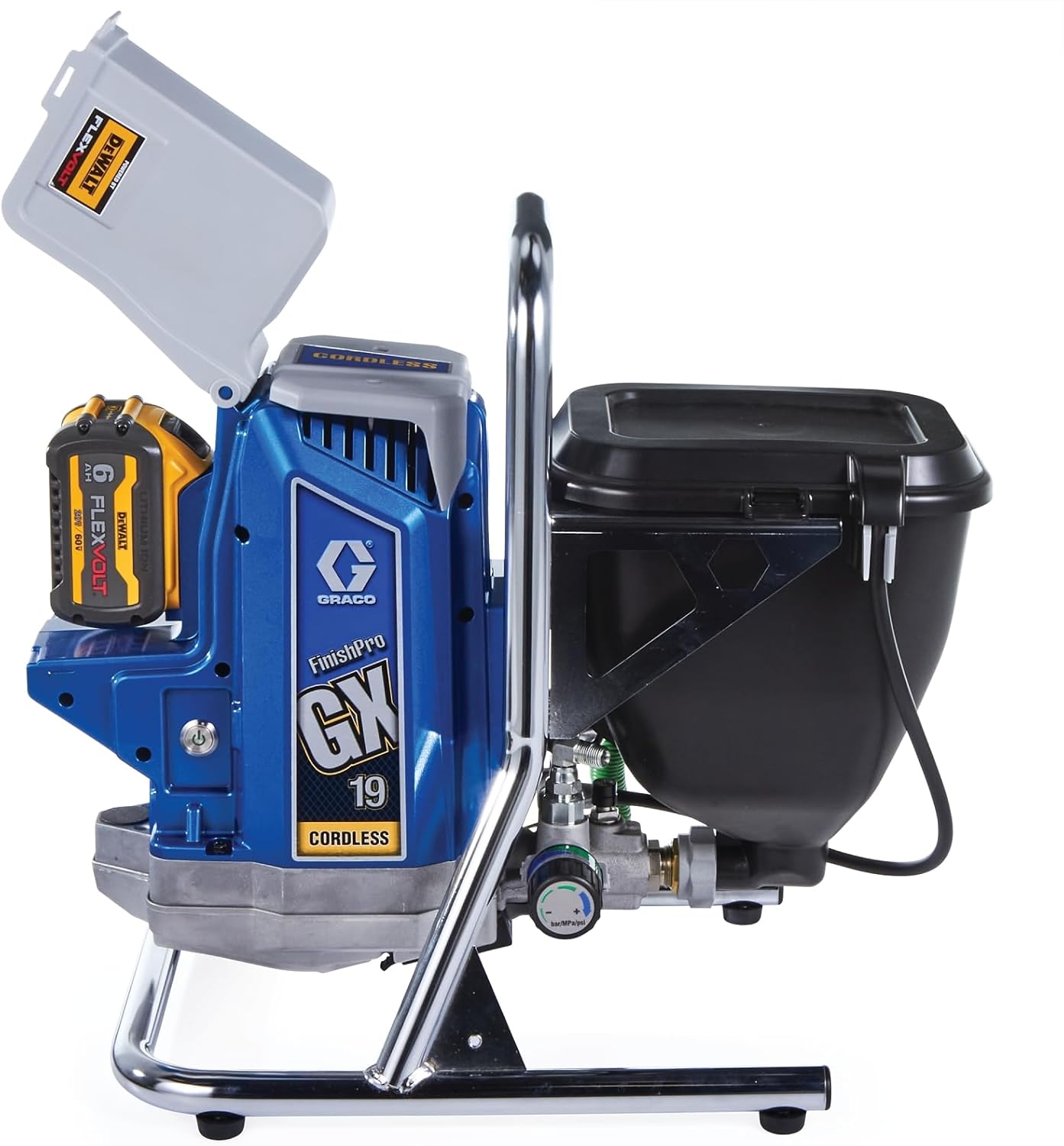

Figure 2: Graco FinishPro GX 19 with a DEWALT FlexVolt battery inserted. This illustrates the battery compartment and power source.

4. Impostazione

1. Disimballaggio: Rimuovere con cautela tutti i componenti dall'imballaggio. Verificare che non siano danneggiati.
2. Ricarica della batteria: Fully charge both DEWALT FlexVolt batteries using the provided charger before initial use.
3. Giunzione di tubi: Connect the BlueMax II Airless Hose to the sprayer outlet and to the Contractor PC Compact Spray Gun. Ensure all connections are tight.
4. Tip and Guard Installation: Install the RAC X Guard onto the spray gun, then insert the RAC X FF LP 210 Spray Tip into the guard.
5. Attacco della tramoggia: Securely attach the 1.5-gallon hopper to the sprayer's intake.

5. Istruzioni per l'uso

1. Preparazione del materiale: Prepare your painting material according to the manufacturer's instructions. Strain the material if necessary to prevent clogs.
2. Riempimento tramoggia: Pour the prepared material into the 1.5-gallon hopper.
3. Inserire la batteria: Insert a fully charged DEWALT FlexVolt battery into the sprayer's battery compartment.
4. Adescamento dello spruzzatore:
   • Turn the prime valve to the "Prime" position.
   • Place the drain line into a waste bucket.
   • Turn on the sprayer. Allow it to run until a steady stream of material flows from the drain line, indicating air has been purged.
   • Turn off the sprayer and return the prime valve to the "Spray" position.
5. Regolazione della pressione: Use the pressure control knob to set the desired spraying pressure. Start with a lower pressure and gradually increase until a consistent spray pattern is achieved. The maximum pressure is 3000 PSI.
6. Tecnica di spruzzatura:
   • Maintain a consistent distance (approximately 10-12 inches) from the surface.
   • Move the spray gun in smooth, even passes, overlapping each pass by about 50%.
   • Release the trigger at the end of each pass to avoid excessive material buildup.
7. Durata della batteria: The high-capacity 6Ah FlexVolt batteries allow spraying up to 6 gallons before recharging is typically required. Monitor battery indicator.

6. Manutenzione

Proper maintenance ensures the longevity and performance of your sprayer.

1. Pulizia dopo ogni utilizzo:
   • Remove remaining material from the hopper.
   • Rinse the hopper with appropriate cleaning solution (water for latex, mineral spirits for oil-based).
   • Prime the sprayer with the cleaning solution until it runs clear from the drain line and spray gun.
   • Clean the spray tip and guard separately.
2. ProConnect Cartridge: The ProConnect cartridge allows for quick pump replacement. Refer to the detailed service manual for specific instructions on rebuilding the gun in seconds.
3. Magazzinaggio: Store the sprayer in a clean, dry, and temperature-controlled environment. Ensure all components are thoroughly cleaned and dried before storage.

7. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti incontrare.

For more detailed troubleshooting, refer to the comprehensive Graco service manual or contact Graco customer support.

8. Specifiche

9. Garanzia e supporto

For information regarding product warranty, technical support, or replacement parts, please refer to the documentation included with your product or visit the official Graco website. You can also contact Graco customer service directly for assistance.

Graco Official Websito: www.graco.com
