Introduzione
The SmallRig X-T5 L-Shape Grip (Model 4260-cf) is an accessory designed specifically for the FUJIFILM X-T5 camera. It enhances the camera's ergonomics, providing a more comfortable and secure grip, especially for users with larger hands or when using heavier lenses. This L-shape grip also integrates a built-in Arca-Swiss quick release plate for seamless transitions to tripod shooting and offers multiple mounting points for additional accessories, all while maintaining full access to the camera's battery compartment and ports.
Figure 1: SmallRig X-T5 L-Shape Grip mounted on a Fujifilm X-T5 camera.
Caratteristiche principali
- Customized Design for FUJIFILM X-T5: This L-bracket grip is precisely engineered to fit the Fujifilm X-T5 camera, ensuring a seamless integration and matching aesthetic.
- Ergonomic Silicone Handgrip: Features an ergonomically designed silicone handgrip that significantly improves the grip experience, offering enhanced comfort and a non-slip surface.
Figure 2: Detail of the ergonomic silicone grip texture.
- Integrated Arca-Swiss Quick Release Plate: A quick-release plate compatible with Arca-Swiss tripods is built into the bottom, allowing for rapid transitions between handheld and tripod shooting.

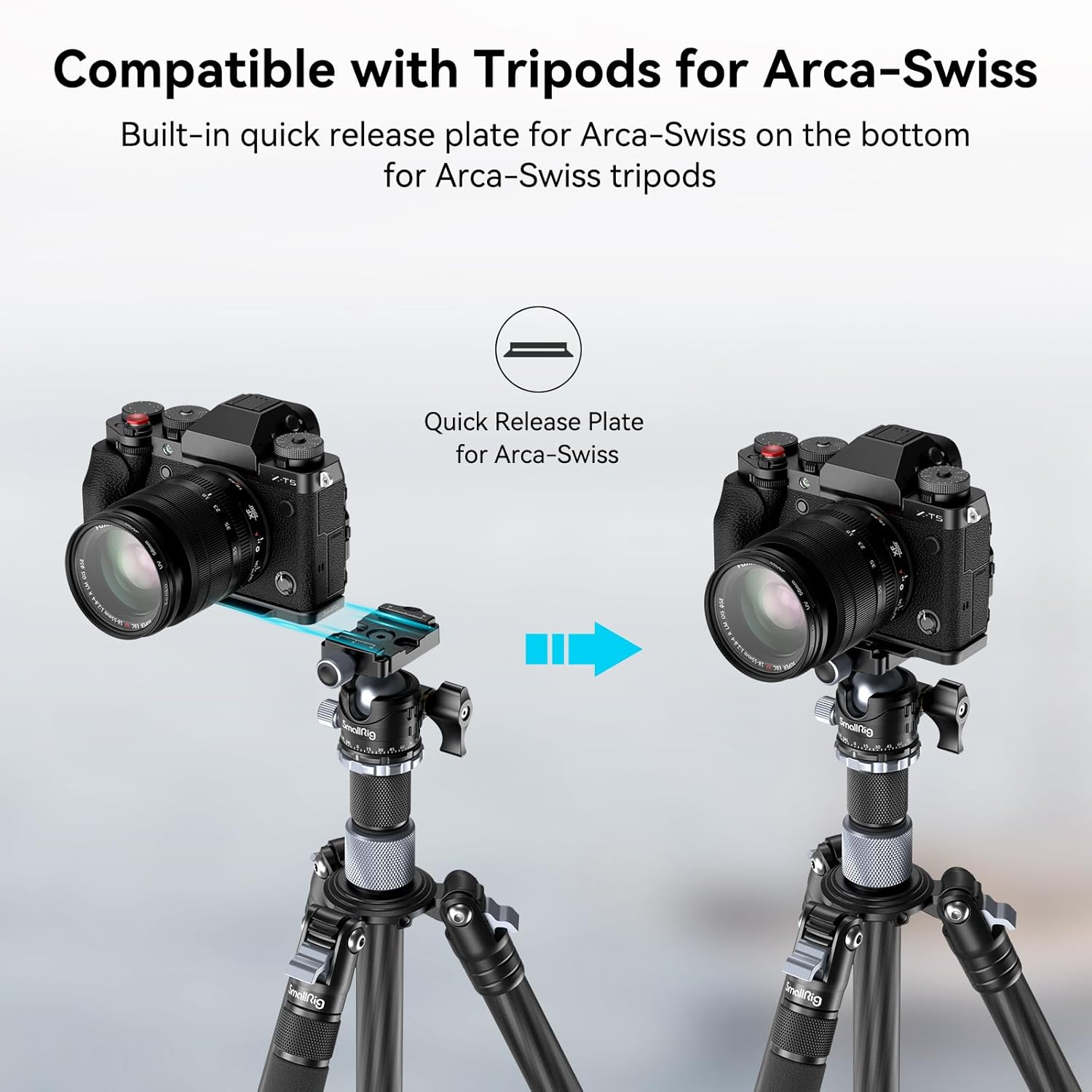

Figure 3: Arca-Swiss quick release plate for tripod compatibility.
- Design leggero e compatto: The grip features a slim and compact baseplate, weighing only 79g (2.78oz), making it easy to carry without adding significant bulk to the camera.
Figure 4: The lightweight design of the grip.
- Punti di montaggio multipli: The base includes three 1/4"-20 threaded holes for attaching various accessories such as mini or desktop tripods, or plates for Manfrotto-type systems. A strap slot is also provided for hand straps.
Figure 5: Various mounting points for accessories.
- Included Shutter Button: A red shutter button is included to enhance the tactile feel and ease of pressing the camera's shutter.
Figure 6: The included shutter button for improved tactile feedback.
Configurazione e installazione
The SmallRig X-T5 L-Shape Grip is designed for toolless installation, ensuring a quick and secure attachment to your Fujifilm X-T5 camera.
- Align the Grip: Position the L-Shape Grip against the bottom of your Fujifilm X-T5 camera, ensuring the mounting screw hole on the grip aligns with the camera's tripod socket.
- Secure with Thumbscrew: The grip features a 1/4"-20 D-ring thumbscrew at the bottom. Rotate this thumbscrew clockwise to securely fasten the grip to the camera. No additional tools are required for this step.
Figure 7: Toolless installation using the D-ring thumbscrew.
- Controllare la stabilità: Once tightened, gently attempt to move the grip to ensure it is firmly attached and does not wobble.
- Install Shutter Button (Optional): If desired, screw the included red shutter button into the camera's shutter release thread for enhanced tactile feedback.
The design ensures that the grip does not obstruct access to the camera's battery compartment, memory card slot, or other ports, allowing for convenient operation without removal.
Figure 8: Unobstructed access to the battery compartment.
Operating the Grip
The L-Shape Grip is designed to improve the handling and stability of your Fujifilm X-T5 camera during use.
- Enhanced Handholding: The ergonomic design and silicone texture provide a more secure and comfortable grip, reducing hand fatigue during extended shooting sessions. This is particularly beneficial when using larger or heavier lenses.
Figure 9: Improved handholding comfort with the grip.
- Montaggio del treppiede: Utilize the integrated Arca-Swiss plate for quick and easy mounting onto compatible tripods. For other tripod types, use the additional 1/4"-20 threaded holes on the base.
Figure 10: Tripod shooting solution with the grip.
- Allegato accessorio: The multiple 1/4"-20 threaded holes and strap slot allow for the attachment of various camera accessories, such as external monitors, microphones, or hand straps, expanding the camera's versatility.
Manutenzione
To ensure the longevity and optimal performance of your SmallRig X-T5 L-Shape Grip, follow these simple maintenance guidelines:
- Pulizia: Wipe the grip regularly with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp È possibile utilizzare un panno e asciugare immediatamente. Evitare prodotti chimici aggressivi o materiali abrasivi.
- Magazzinaggio: When not in use, store the grip in a clean, dry environment away from extreme temperatures and direct sunlight.
- Ispezione: Periodically inspect the mounting screw and the overall structure for any signs of wear or damage.
Risoluzione dei problemi
If you encounter any issues with your SmallRig X-T5 L-Shape Grip, refer to the following common solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Grip feels loose or wobbly on the camera. | Mounting thumbscrew is not fully tightened. | Ensure the 1/4"-20 D-ring thumbscrew is securely tightened by hand. Periodically check and re-tighten if necessary, especially after prolonged use. |
| Difficulty accessing battery compartment or ports. | Incorrect installation or misalignment. | Verify that the grip is correctly aligned with the camera's base and fully secured. The grip is designed to provide unobstructed access. |
| Shutter button feels unresponsive. | Shutter button not fully screwed in. | Ensure the red shutter button is fully screwed into the camera's shutter release thread. |
Specifiche
| Attributo | Dettaglio |
|---|---|
| Dimensioni del prodotto | 133.2 x 58.1 x 69.0 mm (2.72"P x 2.29"L x 2.72"A) |
| Peso dell'articolo | 2.65 once (75 grammi) |
| Numero di modello | 4260-cf |
| Marca | SMALLRIG |
| Dispositivi compatibili | FUJIFILM X-T5 Camera |
| Materiale (i) | Lega di alluminio, silicone |
| Data prima disponibilità | 8 giugno 2023 |
Figure 11: Product dimensions and specifications overview.
Garanzia e supporto
Information regarding specific warranty terms and customer support for the SmallRig X-T5 L-Shape Grip (Model 4260-cf) was not available in the provided product data. For detailed warranty information or technical support, please refer to the official SmallRig websito o contattare direttamente il servizio clienti.
È inoltre possibile trovare risorse aggiuntive e FAQ su Negozio SmallRig su Amazon.
