YONGNUO YN216 II Portable LED Video Light

1. Introduzione

The YONGNUO YN216 II Portable LED Video Light is a high-performance lighting solution designed for professional and amateur photographers and videographers. It features adjustable color temperature from 2700K to 8000K, 24W output power, and 332 high-quality LED lamp beads, providing bright and consistent illumination. With 12 special FX lighting effects and multiple control options including mobile APP, 2.4G wireless remote, and Bluetooth, the YN216 II offers versatile lighting for various recording, filming, and live streaming scenarios.

2. Prodotto finitoview

2.1 Caratteristiche principali

• Potenza di uscita: 24W
• LED lamp Perline: 332 PZ
• Illuminamento: 2910LUX@1M
• Temperatura del colore: Regolabile da 2700K a 8000K
• FX Lighting Effects: 12 built-in special effects
• Metodi di controllo: Mobile APP Remote Control, 2.4G Wireless Remote Control, Bluetooth Remote Control
• Modalità di alimentazione: NP-F series battery (1pc), 12V2A AC Adapter, 8pcs AA Batteries (Note: Batteries and AC adapter are not included)
• Progetto: Radial Circle Design with high CRI lamp beads for even light spot and natural spherical attenuation.
• Porte della stalla: Includes 4pcs silver-plating hammer pattern compartment doors for light shaping.
• Raffreddamento: AI Intelligent Control on Cooling & Noise Reduction (fan noise ≤20dB).
• Curve di attenuazione: 4 kinds of dimming curve modes (Exponential, Logarithmic, S-shaped, Linear).
• Montaggio: Metal hot shoe buckle for camera mounting or tripod fixing.

2.2 Cosa c'è nella scatola

• 1x YN216 II LED Video Light (2700-8000K)
• 1x Diffusore
• 1x Mini Base
• 1x Manuale utente

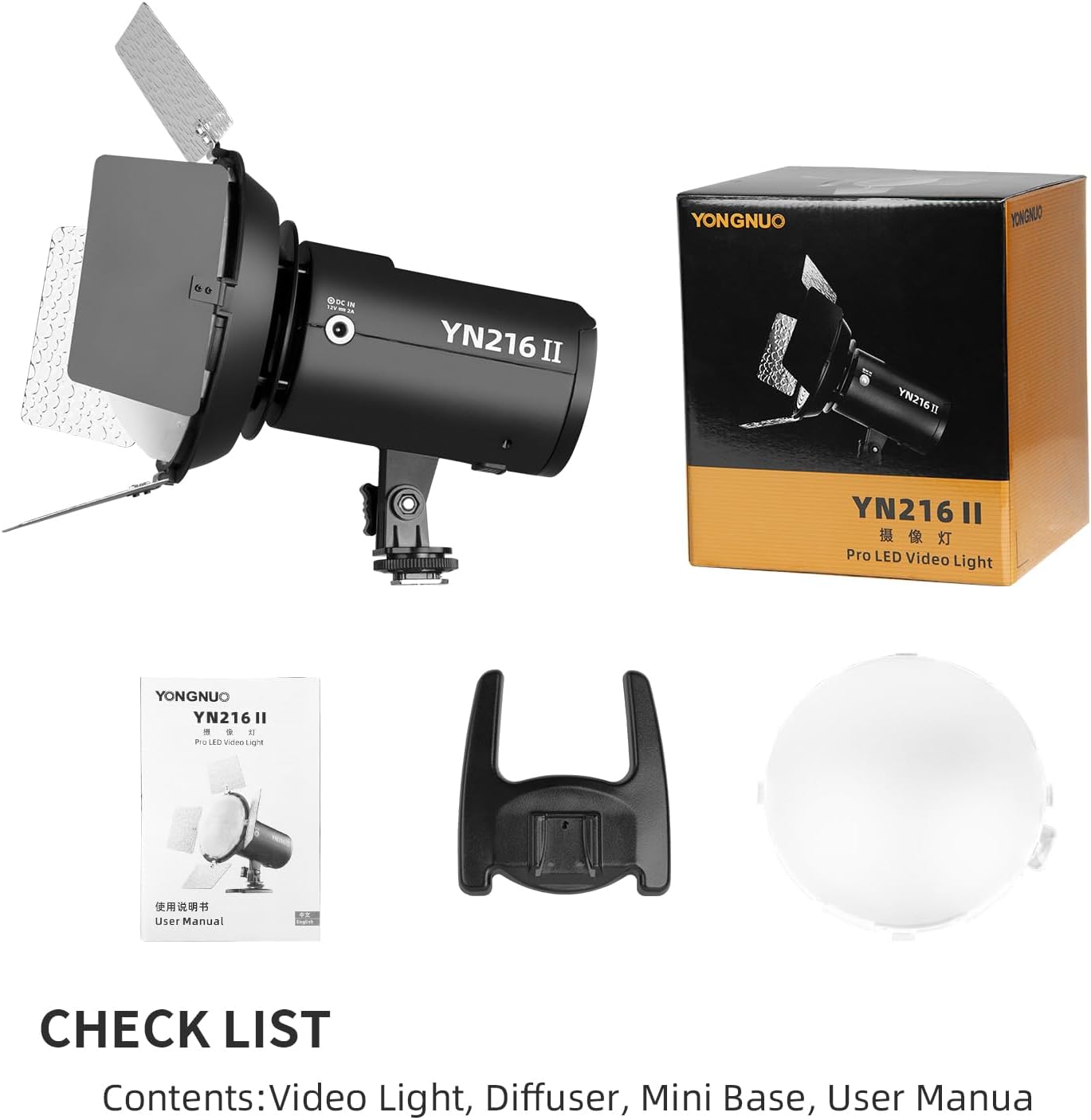

Figure 2.2.1: Package Contents - YN216 II LED Video Light, Diffuser, Mini Base, and User Manual.

3. Impostazione

3.1 Installazione dell'alimentatore

The YN216 II supports three power supply methods:

1. Batteria serie NP-F: Insert one compatible NP-F series battery (e.g., NP-F750, NP-F550, NP-F970) into the battery compartment at the rear of the light. Ensure it clicks securely into place.
2. 12V2A DC Power Adapter: Connect a 12V2A DC power adapter (not included) to the DC IN port on the side of the light.
3. Batterie AA: Open the AA battery compartment and insert 8 AA batteries, ensuring correct polarity.

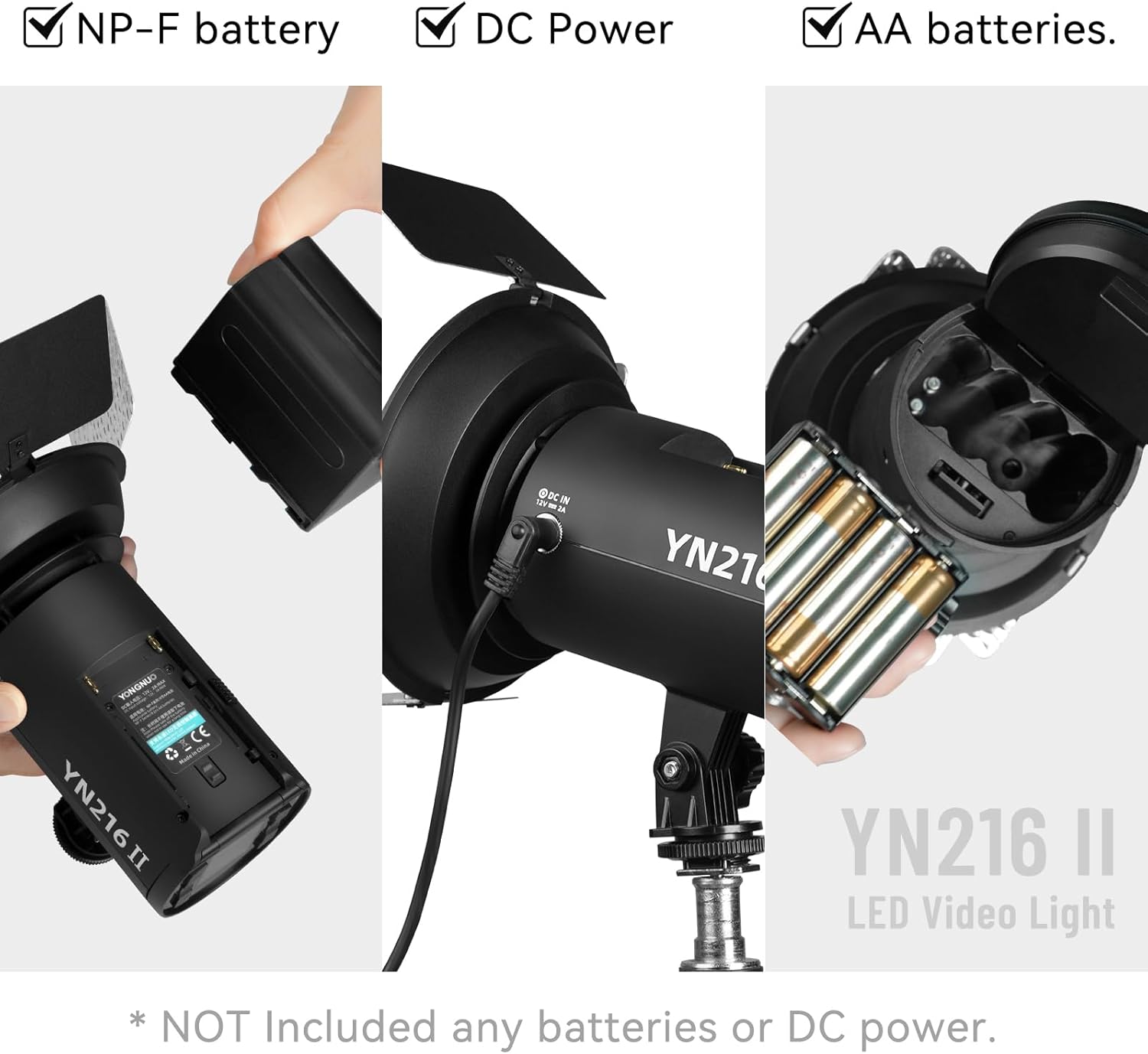

Figure 3.1.1: Power Supply Options - NP-F battery, DC power, and AA batteries.

3.2 Montaggio della luce

The YN216 II can be mounted in two primary ways:

• On-Camera (Hot Shoe Mount): Attach the light to your camera's hot shoe using the integrated metal hot shoe buckle. Secure it by tightening the locking wheel.
• On a Tripod/Light Stand: Use the 1/4-inch screw thread at the bottom of the mini base to mount the light onto a standard tripod or light stand.

Figure 3.2.1: Hot Shoe Mount for camera or tripod attachment.

3.3 Collegamento degli accessori

• Diffusore: The included diffuser can be attached to the front of the light to soften the output and create a more even spread.
• Porte della stalla: The four silver-plating barn doors can be adjusted to control the light beam, allowing for precise shaping and spill control.

Figure 3.3.1: YN216 II with Diffuser Attached.

4. Istruzioni per l'uso

4.1 Accensione/spegnimento

Locate the power button on the unit. Press and hold to turn the light on or off.

4.2 Regolazione della luminosità

The YN216 II features encoder digital dimming, allowing for precise brightness adjustments.

• Rough Dimming: For large adjustments in brightness.
• Fine Dimming: For subtle, precise adjustments.
• Curve di attenuazione: The light supports Exponential, Logarithmic, S-shaped, and Linear dimming curves to suit different lighting needs and creative effects. Select the desired curve via the control panel or mobile app.

Figure 4.2.1: Available Dimming Curves.

4.3 Regolazione della temperatura del colore

The color temperature can be adjusted from 2700K (warm light) to 8000K (cool light) to match ambient lighting or achieve specific creative looks. Use the dedicated controls on the light or the mobile app to change the color temperature.

Figure 4.3.1: Color Temperature Range (2700K - 8000K).

4.4 Using FX Lighting Effects

The YN216 II includes 12 special FX lighting effects. Refer to the user manual's specific section on FX effects for detailed instructions on how to activate and customize them.

4.5 telecomando

The YN216 II offers multiple remote control options for convenience:

• Controllo APP mobile: Download the official YONGNUO app to your smartphone. Connect via Bluetooth to control the light's settings, including brightness, color temperature, and FX effects.
• Telecomando wireless 2.4G: Use a compatible 2.4G wireless remote (if included or purchased separately) to control the light from a distance.

Figure 4.5.1: Mobile APP Wireless Control Mode.

4.6 Multi-Light Interconnection

The YN216 II supports multi-light interconnection, allowing you to control multiple YN216 II units simultaneously from a single remote or the mobile app. Consult the detailed user manual for pairing and group control instructions.

5. Manutenzione

5.1 Pulizia

Per mantenere prestazioni e aspetto ottimali:

• Prima di procedere alla pulizia, assicurarsi che il dispositivo sia spento e scollegato da qualsiasi fonte di alimentazione.
• Use a soft, dry cloth to wipe the exterior of the light.
• Per sporco ostinato, leggermente dampen the cloth with water; avoid using harsh chemicals or abrasive cleaners.
• Gently clean the LED surface with a microfiber cloth to avoid scratching.

5.2 Conservazione

Quando non in uso per periodi prolungati:

• Remove all batteries (NP-F and AA) from the light.
• Store the light in a cool, dry place, away from direct sunlight and extreme temperatures.
• Conservarlo nella confezione originale o in una custodia protettiva per evitare l'accumulo di polvere e danni fisici.

5.3 Cura della batteria

Proper battery care extends battery life and ensures safe operation:

• Always use recommended battery types (NP-F series, AA).
• Non mischiare batterie vecchie e nuove o diversi tipi di batterie.
• Smaltire le batterie usate secondo le normative locali.

6. Risoluzione Dei Problemi

6.1 Problemi comuni

6.2 Consigli generali

• Always refer to the full user manual for comprehensive troubleshooting steps.
• If a problem cannot be resolved, contact YONGNUO customer support.

7. Specifiche

8. Garanzia e supporto

For warranty information and customer support, please refer to the official YONGNUO website or the warranty card included with your product. You may also contact the retailer where you purchased the product for assistance.
